Q1: What is Siemens 6AG1124-2DC01-4AX0 used for?

A: Siemens 6AG1124-2DC01-4AX0 is a SIPLUS HMI KTP400 Comfort operator panel designed for machine operation, process visualization, alarm monitoring, and operator data entry in industrial automation systems. It uses a 4.3-inch TFT color display with a 480 × 272 pixel resolution and supports touch operation. The panel also provides four programmable function keys for frequently used operator commands. As a SIPLUS version with conformal coating, it is intended for industrial environments where additional protection against environmental influences is required.

Q2: Does the 6AG1124-2DC01-4AX0 support touch operation?

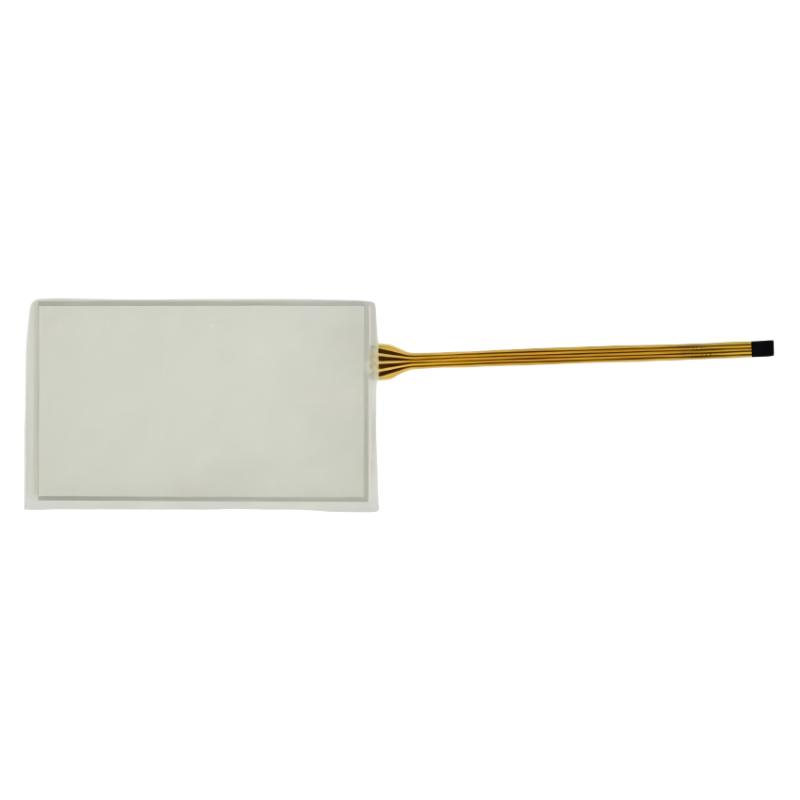

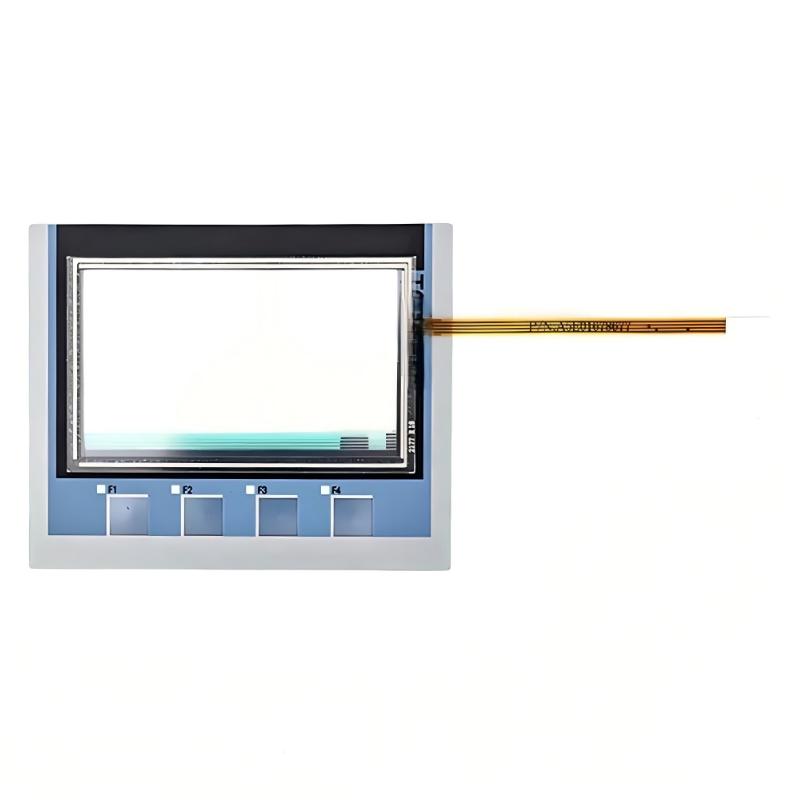

A: Yes. The 6AG1124-2DC01-4AX0 uses a touch-sensitive display as its primary operator interface. Operators can select screen objects, enter process values, acknowledge messages, switch between visualization screens, and operate configured control functions directly through the display. In addition to touch operation, the panel provides four programmable function keys, which can be assigned to frequently used machine or process functions. When configuring the HMI project, touch buttons and function keys can be assigned according to the actual operating requirements of the equipment.

Q3: Which communication interfaces are available on this HMI?

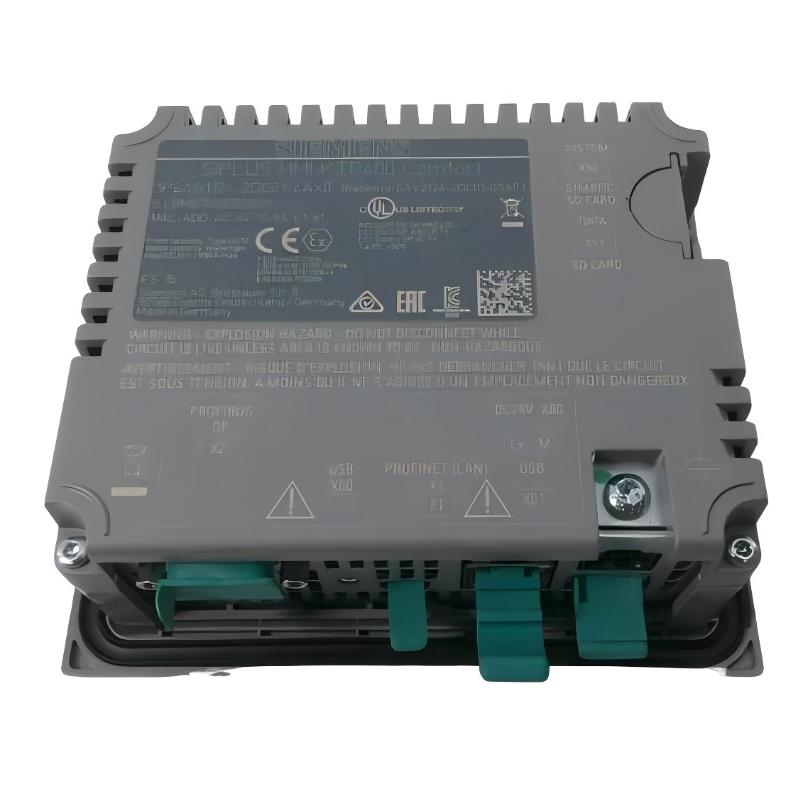

A: The 6AG1124-2DC01-4AX0 provides one Industrial Ethernet interface, one PROFINET interface, one combined RS-422/RS-485 serial interface, and one USB 2.0 Mini-B interface. The Ethernet and PROFINET interfaces are mainly used for communication with PLCs and industrial automation networks. The serial interface can be used with compatible PROFIBUS, MPI, or other supported communication configurations. The USB interface can be used for supported service and data-transfer functions. During commissioning, the selected interface should match the communication configuration of the PLC and the HMI project.

Q4: Which communication protocols are supported by Siemens 6AG1124-2DC01-4AX0?

A: The panel supports PROFINET IO, PROFIBUS, MPI, TCP/IP, and EtherNet/IP. These communication capabilities allow the HMI to be integrated into different industrial automation architectures. The appropriate protocol depends on the connected PLC or controller and the requirements of the automation system. When setting up communication, the HMI project should contain the correct device configuration and communication driver. Network parameters, station addresses, protocol settings, and PLC connection parameters should also be checked. If the HMI cannot exchange process data with the controller, both the physical interface and the software configuration should be inspected.

Q5: What power supply does the 6AG1124-2DC01-4AX0 require?

A: The 6AG1124-2DC01-4AX0 operates from a nominal 24 V DC supply and permits an input voltage range of 19.2 to 28.8 V DC. The power supply should be stable and suitable for industrial automation applications. Correct polarity and wiring must be confirmed before energizing the HMI. If the HMI repeatedly restarts, fails to boot, or becomes unstable during operation, the supply voltage should be measured directly at the device terminals. Voltage drops, insufficient power capacity, loose wiring, and electrical interference can all affect reliable HMI operation.

Q6: What software is used to configure the Siemens 6AG1124-2DC01-4AX0?

A: The KTP400 Comfort can be configured using Siemens WinCC engineering software within the TIA Portal environment. The engineering project defines the visualization screens, process tags, alarms, recipes, user permissions, communication connections, touch buttons, and function-key assignments. When creating or modifying a project, the correct KTP400 Comfort device should be selected so that the appropriate hardware and runtime functions are available. Before downloading the project, the PLC connection and all important HMI tags should be checked to ensure that the project corresponds to the actual automation system.

Q7: What should be checked if the HMI cannot communicate with the PLC?

A: First check whether both the HMI and PLC are correctly powered and operating normally. Then inspect the communication cable, network connection, and interface selection. For PROFINET or Ethernet communication, verify the IP address, subnet parameters, device name where applicable, and network connection. For PROFIBUS or MPI communication, check the station address, bus wiring, communication speed, and other relevant parameters. The HMI project should also be checked to confirm that the correct PLC, protocol, communication driver, and connection parameters are configured. If the physical connection is correct but communication still fails, review the HMI diagnostic information and PLC diagnostic buffer for additional error information.

Q8: What should be considered when replacing an existing HMI with the 6AG1124-2DC01-4AX0?

A: Before replacing an existing HMI, verify the original model, communication method, PLC connection, power supply, project version, and required operator functions. Since the 6AG1124-2DC01-4AX0 uses a touch display together with four programmable function keys, the existing HMI project should be reviewed to ensure that its screen controls and function-key assignments are compatible. The communication configuration, process tags, alarms, recipes, user access levels, and PLC connections should also be checked before downloading the project. After installation, test the display, touch functions, function keys, PLC communication, process values, alarms, and operator controls individually before putting the replacement HMI back into production.
