FAQ

Q1: What is Siemens 6AG1131-4BD01-2AA0 used for?

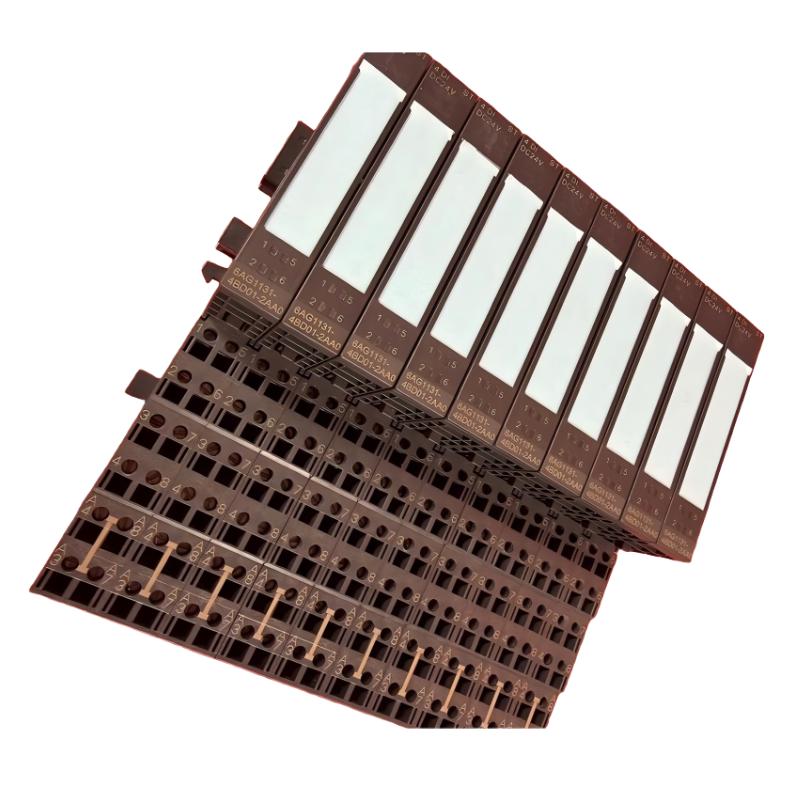

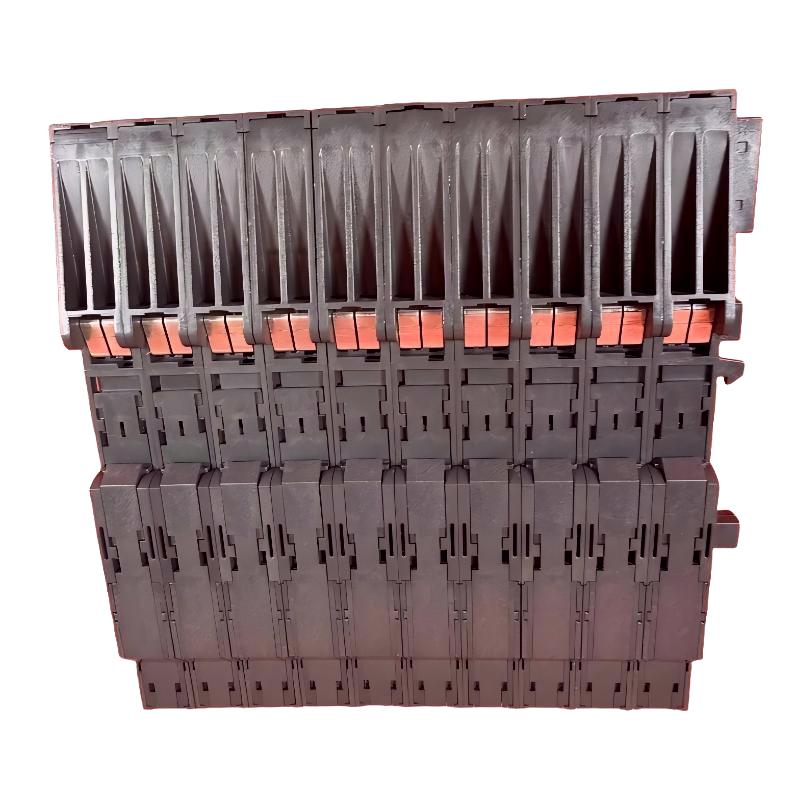

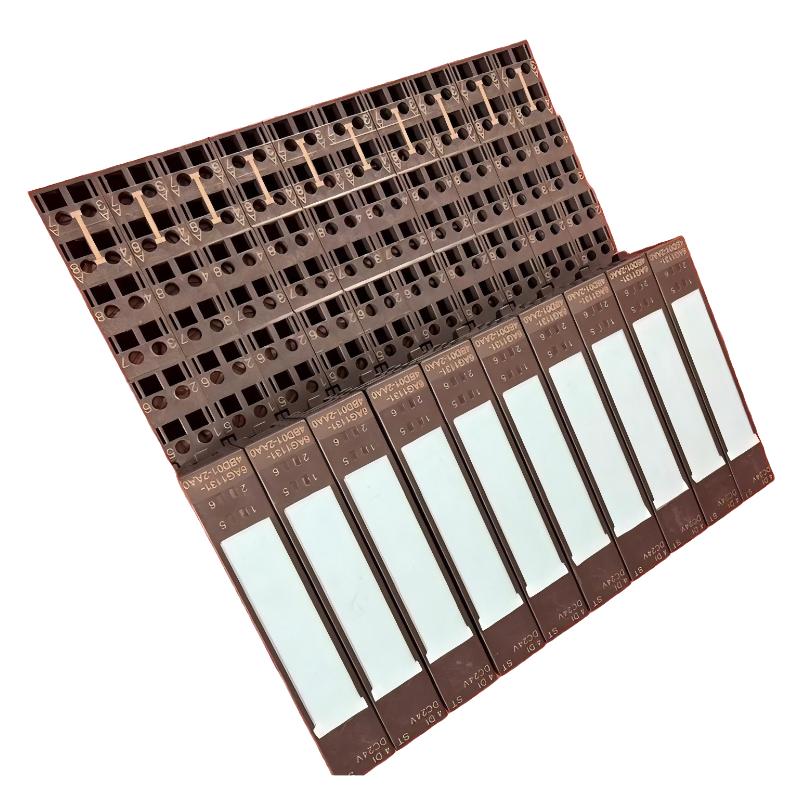

A: Siemens 6AG1131-4BD01-2AA0 is a SIPLUS ET 200S 4-channel digital input module designed for collecting 24 V DC discrete signals in industrial automation systems. It can receive signals from devices such as proximity switches, limit switches, push buttons, and other compatible digital sensors. The module processes the input states and transfers the signal information through the ET 200S backplane bus to the interface module and higher-level PLC or control system. Its conformal coating and extended operating temperature range make it suitable for industrial applications where environmental conditions are more demanding than standard control cabinet installations.

Q2: What input voltage does the 6AG1131-4BD01-2AA0 support?

A: The module is designed for 24 V DC digital input signals. An input voltage from -30 to +5 V is recognized as signal “0”, while +15 to +30 V is recognized as signal “1”. The typical input current is approximately 7 mA at 24 V DC. This input characteristic is suitable for common industrial switching devices and digital sensors. During installation, the field device output voltage should be checked to ensure that it falls within the specified input range. A signal that remains between the defined “0” and “1” thresholds may not be reliably detected by the input channel.

Q3: How many digital input channels does the 6AG1131-4BD01-2AA0 provide?

A: The 6AG1131-4BD01-2AA0 provides four independent digital input channels. Each channel can monitor a separate 24 V DC switching signal from a compatible field device. A green LED is provided for each input channel, allowing technicians to check the current input state during commissioning and maintenance. If an individual input does not respond as expected, the corresponding sensor, field wiring, supply voltage, terminal connection, and input signal should be checked. If several channels fail at the same time, the common power supply, terminal assembly, interface module, and ET 200S backplane should also be inspected.

Q4: Can the 6AG1131-4BD01-2AA0 be used with two-wire sensors?

A: Yes. The module supports compatible two-wire sensors and digital switching devices. When using two-wire sensors, the sensor’s residual or leakage current should be considered because the permitted static current is limited. The sensor output characteristics should be compared with the input requirements of the module before installation. In practical applications, proximity sensors, limit switches, and other 24 V DC digital devices can be connected when their electrical characteristics are compatible. Incorrect sensor selection can result in an input remaining active when it should be inactive, so sensor leakage current should be checked when troubleshooting unexpected input states.

Q5: What is the input response time of the 6AG1131-4BD01-2AA0?

A: The digital input response time is approximately 2 to 4.5 ms, with a typical value of around 3 ms. This parameter represents the time required for a valid input signal change to be processed by the module. It is suitable for standard industrial switching applications such as push buttons, limit switches, proximity detection, and machine status monitoring. For applications involving high-frequency pulses or strict response-time requirements, the complete system response should be evaluated, including the sensor, input module, ET 200S communication cycle, PLC scan time, and application program processing time.

Q6: Is the 6AG1131-4BD01-2AA0 suitable for demanding industrial environments?

A: The 6AG1131-4BD01-2AA0 belongs to the SIPLUS product family and features conformal coating. It is specified for an operating temperature range of -25 to +60 °C, providing a broader environmental operating range than many standard automation modules. The conformal coating provides additional protection for the electronics against certain environmental influences. However, the module should still be installed according to the applicable environmental requirements. Proper enclosure protection, ventilation, contamination control, and protection from excessive humidity or corrosive substances remain important for reliable long-term operation.

Q7: How should I troubleshoot an input channel that does not detect a signal?

A: Start by checking whether the connected sensor or switching device is operating correctly. Measure the voltage directly at the corresponding input terminal and verify that the signal reaches the required logic “1” level. If the voltage is too low, inspect the field power supply, sensor output, cable, and terminal connections. If the correct input voltage is present but the channel LED does not change state, check the module installation, terminal assembly, ET 200S system status, and configuration. The sensor type and its electrical characteristics should also be verified. If several input channels show the same problem, investigate common power, backplane, interface module, and system-level causes before assuming that individual input channels have failed.

Q8: How does the 6AG1131-4BD01-2AA0 operate within an ET 200S system?

A: The 6AG1131-4BD01-2AA0 operates as a digital input module within the ET 200S distributed I/O system. Field devices are connected to the module through the appropriate terminal assembly, and the module detects the status of the four digital input channels. The collected input data is transferred through the ET 200S backplane bus to the interface module and then made available to the higher-level PLC or control system. The module itself does not function as an independent fieldbus master. During commissioning, the module installation, terminal wiring, input signals, interface module, PLC hardware configuration, and communication settings should all be verified to ensure reliable signal transmission.
