Q1: What is Siemens 6AG1131-4BD01-7AB0 used for?

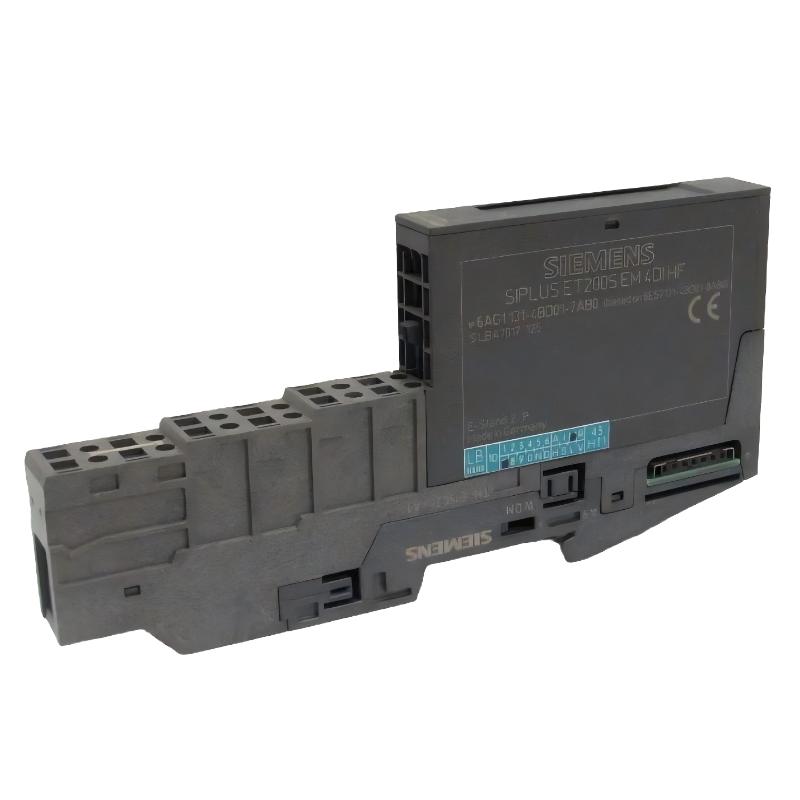

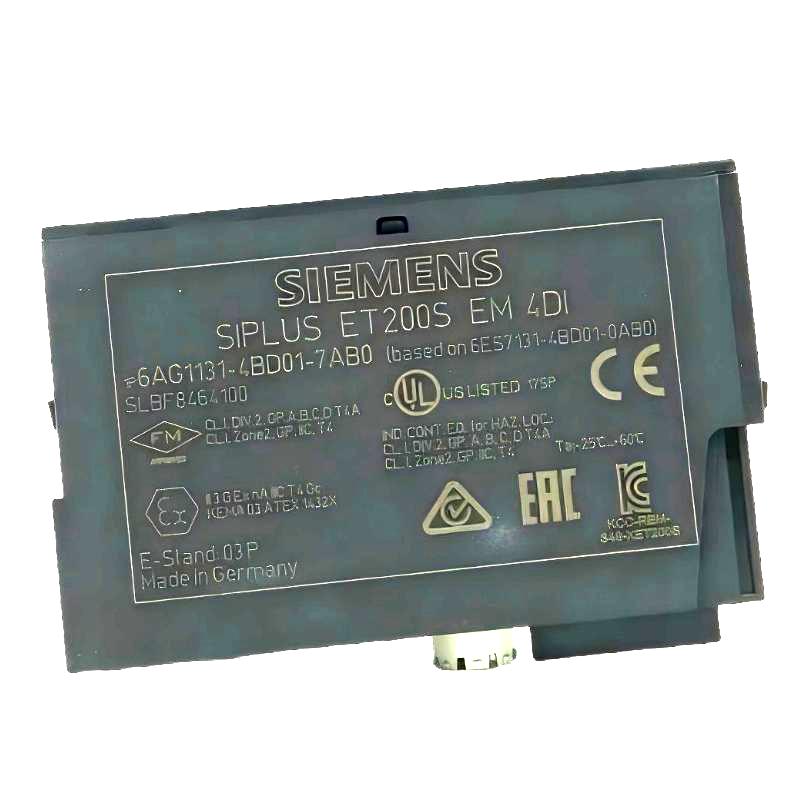

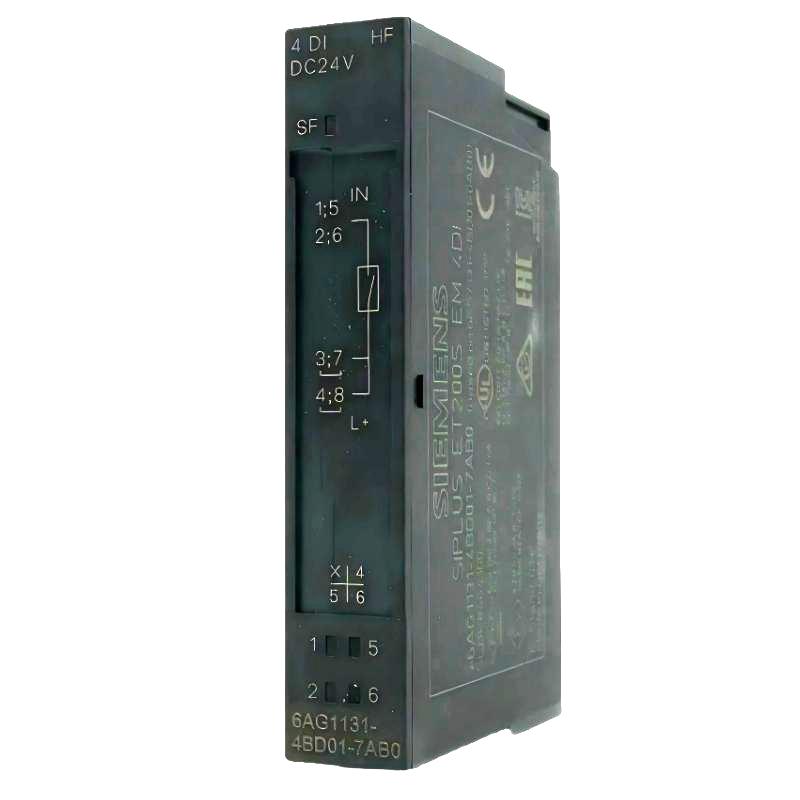

A: Siemens 6AG1131-4BD01-7AB0 is a SIPLUS ET 200S high-feature digital input module with four 24 V DC input channels. It is designed to collect discrete signals from industrial field devices such as proximity sensors, limit switches, push buttons, and other compatible switching devices. The module processes the input states and transfers the data through the ET 200S backplane system to the associated interface module and higher-level controller. Compared with a basic digital input module, the high-feature version provides parameterizable input delay and additional diagnostic functions, making it suitable for applications that require more detailed signal monitoring and configuration flexibility.

Q2: What input voltage does the 6AG1131-4BD01-7AB0 support?

A: The module uses a nominal 24 V DC input signal. An input voltage from -30 to +5 V is interpreted as signal “0”, while +11 to +30 V is interpreted as signal “1”. The typical input current at signal “1” is approximately 8 mA. These electrical characteristics make the module suitable for common 24 V DC industrial sensors and switching devices. When commissioning the system, the actual voltage at each input should be checked if a signal is not detected correctly. The field device output voltage must remain within the specified range to ensure reliable switching recognition.

Q3: How many input channels does the 6AG1131-4BD01-7AB0 provide?

A: The 6AG1131-4BD01-7AB0 provides four digital input channels and does not provide digital output channels. Each input can independently monitor a 24 V DC switching signal. The module can therefore be used to collect several independent machine-status or sensor signals within an ET 200S distributed I/O station. During commissioning, each input channel should be tested individually so that wiring errors, incorrect sensor signals, and configuration problems can be identified before the complete automation system is placed into operation.

Q4: Can the input delay of the 6AG1131-4BD01-7AB0 be configured?

A: Yes. One of the important features of this high-feature digital input module is its parameterizable input delay. The available settings are 0.1 ms, 0.5 ms, 3 ms, and 15 ms. Adjusting the input delay allows the module to be configured according to the switching characteristics of the connected field devices and the requirements of the automation application. A shorter delay can be used where faster signal detection is required, while a longer delay can help prevent unwanted reactions to short disturbances or unstable switching signals. The selected value should be evaluated together with the PLC scan cycle and overall control response time.

Q5: What types of sensors can be connected to the 6AG1131-4BD01-7AB0?

A: The module supports compatible two-wire sensors and other 24 V DC digital switching devices. Typical applications include proximity sensors, limit switches, push buttons, and machine-position monitoring devices. When using two-wire sensors, the sensor’s residual or leakage current must be considered. The maximum permissible static current for a two-wire sensor is 1.5 mA. Before connecting a sensor, its output type, supply voltage, current characteristics, and switching behavior should be compared with the module specifications. This helps prevent false input states and ensures reliable signal detection.

Q6: What diagnostic functions are available on the 6AG1131-4BD01-7AB0?

A: The 6AG1131-4BD01-7AB0 provides diagnostic functions intended to assist with system commissioning and maintenance. The module supports diagnostic monitoring and short-circuit-related diagnostics, with a red SF diagnostic LED used to indicate module fault conditions. These functions can help maintenance personnel identify problems without immediately removing the module from the system. When a diagnostic indication appears, the field wiring, connected devices, terminal module, module installation, and ET 200S station status should be checked systematically. Diagnostic information from the PLC or interface module should also be reviewed when available.

Q7: What should be checked if an input channel does not detect a 24 V signal?

A: First verify that the field sensor or switching device is functioning correctly. Measure the voltage directly at the relevant input terminal and confirm that it reaches the required signal “1” range of +11 to +30 V DC. If the voltage is missing or too low, inspect the field power supply, sensor output, wiring, and terminal connections. If the correct voltage is present but the input state does not change, check the ET 200S module installation, terminal module, input configuration, and diagnostic indicators. The configured input delay should also be considered when testing rapid signal changes. If multiple input channels are affected simultaneously, common power, bus, terminal, or interface-module problems should be investigated.

Q8: How does the 6AG1131-4BD01-7AB0 work within an ET 200S system?

A: The 6AG1131-4BD01-7AB0 functions as an electronic digital input module within an ET 200S distributed I/O station. Field devices are connected through the appropriate terminal module, and the four input channels detect the status of the connected 24 V DC signals. The module transfers the collected input data through the ET 200S backplane bus to the corresponding interface module, which communicates with the higher-level control system. During installation and commissioning, the terminal module, input wiring, module position, station configuration, interface module, and PLC hardware configuration should all be checked. Correct coordination between these components is essential for reliable digital signal acquisition.
