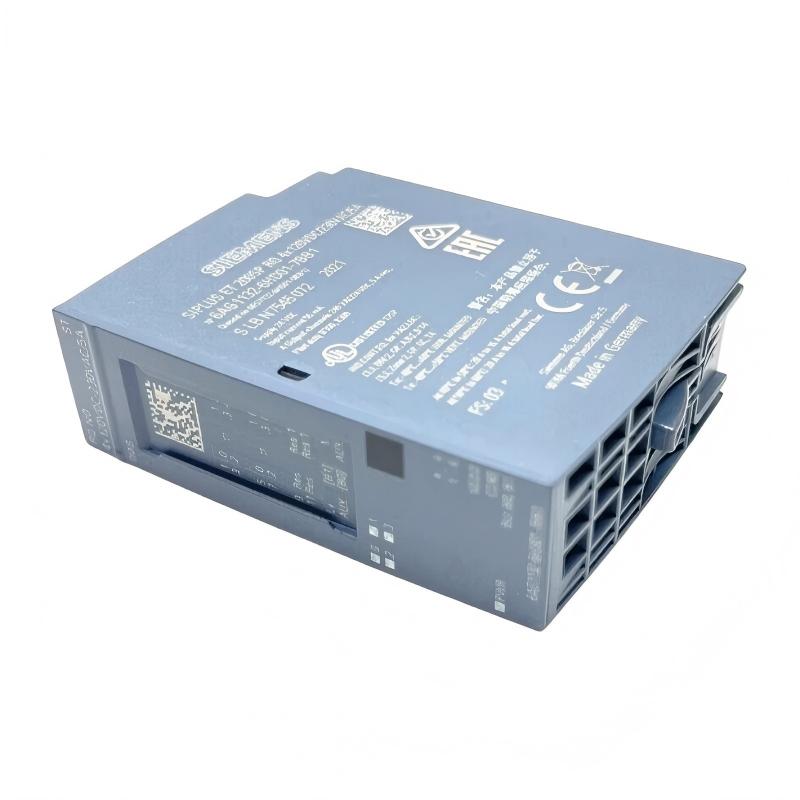

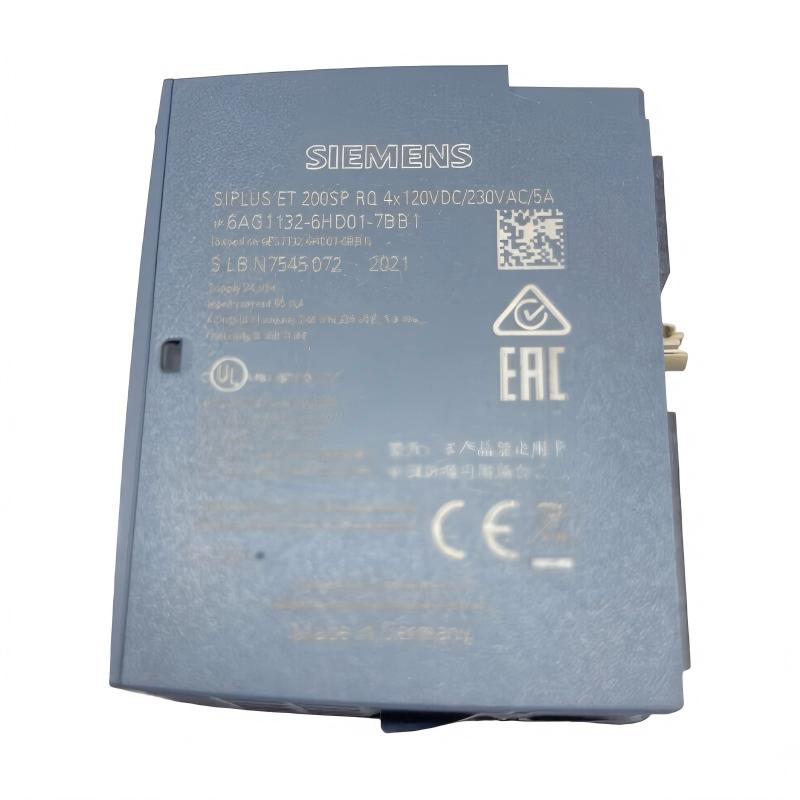

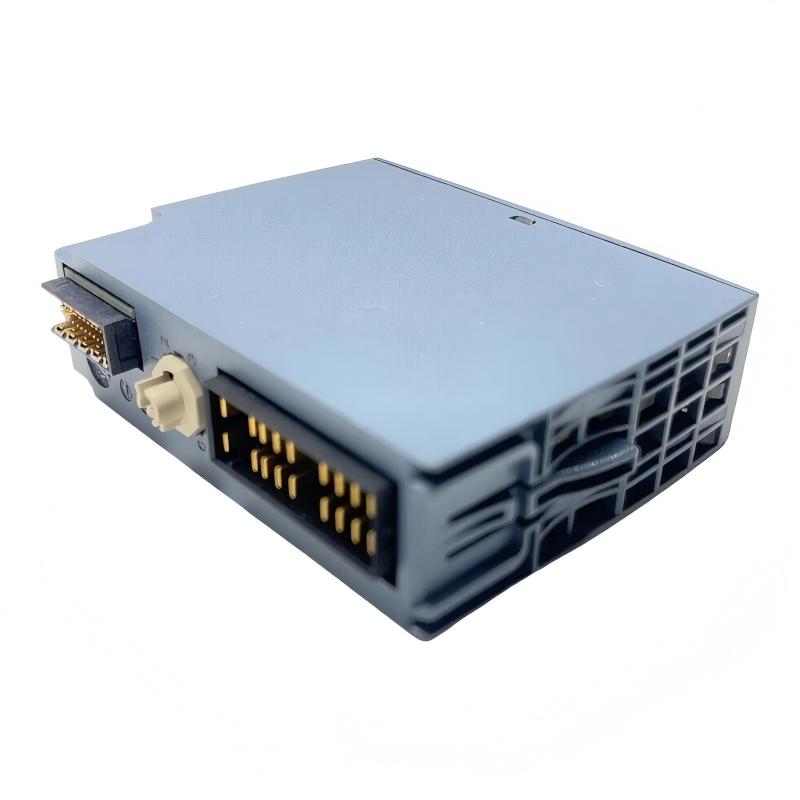

Siemens 6AG1132-6HD01-7BB1 Digital Output Module
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 13666084105 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Description |
|---|---|
| Manufacturer | Siemens |
| Model | 6AG1132-6HD01-7BB1 |
| Product Series | SIPLUS ET 200SP |
| Product Type | Digital Output Relay Module |
| Function | Digital output control |
| Number of Outputs | 4 relay outputs |
| Output Type | Normally Open (NO) relay contacts |
| Rated Relay Coil Voltage | 24 V DC |
| Permissible Supply Voltage | 19.2–28.8 V DC |
| Rated Switching Voltage (AC) | 24–230 V AC |
| Rated Switching Voltage (DC) | 24–120 V DC |
| Maximum Current per Channel | 5 A |
| Maximum Total Module Current | 20 A, subject to installation and temperature derating |
| Maximum Switching Frequency (Resistive Load) | 2 Hz |
| Maximum Switching Frequency (Inductive Load) | 0.5 Hz |
| Short-Circuit Protection | No |
| Diagnostic Functions | Module diagnostics and supply-voltage monitoring |
| Status Indicators | PWR LED, channel status LEDs, DIAG LED |
| Protective Coating | Conformal coating |
| Operating Temperature | -40°C to +70°C |
| Compatible BaseUnit Types | B0 or B1 |
| Dimensions | 20 × 73 × 58 mm |
| Weight | 0.04 kg |
FAQ
Q1: What is the primary function of the Siemens 6AG1132-6HD01-7BB1 module?
A: The Siemens 6AG1132-6HD01-7BB1 is a SIPLUS ET 200SP relay output module used to switch external electrical loads through four normally open relay contacts. Typical applications include controlling contactors, solenoid valves, indicator lamps, and other industrial actuators within an automation system.
Q2: How many output channels does this module provide?
A: The module provides four independent relay output channels. Each channel can switch a compatible load within the specified voltage and current limits. The application wiring and load characteristics should be checked before commissioning.
Q3: What output voltage ranges does the 6AG1132-6HD01-7BB1 support?
A: The relay contacts support rated switching voltages from 24 V AC to 230 V AC and from 24 V DC to 120 V DC. The selected voltage must remain within the manufacturer’s specifications and the requirements of the connected load.
Q4: What is the maximum switching current per channel?
A: The maximum rated current is 5 A per channel under specified operating conditions. Actual permissible current depends on the load type, ambient temperature, installation orientation, and total current across the module. Inductive loads may require additional consideration.
Q5: Does the module provide short-circuit protection?
A: No. The relay outputs do not provide integrated short-circuit protection. Appropriate external overcurrent protection must be installed in accordance with the load circuit design and applicable electrical safety requirements.
Q6: What diagnostic functions are available?
A: The module supports module-level diagnostics and supply-voltage monitoring. Its PWR, channel-status, and DIAG LEDs help technicians identify operating states and certain module or supply issues. It does not provide dedicated channel-level diagnostics for every output fault.
Q7: What BaseUnit is compatible with this relay output module?
A: The 6AG1132-6HD01-7BB1 is designed for compatible ET 200SP BaseUnits of type B0 or B1. Confirm the exact BaseUnit and terminal arrangement against the system configuration before installation or replacement.
Q8: What should be checked if an output fails to switch a load?
A: Check the 24 V DC module supply, PLC output command, channel wiring, external protection devices, and load condition. Confirm that the connected load’s voltage and current are within the relay contact ratings. Also inspect the module LEDs and diagnostic information. Before testing or rewiring, isolate hazardous voltages and follow the site’s electrical safety procedures.
Siemens 6AG1132-6HD01-7BB1 Digital Output Module is in stock. Please contact us for a quick quote and competitive pricing.
