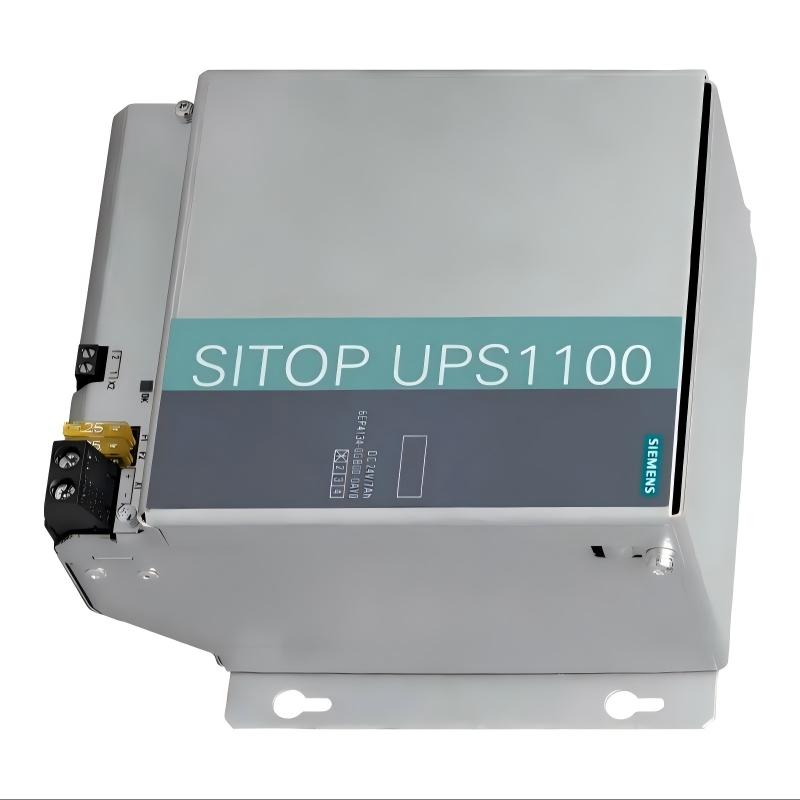

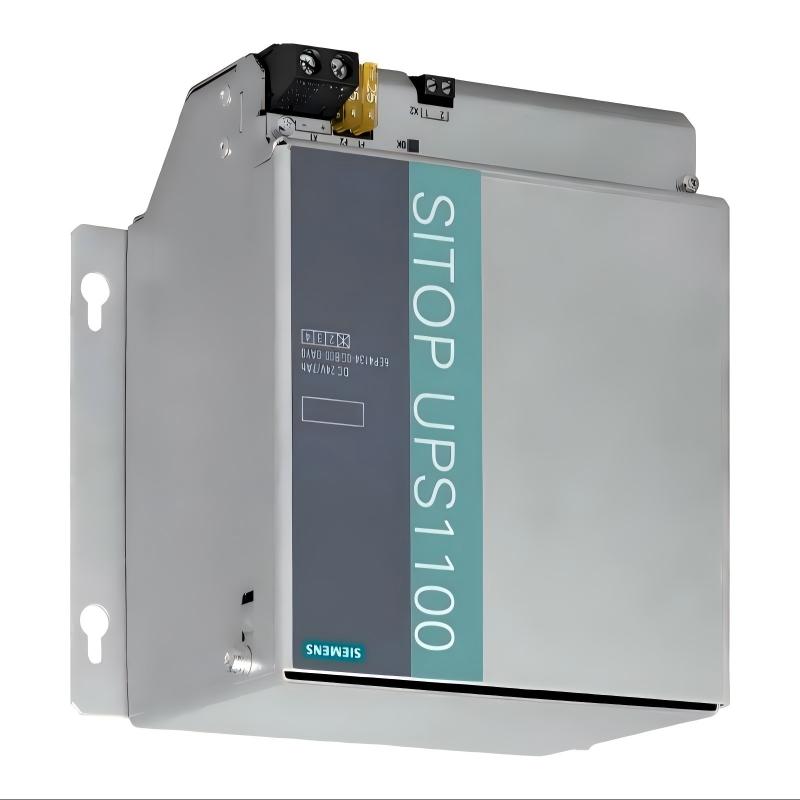

Siemens 6AG1134-0GB00-4AY0 Battery Module
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 13666084105 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Description |
|---|---|
| Manufacturer | Siemens |
| Model | 6AG1134-0GB00-4AY0 |
| Product Series | SIPLUS PS UPS1100 |
| Product Type | Battery Module |
| Base Model | 6EP4134-0GB00-0AY0 |
| Application | Battery backup for SITOP 24 V DC UPS systems |
| Battery Technology | Maintenance-free, sealed lead-acid batteries |
| Rated Output Voltage | 24 V DC |
| Battery Capacity | 7 Ah |
| Rated Output Current | 40 A |
| Maximum Output Current in Buffering Mode | 40 A |
| Peak Current | 120 A for 30 ms |
| Maximum Charging Current | 2.1 A |
| Number of Battery Cells | 12 |
| Short-Circuit Protection | 2 × 25 A / 32 V battery fuses |
| Connection Type | Screw terminals |
| Battery Connection Terminal Capacity | 0.5–16 mm² |
| Control and Status Signal Terminal Capacity | 0.14–4 mm² |
| Status Indication | LED status indication for battery condition and communication |
| Protection Rating | IP20 |
| Operating Temperature | -15°C to +50°C |
| Protective Coating | Conformal coating |
| Mounting Type | Wall mounting |
| DIN Rail Mounting | Not supported |
| Dimensions | 186 × 186 × 110 mm |
| Weight | 6.1 kg |
FAQ
Q1: What is the main function of the Siemens 6AG1134-0GB00-4AY0 battery module?
A: The Siemens 6AG1134-0GB00-4AY0 is a SIPLUS PS UPS1100 battery module designed to provide backup energy for compatible SITOP 24 V DC uninterruptible power supply systems. It helps maintain power to connected control equipment during a primary DC supply interruption, allowing critical automation functions to continue or shut down in a controlled manner.
Q2: What is the rated voltage and battery capacity of this module?
A: The module has a rated output voltage of 24 V DC and a battery capacity of 7 Ah. These ratings help determine its suitability for a particular UPS application. Actual backup time depends on the connected load, battery condition, ambient temperature, and operating conditions.
Q3: Which Siemens UPS systems are compatible with the 6AG1134-0GB00-4AY0?
A: This battery module is intended for compatible SITOP DC UPS modules operating at 24 V DC, particularly within the SITOP UPS1100 product family. Before installation, verify compatibility with the specific UPS controller, charging characteristics, and system configuration.
Q4: What are the rated output current and peak current?
A: The rated output current is 40 A, and the specified peak current is 120 A for 30 ms. These values should be considered when evaluating load startup requirements and transient current demand. The actual application must remain within the manufacturer’s electrical ratings.
Q5: Does the battery module require regular maintenance?
A: The module uses maintenance-free, sealed lead-acid batteries, so routine electrolyte replenishment is not required. However, periodic inspection of terminal connections, battery status indicators, charging performance, and backup operation is recommended. Battery replacement should be based on condition, service life, and the manufacturer’s maintenance guidance.
Q6: What protection features are provided by the module?
A: The module includes battery circuit protection using two 25 A / 32 V battery fuses. It also has IP20 protection and a conformal coating intended to improve resistance to challenging environmental conditions. External installation and circuit protection must still comply with the applicable electrical safety requirements.
Q7: What should be checked if the battery module does not provide backup power?
A: First, inspect the battery connections, polarity, fuse condition, and charging supply. Then check the UPS controller’s status indicators and communication with the battery module. If the battery is not charging or backup operation is unavailable, assess battery condition and verify that the UPS configuration and charging parameters are correct before replacing components.
Q8: How should the 6AG1134-0GB00-4AY0 be installed and stored?
A: Install the module on a suitable wall or flat mounting surface, following the manufacturer’s clearance and wiring instructions. DIN rail mounting is not supported. During storage, keep the battery fully charged where specified and store it in a suitable environment, preferably between 0°C and +20°C, while avoiding prolonged storage and checking its condition periodically. Disconnect power and follow battery safety procedures before performing installation or maintenance work.
Siemens 6AG1134-0GB00-4AY0 Battery Module is in stock. Please contact us for a quick quote and competitive pricing.
