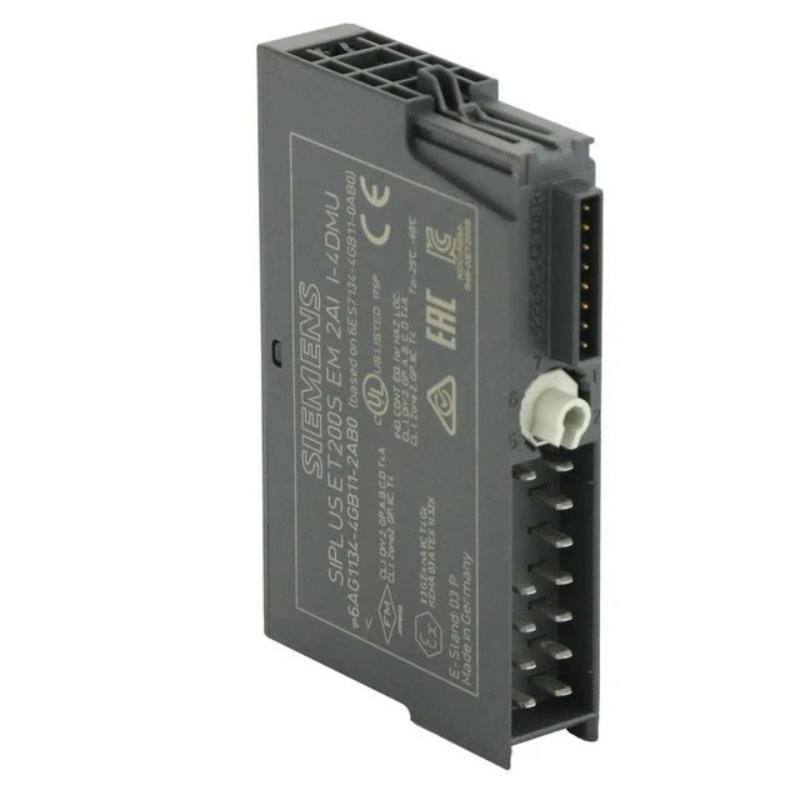

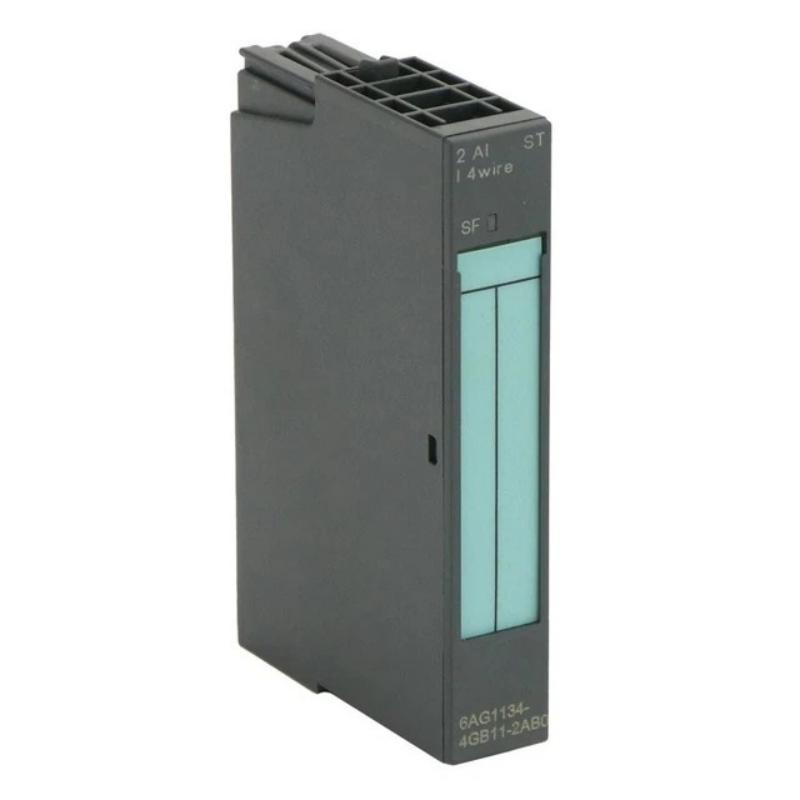

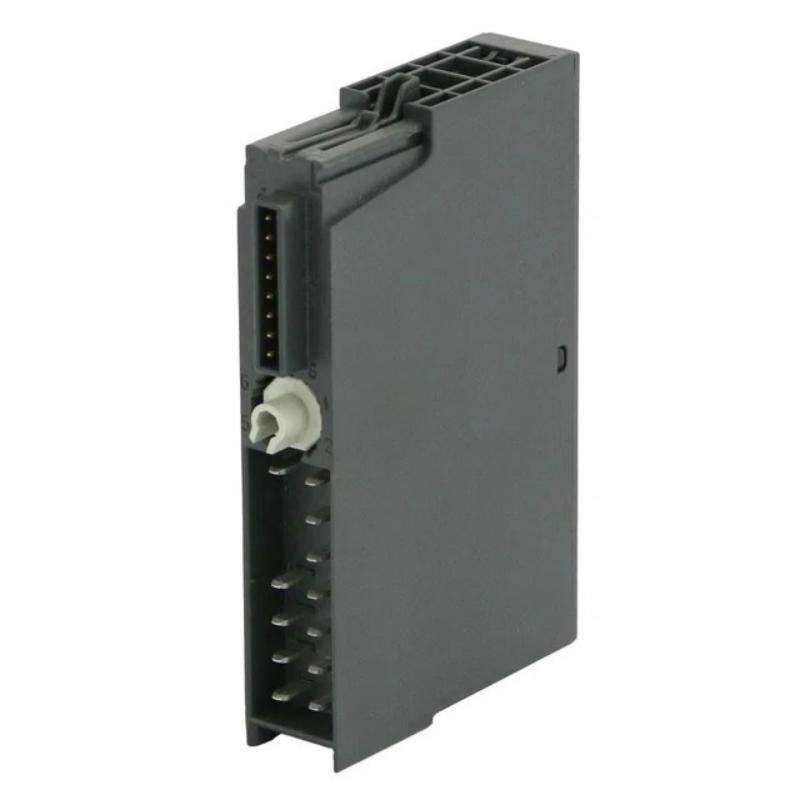

Siemens 6AG1134-4GB11-2AB0 Analog Input Module
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 13666084105 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Description |
|---|---|
| Product Model | Siemens 6AG1134-4GB11-2AB0 |
| Product Type | Analog Input Module |
| Product Series | SIPLUS ET 200S |
| Product Description | EM 2AI I-4DMU, 2-channel analog current input module for 4-wire transducers |
| Base Model | 6ES7134-4GB11-0AB0 |
| Number of Analog Inputs | 2 |
| Input Signal Type | Current |
| Supported Input Ranges | 4–20 mA, -20 mA to +20 mA |
| Input Resistance | 50 Ω |
| Maximum Permissible Input Current | 40 mA |
| Resolution | Up to 14 bits including sign; 13 bits for 4–20 mA range |
| Conversion Time | Approximately 55/65 ms per channel, depending on interference frequency |
| Integration Time | 16.7 / 20 ms |
| Interference Frequency Suppression | 50 / 60 Hz |
| Digital Filtering | Four selectable filter levels |
| Wire Break Detection | Supported in the 4–20 mA measuring range |
| Diagnostics | Group fault, overrange and underrange detection |
| Diagnostic Indicator | Red SF LED |
| Rated Load Voltage | 24 V DC, supplied through the power module |
| Maximum Current Consumption from L+ | 30 mA, without load |
| Backplane Bus Current Consumption | Maximum 10 mA at 3.3 V DC |
| Typical Power Dissipation | 0.6 W |
| Maximum Shielded Cable Length | 200 m |
| Electrical Isolation | Isolated from the backplane bus; channels are not isolated from each other |
| Operating Temperature | -25°C to +60°C |
| Protective Coating | Conformal coating for enhanced environmental resistance |
| Dimensions | 15 × 81 × 52 mm |
| Weight | 0.04 kg |
FAQ
Q1: What is the main function of the Siemens 6AG1134-4GB11-2AB0 Analog Input Module?
A: This module acquires analog current signals from field instruments and converts them into digital values for a PLC or distributed control system. It is suitable for monitoring process variables such as pressure, flow, temperature and level when compatible 4-wire current-output transducers are used.
Q2: How many analog input channels does this module provide?
A: The module provides two analog current input channels. Each channel can be configured for a supported current range, including 4–20 mA and -20 mA to +20 mA, according to the application requirements.
Q3: Can the module work with standard 4–20 mA transmitters?
A: Yes. It supports 4–20 mA current signals from compatible transmitters. During commissioning, verify the transmitter wiring, signal range, channel configuration and PLC scaling to ensure that the measured values correspond correctly to the engineering units.
Q4: What is the difference between the 4–20 mA and ±20 mA input ranges?
A: The 4–20 mA range is commonly used for industrial process instrumentation, with 4 mA representing the lower end of the measuring range. The ±20 mA range supports positive and negative current values. The selected range affects resolution and signal interpretation, so the module configuration must match the connected instrument.
Q5: Does the 6AG1134-4GB11-2AB0 support wire-break detection?
A: Yes. Wire-break detection is available when the channel operates in the 4–20 mA measuring range. If a fault is reported, inspect the signal cable, terminal connections, transmitter power supply and current loop before replacing the module.
Q6: How can signal noise or unstable readings be reduced?
A: Check cable shielding, grounding, routing and terminal connections first. Keep analog signal cables away from high-current and switching cables where practical. The module also provides selectable digital filtering, which can reduce signal fluctuations at the expense of a slower response.
Q7: What environmental conditions is this module designed for?
A: The SIPLUS version is specified for an operating temperature range of -25°C to +60°C and includes a conformal coating for improved resistance to demanding environmental conditions. Installation should still follow the applicable cabinet, wiring and environmental requirements.
Q8: What should be checked if the PLC displays an incorrect analog value?
A: Confirm the configured input range and channel settings, then check the transmitter output, loop wiring, terminal contacts and grounding. Measure the actual current with a suitable meter and compare it with the PLC raw value. Also review diagnostic indicators and software scaling before concluding that the module is defective.
Siemens 6AG1134-4GB11-2AB0 Analog Input Module is in stock. Please contact us for a quick quote and competitive pricing.
