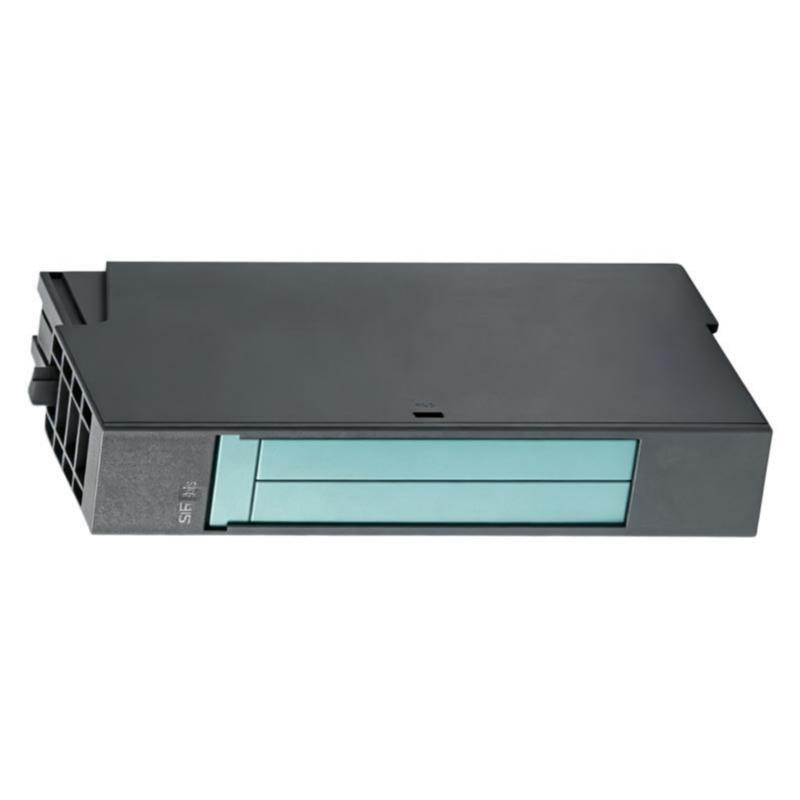

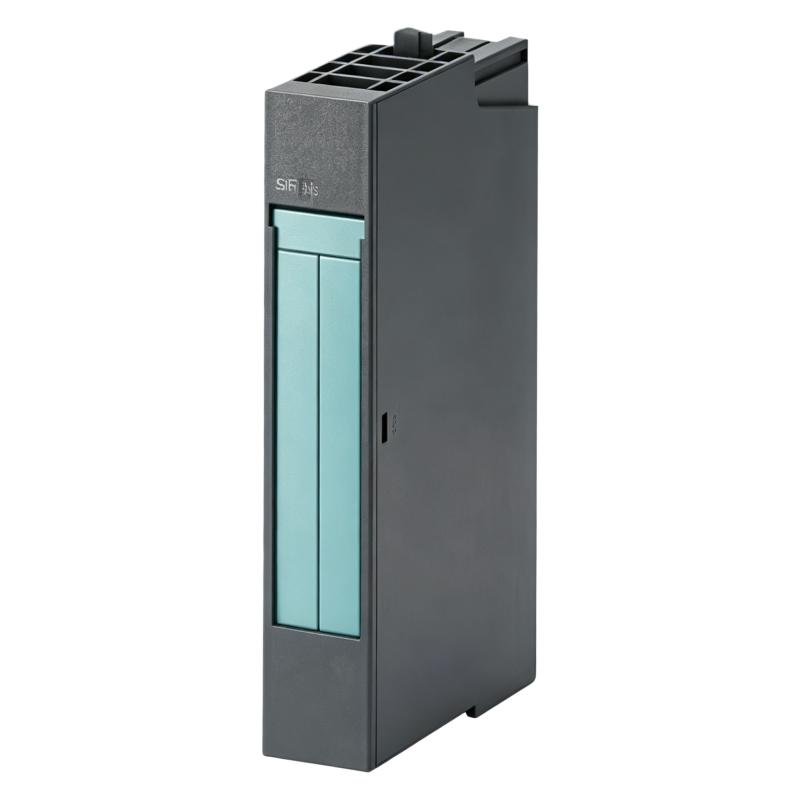

Siemens 6AG1134-4GB52-2AB0 Analog Input Module
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 13666084105 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Description |
|---|---|
| Product Model | Siemens 6AG1134-4GB52-2AB0 |
| Product Type | Analog Input Module |
| Product Series | SIPLUS ET 200S |
| Product Description | EM 2AI High Speed Analog Input Module |
| Base Model | 6ES7134-4GB52-0AB0 |
| Number of Analog Inputs | 2 |
| Input Signal Type | Analog Current |
| Supported Input Ranges | 0–20 mA, 4–20 mA |
| Input Resistance | 106 Ω for 0–20 mA |
| Maximum Resolution | 16 bits, including sign |
| Maximum Cycle Time | 0.25 ms for all channels |
| Measurement Accuracy at 25°C | ±0.2% of input range |
| Measurement Accuracy Across Operating Temperature Range | ±0.3% of input range |
| Two-Wire Transmitter Connection | Supported |
| Transmitter Power Supply | Integrated supply for measuring transducers |
| Wire Break Detection | Supported for 4–20 mA signals |
| Diagnostic Functions | Group fault, wire break, overrange and underrange detection |
| Diagnostic Indicator | Red SF LED |
| Rated Load Voltage | 24 V DC |
| Short-Circuit Protection | Supported |
| Reverse Polarity Protection | Supported |
| Maximum Current Consumption from L+ | 225 mA |
| Maximum Backplane Bus Current Consumption | 10 mA at 3.3 V DC |
| Typical Power Dissipation | 2.5 W |
| Maximum Shielded Cable Length | 200 m |
| Electrical Isolation | Isolated from the backplane bus; input channels are not isolated from each other |
| Operating Temperature | -25°C to +60°C |
| Environmental Protection | Conformal coating for improved resistance to harsh industrial environments |
| Protection Rating | IP20, depending on the installed terminal assembly |
| Mounting System | Siemens ET 200S distributed I/O system |
| Dimensions | 15 × 81 × 52 mm |
| Weight | 0.04 kg |
FAQ
Q1: What is the main function of the Siemens 6AG1134-4GB52-2AB0 Analog Input Module?
A: This module acquires analog current signals from industrial field instruments and converts them into digital values for processing by a PLC or distributed control system. Its high-speed design makes it suitable for applications requiring rapid acquisition of process signals, such as pressure, flow and level monitoring.
Q2: How many input channels does this module provide?
A: The module provides two analog current input channels. It supports 0–20 mA and 4–20 mA signals, allowing two compatible transmitters to be monitored through a single module. Each channel must be configured to match the connected instrument and application.
Q3: What makes the 6AG1134-4GB52-2AB0 a high-speed analog input module?
A: Its maximum cycle time for all channels is 0.25 ms, making it suitable for applications that require fast signal acquisition. Actual system response also depends on the PLC scan cycle, signal processing, configured filtering and the performance of connected field instruments.
Q4: Can this module be used with two-wire current transmitters?
A: Yes. The module supports two-wire transmitter connections for compatible current-measuring applications. Before installation, verify the transmitter’s supply requirements, current range, wiring polarity and loop configuration to ensure reliable operation.
Q5: Does the module support wire-break and overrange diagnostics?
A: Yes. It supports wire-break detection in the 4–20 mA range, along with group fault and overrange or underrange diagnostics. If an error occurs, inspect the signal loop and wiring, then check the module’s SF diagnostic indicator and PLC diagnostic information.
Q6: What accuracy can be expected from the 6AG1134-4GB52-2AB0?
A: The specified basic error limit at 25°C is ±0.2% of the input range. Across the full operating temperature range, the operational error limit is ±0.3%. Overall measurement performance also depends on the connected transmitter, wiring conditions, electrical interference and system configuration.
Q7: Can this module operate in harsh industrial environments?
A: Yes. The SIPLUS version includes a conformal coating designed to improve resistance to demanding environmental conditions. Its specified operating temperature range is -25°C to +60°C. Correct cabinet installation, suitable terminal assemblies and compliance with the applicable environmental limits remain important.
Q8: What should be checked if the module reports incorrect or unstable readings?
A: First, verify the configured current range and check the transmitter’s output with a suitable meter. Inspect terminal connections, loop power, cable shielding and grounding. Then review PLC scaling, diagnostic messages and filtering settings. If the field signal is correct but the digital value remains incorrect, test the channel and associated hardware configuration before replacing the module.
Siemens 6AG1134-4GB52-2AB0 Analog Input Module is in stock. Please contact us for a quick quote and competitive pricing.
