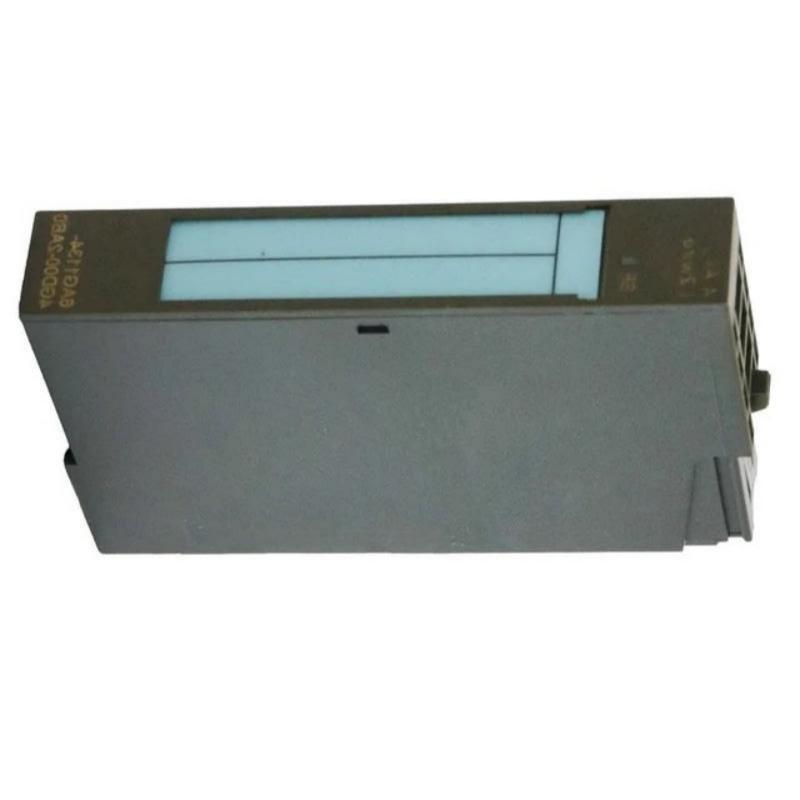

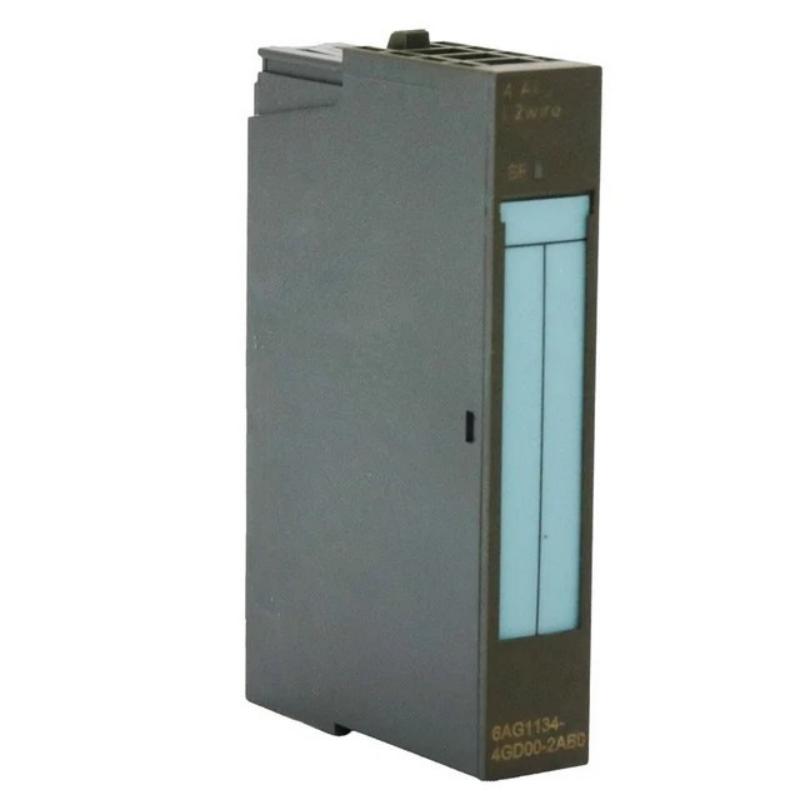

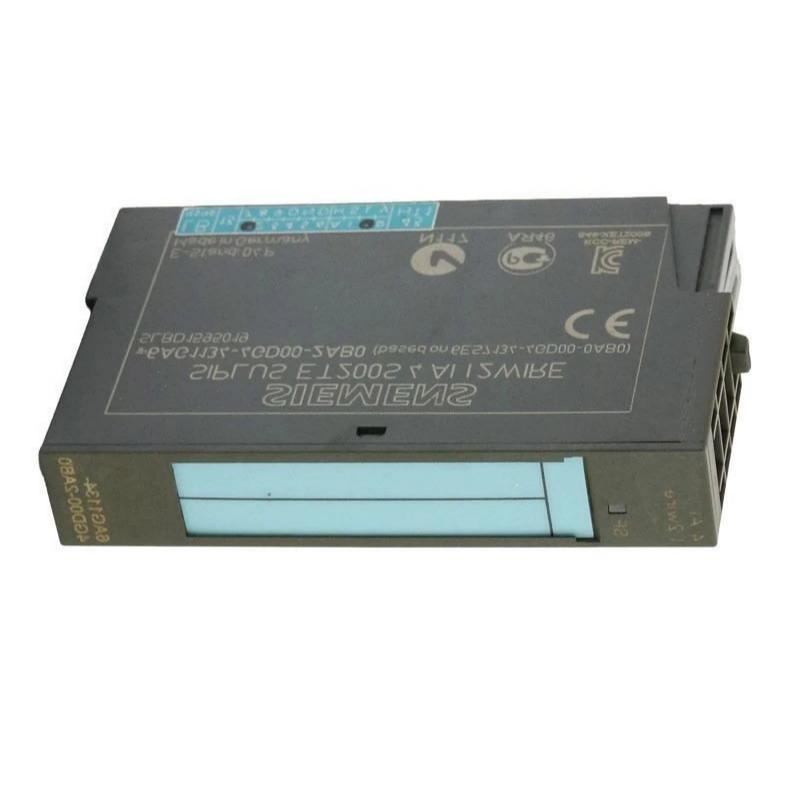

Siemens 6AG1134-4GD00-2AB0 Analog Input Module
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 13666084105 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Description |
|---|---|
| Product Model | Siemens 6AG1134-4GD00-2AB0 |
| Product Type | Analog Input Module |
| Product Series | SIPLUS ET 200S |
| Product Description | EM 4 AI I 2-wire Analog Input Module |
| Base Model | 6ES7134-4GD00-0AB0 |
| Number of Analog Inputs | 4 |
| Input Signal Type | Analog Current |
| Supported Input Range | 4–20 mA |
| Input Resistance | 25 Ω |
| Resolution | 13 bits, including sign |
| Measurement Principle | Integrating measurement |
| Maximum Cycle Time | 40 ms for all channels; approximately 33–40 ms |
| Integration Time | 16.67 / 20 ms, configurable |
| Interference Frequency Suppression | 50 / 60 Hz |
| Two-Wire Transmitter Support | Yes |
| Transmitter Power Supply | Integrated, short-circuit protected |
| Transmitter Supply Short-Circuit Limit | Approximately 200 mA per module |
| Rated Load Voltage | 24 V DC, supplied by the power module |
| Reverse Polarity Protection | Yes |
| Maximum Input Current | 30 mA, electronically limited |
| Maximum Current Consumption from L+ | 125 mA, without load |
| Maximum Backplane Bus Current Consumption | 10 mA at 3.3 V DC |
| Typical Power Dissipation | 0.6 W |
| Maximum Shielded Cable Length | 200 m |
| Diagnostics | Group fault, wire break, overflow and underflow |
| Diagnostic Indicator | Red SF LED |
| Electrical Isolation | Isolated from the backplane bus; input channels are not isolated from each other |
| Operating Temperature | -25°C to +70°C |
| Protective Coating | Conformal coating for enhanced environmental resistance |
| Mounting System | Siemens ET 200S distributed I/O system |
| Dimensions | 15 × 81 × 52 mm |
| Weight | 0.04 kg |
FAQ
Q1: What is the main function of the Siemens 6AG1134-4GD00-2AB0 Analog Input Module?
A: This module acquires current signals from industrial field instruments and converts them into digital values for a PLC or distributed control system. With four input channels, it can monitor multiple process variables, such as pressure, flow and level, using compatible two-wire current transmitters.
Q2: How many analog input channels does this module provide?
A: The module provides four analog current input channels, each designed for a 4–20 mA signal. This allows several transmitters to be connected to one ET 200S station, provided the wiring, channel configuration and transmitter requirements are compatible.
Q3: Can this module power two-wire transmitters directly?
A: Yes. The module includes a supply function for compatible measuring transducers, with short-circuit protection. Before connecting transmitters, verify the wiring diagram, loop requirements and total current demand. The transmitter supply has an approximate short-circuit limit of 200 mA per module.
Q4: What is the resolution and response time of the module?
A: The module provides 13-bit resolution, including the sign bit, for its 4–20 mA input range. The maximum cycle time for all four channels is approximately 40 ms. This makes it suitable for many routine process-monitoring applications, although it may not be appropriate for applications requiring very high-speed signal acquisition.
Q5: Does the module support wire-break detection?
A: Yes, wire-break diagnostics are supported for the applicable current-input configuration. The module also reports group faults and overrange or underrange conditions. If a diagnostic error occurs, inspect the transmitter loop, wiring, terminal connections and PLC diagnostic information before replacing the module.
Q6: How can electrical interference affect the module’s readings?
A: Electrical interference may cause fluctuating or inaccurate analog values. The module provides 50 Hz and 60 Hz interference suppression. For reliable measurements, use properly shielded cables, follow the recommended grounding practices and route analog signal cables away from motor drives and high-current power cables.
Q7: What environmental conditions can the SIPLUS version withstand?
A: This SIPLUS module features conformal coating and a specified operating temperature range of -25°C to +70°C. These features improve its suitability for demanding industrial environments. Proper enclosure design, wiring practices and compliance with the equipment’s environmental limits are still necessary.
Q8: What should be checked if a channel reports an incorrect current value?
A: First, verify that the transmitter is producing the expected 4–20 mA signal. Then inspect the loop wiring, transmitter supply, terminal contacts and grounding. Check the PLC input configuration and scaling, review the SF LED and diagnostic messages, and measure the actual loop current with a suitable meter. If the external circuit is operating correctly, investigate the module and its configuration.
Siemens 6AG1134-4GD00-2AB0 Analog Input Module is in stock. Please contact us for a quick quote and competitive pricing.
