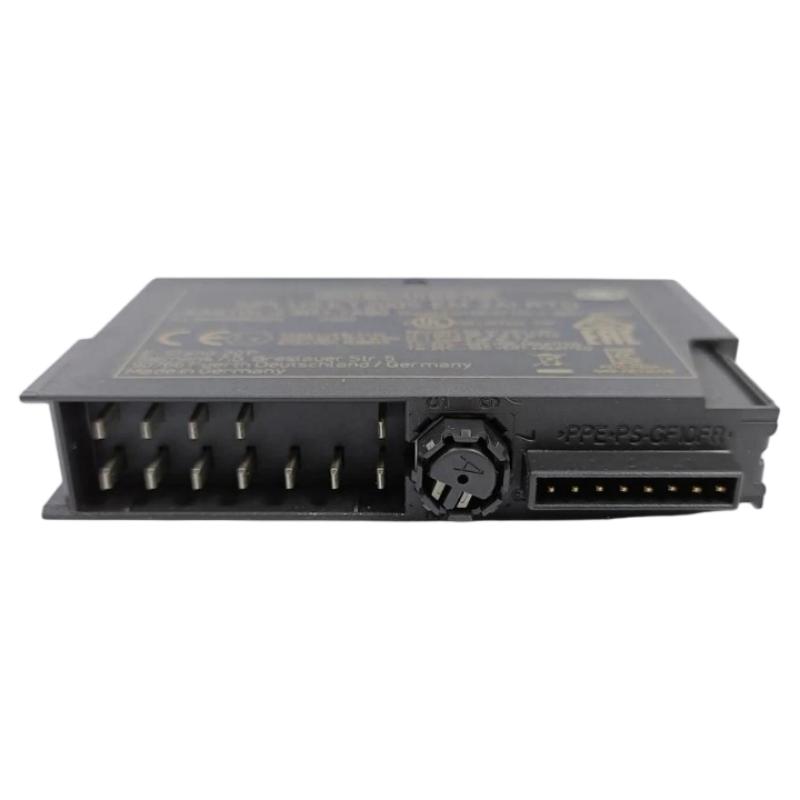

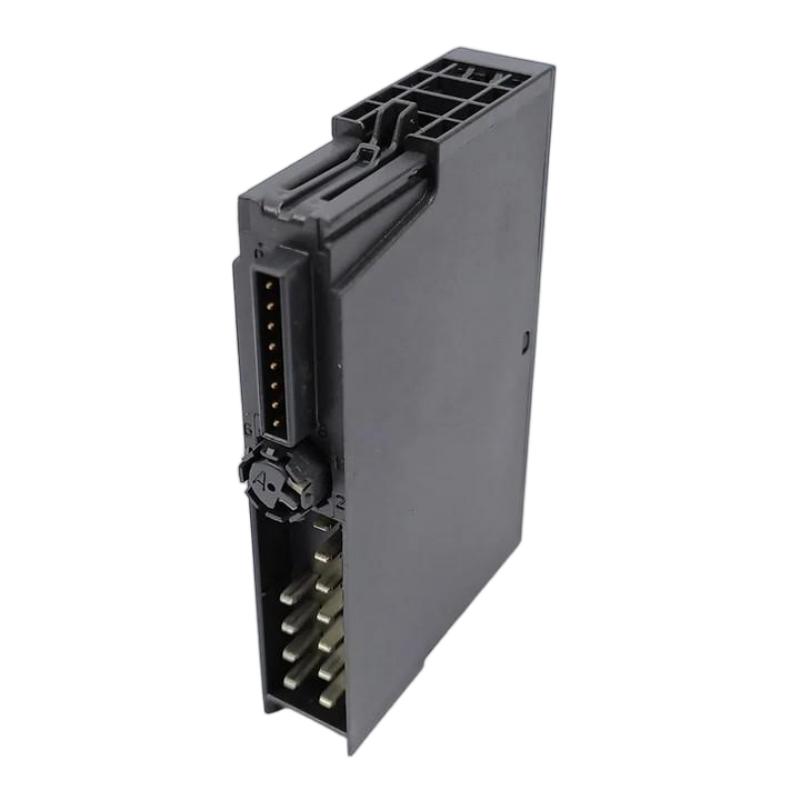

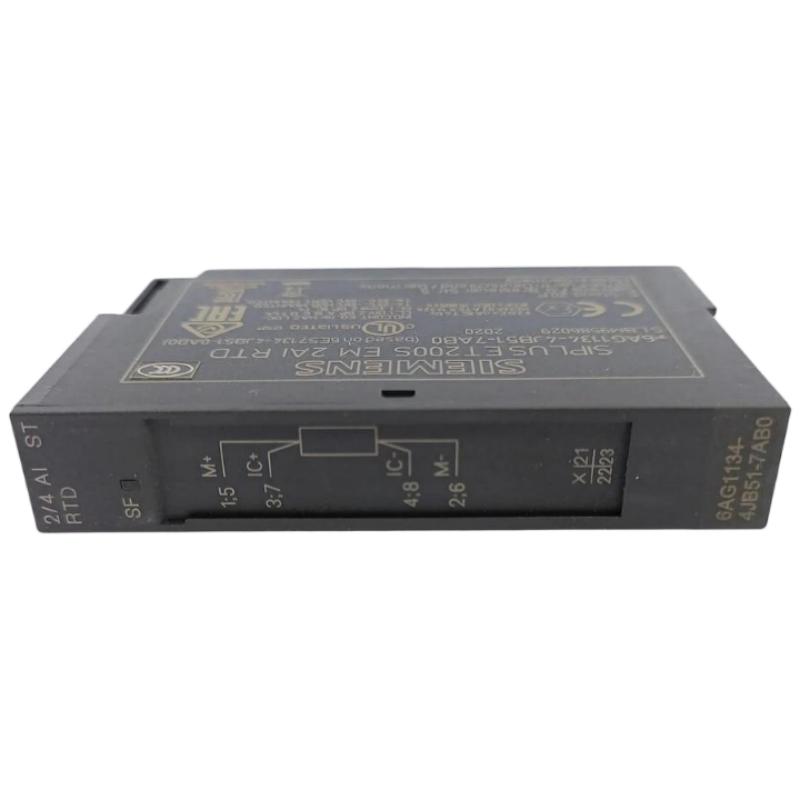

Siemens 6AG1134-4JB51-7AB0 Analog Input Module
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 13666084105 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Description |
|---|---|
| Product Model | Siemens 6AG1134-4JB51-7AB0 |
| Product Type | Analog Input Module |
| Product Series | SIPLUS ET 200S |
| Product Description | EM 2AI RTD Analog Input Module |
| Base Model | 6ES7134-4JB51-0AB0 |
| Number of Analog Inputs | 4 measuring inputs; 2 channels for 3-wire or 4-wire connections |
| Input Type | Resistance temperature detector (RTD) and resistance measurement |
| Supported RTD Sensors | Pt100, Ni100 |
| Supported Sensor Connections | 2-wire, 3-wire and 4-wire, depending on channel configuration |
| Resistance Measuring Ranges | 0–150 Ω, 0–300 Ω, 0–600 Ω |
| Measurement Resolution | Up to 16 bits including sign; range-dependent |
| Measurement Principle | Integrating measurement |
| Integration Time | 16.7 / 20 ms, configurable |
| Conversion Time | Approximately 66 / 80 ms per channel, depending on interference frequency |
| Interference Frequency Suppression | 50 / 60 Hz |
| Sensor Linearization | Supported for Pt100 and Ni100 |
| Constant Measuring Current | Approximately 1.67 mA for resistance sensors |
| Maximum Shielded Cable Length | 200 m |
| Rated Load Voltage | 24 V DC, supplied by the power module |
| Reverse Polarity Protection | Supported |
| Maximum Current Consumption from L+ | 30 mA, without load |
| Maximum Backplane Bus Current Consumption | 10 mA at 3.3 V DC |
| Typical Power Dissipation | 0.6 W |
| Diagnostics | Group fault and sensor/wiring diagnostics, depending on configuration |
| Diagnostic Indicator | Red SF LED |
| Electrical Isolation | Isolated from the backplane bus; input channels are not isolated from each other |
| Operating Temperature | -25°C to +70°C |
| Environmental Protection | Conformal coating for improved resistance to demanding industrial environments |
| Mounting System | Siemens ET 200S distributed I/O system |
| Dimensions | 15 × 81 × 52 mm |
| Weight | 0.04 kg |
FAQ
Q1: What is the main function of the Siemens 6AG1134-4JB51-7AB0 Analog Input Module?
A: This module measures temperature using resistance temperature detectors (RTDs) and supports resistance measurement. It converts sensor resistance values into digital data for a PLC or distributed control system, making it suitable for temperature monitoring in industrial processes.
Q2: Which temperature sensors are compatible with this module?
A: The module supports Pt100 and Ni100 resistance temperature detectors in standard and climate versions. The selected sensor type must match the channel configuration in the PLC hardware settings to ensure correct temperature conversion.
Q3: Can the module use 2-wire, 3-wire and 4-wire sensor connections?
A: Yes. The module supports different RTD wiring arrangements, depending on the channel and connection configuration. Two-wire wiring is simpler, while three-wire and four-wire methods can reduce the influence of lead resistance on measurement accuracy. Follow the wiring diagram for the selected sensor and terminal assembly.
Q4: What resistance ranges does the module support?
A: The supported resistance ranges are 0–150 Ω, 0–300 Ω and 0–600 Ω. Select a range that matches the connected resistance sensor and application. An incorrect range can lead to inaccurate readings or diagnostic errors.
Q5: How does the module convert RTD signals into temperature values?
A: The module measures sensor resistance and applies the configured sensor characteristic to determine the corresponding temperature. Linearization is supported for Pt100 and Ni100 sensors. Correct sensor selection, wiring configuration and PLC parameterization are essential for reliable temperature readings.
Q6: How can electrical interference affect temperature measurements?
A: Electrical noise can cause fluctuating readings or measurement errors, especially when sensor cables run near motor drives, contactors or power cables. The module provides 50 Hz and 60 Hz interference suppression. Use shielded cables, appropriate grounding and suitable cable routing to improve signal stability.
Q7: What environmental conditions is the SIPLUS version designed for?
A: The module has a specified operating temperature range of -25°C to +70°C and a conformal coating intended to improve environmental resistance. Installation should still follow the applicable control cabinet, wiring and environmental requirements.
Q8: What should be checked if the module reports an incorrect temperature?
A: First, verify the RTD type and the selected resistance range in the PLC configuration. Then check the sensor wiring, terminal contacts, cable condition and sensor resistance with a suitable meter. Confirm that the correct 2-wire, 3-wire or 4-wire connection method is configured, and review the SF diagnostic indicator and PLC diagnostic messages before replacing the module.
Siemens 6AG1134-4JB51-7AB0 Analog Input Module is in stock. Please contact us for a quick quote and competitive pricing.
