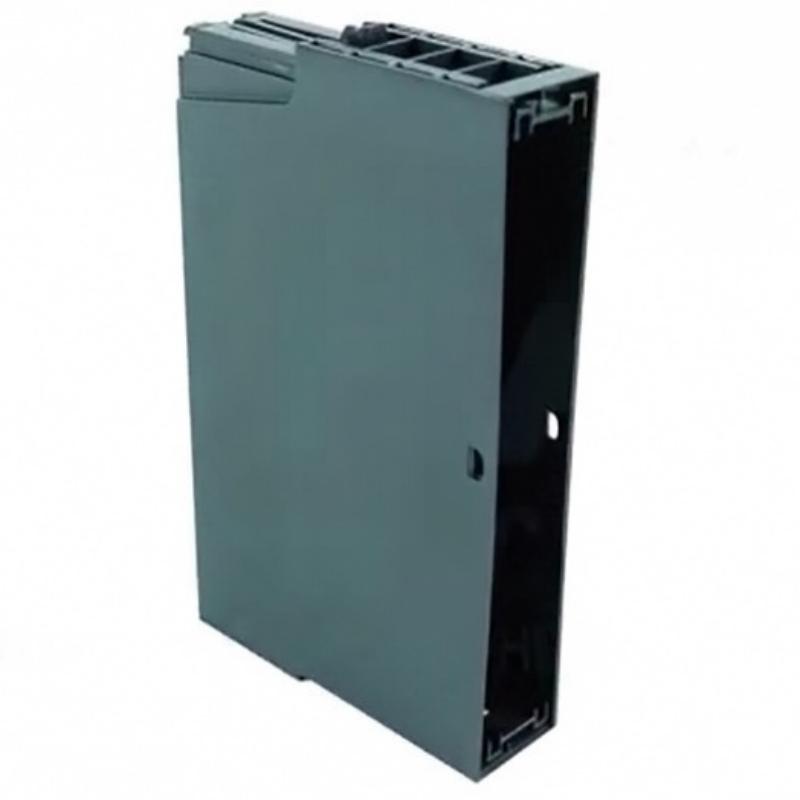

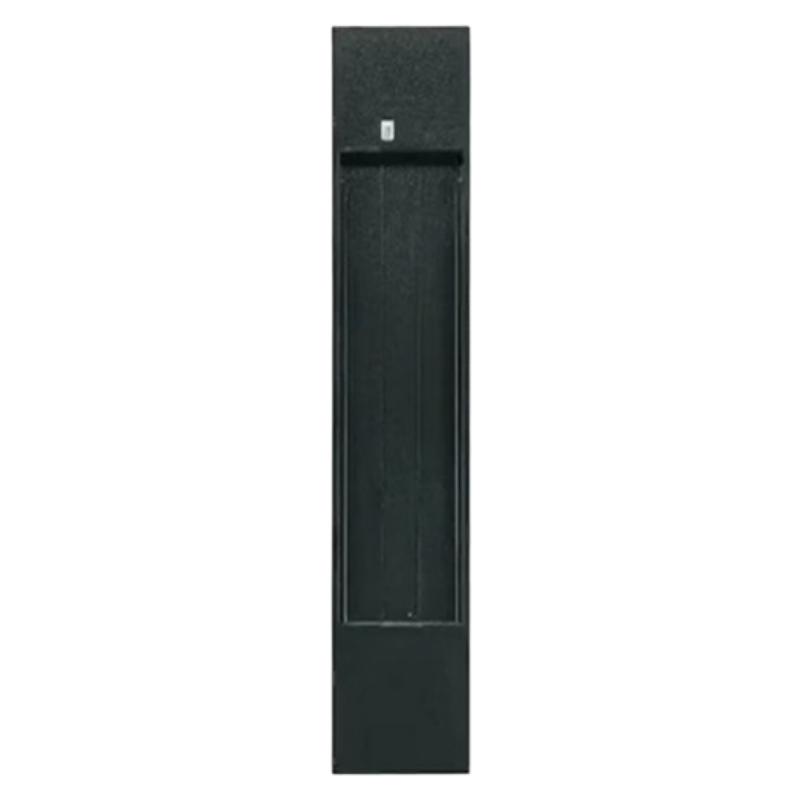

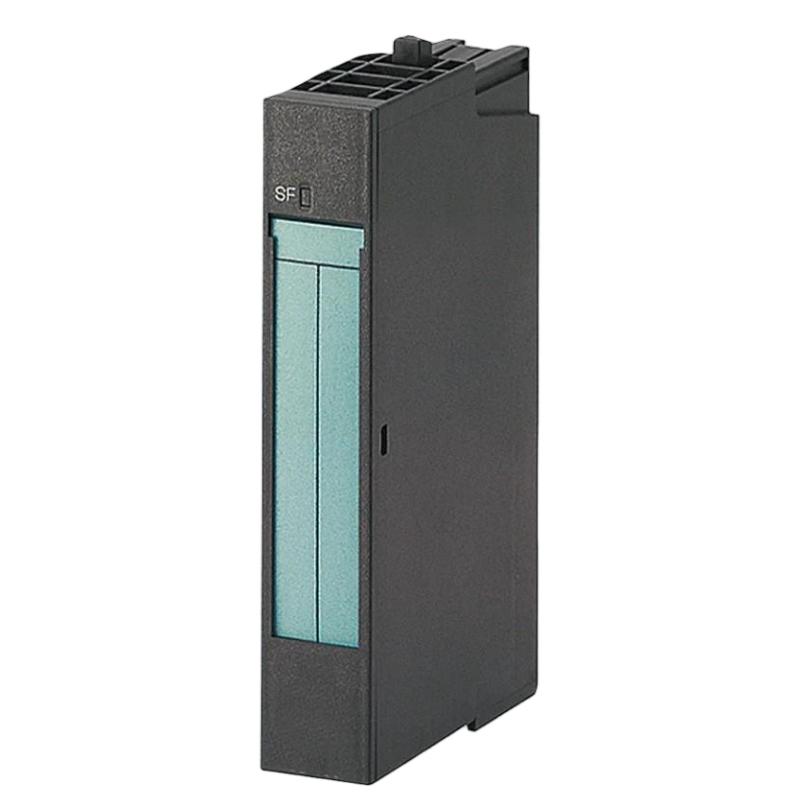

Siemens 6AG1134-4NB51-2AB0 Analog Input Module
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 13666084105 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Siemens |
| Model Number | 6AG1134-4NB51-2AB0 |
| Product Type | Analog Input Module |
| Product Series | SIPLUS ET 200S |
| Product Designation | EM 2AI RTD HF |
| Base Model | 6ES7134-4NB51-0AB0 |
| Number of Analog Inputs | 2 |
| Input Type | Resistance temperature detector (RTD) |
| Supported Sensor Types | Pt100, Pt200, Pt500, Pt1000, Ni100, Ni120, Ni200, Ni500, Ni1000, Cu10 and other supported resistance sensors |
| Measurement Function | Resistance and temperature measurement |
| Temperature Unit | Configurable, including °C and °F |
| Measurement Principle | Sigma-delta conversion |
| Resolution | Up to 16 bits, depending on the selected sensor and measuring range |
| Measuring Current | Typically 1.25 mA for resistance sensors |
| Integration Time | 16.7 ms / 20 ms |
| Rated Load Voltage | 24 V DC, supplied through the power module |
| Reverse Polarity Protection | Yes |
| Maximum Current from Load Voltage L+ | 30 mA without load |
| Maximum Backplane Bus Current | 10 mA at 3.3 V DC |
| Typical Power Dissipation | 0.6 W |
| Maximum Address Space | 4 bytes per module |
| Conformal Coating | Yes |
| Operating Temperature Range | -25°C to +60°C |
| Installation System | SIMATIC ET 200S distributed I/O system |
| Dimensions | 15 × 81 × 52 mm |
| Weight | 0.04 kg |
FAQ
1. What is the main function of the Siemens 6AG1134-4NB51-2AB0 module?
The Siemens 6AG1134-4NB51-2AB0 is a two-channel analog input module designed to acquire resistance and temperature signals from compatible RTD sensors. It converts these measurements into digital values that a PLC can use for process monitoring, control, and temperature regulation.
2. Which temperature sensors are compatible with this module?
The module supports various resistance temperature detectors, including Pt100, Pt200, Pt500, Pt1000, Ni100, Ni120, Ni200, Ni500, Ni1000, and Cu10. The specific sensor type and measuring range must be selected correctly in the hardware configuration to ensure reliable readings.
3. Can both input channels operate independently?
Yes. The two analog input channels can be configured for their respective supported sensor types and measurement requirements. During commissioning, verify each channel’s wiring and parameters independently, especially when monitoring different process temperatures.
4. What is the purpose of the HF designation?
HF stands for High Feature, indicating an enhanced-feature module within the ET 200S family. The module provides configurable measurement functions and diagnostic capabilities for applications requiring flexible RTD signal acquisition.
5. What environmental conditions can the 6AG1134-4NB51-2AB0 withstand?
This SIPLUS module is designed for an extended ambient operating temperature range of -25°C to +60°C and includes conformal coating for additional protection. Actual installation conditions must still comply with Siemens requirements for humidity, condensation, vibration, and enclosure protection.
6. How should the module be configured in a Siemens PLC system?
Install the module in a compatible ET 200S station and configure it using the appropriate Siemens engineering software and hardware catalog. Select the sensor type, measurement range, temperature unit, and diagnostic settings. After downloading the configuration, compare the PLC readings with a known reference temperature.
7. What should be checked if the module reports incorrect temperature values?
Check the RTD wiring, terminal connections, sensor condition, and configured sensor type first. Also verify the selected measuring range and temperature unit. If readings remain unstable, inspect grounding and cable routing, check for electrical interference, and review the PLC diagnostic information.
8. Can the 6AG1134-4NB51-2AB0 replace the standard 6ES7134-4NB51-0AB0?
The 6AG1134-4NB51-2AB0 is based on the 6ES7134-4NB51-0AB0 and adds SIPLUS conformal coating and an extended operating temperature range. Before replacement, confirm compatibility with the existing ET 200S configuration, terminal module, wiring, and engineering software. Also check current Siemens lifecycle and spare-part availability, as this product has been marked as discontinued.
Siemens 6AG1134-4NB51-2AB0 Analog Input Module is in stock. Please contact us for a quick quote and competitive pricing.
