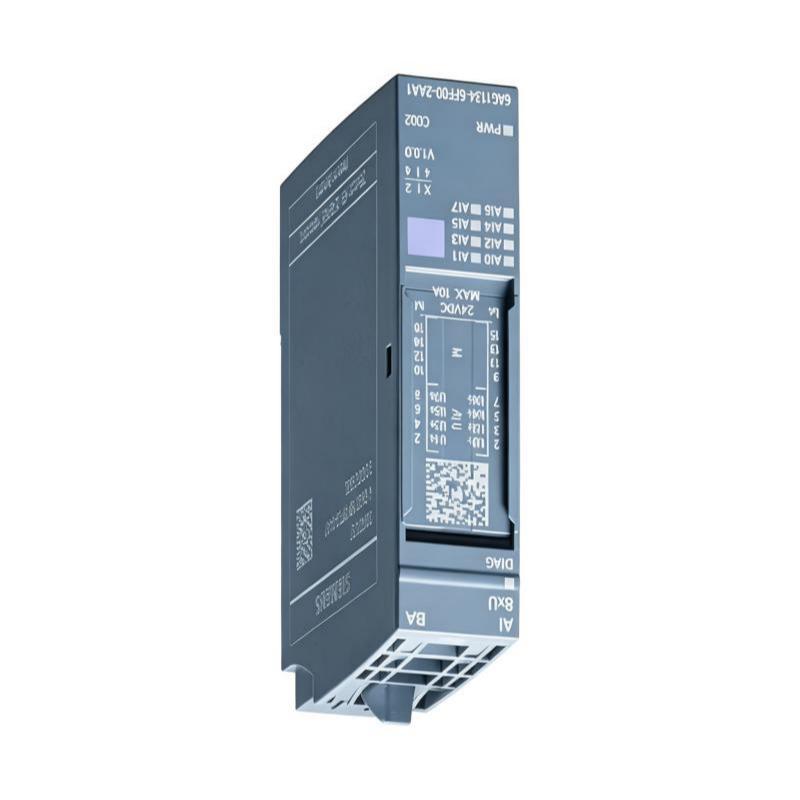

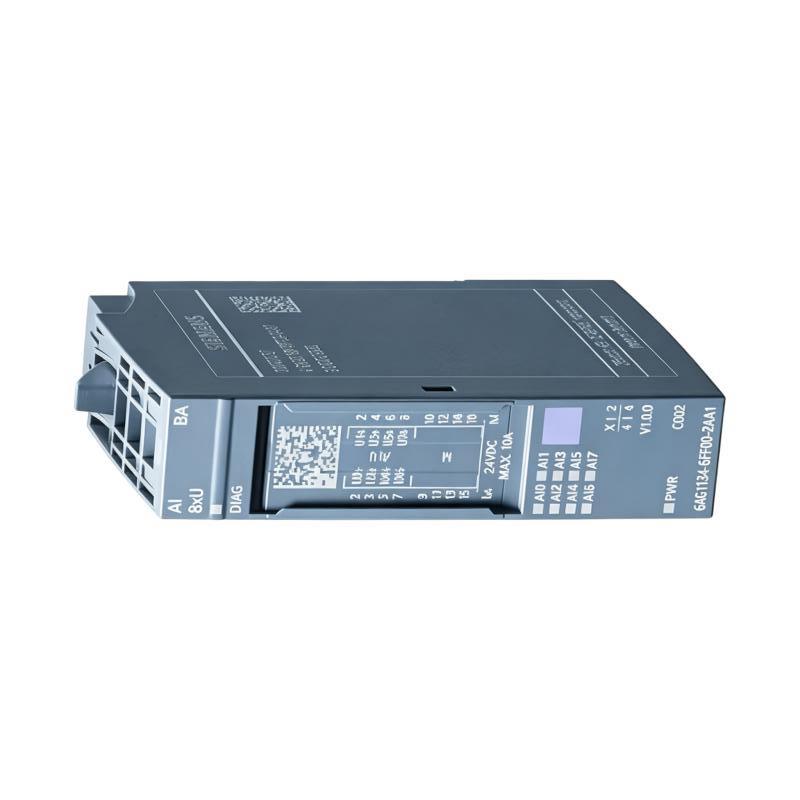

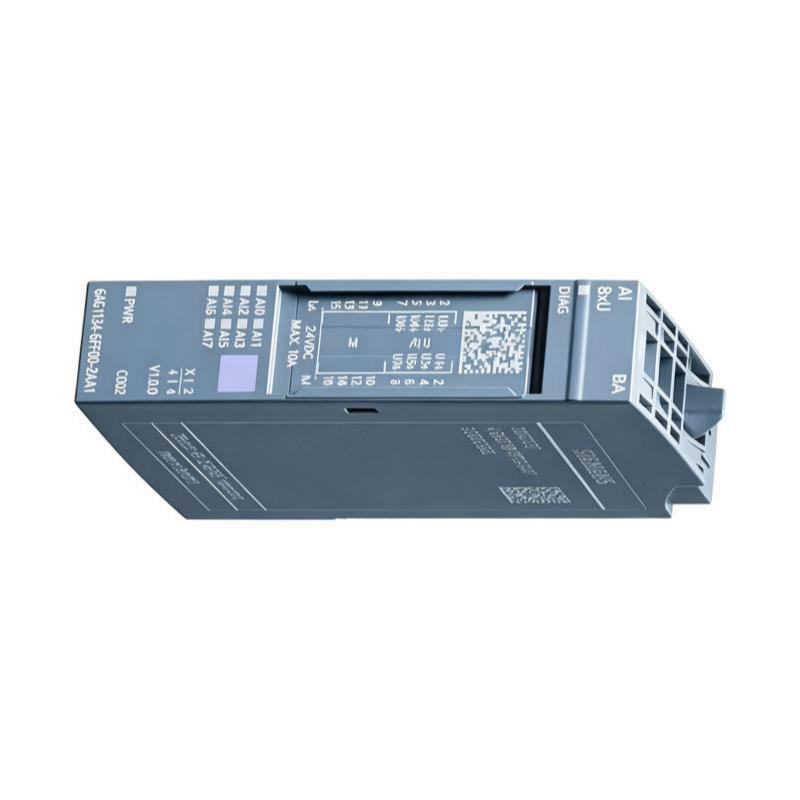

Siemens 6AG1134-6FF00-2AA1 Analog Input Module
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 13666084105 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Siemens |
| Model Number | 6AG1134-6FF00-2AA1 |
| Product Type | Analog Input Module |
| Product Series | SIPLUS ET 200SP |
| Product Designation | AI 8xU BASIC |
| Base Model | 6ES7134-6FF00-0AA1 |
| Number of Analog Inputs | 8 |
| Input Type | Voltage input, single-ended |
| Voltage Input Range | 0 to +10 V; -10 V to +10 V |
| Resolution | 15 bits for 0 to +10 V; 16 bits including sign for -10 V to +10 V |
| Input Resistance | 100 kΩ |
| Rated Supply Voltage | 24 V DC |
| Permissible Supply Voltage Range | 19.2 to 28.8 V DC |
| Maximum Permissible Input Voltage | 30 V |
| Current Consumption | Approximately 25 mA at rated voltage, with all channels active and no load |
| Typical Power Dissipation | 0.7 W |
| Minimum Conversion Time | 1 ms per channel |
| Interference Suppression | Configurable for 16.67 Hz, 50 Hz, and 60 Hz |
| Measurement Smoothing | Configurable; 4 smoothing levels, including 4, 8, or 16 times |
| Maximum Shielded Cable Length | 200 m |
| Diagnostic Functions | Module diagnostics, diagnostic alarms, supply voltage monitoring, group error, overflow and underflow detection |
| Channel Isolation | No electrical isolation between input channels |
| Backplane Bus Isolation | Electrically isolated from the backplane bus |
| Compatible BaseUnit Types | A0 and A1 |
| Color Code | CC02 |
| Communication Compatibility | PROFINET with GSDML V2.3; PROFIBUS with GSD Revision 5 |
| Conformal Coating | Yes |
| Operating Temperature Range | -40°C to +60°C for horizontal installation |
| Installation System | SIMATIC ET 200SP distributed I/O system |
| Dimensions | 15 × 73 × 58 mm |
| Weight | 0.031 kg |
FAQ
1. What is the main function of the Siemens 6AG1134-6FF00-2AA1 module?
The Siemens 6AG1134-6FF00-2AA1 is an eight-channel analog voltage input module in the SIPLUS ET 200SP family. It collects voltage signals from field devices and converts them into digital values for PLC-based monitoring, process control, and automation tasks.
2. Which input voltage ranges does this module support?
The module supports 0 to +10 V and -10 V to +10 V input ranges. The 0 to +10 V range provides 15-bit resolution, while the bipolar range provides 16-bit resolution including the sign bit. Select the correct range in the hardware configuration to match the connected signal source.
3. What is the difference between the SIPLUS module and the standard 6ES7134-6FF00-0AA1?
The 6AG1134-6FF00-2AA1 is based on the standard 6ES7134-6FF00-0AA1 and adds conformal coating and an extended operating temperature range. These features make it suitable for installations where environmental exposure and temperature variation require additional protection.
4. Which BaseUnit is compatible with the 6AG1134-6FF00-2AA1?
The module supports ET 200SP BaseUnit types A0 and A1 and uses color code CC02. Before installation, verify the BaseUnit type, terminal arrangement, wiring requirements, and station configuration to avoid connection errors.
5. How should the module be configured in a PLC system?
Use compatible Siemens engineering software to add the module to the ET 200SP station configuration. Set the input voltage range, assign the required process addresses, and configure diagnostic options. After downloading the configuration, apply known voltage signals to verify that the PLC readings match the expected values.
6. What diagnostic functions are available on this analog input module?
The module supports module diagnostics, diagnostic alarms, supply voltage monitoring, group error reporting, and overflow or underflow detection. These functions help identify abnormal operating conditions and simplify troubleshooting. The controller and engineering software can be used to review available diagnostic information.
7. What should be checked if the analog input values fluctuate or appear incorrect?
Check the input signal source, terminal connections, selected voltage range, and channel addressing. Inspect cable shielding and routing, particularly near variable-frequency drives, motors, and other sources of electrical interference. If the problem persists, compare the input voltage with a calibrated meter and review the module’s diagnostic status.
8. Can the 6AG1134-6FF00-2AA1 be used in harsh industrial environments?
Yes. Its SIPLUS design includes conformal coating and supports an extended temperature range of -40°C to +60°C in horizontal installation. However, the module must still be installed within Siemens’ specified environmental limits, with appropriate enclosure protection, wiring practices, and ventilation. Vertical installation may have a different permitted temperature range.
