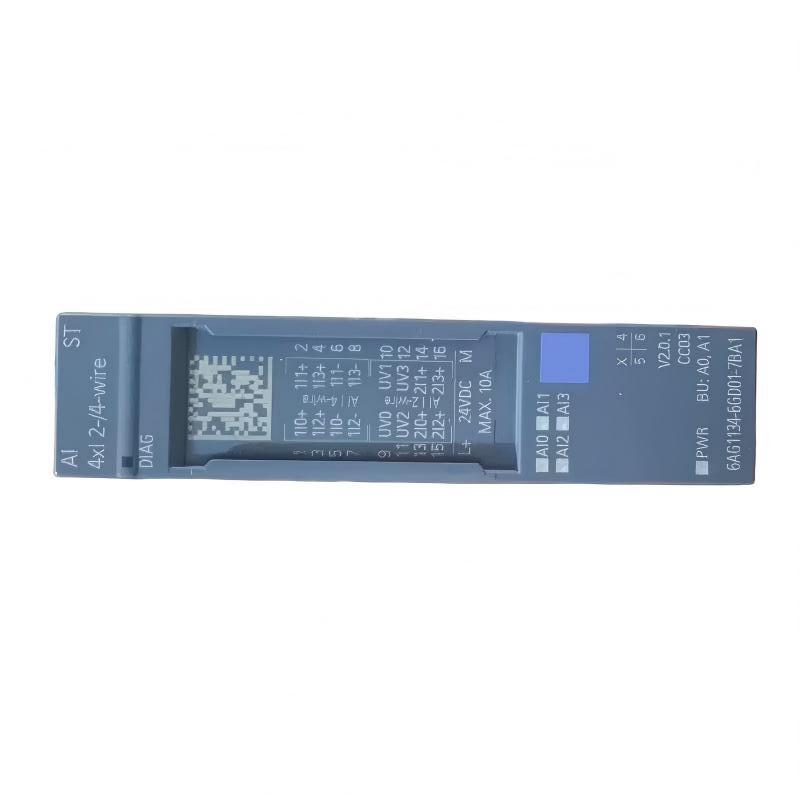

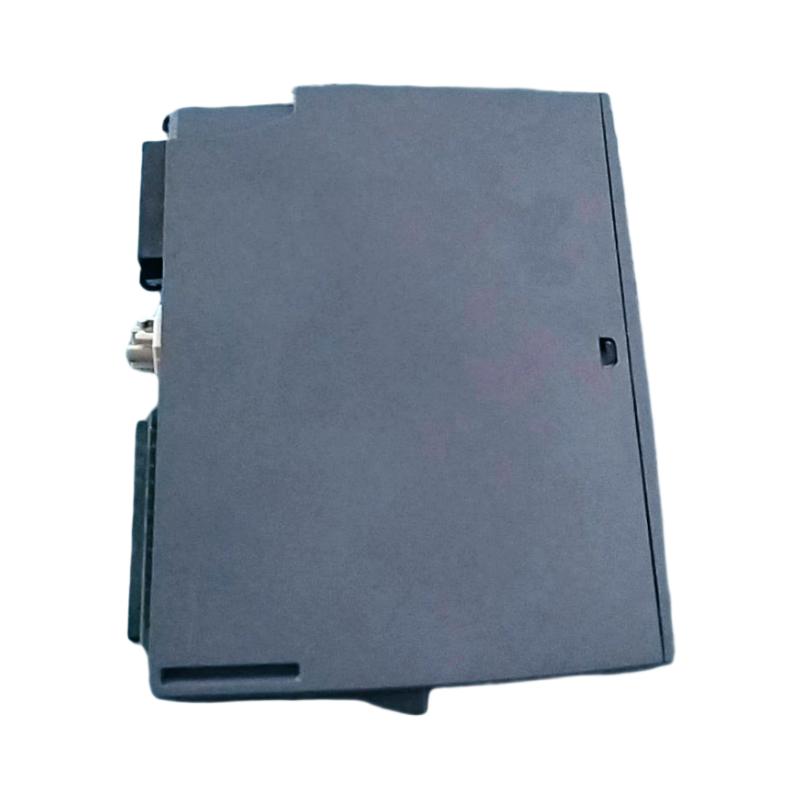

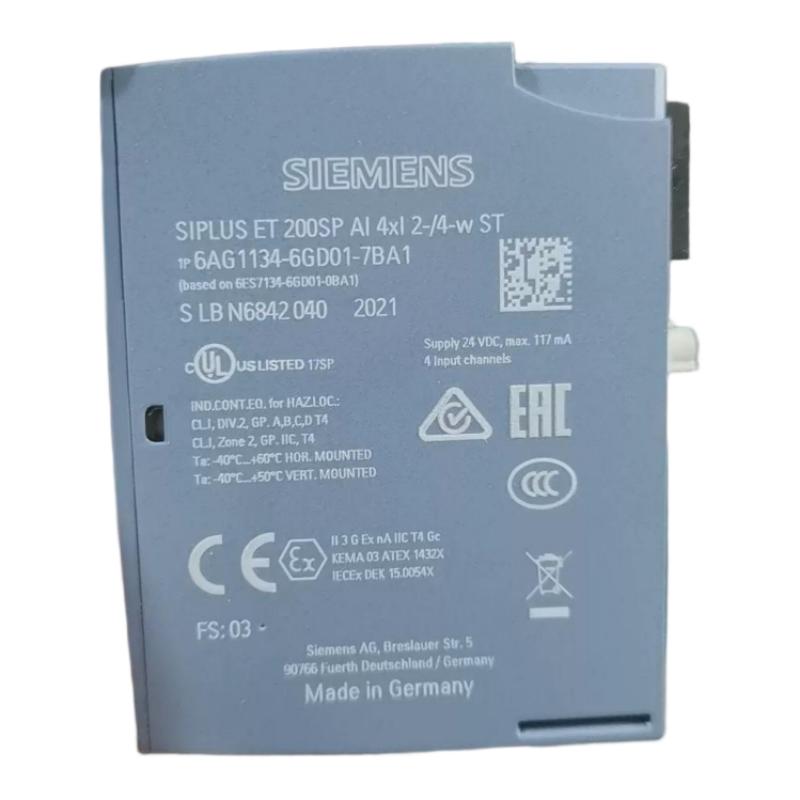

Siemens 6AG1134-6GD01-7BA1 Analog Input Module
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 13666084105 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Siemens |
| Model Number | 6AG1134-6GD01-7BA1 |
| Product Type | Analog Input Module |
| Product Series | SIPLUS ET 200SP |
| Product Designation | AI 4xI 2-/4-wire ST |
| Base Model | 6ES7134-6GD01-0BA1 |
| Number of Analog Inputs | 4 |
| Input Signal Type | Current |
| Supported Input Ranges | 0–20 mA, 4–20 mA, -20–+20 mA |
| Resolution | Up to 16 bits, including sign |
| Measurement Accuracy | ±0.3% |
| Input Resistance | 100 Ω for current measurement; additional voltage drop applies in 2-wire operation |
| Sensor Connection | 2-wire and 4-wire transmitters |
| Rated Supply Voltage | 24 V DC |
| Permissible Supply Voltage Range | 19.2–28.8 V DC |
| Maximum Current Consumption | 37 mA, excluding sensor supply |
| Typical Power Dissipation | 0.85 W, excluding sensor supply |
| Measurement Principle | Integrating (Sigma-Delta) |
| Conversion Time per Channel | 180 ms / 60 ms / 50 ms, depending on interference suppression settings |
| Interference Suppression | 16.6 Hz, 50 Hz, and 60 Hz |
| Smoothing | Configurable; 4 levels, including 4×, 8×, and 16× |
| Maximum Shielded Cable Length | 1,000 m |
| Diagnostic Functions | Module diagnostics, diagnostic alarms, group error reporting |
| Compatible BaseUnit Types | A0 and A1 |
| Color Code | CC03 |
| Conformal Coating | Yes |
| Operating Temperature Range | -40°C to +70°C |
| Installation System | SIMATIC ET 200SP distributed I/O system |
| Dimensions | 15 × 73 × 58 mm |
| Weight | 0.031 kg |
FAQ
1. What is the main function of the Siemens 6AG1134-6GD01-7BA1 module?
The Siemens 6AG1134-6GD01-7BA1 is a four-channel analog current input module designed for the SIPLUS ET 200SP distributed I/O system. It collects current signals from field transmitters and converts them into digital process values for PLC monitoring and control applications.
2. Which current input ranges does this module support?
The module supports 0–20 mA, 4–20 mA, and -20–+20 mA input ranges. The appropriate range should be selected in the hardware configuration to match the connected transmitter and the required measurement method.
3. Can the module connect to both 2-wire and 4-wire transmitters?
Yes. The module supports both 2-wire and 4-wire current transmitters. For 2-wire devices, check the transmitter’s power requirements and the available voltage budget. For 4-wire devices, verify the signal output and common-reference wiring against the transmitter documentation.
4. What does the SIPLUS designation mean for this module?
The SIPLUS version is based on the standard 6ES7134-6GD01-0BA1 and includes conformal coating with an extended operating temperature range of -40°C to +70°C. These features provide additional protection for industrial environments where temperature variation and environmental exposure are concerns.
5. Which BaseUnit is required for installation?
The module is compatible with ET 200SP BaseUnit types A0 and A1 and uses color code CC03. Confirm the selected BaseUnit’s terminal layout and wiring arrangement before installation. The correct BaseUnit is essential for reliable signal connections and proper station assembly.
6. How is the module configured in a Siemens PLC system?
Add the module to the ET 200SP station in compatible Siemens engineering software. Configure the current input range for each channel, assign process addresses, and enable the required diagnostic settings. After downloading the configuration, test the channels with a calibrated current source or a known transmitter signal.
7. What should be checked if the measured current value is incorrect?
Check the transmitter’s output, loop power supply, wiring polarity, terminal connections, and selected input range. For 2-wire transmitters, confirm that the loop has sufficient voltage. If the reading remains unstable, inspect cable shielding, grounding, electrical interference, and the module’s diagnostic information.
8. Can the 6AG1134-6GD01-7BA1 replace the standard 6ES7134-6GD01-0BA1?
The SIPLUS module is based on the standard 6ES7134-6GD01-0BA1, but adds conformal coating and an extended temperature range. Before replacing the standard module, verify compatibility with the existing ET 200SP configuration, BaseUnit, wiring, and engineering software. Also confirm that the environmental rating meets the requirements of the installation.
Siemens 6AG1134-6GD01-7BA1 Analog Input Module is in stock. Please contact us for a quick quote and competitive pricing.
