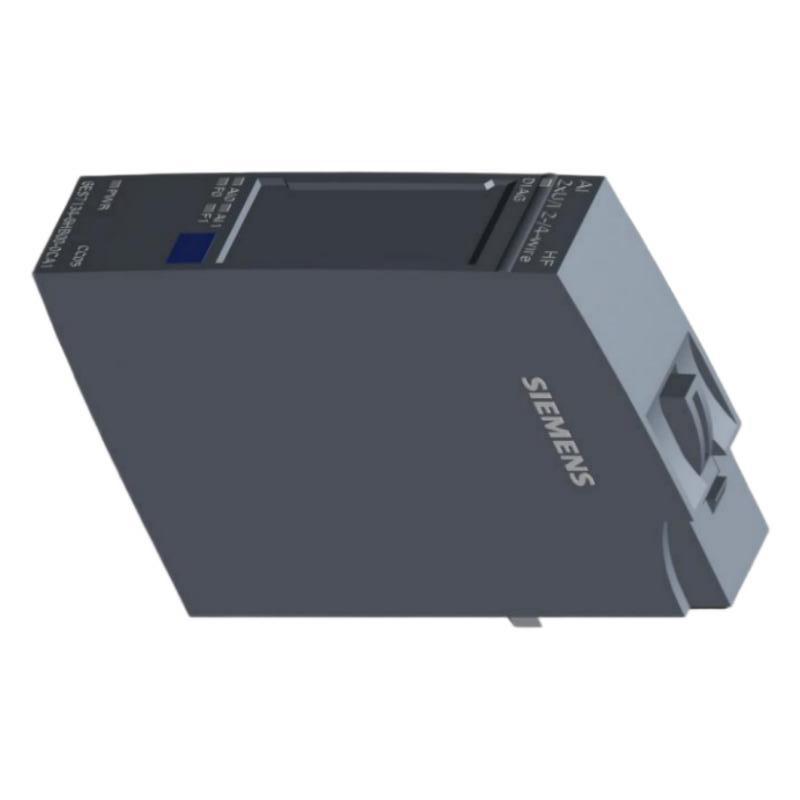

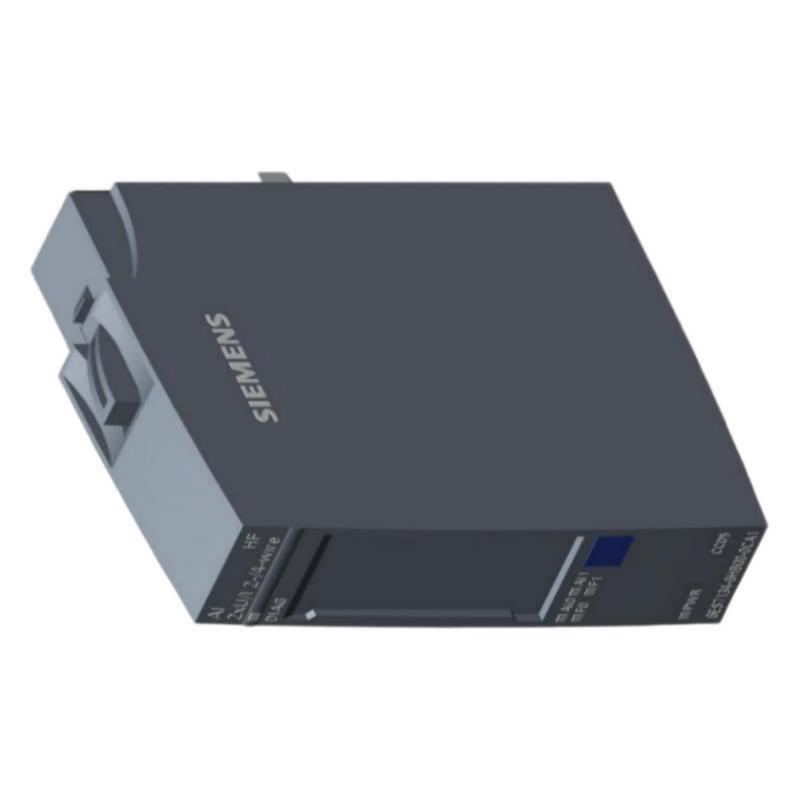

Siemens 6AG1134-6HB00-2CA1 Analog Input Module
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 13666084105 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Siemens |
| Model Number | 6AG1134-6HB00-2CA1 |
| Product Type | Analog Input Module |
| Product Series | SIPLUS ET 200SP |
| Product Designation | AI 2xU/I 2-/4-wire HF |
| Base Model | 6ES7134-6HB00-0CA1 |
| Number of Analog Inputs | 2 differential inputs |
| Input Signal Types | Voltage and current |
| Voltage Input Ranges | 0 to +10 V, 1 to 5 V, -10 to +10 V, -5 to +5 V |
| Current Input Ranges | 0 to 20 mA, 4 to 20 mA, -20 to +20 mA |
| Resolution | 15 bits for unipolar ranges; 16 bits including sign for bipolar ranges |
| Measurement Accuracy | ±0.1% |
| Voltage Input Resistance | 75 kΩ |
| Current Input Resistance | 130 Ω |
| Compatible Transmitters | 2-wire and 4-wire transmitters |
| Maximum Load Resistance for 2-Wire Transmitter | 650 Ω |
| Rated Supply Voltage | 24 V DC |
| Permissible Supply Voltage Range | 19.2 to 28.8 V DC |
| Reverse Polarity Protection | Yes |
| Rated Current Consumption | 39 mA, excluding sensor supply |
| Integrated 24 V Sensor Supply | Yes, short-circuit protected |
| Integrated Sensor Supply Output Current | 20 mA; up to 50 mA per channel for less than 10 seconds in 2-wire operation |
| Additional Sensor Supply Output Current | 100 mA; up to 150 mA for less than 10 seconds in 4-wire operation |
| Typical Power Dissipation | 0.95 W, excluding sensor supply |
| Measurement Principle | Sigma-delta conversion |
| Maximum Shielded Cable Length | 1,000 m for current measurement; 200 m for voltage measurement |
| Maximum Permissible Input Voltage | 30 V |
| Maximum Permissible Input Current | 50 mA |
| Diagnostic Functions | Channel diagnostics, diagnostic alarms, module diagnostics |
| Compatible BaseUnit Types | A0 and A1 |
| Color Code | CC03 |
| Conformal Coating | Yes |
| Operating Temperature Range | -40°C to +60°C |
| Installation System | SIMATIC ET 200SP distributed I/O system |
| Dimensions | 15 × 73 × 58 mm |
| Weight | 0.032 kg |
FAQ
1. What is the main function of the Siemens 6AG1134-6HB00-2CA1 module?
The Siemens 6AG1134-6HB00-2CA1 is a two-channel analog input module for the SIPLUS ET 200SP distributed I/O system. It measures voltage and current signals from field instruments and converts them into digital values for PLC-based process monitoring and control.
2. Which voltage and current input ranges are supported?
The module supports voltage ranges of 0 to +10 V, 1 to 5 V, -10 to +10 V, and -5 to +5 V. Its current ranges include 0 to 20 mA, 4 to 20 mA, and -20 to +20 mA. Configure each channel for the actual signal type and range used by the connected instrument.
3. Can the module connect to both 2-wire and 4-wire transmitters?
Yes. The module supports both 2-wire and 4-wire transmitters. For 2-wire devices, verify the loop supply voltage and load resistance. For 4-wire devices, check the transmitter’s separate power supply and signal wiring against its documentation.
4. What measurement accuracy and resolution does this module provide?
The specified measurement accuracy is ±0.1%. Unipolar measurement ranges provide 15-bit resolution, while bipolar ranges provide 16-bit resolution including the sign bit. Actual results can also depend on the selected range, wiring quality, electrical interference, and operating conditions.
5. What is the benefit of the SIPLUS version compared with the standard module?
The 6AG1134-6HB00-2CA1 is based on the standard 6ES7134-6HB00-0CA1. It adds conformal coating and supports an extended operating temperature range of -40°C to +60°C, making it suitable for industrial installations that require additional environmental protection.
6. Which BaseUnit is compatible with the 6AG1134-6HB00-2CA1?
The module supports ET 200SP BaseUnit types A0 and A1. Before installation, check the BaseUnit’s terminal arrangement, wiring requirements, and station configuration to ensure the field signals and sensor power connections are correctly assigned.
7. How should an incorrect or unstable analog reading be diagnosed?
Check the selected input range, transmitter output, wiring polarity, terminal connections, and sensor supply first. For current loops, verify that the supply voltage is sufficient for the connected load. If the reading remains unstable, inspect cable shielding, grounding, and nearby sources of electromagnetic interference, then review the PLC diagnostic messages.
8. Can this module replace the standard 6ES7134-6HB00-0CA1?
The SIPLUS module is based on the 6ES7134-6HB00-0CA1 and provides additional environmental protection. Before replacement, verify compatibility with the existing ET 200SP configuration, BaseUnit, wiring, and engineering software. Confirm that the extended temperature and coating specifications suit the installation requirements.
Siemens 6AG1134-6HB00-2CA1 Analog Input Module is in stock. Please contact us for a quick quote and competitive pricing.
