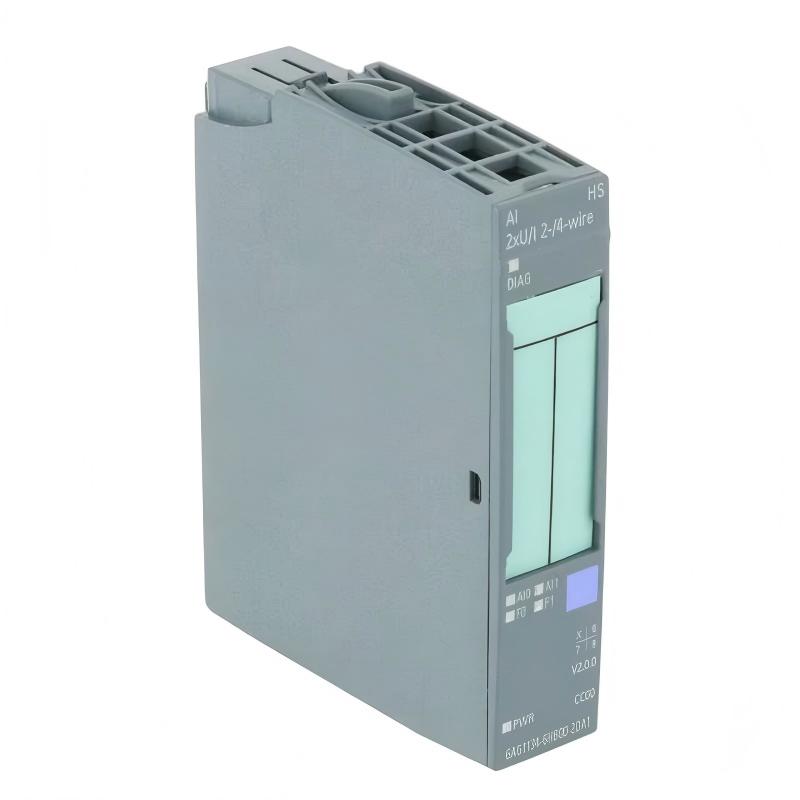

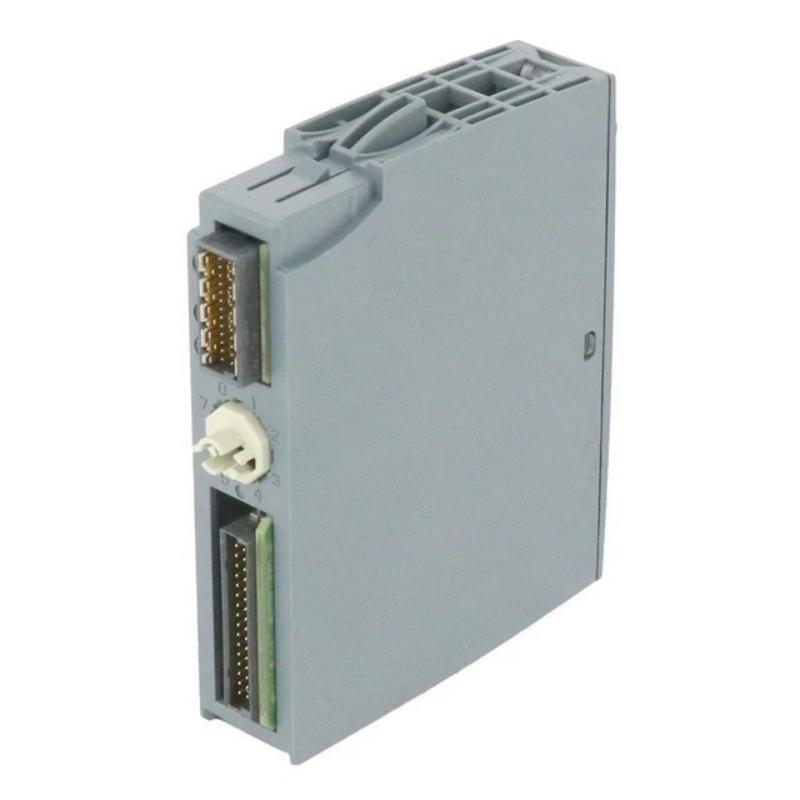

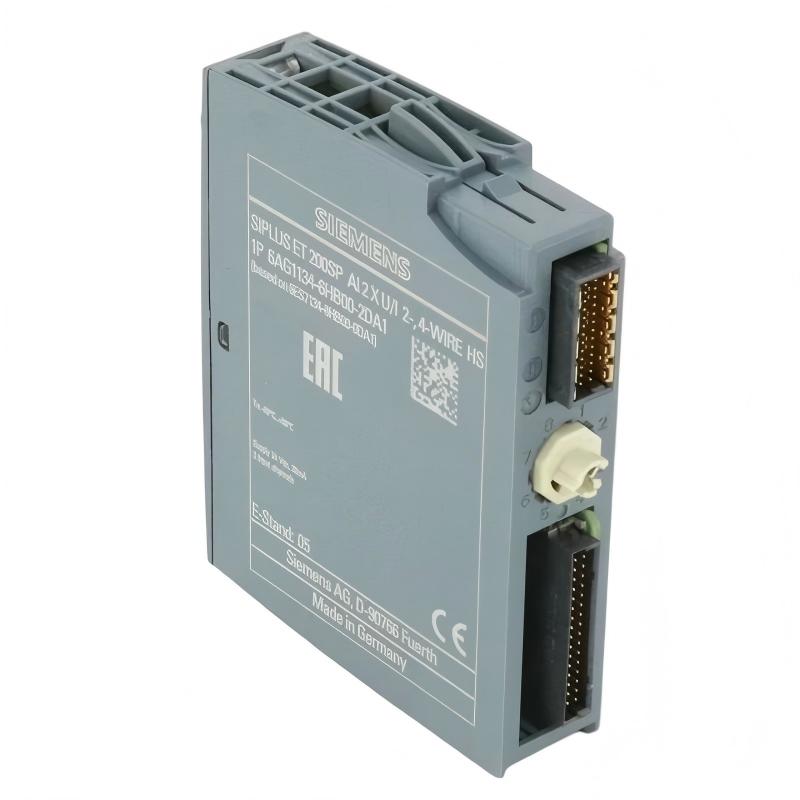

Siemens 6AG1134-6HB00-2DA1 Analog Input Module
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 13666084105 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Siemens |
| Model Number | 6AG1134-6HB00-2DA1 |
| Product Type | Analog Input Module |
| Product Series | SIPLUS ET 200SP |
| Product Designation | AI 2xU/I 2-/4-wire HS |
| Base Model | 6ES7134-6HB00-0DA1 |
| Number of Analog Inputs | 2 differential inputs |
| Input Signal Types | Voltage and current |
| Voltage Input Ranges | 0 to +10 V, 1 to 5 V, -10 to +10 V, -5 to +5 V |
| Current Input Ranges | 0 to 20 mA, 4 to 20 mA, -20 to +20 mA |
| Voltage Input Resistance | 75 kΩ |
| Current Input Resistance | 130 Ω |
| Resolution | Up to 16 bits, including sign |
| Measurement Accuracy | ±0.3% |
| Compatible Transmitters | 2-wire and 4-wire transmitters |
| Maximum Load Resistance for 2-Wire Transmitter | 650 Ω |
| Rated Supply Voltage | 24 V DC |
| Permissible Supply Voltage Range | 19.2 to 28.8 V DC |
| Reverse Polarity Protection | Yes |
| Rated Current Consumption | 39 mA, excluding sensor supply |
| Integrated Sensor Supply | 24 V DC, short-circuit protected |
| Maximum Sensor Supply Output Current | 20 mA; up to 50 mA per channel for less than 10 seconds |
| Typical Power Dissipation | 0.95 W, excluding sensor supply |
| Minimum Cycle Time | 125 μs for all channels |
| Oversampling | Supported, up to 16 values per cycle |
| Maximum Permissible Input Voltage | 30 V |
| Maximum Permissible Input Current | 50 mA |
| Maximum Shielded Cable Length | 1,000 m for current measurement; 200 m for voltage measurement |
| Diagnostic Functions | Channel diagnostics, diagnostic alarms, limit-value alarms, wire-break detection for 4–20 mA signals |
| Compatible BaseUnit Types | A0 and A1 |
| Color Code | CC00 |
| Firmware Version | V2.0 |
| Conformal Coating | Yes |
| Operating Temperature Range | -40°C to +60°C |
| Installation System | SIMATIC ET 200SP distributed I/O system |
| Dimensions | 15 × 73 × 58 mm |
| Weight | 0.032 kg |
FAQ
1. What is the main function of the Siemens 6AG1134-6HB00-2DA1 module?
The Siemens 6AG1134-6HB00-2DA1 is a high-speed, two-channel analog input module for the SIPLUS ET 200SP distributed I/O system. It acquires voltage and current signals from field instruments and converts them into digital process values for PLC monitoring, measurement, and control.
2. Which voltage and current ranges does this module support?
The module supports voltage ranges of 0 to +10 V, 1 to 5 V, -10 to +10 V, and -5 to +5 V. Supported current ranges are 0 to 20 mA, 4 to 20 mA, and -20 to +20 mA. Each channel should be configured to match the connected instrument’s output.
3. What does the HS designation mean?
HS stands for High Speed. This module supports high-speed signal acquisition, a minimum cycle time of 125 μs for all channels, and oversampling with up to 16 measured values per cycle. These features are useful in applications requiring faster data acquisition than conventional analog input modules.
4. Can the module connect to both 2-wire and 4-wire transmitters?
Yes. It supports both 2-wire and 4-wire connections. For 2-wire transmitters, verify loop power and the maximum permitted load resistance. For 4-wire devices, check the separate power supply and signal wiring against the transmitter documentation and the selected BaseUnit’s terminal arrangement.
5. What is the benefit of the SIPLUS version compared with the standard module?
The SIPLUS version is based on the standard 6ES7134-6HB00-0DA1 and adds conformal coating and an extended operating temperature range of -40°C to +60°C. These features provide additional environmental protection for industrial installations exposed to wider temperature variations.
6. Which BaseUnit is compatible with the 6AG1134-6HB00-2DA1?
The module supports ET 200SP BaseUnit types A0 and A1 and uses color code CC00. Confirm the BaseUnit’s terminal layout and wiring configuration before installation to ensure the voltage, current, and sensor supply connections are assigned correctly.
7. How can channel diagnostics help with troubleshooting?
Channel diagnostics can help identify signal faults, wire breaks on supported 4–20 mA inputs, and limit-value violations. If a channel reports an error, inspect the transmitter, loop power, terminal connections, configured input range, and diagnostic messages in the PLC engineering software.
8. Can the 6AG1134-6HB00-2DA1 replace the standard 6ES7134-6HB00-0DA1?
The SIPLUS module is based on the standard 6ES7134-6HB00-0DA1, but includes additional environmental protection. Before replacing the standard unit, verify compatibility with the existing ET 200SP configuration, BaseUnit, wiring, firmware, and engineering software. Confirm that the operating temperature and coating requirements match the installation.
Siemens 6AG1134-6HB00-2DA1 Analog Input Module is in stock. Please contact us for a quick quote and competitive pricing.
