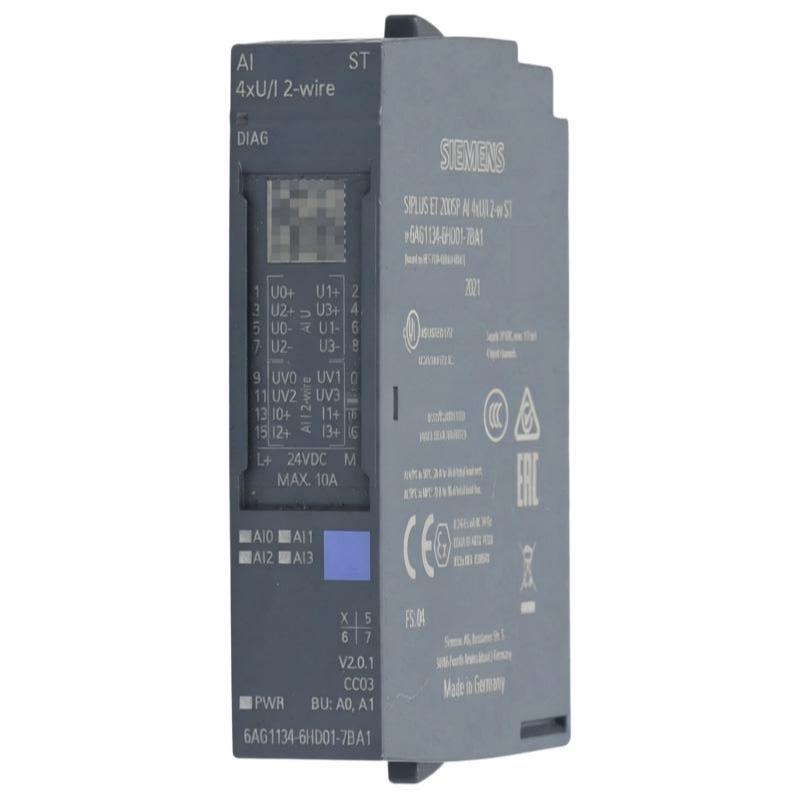

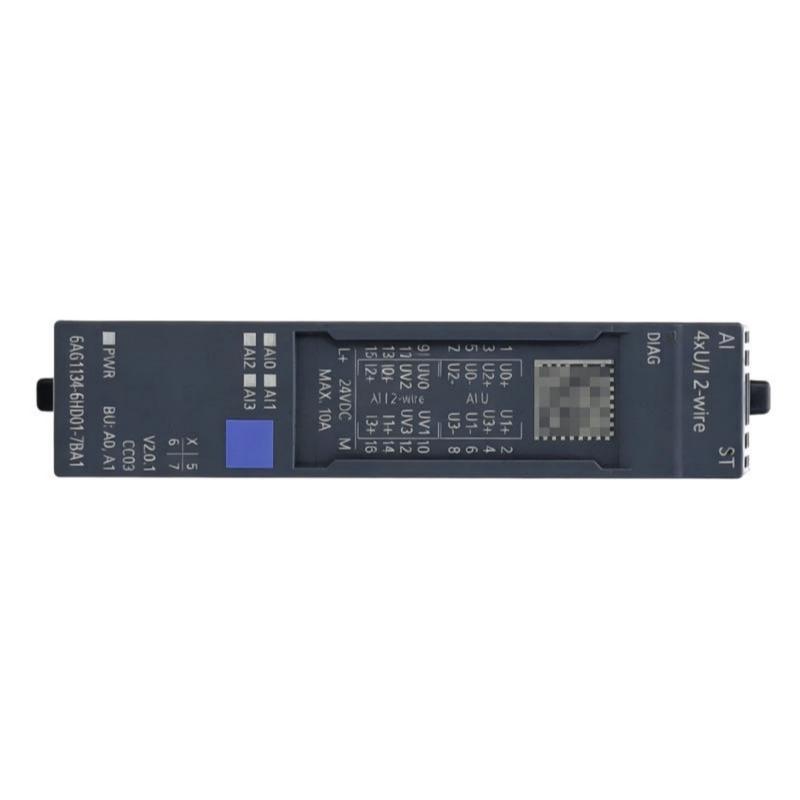

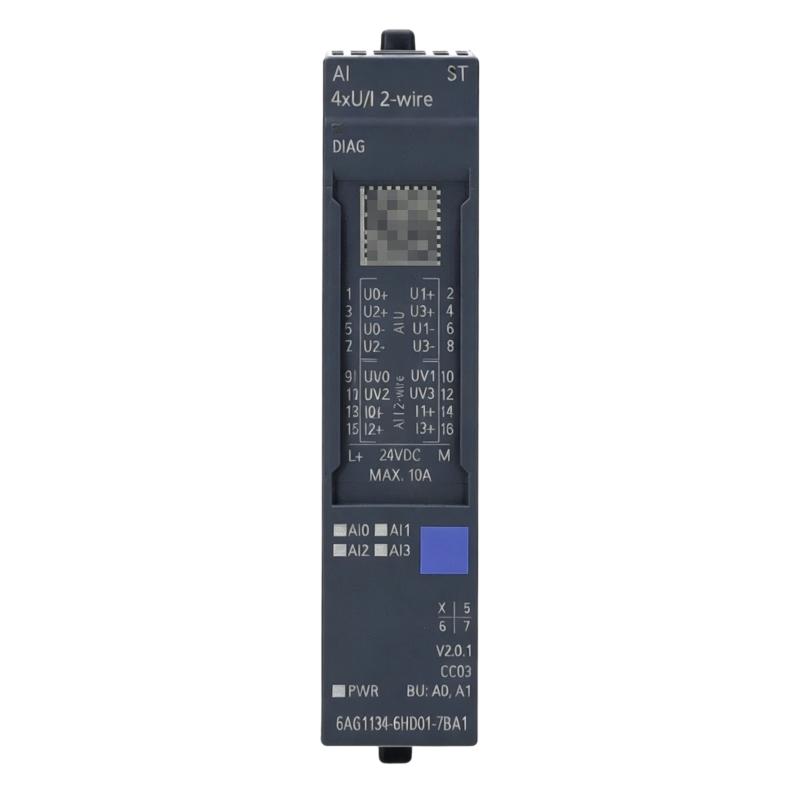

Siemens 6AG1134-6HD01-7BA1 Analog Input Module
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 13666084105 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Siemens |
| Model Number | 6AG1134-6HD01-7BA1 |
| Product Type | Analog Input Module |
| Product Series | SIPLUS ET 200SP |
| Product Designation | AI 4xU/I 2-wire ST |
| Base Model | 6ES7134-6HD01-0BA1 |
| Number of Analog Inputs | 4 |
| Input Signal Types | Voltage and current |
| Supported Transmitter Type | 2-wire transmitters |
| Voltage Input Ranges | 0 to +10 V, 1 to 5 V, -10 to +10 V, -5 to +5 V |
| Current Input Ranges | 0 to 20 mA, 4 to 20 mA |
| Voltage Input Resistance | 120 kΩ |
| Current Input Resistance | 100 Ω, plus approximately 0.7 V diode forward voltage |
| Resolution | Up to 16 bits, including sign |
| Basic Error Limit at 25°C | ±0.3% of the input range |
| Rated Supply Voltage | 24 V DC |
| Permissible Supply Voltage Range | 19.2 to 28.8 V DC |
| Reverse Polarity Protection | Yes |
| Maximum Current Consumption | 37 mA, excluding sensor supply |
| Integrated Sensor Supply | 24 V DC, short-circuit protected |
| Maximum Sensor Supply Output Current | 20 mA; up to 50 mA per channel for less than 10 seconds |
| Typical Power Dissipation | 0.85 W, excluding sensor supply |
| Maximum Permissible Input Voltage | 30 V |
| Maximum Permissible Input Current | 50 mA |
| Maximum Shielded Cable Length | 1,000 m for current measurement; 200 m for voltage measurement |
| Measurement Principle | Integrating measurement (Sigma-Delta) |
| Interference Frequency Suppression | 16.6 Hz, 50 Hz, 60 Hz |
| Oversampling | Not supported |
| Module Diagnostics | Supported |
| Diagnostic Alarm | Supported |
| Compatible BaseUnit Types | A0, A1 |
| Color Code | CC03 |
| Conformal Coating | Yes |
| Operating Temperature Range | -40°C to +70°C |
| Protection Rating | IP20 |
| Installation System | SIMATIC ET 200SP distributed I/O system |
| Dimensions | 15 × 73 × 58 mm |
| Weight | 0.031 kg |
FAQ
1. What is the main function of the Siemens 6AG1134-6HD01-7BA1 module?
The Siemens 6AG1134-6HD01-7BA1 is a four-channel analog input module for the SIMATIC ET 200SP distributed I/O system. It acquires voltage and current signals from compatible field devices and converts them into digital values for PLC processing. Typical applications include process monitoring, industrial instrumentation, and machine control.
2. Which input signals does this analog input module support?
The module supports voltage ranges of 0–10 V, 1–5 V, -10–10 V, and -5–5 V, as well as current ranges of 0–20 mA and 4–20 mA. Each channel should be configured according to the connected transmitter’s output signal. The selected range must match the actual field signal to ensure reliable measurement.
3. Can the 6AG1134-6HD01-7BA1 connect to two-wire transmitters?
Yes. The module is designed for two-wire transmitter connections. During installation, check the transmitter’s power requirements, loop wiring, polarity, and current range. Incorrect wiring or insufficient loop power can cause inaccurate readings or prevent the module from detecting the expected signal.
4. What is the difference between the SIPLUS module and the standard 6ES7134-6HD01-0BA1?
The 6AG1134-6HD01-7BA1 is based on the standard 6ES7134-6HD01-0BA1 but includes conformal coating and an extended operating temperature range of -40°C to +70°C. These features make it suitable for applications exposed to more demanding environmental conditions. The actual installation environment must still comply with the product’s specified limits.
5. What power supply does this module require?
The module uses a rated 24 V DC supply and permits an operating range of 19.2–28.8 V DC. It also provides an integrated 24 V sensor supply with short-circuit protection. When designing the system, account for the current consumption of the module and connected field devices.
6. Which BaseUnit is compatible with the 6AG1134-6HD01-7BA1?
The module is compatible with ET 200SP BaseUnit types A0 and A1 and uses color code CC03. Before installation or replacement, verify the BaseUnit type, terminal assignment, and two-wire connection arrangement against the system configuration.
7. What should be checked if the PLC displays incorrect analog input values?
First, confirm that the transmitter is operating correctly and producing a signal within the configured range. Then inspect wiring polarity, loop power, terminal connections, grounding, and shielding. Check the channel parameters and PLC diagnostic information as well. Electrical interference, incorrect scaling, or a mismatch between the field signal and configured range can all cause incorrect readings.
8. Can this module be used in high-temperature applications above 60°C?
The module’s specified operating temperature range extends to +70°C, but input-channel restrictions apply above 60°C. In this range, the documented configuration permits a maximum of one ±20 mA input or four ±10 V inputs. Review the detailed operating conditions and input configuration before using the module in high-temperature installations.
