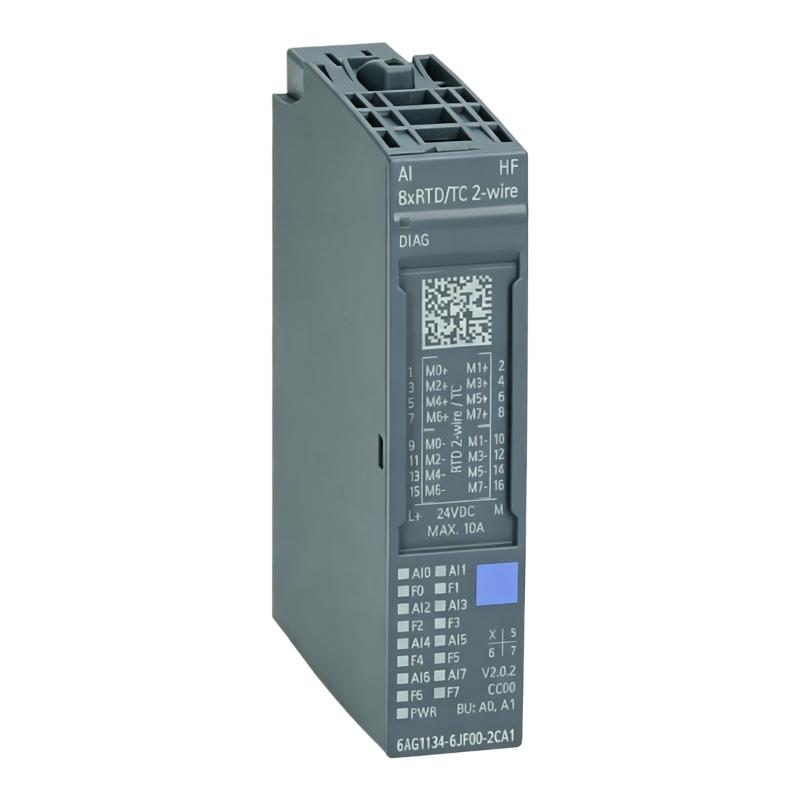

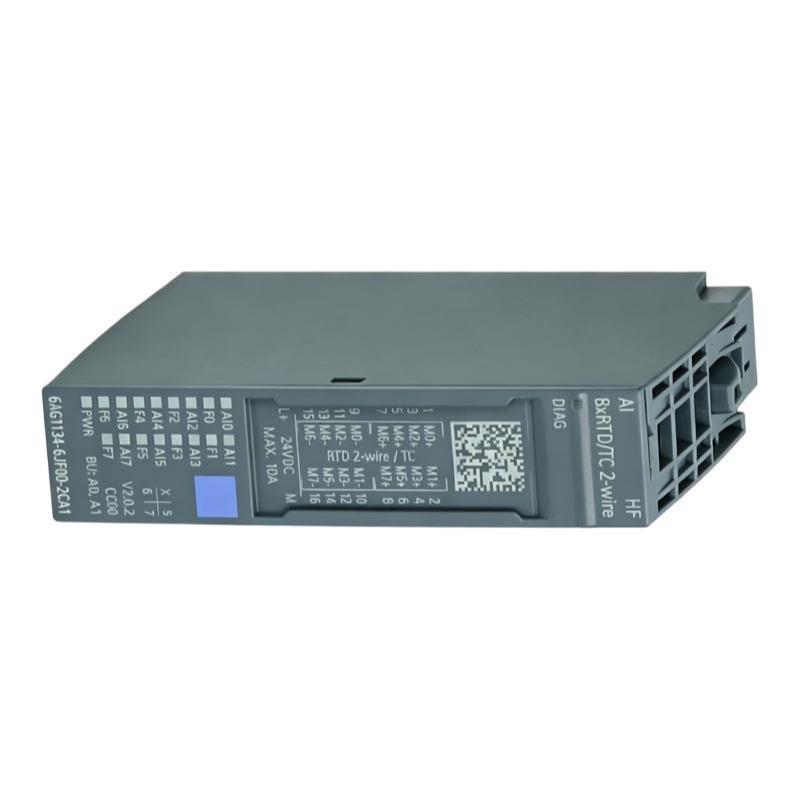

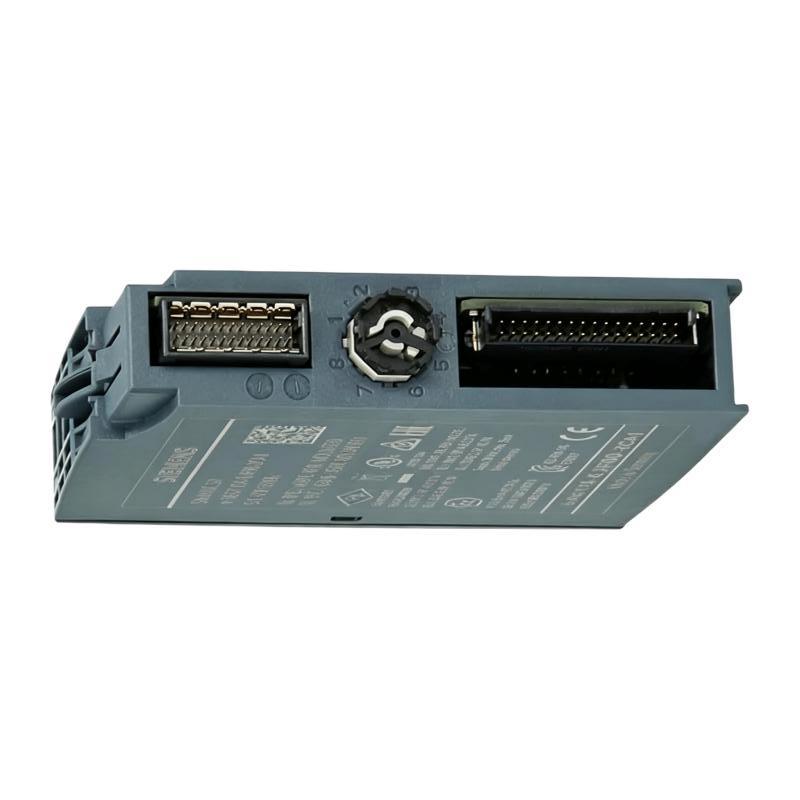

Siemens 6AG1134-6JF00-2CA1 Analog Input Module
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 13666084105 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Siemens |
| Model | 6AG1134-6JF00-2CA1 |
| Product Series | SIPLUS ET 200SP |
| Product Type | Analog Input Module |
| Module Designation | AI 8xRTD/TC 2-wire HF |
| Base Module | 6ES7134-6JF00-0CA1 |
| Number of Analog Inputs | 8 |
| Supported Sensors | RTDs, thermocouples, resistance sensors |
| Connection Type | 2-wire |
| Resolution | Up to 16 bits, including sign |
| Measurement Accuracy | ±0.1% |
| Rated Supply Voltage | 24 V DC |
| Permissible Supply Voltage | 19.2–28.8 V DC |
| Maximum Current Consumption | 35 mA |
| Typical Power Loss | 0.75 W |
| Measurement Principle | Integrating (Sigma-Delta) |
| Channel Diagnostics | Supported |
| Diagnostic Alarms | Supported |
| Wire-Break Detection | Supported for applicable measurement configurations |
| Temperature Units | °C, °F, K |
| Operating Temperature | -40°C to +60°C |
| Minimum Startup Temperature | -25°C |
| Conformal Coating | Yes |
| Compatible BaseUnits | Type A0 and A1 |
| Color Code | CC00 |
| Maximum Shielded Cable Length | 200 m; 50 m for thermocouples |
| Maximum Address Space | 16 bytes plus 1 byte for quality information |
| Dimensions | 15 × 73 × 58 mm |
| Weight | 0.032 kg |
FAQ
Q1: What is the main function of the Siemens 6AG1134-6JF00-2CA1 module?
A: This module is part of the SIPLUS ET 200SP distributed I/O system. It acquires temperature and resistance-related signals from RTDs, thermocouples, and supported resistance sensors, converting them into digital measurement values for PLC processing.
Q2: How many analog input channels does this module provide?
A: The module provides eight analog input channels. Each channel can be configured according to the connected sensor type and the measurement requirements of the application.
Q3: Which sensor types are supported?
A: The module supports resistance temperature detectors (RTDs), thermocouples, and resistance sensors. Supported measurement ranges depend on the selected sensor type and the channel configuration in the PLC engineering software.
Q4: What does the 2-wire connection mean for sensor installation?
A: A 2-wire connection uses two conductors to connect the sensor to the input channel. It simplifies wiring, but conductor resistance can affect resistance-based measurements. For applications requiring higher accuracy, verify that the sensor and cable arrangement meets the required measurement tolerance.
Q5: What diagnostic functions are available?
A: The module supports channel diagnostics and diagnostic alarms. Depending on the configured measurement type, it can help identify conditions such as sensor wire breaks and measurement values outside the configured range. Diagnostic information can be reviewed through the PLC engineering environment.
Q6: Can this module operate in low-temperature industrial environments?
A: Yes. The SIPLUS version supports an operating temperature range of -40°C to +60°C, with startup permitted from -25°C. Its conformal coating provides additional protection for the electronics against environmental contamination. Installation conditions must still comply with the product documentation.
Q7: Which BaseUnits are compatible with this module?
A: The module is designed for ET 200SP BaseUnits of type A0 or A1 and uses color code CC00. Confirm the required BaseUnit and station configuration before installation to ensure correct mechanical and electrical compatibility.
Q8: What should be checked if the module reports incorrect temperature values?
A: First, verify the selected sensor type and measurement range in the PLC configuration. Then inspect sensor wiring, terminal connections, cable condition, and channel parameters. For thermocouples, check polarity and reference-junction settings where applicable. Review diagnostic messages for wire-break or range errors, and compare the readings with a known-good sensor or reference instrument if necessary.
Siemens 6AG1134-6JF00-2CA1 Analog Input Module is in stock. Please contact us for a quick quote and competitive pricing.
