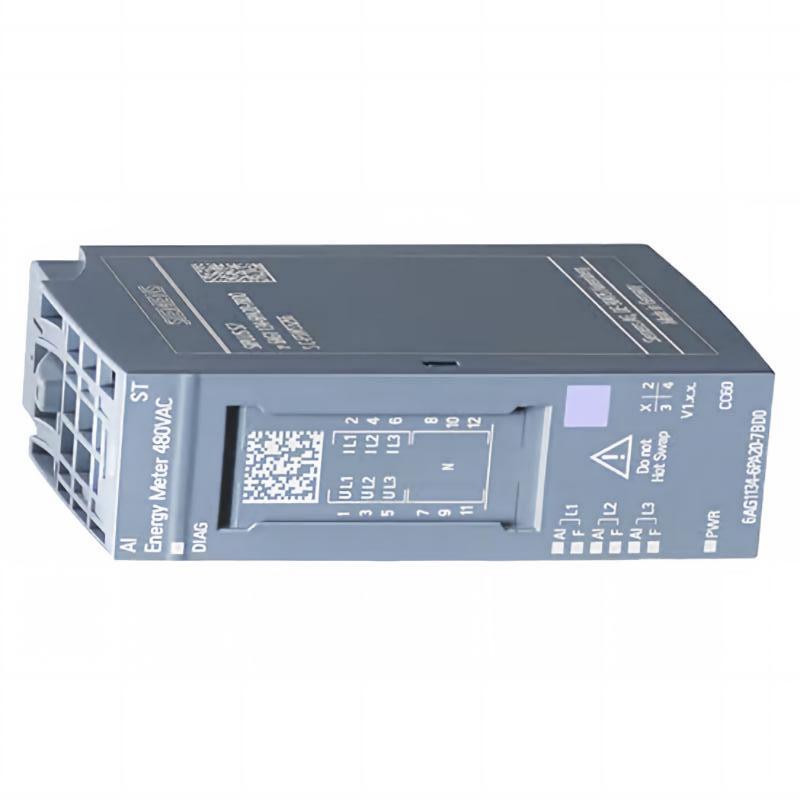

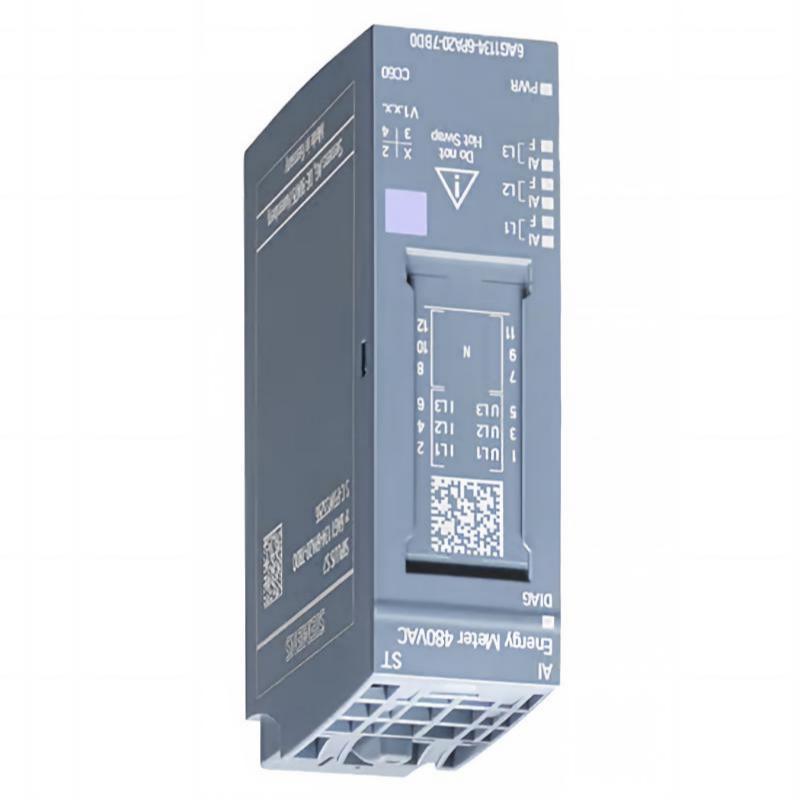

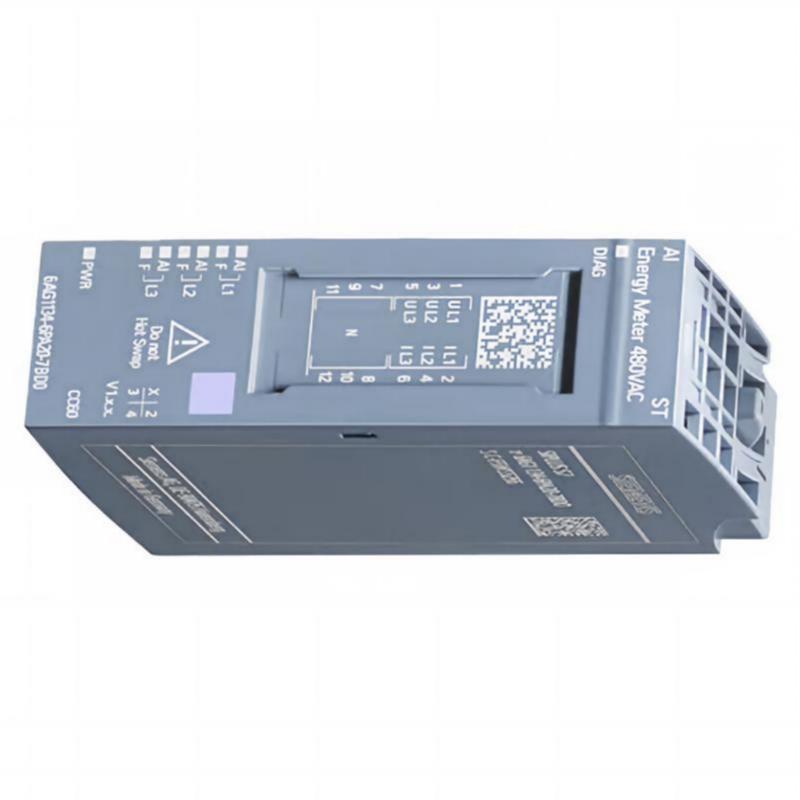

Siemens 6AG1134-6PA20-7BD0 Analog Input Module
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 13666084105 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Siemens |
| Model | 6AG1134-6PA20-7BD0 |
| Product Series | SIPLUS ET 200SP |
| Product Type | Analog Input Module / Energy Meter |
| Module Designation | AI Energy Meter 480VAC ST |
| Base Module | 6ES7134-6PA20-0BD0 |
| Measurement Functions | Voltage, current, power, energy, frequency |
| Voltage Measurement | Three-phase AC measurement |
| Maximum Line-to-Line Voltage | 480 V AC |
| Maximum Phase-to-Neutral Voltage | 277 V AC |
| Permissible Voltage Range | 90–293 V AC, depending on the measurement connection |
| Permissible Frequency Range | 47–63 Hz |
| Frequency Measurement Range | 45–65 Hz |
| Current Measurement | Via external current transformers |
| Voltage Measurement Method | True RMS (TRMS) |
| Current Measurement Method | True RMS (TRMS) |
| Typical Measurement Cycle | 50 ms |
| Typical Power Loss | 0.6 W |
| Maximum Current per Phase | 1 A |
| Energy Measurement | Active and reactive energy measurement |
| Power Measurement | Active and reactive power measurement |
| Diagnostic Functions | Channel diagnostics, diagnostic alarms, limit-value alarms |
| Hardware Interrupts | Supported; monitoring of up to 16 selectable process values |
| Compatible BaseUnit | Type D0 |
| Protection Rating | IP20 |
| Conformal Coating | Yes |
| Operating Temperature | -40°C to +70°C, subject to installation conditions |
| Dimensions | 20 × 73 × 58 mm |
| Weight | 0.045 kg |
FAQ
Q1: What is the main function of the Siemens 6AG1134-6PA20-7BD0 module?
A: This SIPLUS ET 200SP module measures electrical parameters in AC power systems. It can acquire voltage and current signals and calculate values such as power, energy, and frequency for PLC-based monitoring and energy management.
Q2: Can this module measure a three-phase electrical system?
A: Yes. It is designed for AC energy measurement in systems up to 480 V line-to-line. The voltage connections and phase configuration must follow the module wiring diagram and the requirements of the electrical installation.
Q3: Are external current transformers required?
A: Yes. Current measurement requires suitable external current transformers. Select transformers with appropriate primary and secondary ratings, and configure the measurement system accordingly. Never disconnect a current-transformer secondary while its primary circuit is energized unless the installation procedure specifically provides safe protection.
Q4: Which electrical parameters can the module calculate?
A: The module supports voltage, current, frequency, power, and energy measurement. Depending on the configured system and available measured values, it can provide active and reactive power and energy information for electrical monitoring and analysis.
Q5: What is the purpose of true RMS measurement?
A: True RMS measurement calculates the effective value of an AC signal, including many non-sinusoidal waveforms. This is useful in industrial systems containing variable-speed drives, switching power supplies, and other nonlinear loads. Measurement accuracy still depends on the signal characteristics and installation conditions.
Q6: What diagnostic functions are available?
A: The module supports channel diagnostics, diagnostic alarms, and limit-value alarms. Hardware interrupts can be configured to monitor selected process values. These functions help the PLC identify abnormal electrical conditions and respond to configured thresholds.
Q7: Which BaseUnit is compatible with this module?
A: The module is designed for an ET 200SP BaseUnit of type D0. Confirm the exact BaseUnit part number and terminal arrangement before installation, and follow the specified wiring and isolation requirements.
Q8: What should be checked if the measured power or energy values are incorrect?
A: Check the voltage wiring, phase sequence, current-transformer ratio, current-transformer polarity, and configured measurement parameters. Confirm that voltage and current signals correspond to the same phase and that the system frequency is within the supported range. Compare readings with a calibrated meter and review PLC diagnostic information before replacing the module.
Siemens 6AG1134-6PA20-7BD0 Analog Input Module is in stock. Please contact us for a quick quote and competitive pricing.
