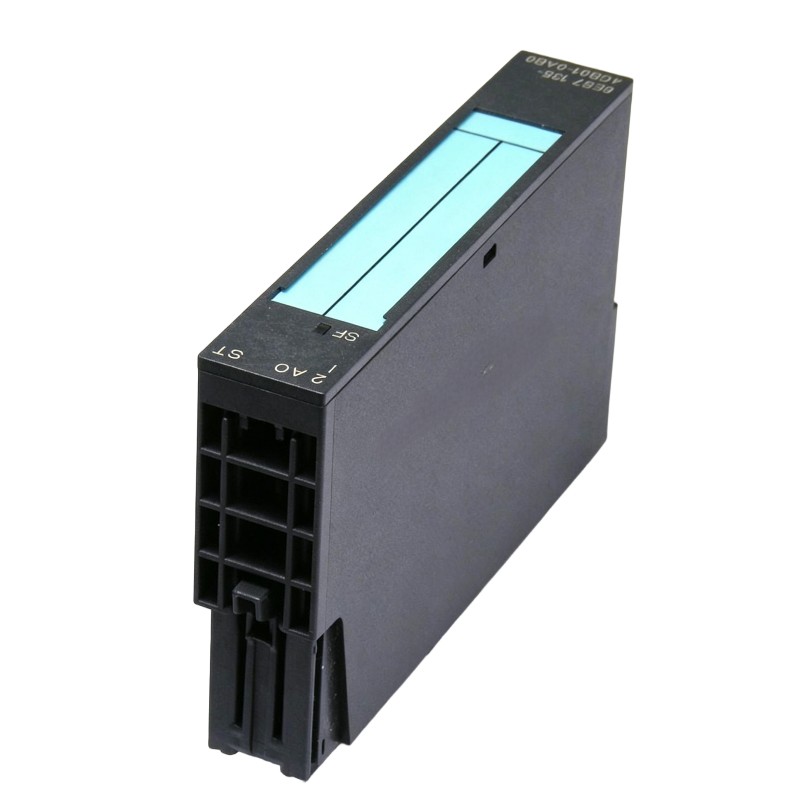

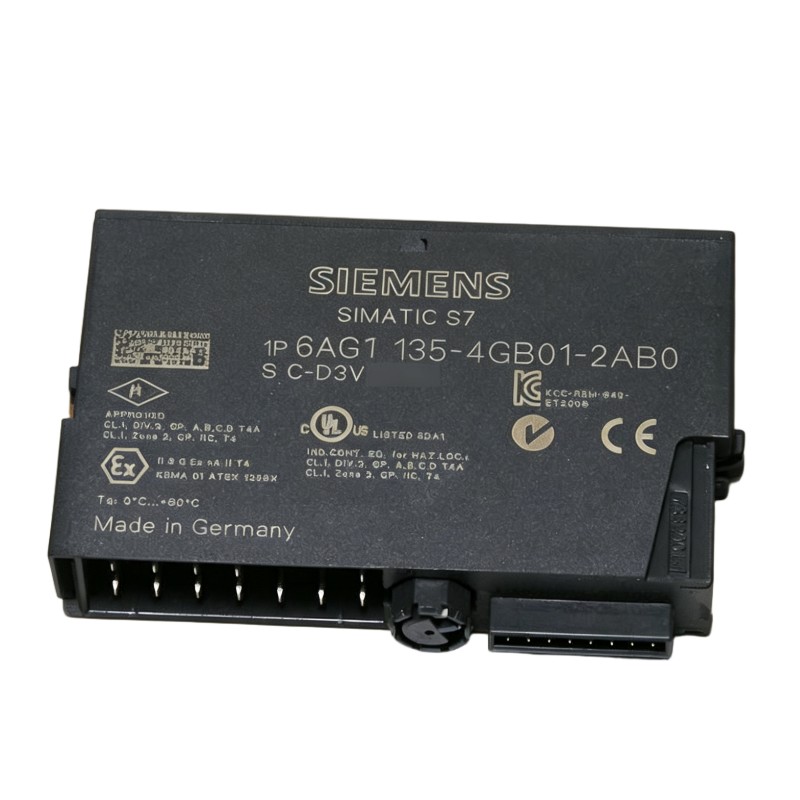

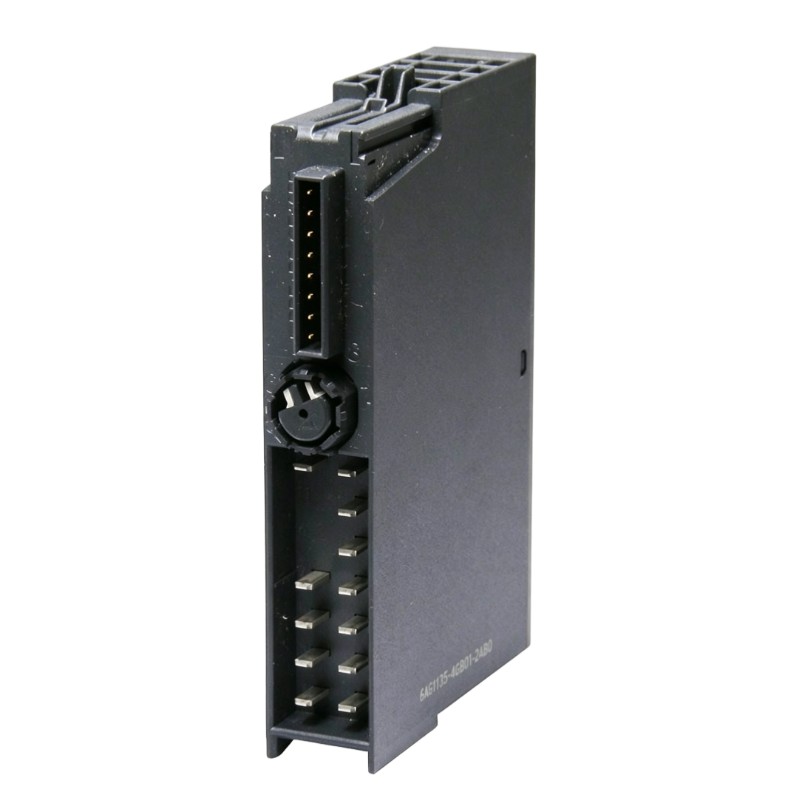

Siemens 6AG1135-4GB01-2AB0 Analog Output Module
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 13666084105 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | Siemens |
| Model | 6AG1135-4GB01-2AB0 |
| Product Type | Analog Output Module |
| Product Family | SIMATIC ET 200S |
| Module Function | Converts digital controller values into analog output signals for field devices |
| Number of Analog Outputs | 2 |
| Output Signal Type | Voltage or current, depending on channel configuration |
| Voltage Output Range | Confirm against the exact model’s technical documentation |
| Current Output Range | Confirm against the exact model’s technical documentation |
| Output Resolution | Depends on the selected output range and module configuration |
| Load Compatibility | Compatible voltage-input or current-input devices, subject to electrical specifications |
| Communication Interface | SIMATIC ET 200S backplane bus |
| Installation Type | ET 200S distributed I/O station |
| Configuration Method | Configure through the compatible SIMATIC hardware configuration software |
| Diagnostic Functions | Depends on the module configuration and supported system diagnostics |
| Application | Process control, actuator control, and industrial analog signal output |
| Dimensions | 15 × 81 × 52 mm |
| Weight | 0.045 kg |
FAQ
Q1: What is the main function of the Siemens 6AG1135-4GB01-2AB0 Analog Output Module?
The module is designed to provide analog output signals from a compatible SIMATIC automation system. These signals can be used to control field devices that require variable voltage or current references, subject to the module’s supported output specifications.
Q2: How many analog output channels does this module provide?
The module designation is associated with an analog output product, but the exact channel count should be confirmed using the official documentation for 6AG1135-4GB01-2AB0 before configuring the system.
Q3: Can this module provide both voltage and current signals?
The supported output types depend on the exact module variant and channel configuration. Check the product’s technical data to confirm whether voltage output, current output, or both are supported, and configure the connected device accordingly.
Q4: Which automation systems are compatible with this module?
The module belongs to the Siemens SIMATIC ET 200S product family. It must be installed in a compatible ET 200S station with the appropriate terminal and interface components. Verify the hardware configuration before commissioning.
Q5: How is the analog output module configured?
Configuration is performed through compatible Siemens SIMATIC hardware configuration software. Select the correct module type, set the supported output range, assign controller addresses, and verify that the program uses the appropriate engineering units and scaling.
Q6: What should be checked if the output signal is incorrect?
Check the configured output range, channel addressing, wiring, load impedance, and common reference connections. Compare the commanded value with the measured output and inspect controller diagnostics for configuration or hardware faults.
Q7: Can this module control a variable frequency drive or control valve?
It may be suitable if the connected drive or valve accepts an analog signal supported by the module. Confirm the signal range, electrical load requirements, and scaling parameters before connecting the device.
Q8: What precautions should be taken when installing the module?
Use compatible ET 200S components and follow Siemens installation instructions. Disconnect power before changing wiring where required, verify terminal assignments, and ensure that the configured output range matches the connected field device to prevent incorrect control signals.
Siemens 6AG1135-4GB01-2AB0 Analog Output Module is in stock. Please contact us for a quick quote and competitive pricing.
