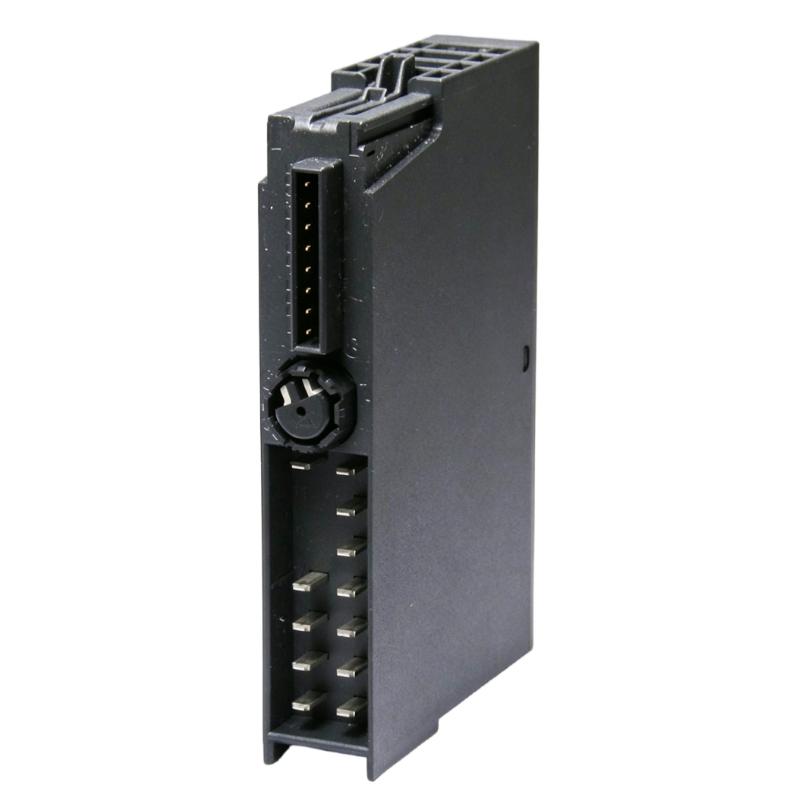

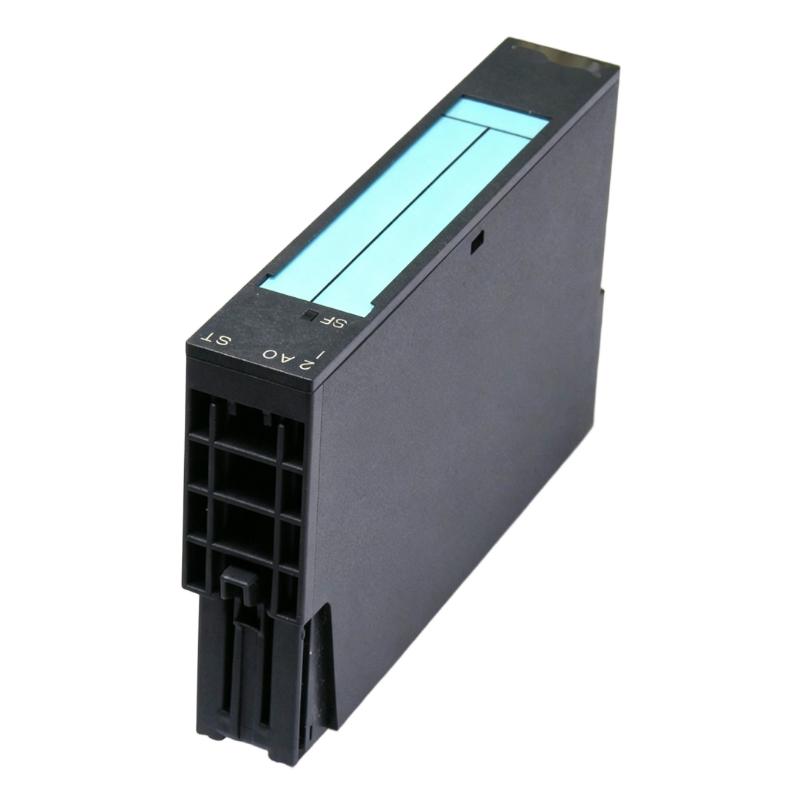

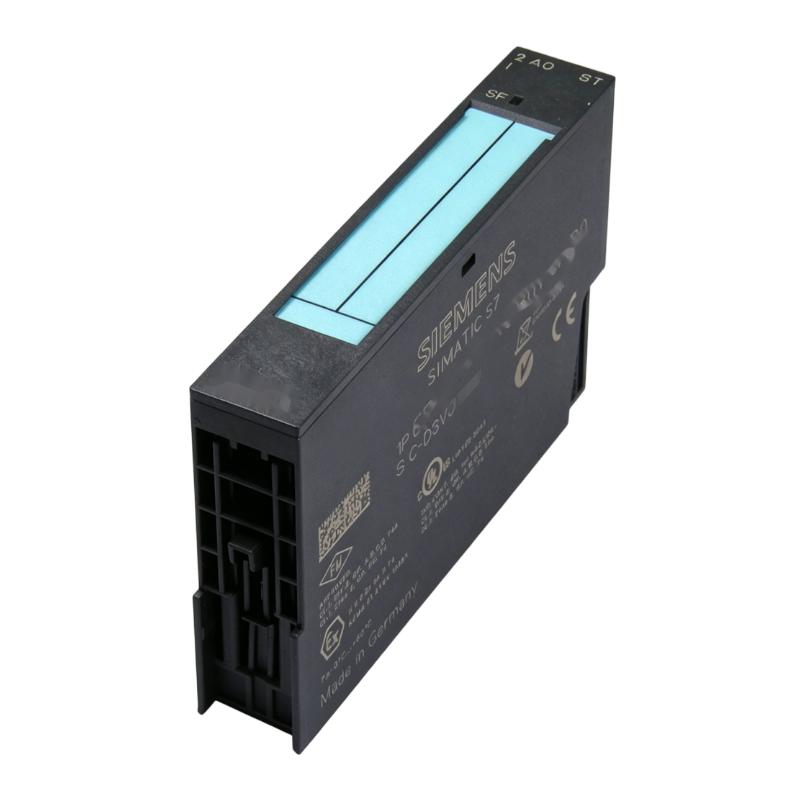

Siemens 6AG1135-4LB02-7AB0 Analog Output Module
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 13666084105 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | Siemens |
| Model Number | 6AG1135-4LB02-7AB0 |
| Product Type | Analog Output Module |
| Product Series | SIPLUS ET 200S |
| Base Model | 6ES7135-4LB02-0AB0 |
| Module Type | 2 AO U High Feature |
| Number of Analog Outputs | 2 |
| Output Signal Type | Voltage |
| Supported Output Ranges | 1–5 V, -5–+5 V, -10–+10 V DC |
| Rated Load Voltage | 24 V DC |
| Maximum Supply Current | 80 mA from load voltage supply L+ (unloaded) |
| Backplane Bus Current | Maximum 10 mA at 3.3 V DC |
| Output Resolution | 16-bit maximum, including sign |
| Maximum Short-Circuit Current | 25 mA |
| Short-Circuit Protection | Yes |
| Minimum Load Impedance | 1 kΩ |
| Maximum Capacitive Load | 0.5 µF |
| Maximum Shielded Cable Length | 200 m; 100 m for specified fast settling applications |
| Settling Time | 0.2 ms for resistive loads; up to 0.5 ms for capacitive and inductive loads |
| Basic Accuracy at 25°C | ±0.05% of output range |
| Operational Accuracy | ±0.1% of output range |
| Diagnostics | Diagnostic information available; short-circuit and group error diagnostics |
| Status Indicator | SF red group fault LED |
| Potential Isolation | Isolated from the backplane bus; output channels are not isolated from each other |
| Reverse Polarity Protection | Yes |
| Operating Temperature | -25 to +60°C |
| Mounting System | Siemens ET 200S distributed I/O system |
| Dimensions | 15 × 81 × 52 mm |
| Weight | 0.045 kg |
FAQ
Q1: What is the main function of the Siemens 6AG1135-4LB02-7AB0?
A: The 6AG1135-4LB02-7AB0 is a SIPLUS ET 200S analog output module with two voltage output channels. It converts digital control values from a PLC into analog voltage signals for devices such as control valves, actuators, and signal converters.
Q2: Which output voltage ranges does this module support?
A: The module supports 1–5 V, -5–+5 V, and -10–+10 V DC output ranges. The required range must be selected in the hardware configuration and matched to the connected device.
Q3: Which PLC and I/O systems are compatible with the 6AG1135-4LB02-7AB0?
A: This module belongs to the Siemens SIPLUS ET 200S distributed I/O family and is based on the standard module 6ES7135-4LB02-0AB0. Compatibility depends on the ET 200S interface module, station configuration, and engineering software used in the installation.
Q4: What is the resolution of the analog outputs?
A: The module supports a maximum resolution of 16 bits, including the sign bit. Actual output performance also depends on the selected voltage range, configured parameters, wiring quality, and the characteristics of the connected load.
Q5: Does the 6AG1135-4LB02-7AB0 have short-circuit protection?
A: Yes. The voltage outputs have short-circuit protection, with a maximum specified short-circuit current of 25 mA. Repeated short circuits should still be avoided, and the wiring and connected device should be checked before returning the system to service.
Q6: Can the module operate in harsh industrial environments?
A: The SIPLUS version is designed for an extended operating temperature range of -25 to +60°C and enhanced environmental resistance compared with standard versions. Actual suitability depends on the installation conditions, including corrosive gases, humidity, contamination, and cabinet protection.
Q7: Why might an analog output signal be incorrect or unstable?
A: Common causes include an incorrect output range, incorrect hardware configuration, loose wiring, an unsuitable load, or electrical interference. Check the PLC output value, module parameters, grounding, cable shielding, and load impedance. The connected load should meet the specified minimum impedance of 1 kΩ.
Q8: What should be checked when replacing a faulty 6AG1135-4LB02-7AB0?
A: Confirm the complete order number and the compatibility of the replacement with the existing ET 200S station. Before replacement, isolate the power supply and follow the system’s electrical safety procedures. After installation, verify the hardware configuration, output ranges, wiring, diagnostic indicators, and actual voltage at each output channel.
Siemens 6AG1135-4LB02-7AB0 Analog Output Module is in stock. Please contact us for a quick quote and competitive pricing.
