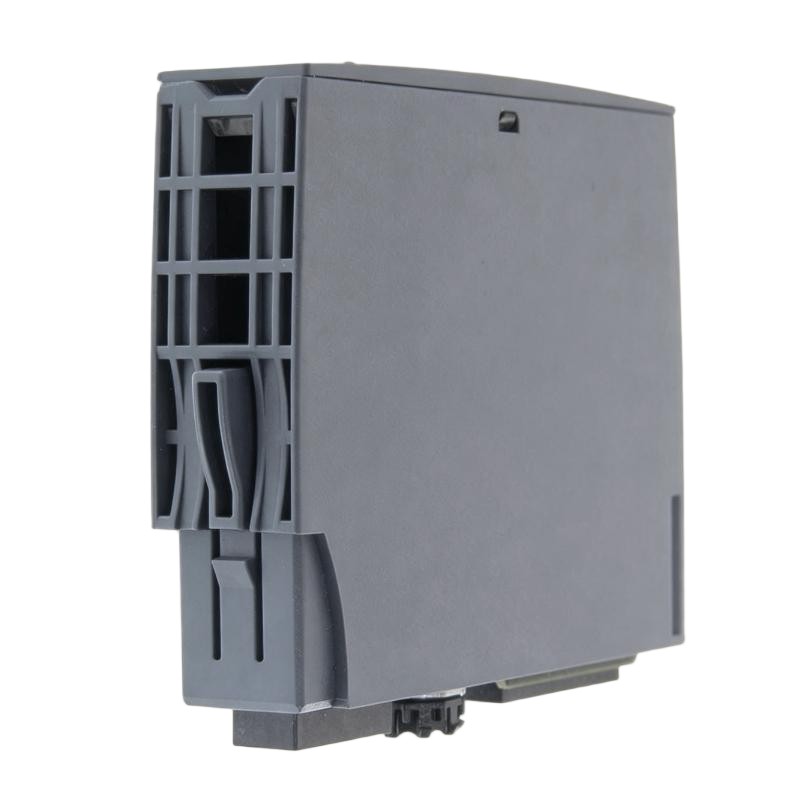

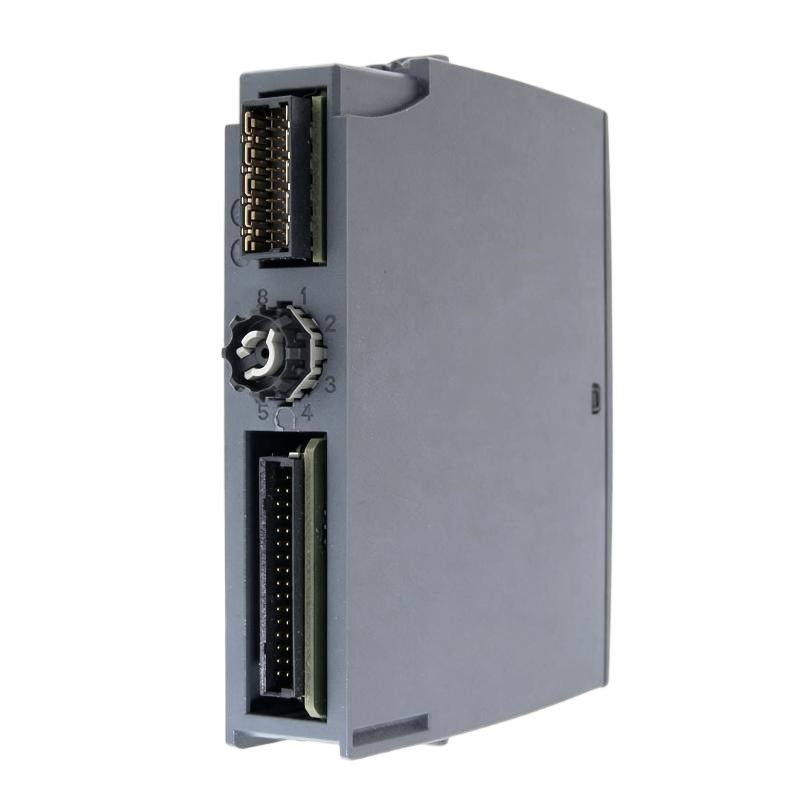

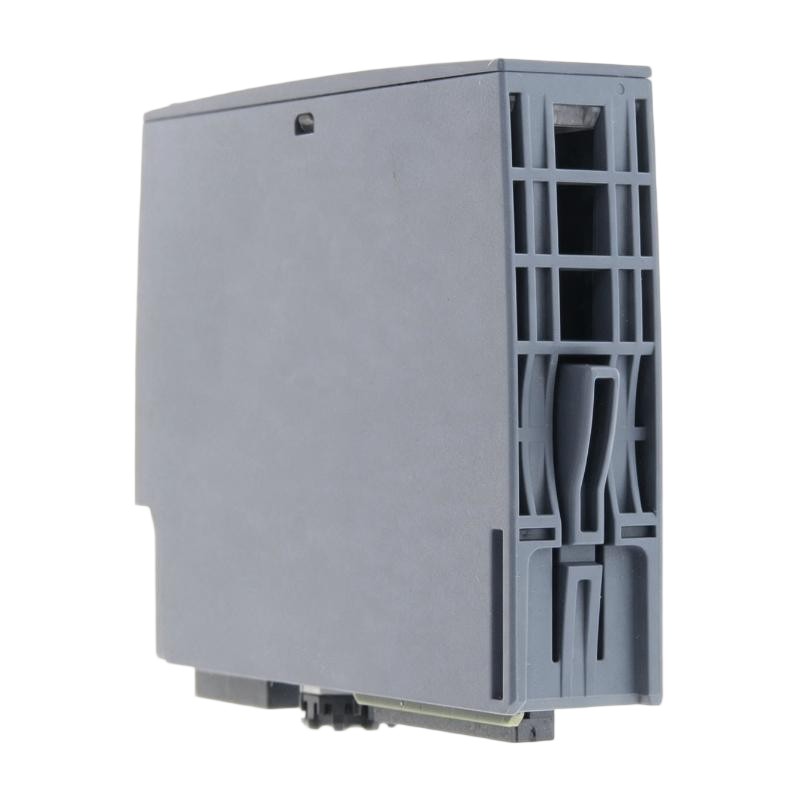

Siemens 6AG1135-6HB00-7CA1 Analog Output Module
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 13666084105 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | Siemens |
| Model Number | 6AG1135-6HB00-7CA1 |
| Product Type | Analog Output Module |
| Product Series | SIPLUS ET 200SP |
| Module Designation | AQ 2xU/I HF |
| Base Model | 6ES7135-6HB00-0CA1 |
| Number of Analog Outputs | 2 |
| Output Signal Types | Voltage and current |
| Voltage Output Ranges | 0–10 V, 1–5 V, -5–+5 V, -10–+10 V DC |
| Current Output Ranges | 0–20 mA, 4–20 mA, -20–+20 mA |
| Maximum Output Resolution | Up to 16-bit, including sign |
| Rated Supply Voltage | 24 V DC |
| Permissible Supply Voltage Range | 19.2–28.8 V DC |
| Maximum Current Consumption | 90 mA with both channels operating at 20 mA current output |
| Typical Power Dissipation | 0.9 W |
| Minimum Cycle Time | 750 µs for all channels |
| Oversampling | Not supported |
| Isochronous Mode | Supported |
| Minimum Voltage Load Impedance | 2 kΩ |
| Maximum Current Load Impedance | 500 Ω |
| Maximum Capacitive Load | 1 µF for voltage output |
| Maximum Inductive Load | 1 mH for current output |
| Voltage Output Short-Circuit Protection | Yes |
| Maximum Voltage Output Short-Circuit Current | 45 mA |
| Basic Error Limit at 25°C | ±0.1% of output range |
| Operational Error Limit | ±0.4% of output range |
| Diagnostic Functions | Supply voltage monitoring, wire-break detection for current outputs, short-circuit detection for voltage outputs, group error, overflow and underflow diagnostics |
| Substitute Value Function | Supported |
| Reverse Polarity Protection | Yes |
| Compatible BaseUnits | BU type A0 or A1 |
| Color Code | CC00 |
| Conformal Coating | Yes |
| Operating Temperature | -40 to +70°C for horizontal installation; vertical installation may have a reduced upper limit |
| Mounting System | Siemens ET 200SP distributed I/O system |
| Dimensions | 15 × 73 × 58 mm |
| Weight | 0.04 kg |
FAQ
Q1: What is the main function of the Siemens 6AG1135-6HB00-7CA1?
A: The 6AG1135-6HB00-7CA1 is a two-channel analog output module in the SIPLUS ET 200SP family. It converts digital PLC control values into voltage or current signals for controlling actuators, control valves, drives, and other industrial equipment.
Q2: Which voltage and current output ranges does the module support?
A: The module supports voltage ranges of 0–10 V, 1–5 V, -5–+5 V, and -10–+10 V DC. Current output ranges include 0–20 mA, 4–20 mA, and -20–+20 mA. The selected range must match the receiving device and the PLC hardware configuration.
Q3: Which BaseUnits are compatible with the 6AG1135-6HB00-7CA1?
A: The module is designed for Siemens ET 200SP BaseUnits of type A0 or A1 and uses the CC00 color code. Confirm the BaseUnit type and station configuration before installation to ensure proper wiring and compatibility.
Q4: What is the output resolution and accuracy of this module?
A: The module supports up to 16-bit output resolution, including the sign bit where applicable. The basic error limit at 25°C is ±0.1% of the output range, while the operational error limit is ±0.4%. Actual performance also depends on the selected signal range, wiring, load, and operating conditions.
Q5: What load limits should be considered when connecting field devices?
A: Voltage outputs require a minimum load impedance of 2 kΩ, while current outputs support a maximum load impedance of 500 Ω. The maximum capacitive load for voltage output is 1 µF, and the maximum inductive load for current output is 1 mH. Check the connected equipment and circuit characteristics before commissioning.
Q6: What diagnostic functions are available?
A: The module supports supply voltage monitoring, wire-break detection for current outputs, short-circuit detection for voltage outputs, group error reporting, and overflow or underflow diagnostics. These functions help identify wiring faults, load problems, and incorrect output configurations.
Q7: Can the SIPLUS module operate in harsh industrial environments?
A: Yes. The module has conformal coating and an extended operating temperature range of -40 to +70°C for horizontal installation. The maximum permitted temperature may be lower for vertical installation. Suitability for a specific application also depends on humidity, contamination, chemical exposure, and cabinet conditions.
Q8: What should be checked if the analog output signal is incorrect or missing?
A: Check the 24 V DC supply, selected output range, PLC output value, terminal wiring, and load impedance. Confirm that the receiving device is configured for the same voltage or current signal. Review the module diagnostics and inspect the field circuit before deciding whether the module needs replacement.
