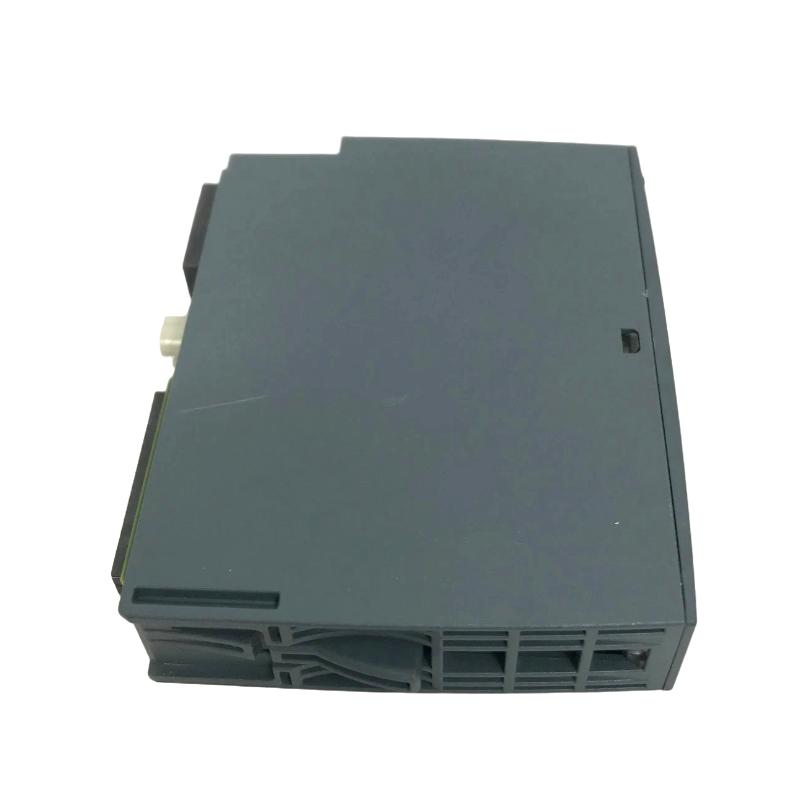

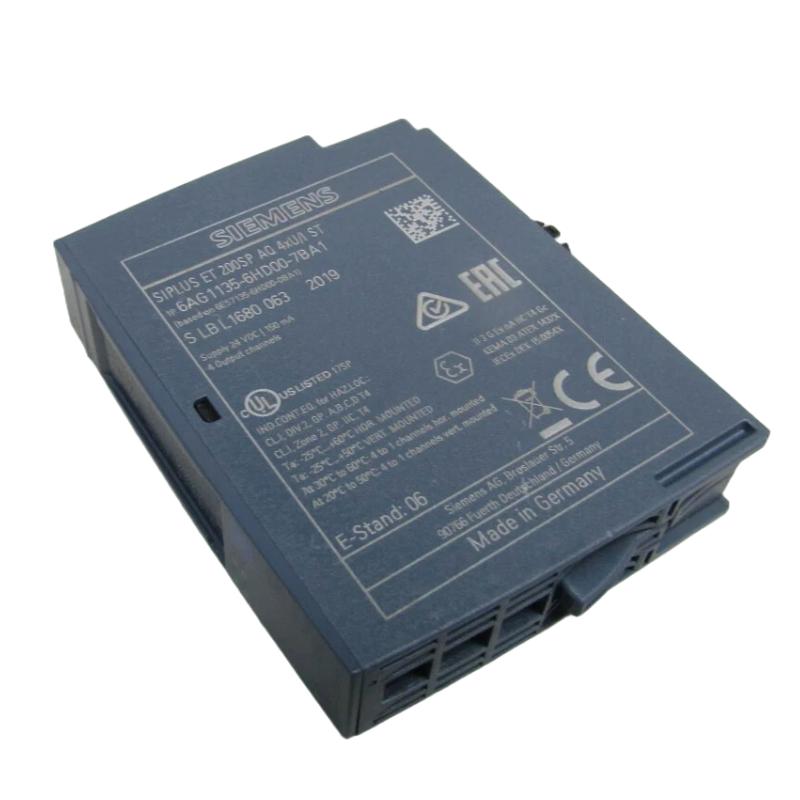

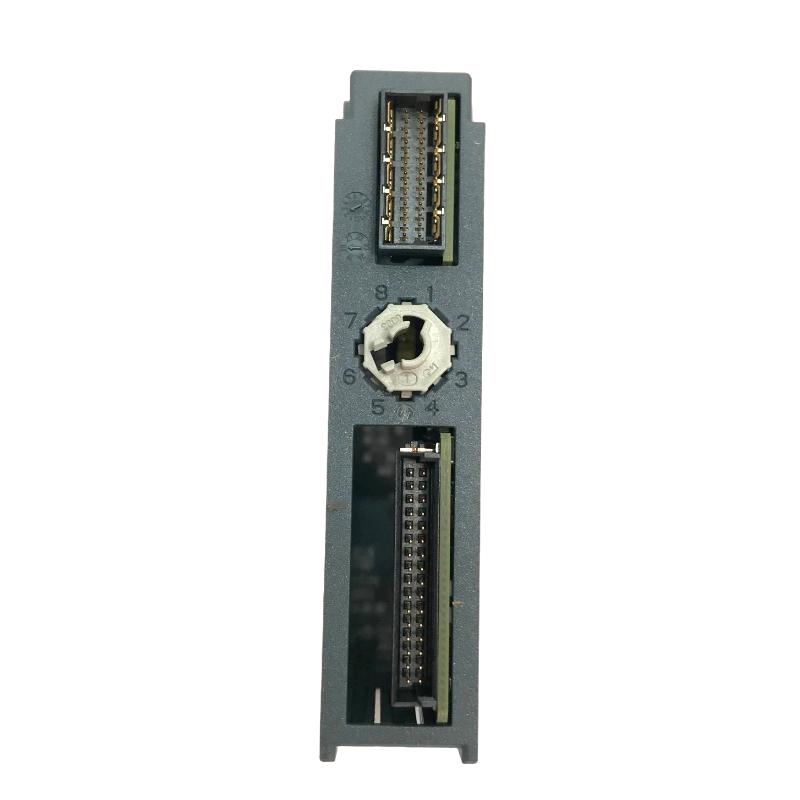

Siemens 6AG1135-6HD00-7BA1 Analog Output Module
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 13666084105 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | Siemens |
| Model Number | 6AG1135-6HD00-7BA1 |
| Product Type | Analog Output Module |
| Product Series | SIPLUS ET 200SP |
| Module Designation | AQ 4xU/I ST |
| Base Model | 6ES7135-6HD00-0BA1 |
| Number of Analog Outputs | 4 |
| Output Signal Types | Voltage and current |
| Voltage Output Ranges | 0–10 V, 1–5 V, -5–+5 V, -10–+10 V DC |
| Current Output Ranges | 0–20 mA, 4–20 mA, -20–+20 mA |
| Maximum Output Resolution | Up to 16-bit, including sign |
| Rated Supply Voltage | 24 V DC |
| Permissible Supply Voltage Range | 19.2–28.8 V DC |
| Maximum Current Consumption | 150 mA |
| Typical Power Dissipation | 1.5 W |
| Minimum Cycle Time | 5 ms for all channels |
| Oversampling | Not supported |
| Isochronous Mode | Not supported |
| Minimum Voltage Load Impedance | 2 kΩ |
| Maximum Current Load Impedance | 500 Ω |
| Maximum Capacitive Load | 1 µF for voltage output |
| Maximum Inductive Load | 1 mH for current output |
| Voltage Output Short-Circuit Protection | Yes |
| Maximum Voltage Output Short-Circuit Current | 45 mA |
| Basic Error Limit at 25°C | ±0.3% of output range |
| Operational Error Limit | ±0.5% of output range |
| Diagnostic Functions | Channel diagnostics, supply voltage monitoring, wire-break and short-circuit diagnostics, overflow and underflow detection |
| Substitute Value Function | Supported |
| Reverse Polarity Protection | Yes |
| Compatible BaseUnits | BU type A0 or A1 |
| Color Code | CC00 |
| Conformal Coating | Yes |
| Operating Temperature | -40 to +70°C; above +60°C, a maximum of two channels may use ±10 V output |
| Mounting System | Siemens ET 200SP distributed I/O system |
| Dimensions | 15 × 73 × 58 mm |
| Weight | 0.039 kg |
FAQ
Q1: What is the main function of the Siemens 6AG1135-6HD00-7BA1?
A: The 6AG1135-6HD00-7BA1 is a four-channel analog output module in the SIPLUS ET 200SP family. It converts digital control values from a PLC into voltage or current signals for operating control valves, actuators, drives, and other industrial equipment.
Q2: Which voltage and current output ranges does this module support?
A: The module supports voltage ranges of 0–10 V, 1–5 V, -5–+5 V, and -10–+10 V DC. Current output ranges include 0–20 mA, 4–20 mA, and -20–+20 mA. Select the appropriate range in the hardware configuration and ensure it matches the connected device.
Q3: Which BaseUnits are compatible with the 6AG1135-6HD00-7BA1?
A: The module is designed for Siemens ET 200SP BaseUnits of type A0 or A1 and uses the CC00 color code. Check the station configuration and terminal arrangement before installation to ensure correct wiring and compatibility.
Q4: What is the output resolution and accuracy of this module?
A: The module supports up to 16-bit output resolution, including the sign bit where applicable. Its basic error limit at 25°C is ±0.3% of the output range, while the operational error limit is ±0.5%. Actual performance also depends on the selected output range, wiring, load, and operating conditions.
Q5: What load limits should be considered when connecting field devices?
A: Voltage outputs require a minimum load impedance of 2 kΩ, while current outputs support a maximum load impedance of 500 Ω. The maximum capacitive load for voltage output is 1 µF, and the maximum inductive load for current output is 1 mH. Check the connected equipment and circuit characteristics before commissioning.
Q6: What diagnostic functions are available?
A: The module supports channel diagnostics, supply voltage monitoring, wire-break and short-circuit diagnostics, and overflow or underflow detection. These functions help identify wiring faults, load problems, and output configuration errors during commissioning and operation.
Q7: Can this SIPLUS module operate in harsh industrial environments?
A: Yes. The SIPLUS version features conformal coating and an extended operating temperature range of -40 to +70°C. However, above +60°C, no more than two channels may use the ±10 V output range. Installation conditions, humidity, chemical exposure, and cabinet protection should also be considered.
Q8: What should be checked if the analog output signal is incorrect or missing?
A: Check the 24 V DC supply, output range configuration, PLC output value, terminal wiring, and load impedance. Confirm that the receiving device uses the same voltage or current range as the module. Review the diagnostic messages and inspect the field circuit before deciding whether the module needs replacement.
Siemens 6AG1135-6HD00-7BA1 Analog Output Module is in stock. Please contact us for a quick quote and competitive pricing.
