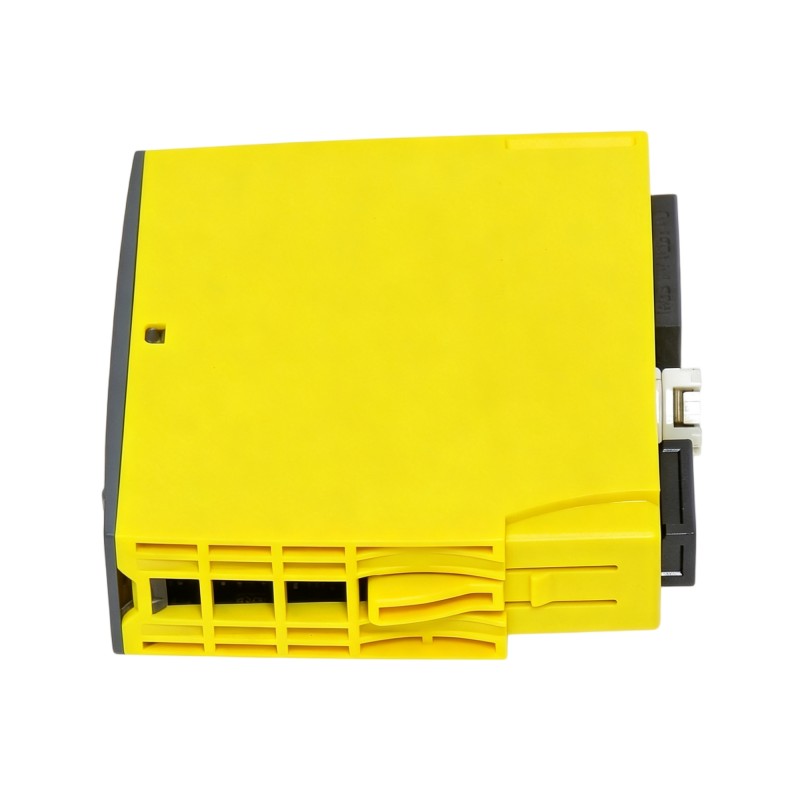

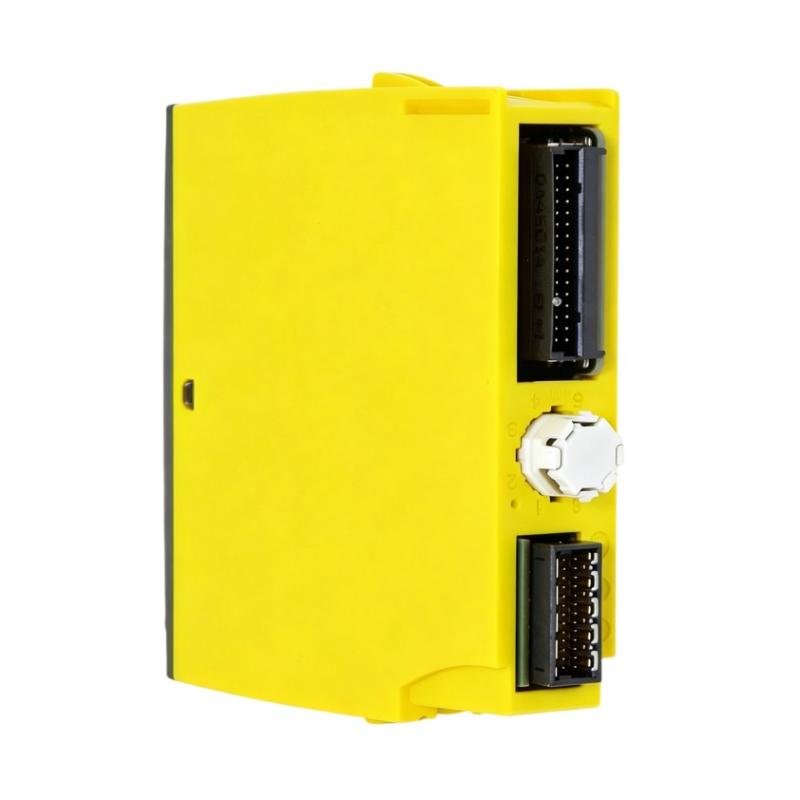

Siemens 6AG1136-6AA00-2CA1 Analog Output Module
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 13666084105 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | Siemens |
| Model | 6AG1136-6AA00-2CA1 |
| Product Type | Fail-Safe Analog Input Module |
| Product Series | SIPLUS ET 200SP |
| Module Designation | F-AI 4xI 0(4)…20 mA 2-/4-wire HF |
| Base Model | 6ES7136-6AA00-0CA1 |
| Number of Analog Inputs | 4 |
| Input Signal Type | Current |
| Supported Input Ranges | 0–20 mA, 4–20 mA |
| Input Resistance | 125 Ω |
| Maximum Input Current | 35 mA (destruction limit) |
| Maximum Resolution | 16 bit, including overrange |
| Measurement Principle | Sigma-delta |
| Rated Supply Voltage | 24 V DC |
| Permissible Supply Voltage Range | 19.2–28.8 V DC |
| Rated Current Consumption | 0.38 A |
| Maximum Current Consumption | 0.4 A |
| Backplane Bus Power Consumption | 70 mW |
| Typical Power Dissipation | 2 W |
| Sensor Compatibility | 2-wire and 4-wire current transducers |
| Maximum 24 V Sensor Supply Current | 300 mA total across channels |
| Maximum Shielded Cable Length | 1000 m |
| Basic Error Limit at 25°C | ±0.1% of input range |
| Linearity Error | ±0.1% of input range |
| Repeatability at 25°C | ±0.1% of input range |
| Diagnostic Functions | Supply voltage monitoring, wire-break detection for 4–20 mA, short-circuit diagnosis |
| Diagnostic Indicators | RUN, ERROR, PWR and channel status LEDs |
| Functional Safety | Up to PL e according to ISO 13849 and SIL 3 according to IEC 61508 |
| Reverse Polarity Protection | Yes |
| Compatible Base Units | BU type A0, A1 |
| Color Code | CC00 |
| Protective Coating | Conformal coating |
| Operating Temperature | -30°C to +60°C |
| Protection Rating | IP20 |
| Dimensions | 15 × 73 × 58 mm |
| Weight | 0.066 kg |
FAQ
Q1: What is the main function of the Siemens 6AG1136-6AA00-2CA1 module?
The Siemens 6AG1136-6AA00-2CA1 is a fail-safe analog input module for the SIPLUS ET 200SP distributed I/O system. It acquires current signals from industrial sensors and transmitters, allowing the PLC to monitor process variables and use them in control and safety-related applications.
Q2: Which input signals does this module support?
The module supports 0–20 mA and 4–20 mA current signals. It can connect compatible 2-wire and 4-wire current transducers. The selected input range and wiring configuration must match the connected field device.
Q3: Can the 6AG1136-6AA00-2CA1 be used in safety applications?
Yes. This fail-safe module supports safety applications up to Performance Level e (PL e) according to ISO 13849 and Safety Integrity Level 3 (SIL 3) according to IEC 61508, when used within an appropriately designed and validated safety system.
Q4: What is the difference between the 6AG1136-6AA00-2CA1 and a standard analog input module?
The 6AG1136-6AA00-2CA1 is a SIPLUS fail-safe analog input module with safety-related signal acquisition capabilities and conformal coating for demanding environmental conditions. A standard analog input module may not provide the same functional safety certification or environmental protection. Selection should be based on the application’s safety requirements.
Q5: Which BaseUnit is compatible with this module?
The module supports BU type A0 and A1 BaseUnits. Before installation, verify the BaseUnit’s wiring arrangement and compatibility with the system configuration to ensure correct signal connections and reliable operation.
Q6: Does the module provide diagnostic functions?
Yes. Diagnostic capabilities include supply voltage monitoring, short-circuit diagnosis and wire-break detection for the 4–20 mA measuring range. The module also provides status indicators to help identify operating conditions and faults during commissioning and maintenance.
Q7: Can this module operate in harsh industrial environments?
The SIPLUS version features conformal coating and is rated for an operating temperature range of -30°C to +60°C. It is designed for more demanding environmental conditions than a standard module, but actual suitability depends on factors such as humidity, condensation, chemical exposure and installation conditions.
Q8: What should be checked if the module reports incorrect current measurements?
First, verify the 24 V DC supply and confirm that the input range is configured correctly. Check the 2-wire or 4-wire transmitter wiring, loop power, polarity and field-device output. Then inspect diagnostic indicators and PLC diagnostic messages. If the reading remains incorrect, measure the loop current using a suitable instrument and check for grounding issues, electrical interference or a faulty sensor.
