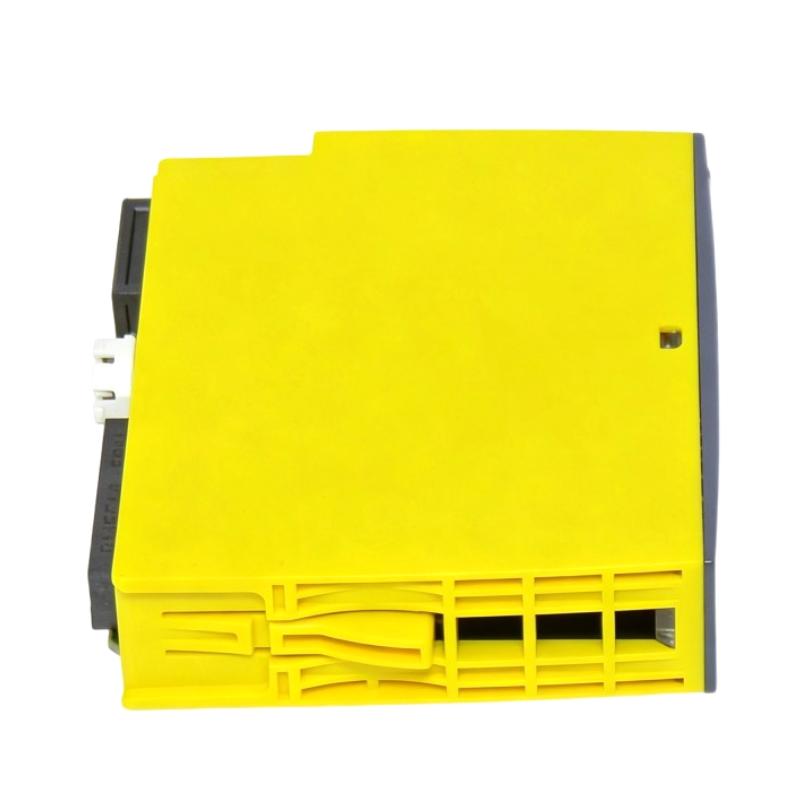

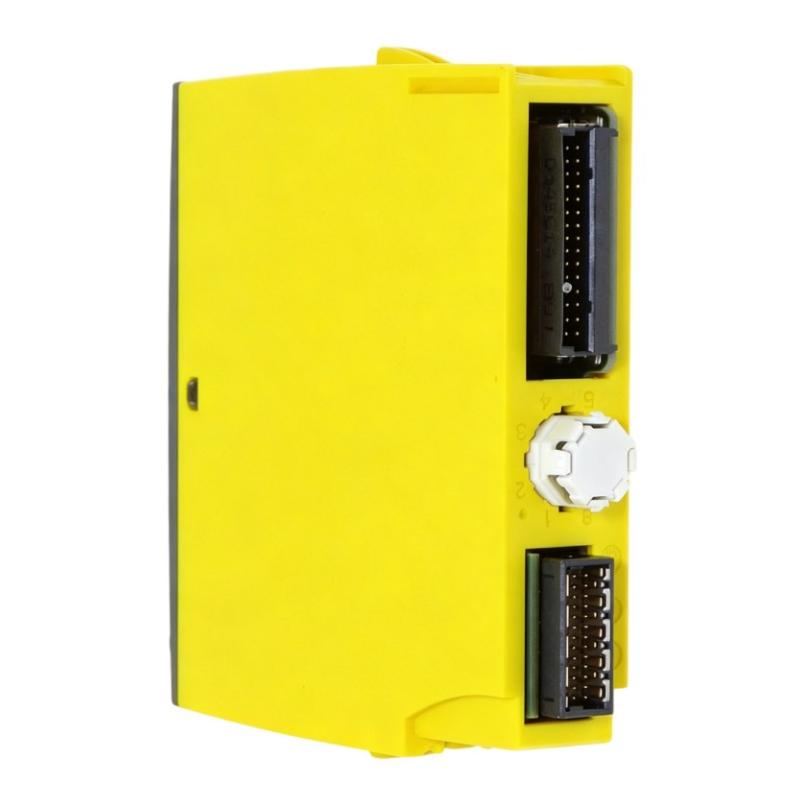

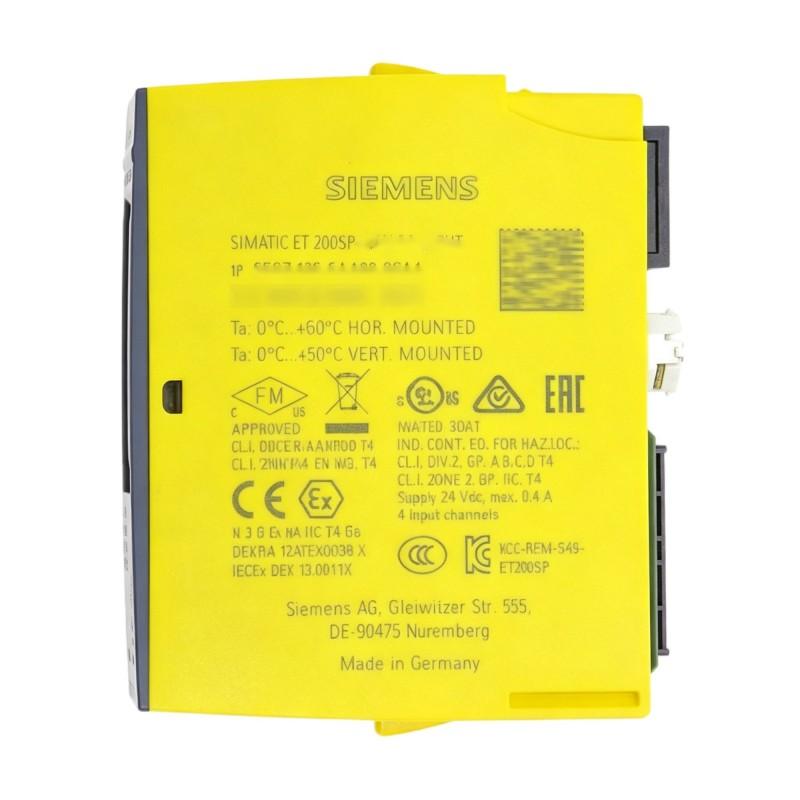

Siemens 6AG1136-6BA00-2CA0 Digital Input Module
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 13666084105 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | Siemens |
| Model | 6AG1136-6BA00-2CA0 |
| Product Type | Fail-Safe Digital Input Module |
| Product Series | SIPLUS ET 200SP |
| Module Designation | F-DI 8x24VDC HF |
| Base Model | 6ES7136-6BA00-0CA0 |
| Number of Digital Inputs | 8 fail-safe digital inputs |
| Rated Input Voltage | 24 V DC |
| Permissible Supply Voltage Range | 20.4–28.8 V DC |
| Signal Level for OFF | -30 to +5 V DC |
| Signal Level for ON | +15 to +30 V DC |
| Typical Input Current at ON | 3.7 mA |
| Input Characteristic | IEC 61131, Type 1 |
| Input Delay | Configurable, 0.4–20 ms for standard inputs |
| Safety Communication | PROFIsafe |
| Functional Safety | Up to PL e according to ISO 13849-1 and SIL 3 according to IEC 61508 |
| Encoder Supply | 24 V DC |
| Maximum Total Encoder Supply Current | 800 mA |
| Encoder Supply Short-Circuit Protection | Yes |
| Reverse Polarity Protection | Yes |
| Diagnostic Functions | Channel diagnostics, supply voltage monitoring, diagnostic alarms |
| Status Indicators | RUN, ERROR, PWR and channel status LEDs |
| Maximum Shielded Cable Length | 1000 m |
| Maximum Unshielded Cable Length | 500 m |
| Usable BaseUnit | BU type A0 |
| Color Code | CC01 |
| Protective Coating | Conformal coating |
| Operating Temperature | -30°C to +60°C, depending on installation conditions |
| Protection Rating | IP20 |
| Dimensions | 15 × 73 × 58 mm |
| Weight | 0.064 kg |
FAQ
Q1: What is the main function of the Siemens 6AG1136-6BA00-2CA0 module?
The Siemens 6AG1136-6BA00-2CA0 is a fail-safe digital input module for the SIPLUS ET 200SP distributed I/O system. It receives digital signals from safety devices such as emergency stop buttons, safety switches and compatible sensors, allowing a safety PLC to monitor field conditions.
Q2: How many digital input channels does this module provide?
The module provides eight fail-safe digital input channels. Each channel can be configured and integrated into a suitable safety application according to the system design, wiring requirements and supported safety configuration.
Q3: What input voltage does the module support?
The module uses a nominal 24 V DC input signal. A signal between +15 V and +30 V DC is recognized as ON, while a signal between -30 V and +5 V DC is recognized as OFF. Signals within the transition range should be avoided to ensure reliable signal detection.
Q4: Can this module be used in SIL 3 and PL e safety applications?
Yes. The module supports applications up to SIL 3 under IEC 61508 and PL e under ISO 13849-1. Achieving these levels requires a correctly designed and validated safety system, including compatible controllers, suitable field devices, appropriate wiring and proper safety programming.
Q5: Which BaseUnit is compatible with the 6AG1136-6BA00-2CA0?
The specified compatible BaseUnit is type A0 with color code CC01. Before installation, verify the exact BaseUnit part number and terminal arrangement against the system configuration and manufacturer’s documentation.
Q6: What diagnostic functions are available?
The module supports diagnostic functions including channel status indication, supply voltage monitoring and diagnostic alarms. The RUN, ERROR and PWR LEDs help maintenance personnel identify operating states and potential faults. Diagnostic availability and reporting depend on the system configuration.
Q7: Is this module suitable for harsh industrial environments?
The SIPLUS version includes conformal coating and is designed for an extended range of environmental conditions. Its specified operating temperature range is generally -30°C to +60°C, subject to installation orientation and other operating limits. Humidity, condensation, chemical exposure and enclosure conditions should also be evaluated before installation.
Q8: What should be checked if a digital input does not change state correctly?
Check the 24 V DC supply, sensor output, input wiring and common reference connections first. Measure the signal at the module terminal and confirm that it meets the specified ON or OFF voltage threshold. Then inspect the channel status LED, PLC diagnostics, safety configuration and PROFIsafe communication status. Before changing wiring or replacing components, place the machine in a safe state and follow the site’s safety procedures.
