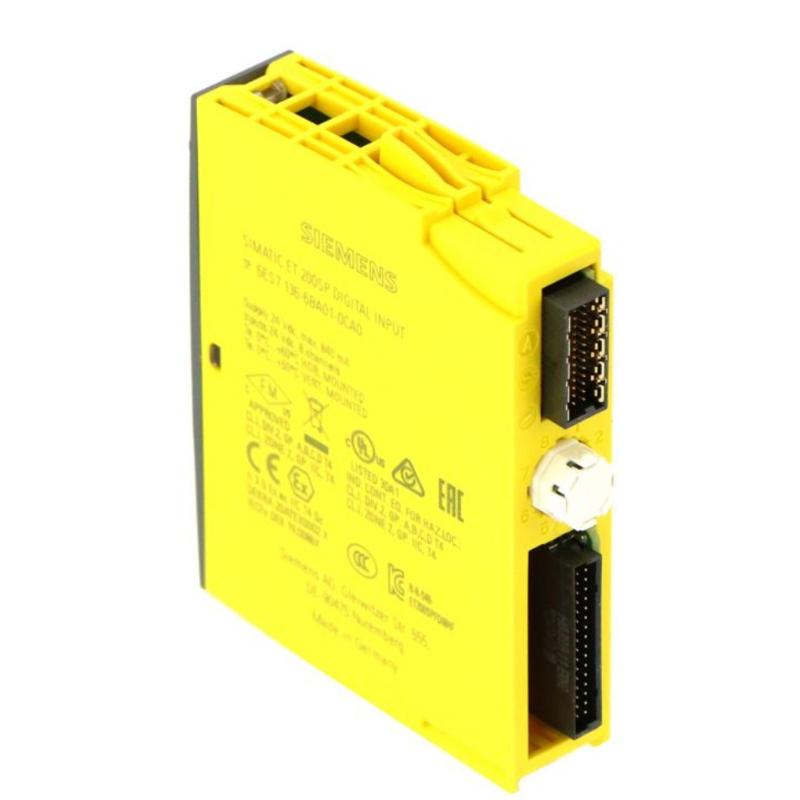

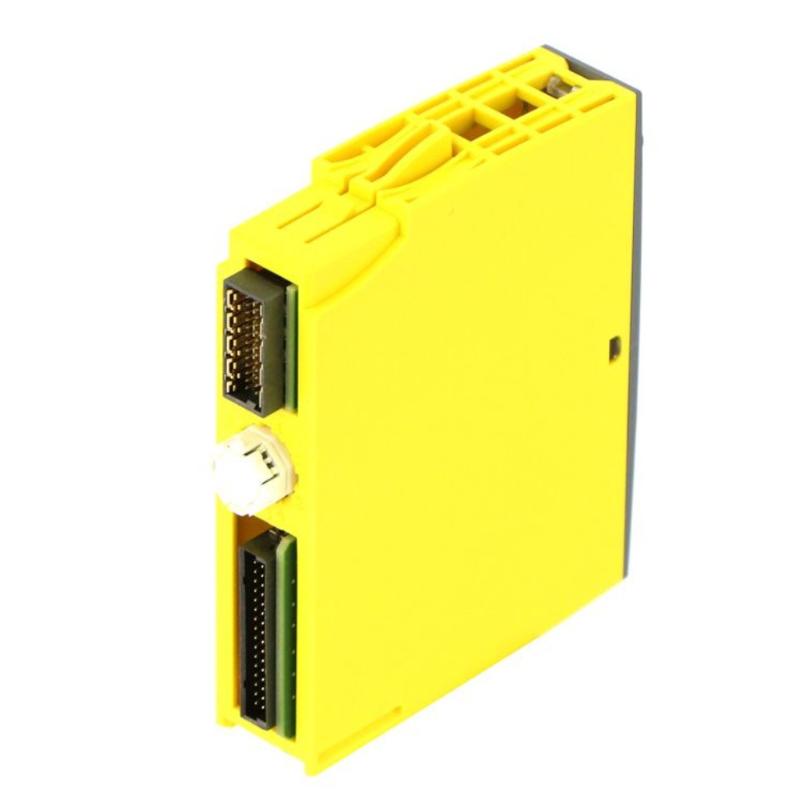

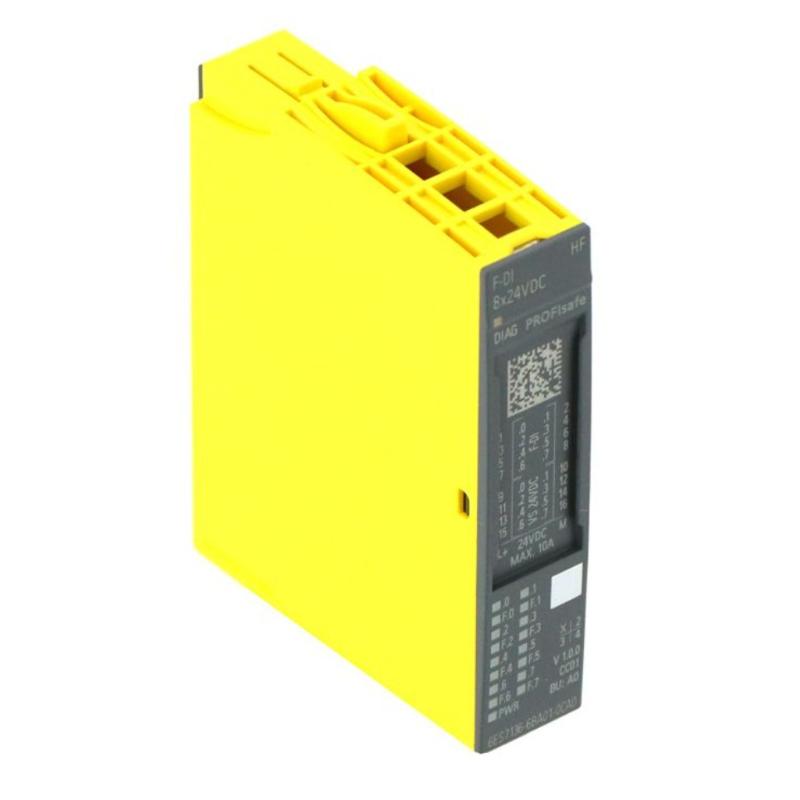

Siemens 6AG1136-6BA01-2CA0 Digital Input Module
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 13666084105 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | Siemens |
| Model | 6AG1136-6BA01-2CA0 |
| Product Type | Fail-Safe Digital Input Module |
| Product Series | SIPLUS ET 200SP |
| Module Designation | F-DI 4/8×24 V DC HF |
| Base Model | 6ES7136-6BA01-0CA0 |
| Number of Digital Inputs | 8 fail-safe digital inputs |
| Rated Input Voltage | 24 V DC |
| Permissible Supply Voltage Range | 19.2–28.8 V DC |
| Typical Input Current at Signal ON | 3.7 mA |
| Input Characteristic | IEC 61131-2, Type 1 |
| Input Configuration | Parameterizable digital inputs |
| Safety Communication | PROFIsafe |
| Functional Safety | Up to PL e according to ISO 13849-1 and SIL 3 according to IEC 61508 |
| Maximum Sensor Supply Current | 800 mA total for all sensors |
| Maximum Sensor Supply Current per Channel | 300 mA |
| Reverse Polarity Protection | Yes |
| Short-Circuit Protection | Electronic protection |
| Diagnostic Functions | Channel diagnostics, supply voltage monitoring, diagnostic alarms |
| Status Indicators | RUN, ERROR, PWR and channel status LEDs |
| Potential Isolation | Isolation between channels and the backplane bus |
| Isolation Test Voltage | 707 V DC |
| Maximum Shielded Cable Length | Up to 1000 m, subject to wiring and application requirements |
| Compatible BaseUnit | BU type A0 |
| Color Code | CC01 |
| Firmware Update | Supported |
| Protective Coating | Conformal coating |
| Operating Temperature | -40°C to +60°C |
| Typical Power Dissipation | 2 W |
| Protection Rating | IP20 |
| Dimensions | 15 × 73 × 58 mm |
| Weight | 0.061 kg |
FAQ
Q1: What is the main function of the Siemens 6AG1136-6BA01-2CA0 module?
The Siemens 6AG1136-6BA01-2CA0 is a fail-safe digital input module for the SIPLUS ET 200SP distributed I/O system. It monitors signals from safety devices such as emergency stop buttons, safety door switches and compatible sensors, allowing a safety PLC to evaluate field conditions and respond to potential hazards.
Q2: How many digital input channels does this module provide?
The module provides eight fail-safe digital input channels. The inputs can be parameterized according to the application and supported safety configuration. The selected channel arrangement and wiring must follow the module documentation and the safety system design.
Q3: What power supply does the module require?
The module uses a nominal 24 V DC supply, with a permissible voltage range of 19.2–28.8 V DC. The connected sensor supply must also remain within its specified current limits. Check the power supply capacity and wiring before commissioning.
Q4: What safety levels does the 6AG1136-6BA01-2CA0 support?
The module supports safety applications up to Performance Level e (PL e) according to ISO 13849-1 and Safety Integrity Level 3 (SIL 3) according to IEC 61508. These ratings apply when the module is used within a correctly designed, configured and validated safety system.
Q5: Which BaseUnit is compatible with this module?
The specified compatible BaseUnit is type A0, with module color code CC01. Confirm the exact BaseUnit part number and terminal arrangement before installation to ensure proper wiring and system compatibility.
Q6: What diagnostic functions are available?
The module supports channel diagnostics, supply voltage monitoring and diagnostic alarms. The RUN, ERROR and PWR indicators help identify operating status and certain fault conditions. Detailed diagnostic messages can be reviewed through the configured Siemens automation system.
Q7: Is this module suitable for harsh industrial environments?
Yes. The SIPLUS version features conformal coating and supports an operating temperature range of -40°C to +60°C. Its suitability for a particular installation still depends on factors such as humidity, condensation, chemical exposure, ventilation and the permitted mounting conditions.
Q8: How should input signal faults be troubleshot?
Start by checking the 24 V DC supply, sensor wiring, common reference connections and input signal levels. Inspect the channel indicators and PLC diagnostic messages for reported faults. Also verify the safety configuration and PROFIsafe communication status. Before changing wiring or replacing components, place the machine in a safe state and follow the site’s safety procedures.
Siemens 6AG1136-6BA01-2CA0 Digital Input Module is in stock. Please contact us for a quick quote and competitive pricing.
