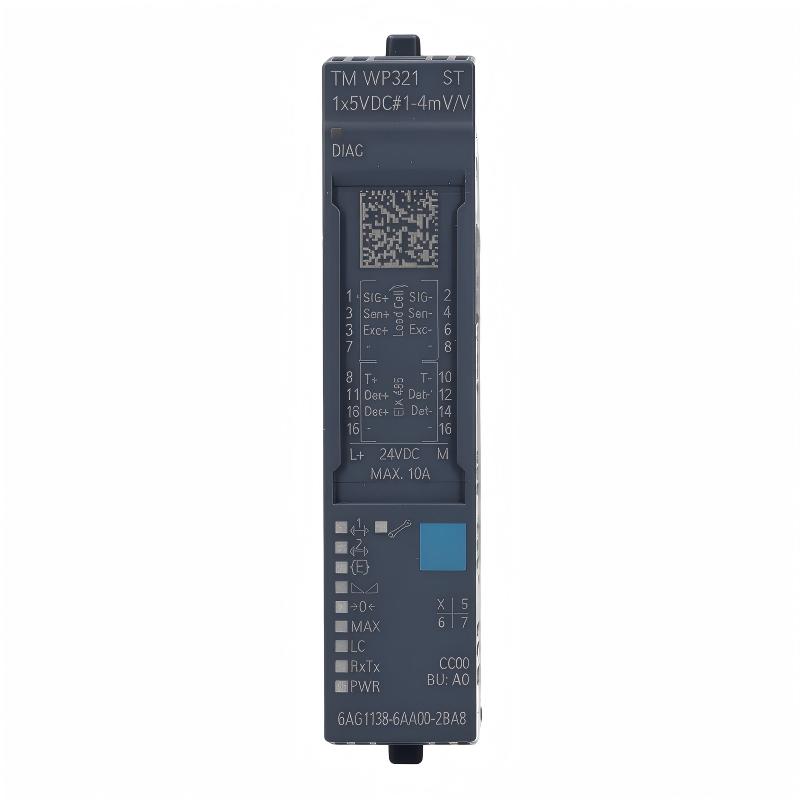

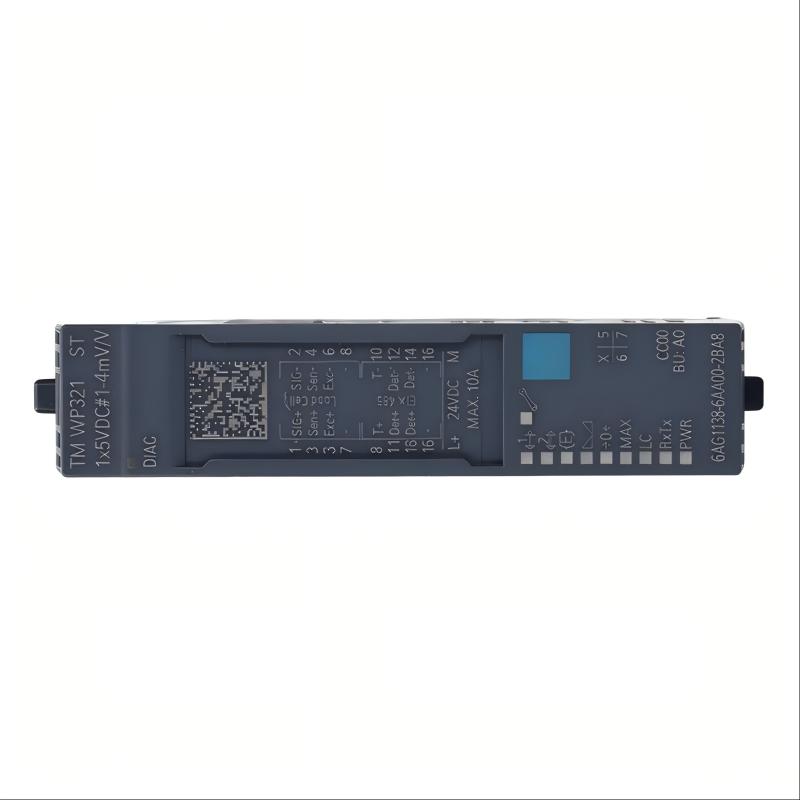

Siemens 6AG1138-6AA00-2BA8 Load Cell
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 13666084105 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Description |
|---|---|
| Brand | Siemens |
| Model | 6AG1138-6AA00-2BA8 |
| Product Type | SIPLUS ET 200SP WP321 Weighing Module |
| Product Series | SIPLUS SIWAREX WP321 |
| Function | Electronic weighing and load cell signal processing |
| Compatible System | SIMATIC ET 200SP |
| Number of Channels | 1 load cell measuring channel |
| Supported Load Cell Type | Strain gauge (DMS) full-bridge load cells |
| Load Cell Input Signal | 1–4 mV/V |
| Load Cell Connection | 4-wire or 6-wire connection |
| Measuring Ranges | −1 to +1 mV/V, −2 to +2 mV/V, −4 to +4 mV/V |
| Sampling Rate | 600 Hz |
| Input Signal Resolution | Up to ±2,000,000 parts, depending on measuring range |
| Linearity Error | ±0.01% of input range |
| Error Limit | 0.05% of full-scale value |
| Zero-Point Temperature Coefficient | ≤ ±0.1 µV/K |
| Span Temperature Coefficient | ≤ ±5 ppm/K |
| Communication Interface | 1 × RS-485 |
| Maximum Transmission Rate | 115.2 kbit/s |
| Maximum Communication Cable Length | 1,000 m with shielded cable at up to 115.2 kbit/s |
| Load Cell Cable Length | Up to 500 m when using the specified SIWAREX 7MH4702-8AG cable |
| Rated Supply Voltage | 24 V DC |
| Permissible Supply Voltage Range | 19.2–28.8 V DC |
| Protection Functions | Short-circuit protection and reverse-polarity protection |
| Diagnostic Functions | Supply voltage monitoring, wire-break detection, short-circuit detection, group error diagnostics |
| Status Indicators | Green PWR LED and green/red DIAG LED |
| Configuration Software | SIWATOOL V7 |
| Suitable BaseUnit | BU Type A0 |
| Protective Coating | Conformal coating |
| Operating Temperature | −40 to +60°C |
| Dimensions | 15 × 73 × 58 mm |
| Weight | 0.03 kg |
FAQ
Q1: What is the primary function of the Siemens 6AG1138-6AA00-2BA8?
The Siemens 6AG1138-6AA00-2BA8 is a SIPLUS ET 200SP WP321 weighing module designed to process signals from strain gauge load cells. It converts load-cell measurement signals into weighing data for use in compatible SIMATIC ET 200SP automation applications.
Q2: Which types of load cells are compatible with this module?
It supports strain gauge load cells with full-bridge circuits and nominal output signals from 1 to 4 mV/V. Both 4-wire and 6-wire load-cell connections are supported. Confirm the sensor’s electrical specifications before connecting it.
Q3: What measuring ranges does the WP321 support?
The module supports three measuring ranges: −1 to +1 mV/V, −2 to +2 mV/V, and −4 to +4 mV/V. The selected range should match the load cell’s rated output and the weighing application’s requirements.
Q4: How does the module communicate with external devices?
The module provides an RS-485 interface for communication with SIWATOOL V7, SIWAREX DB, or compatible remote displays. Its maximum transmission rate is 115.2 kbit/s. Use suitable shielded cabling and configure the interface according to the connected device.
Q5: What power supply does the module require?
The rated supply voltage is 24 V DC, with a permissible range of 19.2–28.8 V DC. The module includes short-circuit and reverse-polarity protection, but the supply wiring and grounding must still follow the applicable Siemens installation instructions.
Q6: Which diagnostic functions are available for troubleshooting?
The module supports supply voltage monitoring, wire-break detection, short-circuit detection, group error diagnostics, diagnostic alarms, and configurable hardware interrupts. The PWR and DIAG LEDs provide status information that can help narrow down wiring, power, and communication faults.
Q7: Why might the weighing value fluctuate or differ from the expected result?
Possible causes include incorrect load-cell wiring, an unsuitable measuring range, unstable power, poor shielding or grounding, mechanical vibration, or incorrect calibration. Check the load cell’s rated output, verify the 4-wire or 6-wire connection, inspect the diagnostic status, and use SIWATOOL to review parameters and calibration.
Q8: What should be checked when replacing or commissioning this module?
Confirm compatibility with the SIMATIC ET 200SP configuration and BU Type A0 BaseUnit. Verify the supply voltage, load-cell wiring, measuring range, RS-485 settings, and required weighing parameters. Back up existing configuration data where available, then perform calibration and functional tests before returning the weighing system to service.
Siemens 6AG1138-6AA00-2BA8 Load Cell is in stock. Please contact us for a quick quote and competitive pricing.
