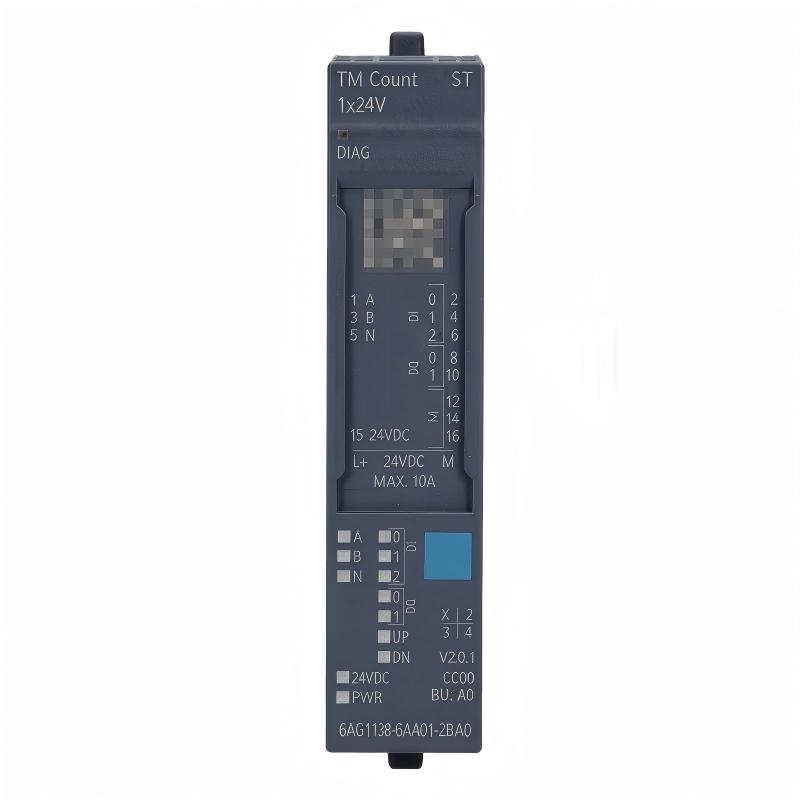

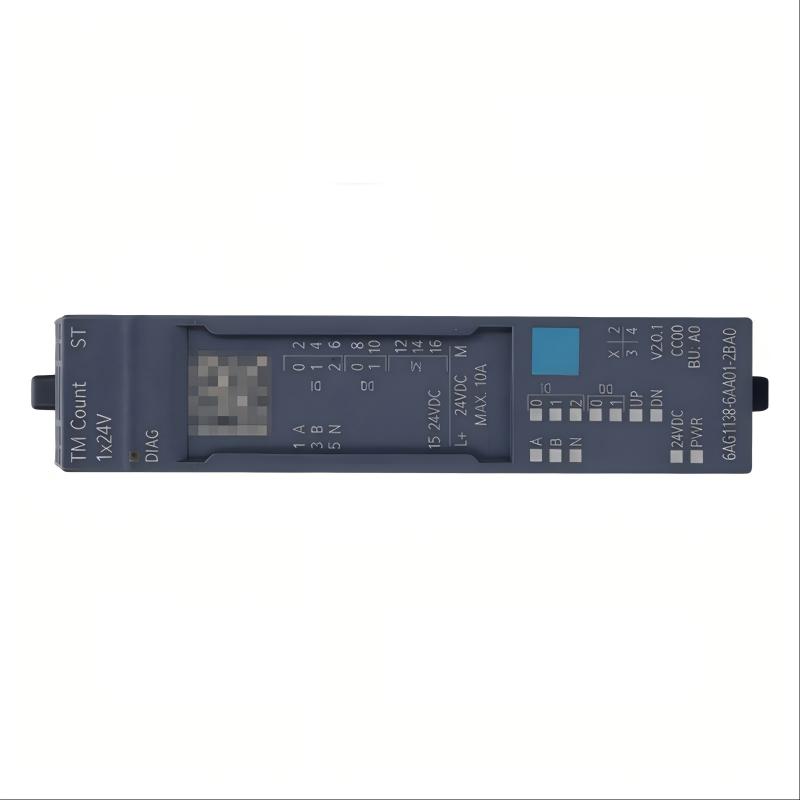

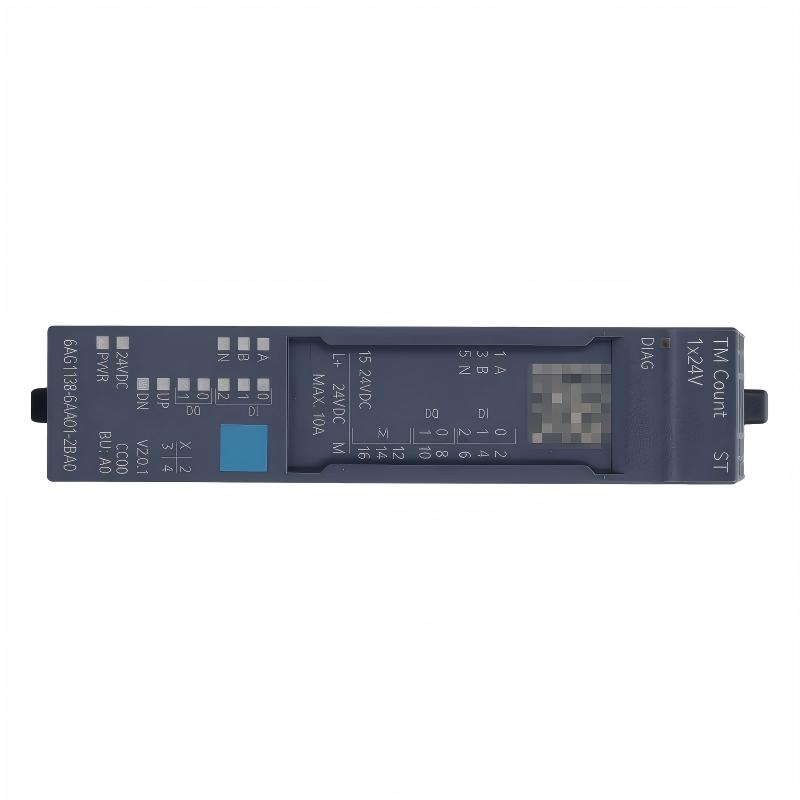

Siemens 6AG1138-6AA01-2BA0 Counter Module
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 13666084105 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Description |
|---|---|
| Brand | Siemens |
| Model | 6AG1138-6AA01-2BA0 |
| Product Type | SIPLUS ET 200SP TM Count 1x24V Counter Module |
| Product Series | SIPLUS ET 200SP |
| Base Model | 6ES7138-6AA01-0BA0 |
| Main Function | High-speed counting and pulse signal processing |
| Counter Channels | 1 |
| Supported Encoder Type | 24 V incremental encoder or pulse generator |
| Encoder Signal Inputs | A, B and N signals |
| Maximum Counting Frequency | 200 kHz; up to 800 kHz with quadruple evaluation |
| Counting Range | ±31 bits |
| Digital Inputs | 3 |
| Digital Outputs | 2 |
| Digital Input Functions | Gate control, capture, synchronization and configurable input functions |
| Output Functions | Fast response to configured control conditions |
| Encoder Supply Voltage | 24 V DC |
| Maximum Encoder Supply Current | 300 mA |
| Encoder Supply Protection | Electronic and thermal short-circuit protection |
| Rated Load Voltage | 24 V DC |
| Permissible Supply Voltage Range | 19.2–28.8 V DC |
| Maximum Current Consumption | 60 mA, without load |
| Typical Power Dissipation | 1 W |
| Input Filtering | Configurable input filters for interference suppression |
| Measurement Functions | Counting and measurement functions according to configuration |
| Hardware Interrupts | Parameterizable |
| Isochronous Mode | Supported |
| Firmware Update | Supported |
| Diagnostics | Status indication and diagnostic alarms |
| Suitable BaseUnit | BU Type A0 |
| Protection Design | Conformal coating |
| Operating Temperature | −40 to +60°C |
| Degree of Protection | IP20 |
| Dimensions | 15 × 73 × 58 mm |
| Weight | 0.045 kg |
FAQ
Q1: What is the main function of the Siemens 6AG1138-6AA01-2BA0?
The Siemens 6AG1138-6AA01-2BA0 is a high-speed counter module in the SIPLUS ET 200SP product family. It processes 24 V incremental encoder or pulse generator signals for counting, measurement and related automation tasks. It is suitable for applications that require fast signal acquisition and precise counting within a SIMATIC control system.
Q2: Which encoder types can be connected to this counter module?
The module is designed for 24 V incremental encoders and pulse generators. It processes A, B and N signals, depending on the encoder and application configuration. Before wiring, verify the encoder’s output type, signal assignment and electrical compatibility with the module.
Q3: What is the maximum counting frequency?
The maximum counting frequency is 200 kHz under the specified counting conditions. With quadruple evaluation, the counting frequency can reach up to 800 kHz. Actual performance depends on the selected evaluation method, signal quality, encoder characteristics and configured operating mode.
Q4: What are the functions of the three digital inputs and two digital outputs?
The three digital inputs can be configured for functions such as gate control, capture, synchronization and other counting-related tasks. The two digital outputs can provide fast responses to configured conditions, allowing the module to support time-critical automation sequences without relying entirely on the PLC program cycle.
Q5: What power supply does the module require?
The module uses a nominal 24 V DC supply, with a permitted voltage range of 19.2–28.8 V DC. It can also provide a 24 V supply for a compatible encoder, with a maximum output current of 300 mA. The encoder supply includes electronic and thermal short-circuit protection.
Q6: Which BaseUnit is compatible with the 6AG1138-6AA01-2BA0?
The module is designed for use with a SIMATIC ET 200SP BU Type A0 BaseUnit. Select the appropriate BaseUnit variant according to the system wiring and load-group requirements. Check terminal assignments and supply distribution before commissioning.
Q7: Why might the counter value be incorrect or unstable?
Possible causes include incorrect A/B/N signal wiring, electrical interference, unsuitable input-filter settings, an incompatible encoder output, or an incorrect counting mode. Check the encoder supply, signal polarity and wiring, grounding and shielding. Then verify the module parameters and compare the input signals with the expected pulse frequency.
Q8: What should be checked when installing or replacing this module?
Confirm compatibility with the ET 200SP station, the BU Type A0 BaseUnit and the configured PLC hardware. Check the 24 V supply, encoder connections, digital input and output assignments, counting mode and required parameters. After installation, test counting direction, pulse response, capture functions and output behavior before returning the machine to normal operation.
Siemens 6AG1138-6AA01-2BA0 Counter Module is in stock. Please contact us for a quick quote and competitive pricing.
