1. What type of PLC module is 6AG1222-1HF32-4XB0?

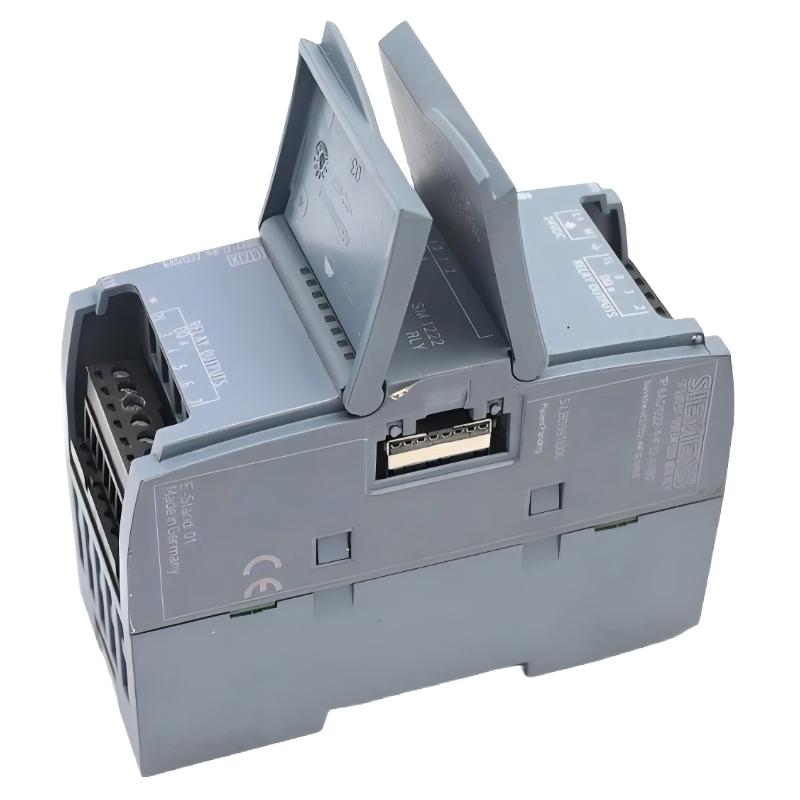

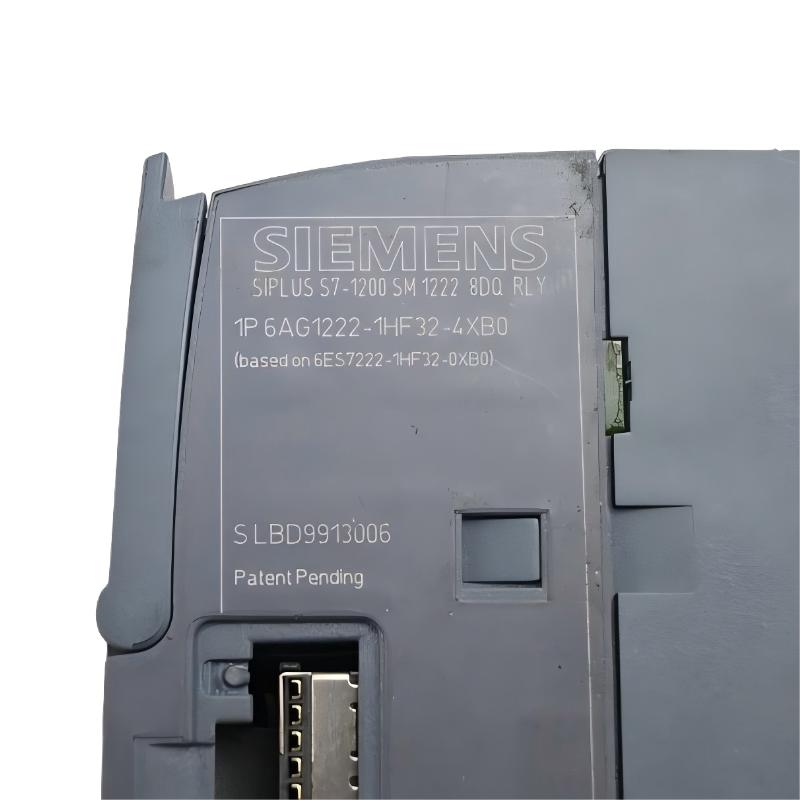

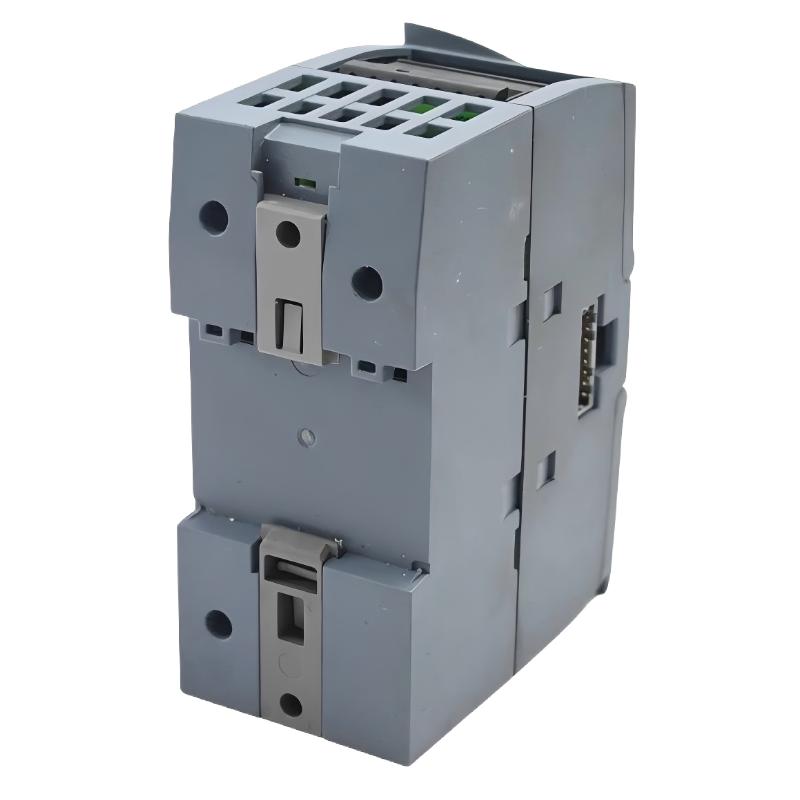

6AG1222-1HF32-4XB0 is a SIPLUS S7-1200 SM 1222 digital output module with relay outputs. It is designed to extend the digital output capability of an S7-1200-based automation system and provides eight relay switching channels for controlling external electrical devices. The relay output design allows the module to interface with a wide range of AC and DC loads, making it suitable for industrial control cabinets, machine automation, process equipment, motor control circuits, solenoid valves, contactors, indicator devices, and other switching applications. The module is also designed for industrial environments where additional protection of the electronics is beneficial.

2. How many digital outputs does 6AG1222-1HF32-4XB0 provide?
The 6AG1222-1HF32-4XB0 provides eight digital outputs, with all eight channels implemented as relay outputs. The outputs are arranged in four groups, with two output channels in each group. This configuration allows the PLC to control multiple independent switching devices from a single expansion module. When configuring the module, engineers should consider the electrical characteristics of each connected load, the required switching frequency, the common circuit arrangement, and the maximum permissible output current. Proper grouping and wiring are particularly important when several external devices are operated simultaneously.

3. What is the maximum output current of the 6AG1222-1HF32-4XB0?
The maximum switching current of an individual relay output is 2 A for a resistive load. The actual allowable current in an application should not be determined by current alone, because inductive loads such as contactor coils, solenoid valves, and certain motors can generate transient voltage when switched off. These transients can accelerate relay contact wear and reduce service life. For demanding loads, an appropriately rated interposing relay, contactor, suppression circuit, fuse, or other external protection device should be considered. The load characteristics and switching frequency should always be evaluated before connecting the equipment directly to the relay outputs.

4. What voltage ranges can the relay outputs of 6AG1222-1HF32-4XB0 switch?
The relay contacts can be used for both AC and DC switching applications. The specified DC output voltage range is 5–30 V DC, while the AC output voltage range is 5–250 V AC. This makes the module more flexible than a digital output module designed for only one voltage type. However, the permitted voltage and current must be considered together, rather than independently. The electrical characteristics of the connected load, especially when switching inductive or capacitive equipment, should also be taken into account. Appropriate circuit protection and wiring practices are recommended for reliable long-term operation.

5. What power supply does 6AG1222-1HF32-4XB0 require?
The module uses a 24 V DC supply for its relay circuits, with a permitted supply voltage range of 20.4–28.8 V DC. A stable industrial DC power supply should be used to ensure reliable relay operation and consistent module performance. During commissioning, technicians should verify the actual voltage at the module terminals rather than relying only on the nominal rating of the power supply. Excessive voltage fluctuations, inadequate wiring, loose terminals, or insufficient power capacity can cause abnormal operation and may lead to intermittent output behavior. The 24 V DC supply should therefore be properly protected and separated from high-power switching circuits where necessary.

6. What applications are suitable for the 6AG1222-1HF32-4XB0?
The 6AG1222-1HF32-4XB0 is suitable for industrial automation applications that require relay-based digital switching from an S7-1200 control system. Typical applications include controlling contactors, solenoid valves, pumps, motor starters, warning lamps, signal devices, heating equipment, and other discrete actuators. Its ability to switch both AC and DC loads provides flexibility when different field devices are used within the same automation system. It can be particularly useful in machine control panels and industrial equipment where eight additional relay output channels are required. For high-frequency switching applications, however, engineers should carefully evaluate whether relay technology is appropriate because mechanical contacts have different switching characteristics and service-life considerations compared with semiconductor outputs.

7. What is the operating temperature range of 6AG1222-1HF32-4XB0?
The specified operating temperature range is -20°C to +60°C. This temperature range allows the module to be used in a variety of industrial environments, provided that the installation conditions remain within the specified limits. The module incorporates conformal coating protection, which can improve the robustness of the electronic circuitry against certain industrial environmental conditions. During installation, sufficient ventilation and appropriate spacing should still be provided inside the control cabinet. High cabinet temperatures, continuous heavy switching, poor airflow, or installation near heat-generating equipment can increase thermal stress on the module and other components, so cabinet thermal management should be considered during system design.

8. How should an output fault on 6AG1222-1HF32-4XB0 be diagnosed?
If an output does not operate correctly, troubleshooting should begin with the PLC program and then proceed through the power supply, wiring, output channel, and external load. First, verify that the correct output address is being commanded by the PLC program and check whether the corresponding output status indication changes as expected. Next, measure the 24 V DC supply and confirm that it remains within the permitted 20.4–28.8 V DC range. The field wiring should then be inspected for loose terminals, incorrect connections, damaged conductors, blown fuses, or missing load-side power. If the PLC indicates that the output is active but the external device does not respond, the relay contact path and the connected load should be tested separately. It is also important to check whether the load current exceeds the permissible switching rating or whether an inductive load is producing excessive switching transients. If the external wiring and load are confirmed to be correct but the same output channel remains abnormal, the module itself may require further electrical testing or replacement.
