1. What type of module is 6AG1222-1HH32-2XB0?

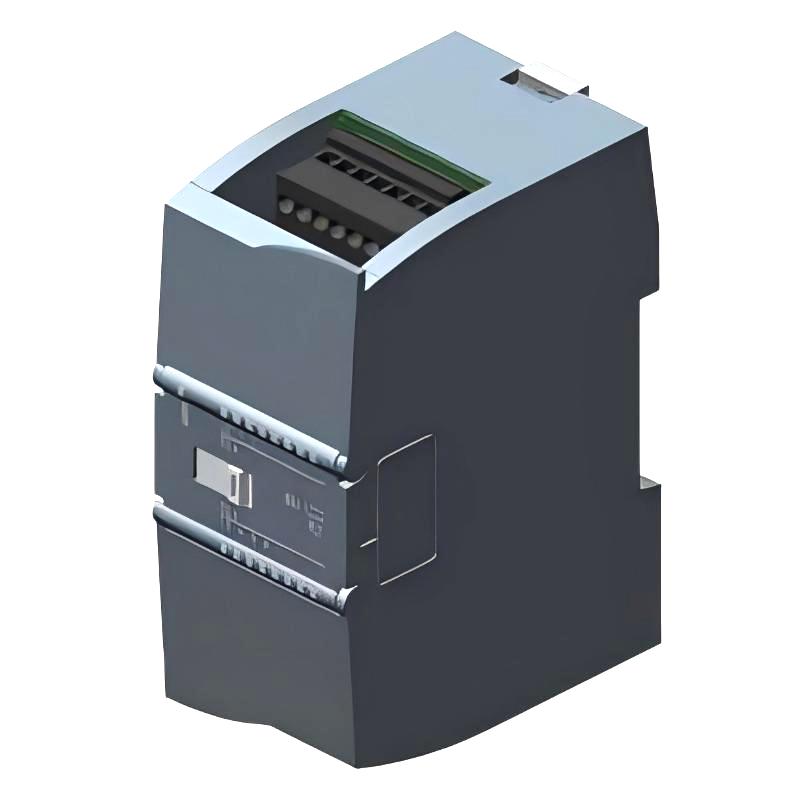

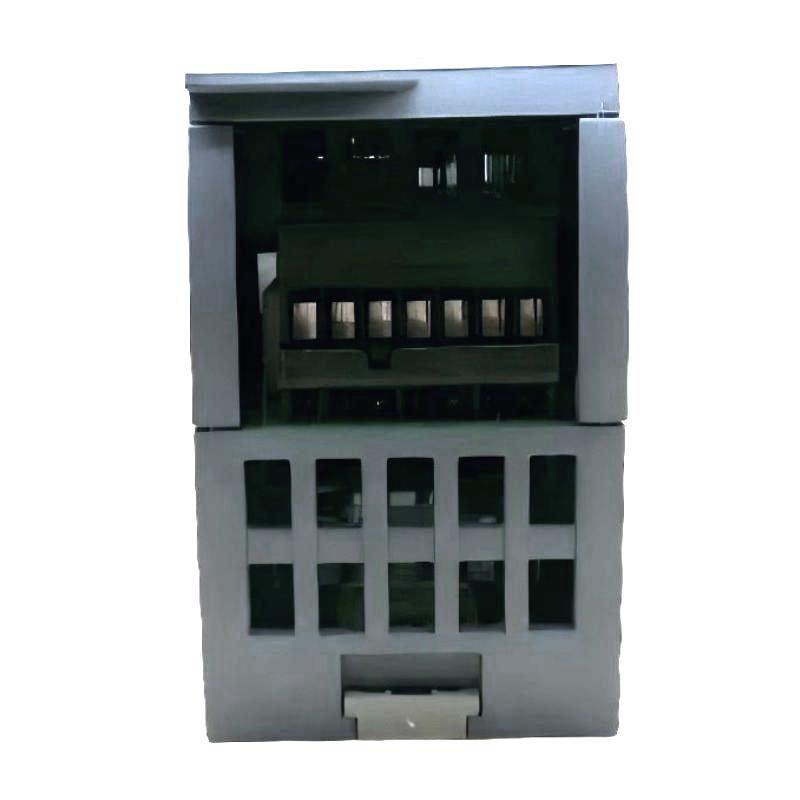

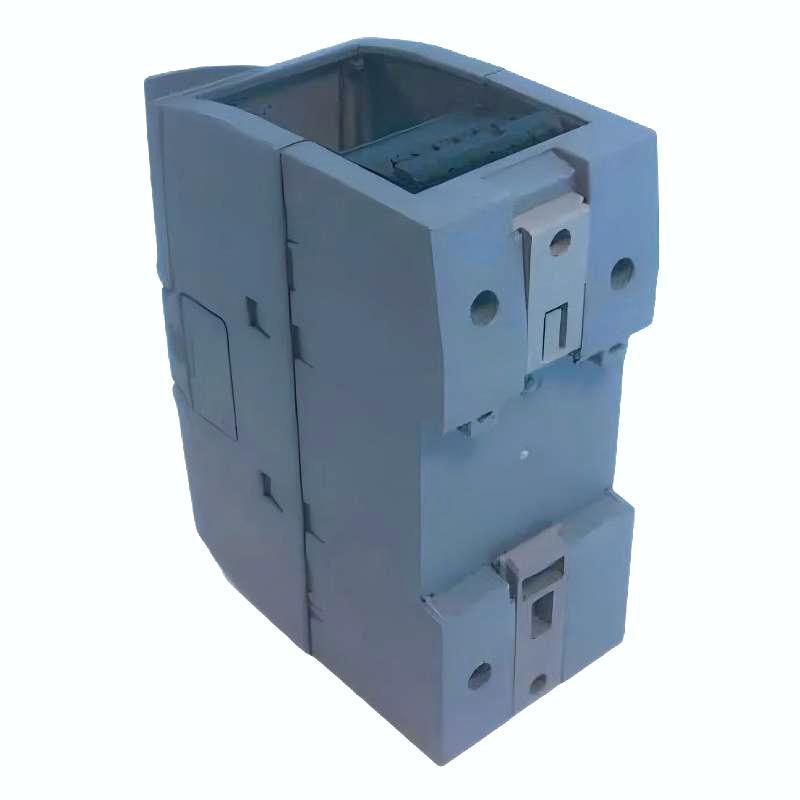

6AG1222-1HH32-2XB0 is a SIPLUS S7-1200 SM 1222 digital output module with 16 relay outputs. It is based on the standard 6ES7222-1HH32-0XB0 module and features conformal coating for improved resistance to demanding industrial environmental conditions. The module is designed to expand the digital output capacity of an S7-1200 control system and can be used to switch external AC or DC loads. Typical applications include contactors, solenoid valves, signal lamps, actuators, motor-control circuits, and other discrete industrial equipment.

2. How many digital outputs does 6AG1222-1HH32-2XB0 provide?
The module provides 16 digital outputs, and all 16 outputs are relay outputs. Each output can be controlled independently by the PLC program, allowing multiple external devices to be operated from one expansion module. The relay-based architecture provides flexibility for applications requiring both AC and DC switching. When designing the control system, the engineer should consider the current and voltage requirements of every connected load, as well as the total output current and switching frequency, to ensure reliable operation over the intended service life.

3. What is the maximum switching current of 6AG1222-1HH32-2XB0?
The maximum switching capacity for a resistive load is 2 A per output. The module can also handle lamp loads up to 30 W for DC applications and 200 W for AC applications under the specified conditions. For inductive loads, the electrical characteristics of the load should be evaluated carefully because motors, contactor coils, and solenoid valves can generate transient voltages when switched. External suppression and protection components may be required to reduce contact stress and improve relay service life. The connected load should always remain within the specified electrical limits.

4. What supply voltage does 6AG1222-1HH32-2XB0 require?
The relay coils are designed for a nominal 24 V DC supply. The permitted DC supply range is 20.4–28.8 V. During installation and commissioning, the supply voltage should be checked directly at the module to ensure that voltage drops in the wiring or unstable power supplies do not affect relay operation. A properly regulated industrial 24 V DC power supply is recommended. The power supply should also have sufficient capacity for the module and other connected devices, particularly when multiple relay outputs are energized at the same time.

5. What AC and DC voltages can the relay outputs switch?
The relay outputs support a rated switching range of 5–30 V DC and 5–250 V AC. This AC/DC switching capability makes the module suitable for applications where different field voltages are used within the same automation system. However, voltage and current ratings must be considered together. The maximum permissible load also depends on whether the load is resistive, inductive, or a lamp load. For loads with high inrush current or significant inductive characteristics, additional interface components or suppression circuits may be appropriate to protect the relay contacts and maintain dependable switching performance.

6. Is 6AG1222-1HH32-2XB0 suitable for harsh industrial environments?
Yes. The module is part of the SIPLUS product range and uses conformal coating on the electronic circuitry. It is specified for an operating temperature range of -40°C to +70°C, with cold starting possible down to -25°C under the specified conditions. The conformal coating provides additional protection for the PCB assembly against certain environmental stresses. Nevertheless, the module should still be installed in an appropriate control enclosure and protected from conditions outside its specifications. Proper cabinet ventilation, wiring, grounding, and environmental control remain important for achieving reliable long-term operation.

7. Does 6AG1222-1HH32-2XB0 provide short-circuit protection for its outputs?
The relay outputs do not provide integrated short-circuit protection. External protection must therefore be provided according to the connected load and the applicable control-panel design requirements. Fuses, circuit breakers, or other suitable protective devices can be selected based on the load characteristics and wiring arrangement. If an output is connected directly to an inductive device, additional suppression may also be required to limit voltage transients. When troubleshooting an output fault, the load circuit should be isolated and checked for short circuits or excessive current before repeatedly energizing the relay output.

8. How can an output problem on 6AG1222-1HH32-2XB0 be diagnosed?
Output troubleshooting should begin by checking the PLC program and confirming that the correct output address is being commanded. The corresponding output status LED can then be checked to determine whether the control logic is reaching the intended channel. If the PLC commands the output but the external device does not operate, the 24 V DC supply, field wiring, fuses, terminal connections, and load-side voltage should be checked systematically. The relay contacts should also be examined if the output indication changes correctly but the load remains inactive. For inductive loads, technicians should inspect suppression components and check for excessive switching transients. It is also important to verify that the connected load does not exceed the 2 A resistive-load rating or the applicable rating for the specific load type. If the external circuit and PLC program are confirmed to be correct while one channel continues to malfunction, further module-level testing may be required.
