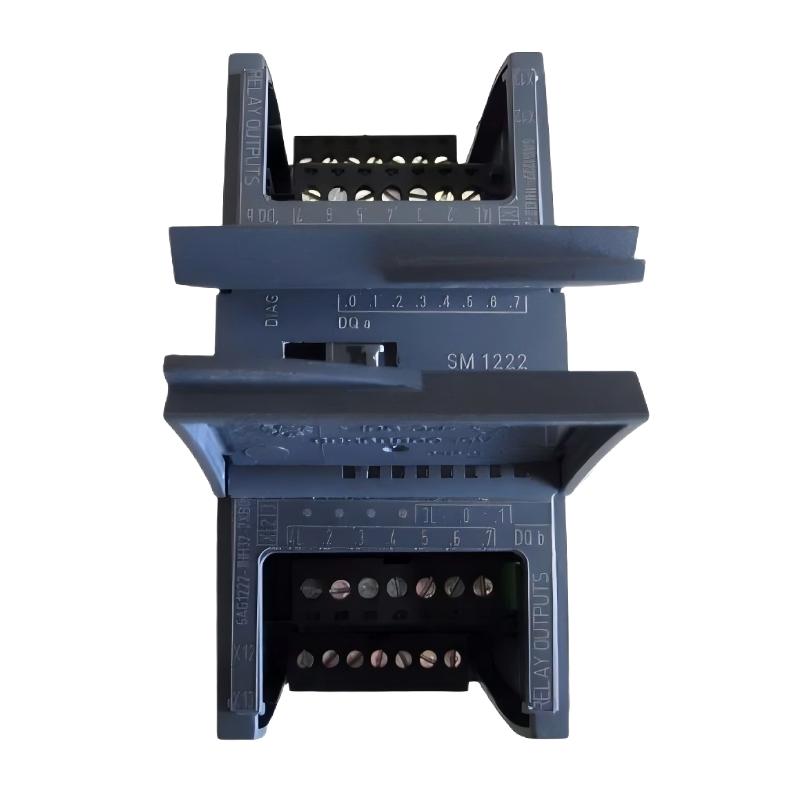

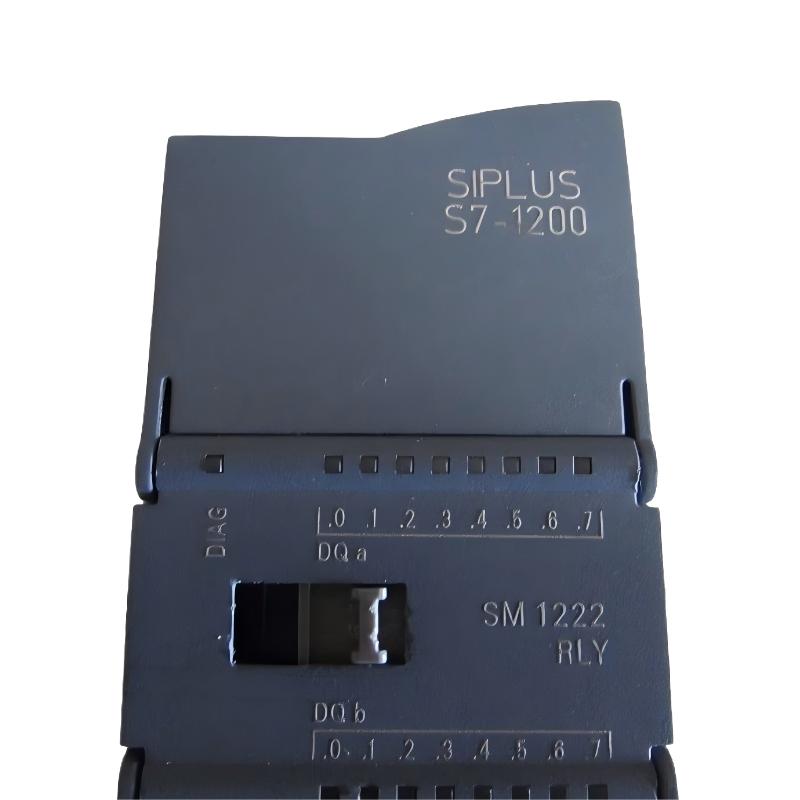

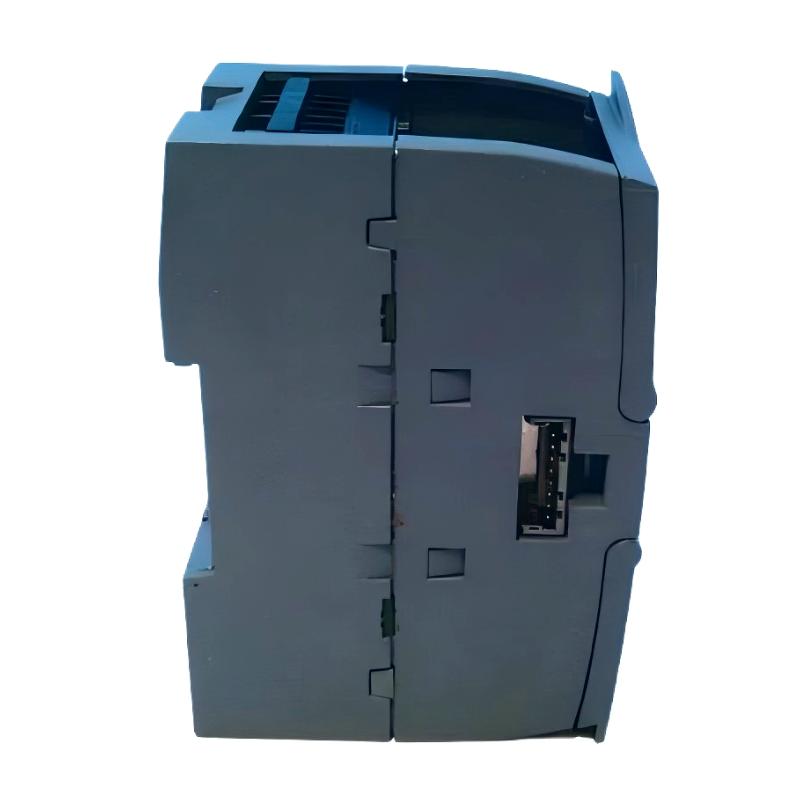

1. What type of PLC module is 6AG1222-1HH32-4XB0?
6AG1222-1HH32-4XB0 is a SIPLUS S7-1200 SM 1222 digital output module with 16 relay outputs. It is designed to expand the digital output capacity of an S7-1200 automation system and provides relay-based switching for external field devices. The module can be used for controlling contactors, solenoid valves, signal lamps, actuators, motor-control circuits, and other discrete loads. Because the outputs use relay contacts, the module can handle both AC and DC switching applications within its specified electrical limits. The conformal coating also makes the module suitable for industrial applications where additional protection of the electronic circuitry is required.

2. How many digital outputs does 6AG1222-1HH32-4XB0 provide?
The 6AG1222-1HH32-4XB0 provides 16 digital outputs, and all 16 channels are relay outputs. Each output can be controlled independently through the PLC program, allowing multiple field devices to be operated from a single expansion module. The relay outputs provide electrical switching between the PLC control system and external loads, making the module suitable for applications where different types of AC and DC devices need to be controlled. When several outputs operate simultaneously, the load current and wiring arrangement should be carefully considered to ensure that the specified electrical limits are not exceeded.

3. What is the maximum output current of 6AG1222-1HH32-4XB0?
The maximum switching current for a resistive load is 2 A per output. For lamp loads, the maximum specified load is 30 W for DC applications and 200 W for AC applications. However, the actual suitability of a load depends not only on its rated current but also on its electrical characteristics. Inductive loads such as contactor coils, solenoid valves, and motors can generate voltage spikes when switched off, which may increase stress on the relay contacts. For these applications, suitable suppression devices or interposing relays may be required. The load type, switching frequency, inrush current, and expected service life should all be considered when selecting the output configuration.

4. What power supply does 6AG1222-1HH32-4XB0 require?
The relay coils operate from a nominal 24 V DC supply, with a permitted voltage range of 20.4–28.8 V DC. During installation and commissioning, the actual voltage at the module terminals should be checked to make sure that it remains within this range during normal operation. Voltage drops caused by long cables, undersized conductors, loose terminals, or an overloaded power supply can affect relay operation. A stable industrial 24 V DC power supply with sufficient capacity should therefore be used. The complete S7-1200 system should also be evaluated to ensure that the CPU, signal modules, communication devices, and external loads have adequate power available.

5. What AC and DC voltages can the relay outputs switch?
The relay outputs support both AC and DC switching. The specified DC output voltage range is 5–30 V DC, while the AC output voltage range is 5–250 V AC. This makes the module useful in control systems where different field devices operate at different voltage levels. Nevertheless, voltage and current ratings must always be considered together with the type of load. A relay output suitable for a particular resistive load may have different practical limitations when used with an inductive or capacitive load. For loads with high starting current or significant switching transients, additional protection should be installed to reduce electrical stress on the relay contacts.

6. What industrial applications are suitable for 6AG1222-1HH32-4XB0?
The module is suitable for industrial automation systems that require multiple relay-based digital outputs from an S7-1200 PLC. Typical applications include controlling contactors, solenoid valves, pumps, warning lamps, heating equipment, motor starters, actuators, and other discrete field devices. Its ability to switch both AC and DC loads provides flexibility when different types of equipment are connected to the same control system. It can be used in machine automation, production equipment, process-control panels, material-handling systems, and general industrial control cabinets. For applications involving very frequent switching, engineers should evaluate relay operating life and switching frequency before selecting this module.

7. Does 6AG1222-1HH32-4XB0 have short-circuit protection on its outputs?
The relay outputs do not provide integrated short-circuit protection, so appropriate external protection should be installed in the field circuit. Depending on the application, this may include fuses, circuit breakers, or other suitable overcurrent protection devices. When an output controls an inductive load, additional suppression may also be required to limit voltage transients generated when the load is switched off. If an output becomes abnormal, the connected circuit should first be isolated and checked for short circuits, incorrect wiring, excessive current, or a defective load. External protection is particularly important because a short circuit can damage the load circuit or cause excessive stress on the relay contacts.

8. How should an output fault on 6AG1222-1HH32-4XB0 be diagnosed?
Output troubleshooting should be performed systematically, beginning with the PLC program and then checking the module, power supply, wiring, and field device. First, verify that the correct output address is used in the PLC program and that the program logic is actually commanding the required output. Next, check the corresponding output status indication to determine whether the module is receiving the switching command. If the output is commanded but the external device does not operate, measure the supply voltage and inspect the field wiring, terminal connections, fuses, circuit breakers, and load-side power. The relay contact circuit should also be checked to determine whether the contact is switching correctly. For contactors, solenoid valves, motors, and other inductive loads, inspect the suppression components and look for signs of excessive switching transients. The connected load should also be checked against the specified current and voltage ratings. If the PLC logic, power supply, wiring, and external load are all confirmed to be correct but the same output channel remains inactive, further module-level testing may be necessary to determine whether the relay or internal output circuitry has failed.
