FAQ

1. What type of module is 6AG1222-1XF32-2XB0?

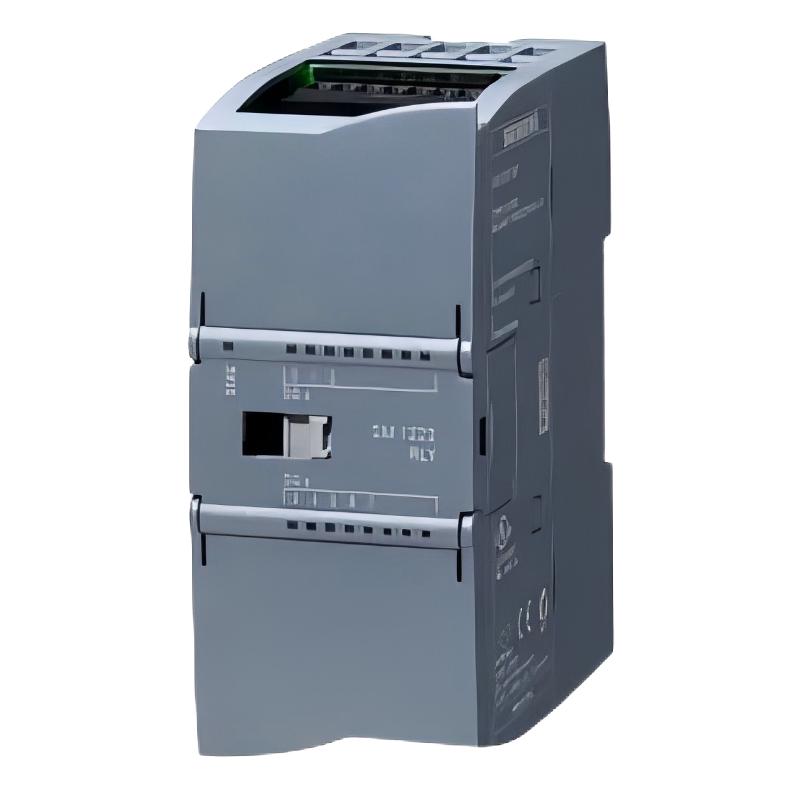

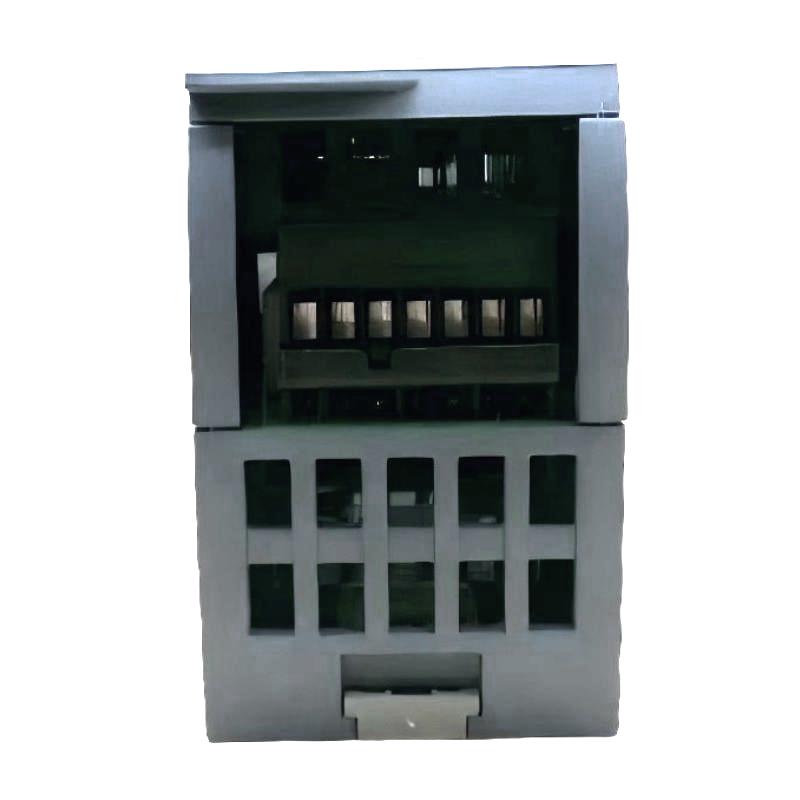

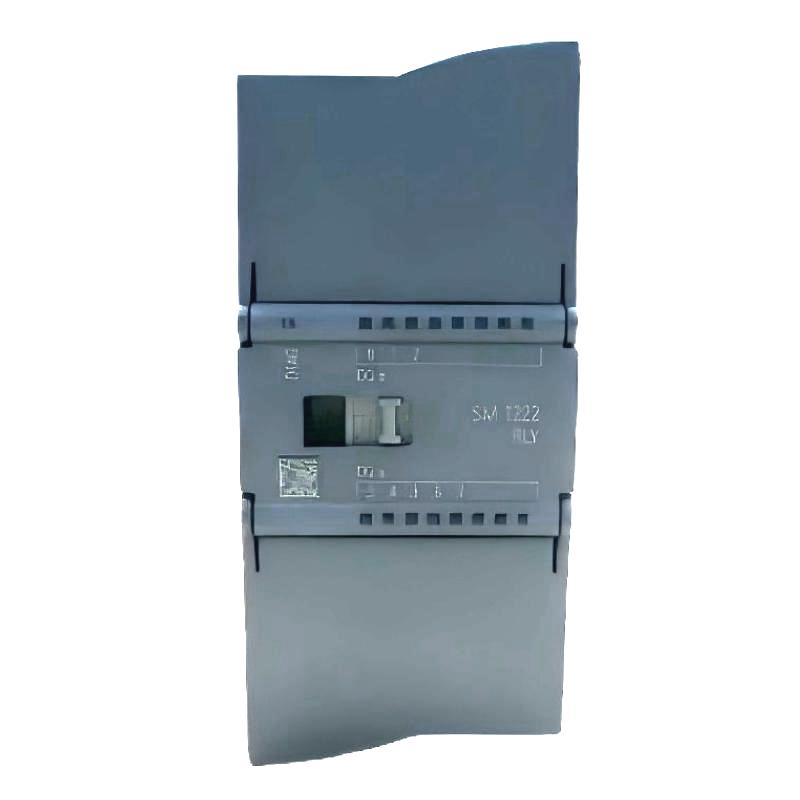

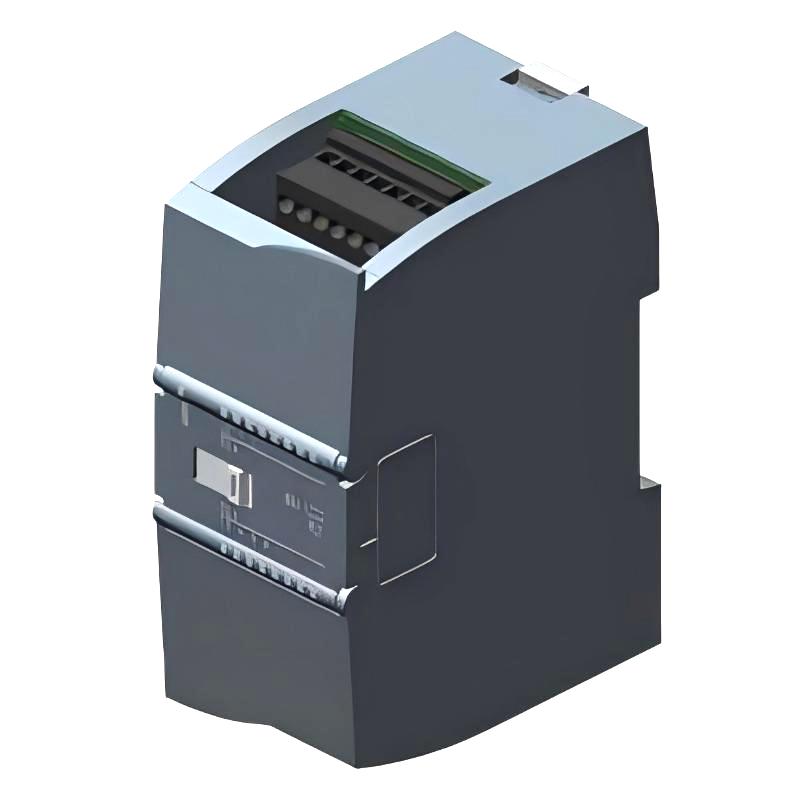

6AG1222-1XF32-2XB0 is a SIPLUS S7-1200 SM 1222 digital output module with eight relay outputs. It is based on the 6ES7222-1XF32-0XB0 design and is intended to expand the digital output capability of an S7-1200 automation system. The module uses relay changeover contacts, allowing it to control suitable AC and DC loads within the specified electrical limits. Typical applications include controlling contactors, solenoid valves, signal lamps, actuators, pumps, and other discrete industrial equipment. Its conformal coating and extended temperature capability make it suitable for demanding industrial control applications.

2. How many digital outputs does 6AG1222-1XF32-2XB0 provide?
The module provides eight digital outputs, and all eight outputs use relay contacts. Each output can be controlled independently by the PLC program, allowing individual field devices to be switched according to the machine sequence or process logic. The relay changeover configuration provides flexibility when connecting different types of field circuits. During system design, each load should be evaluated according to its operating voltage, current, switching frequency, and electrical characteristics. This is particularly important when several outputs are used for inductive loads or equipment with high starting currents.

3. What is the maximum output current of 6AG1222-1XF32-2XB0?
The maximum switching current for a resistive load is 2 A per output. For lamp loads, the maximum specified capacity is 30 W for DC loads and 200 W for AC loads. The 2 A rating should not be treated as a universal value for every type of field device because inductive and capacitive loads can behave differently from purely resistive loads. Contactors, solenoid valves, motors, and similar devices may generate considerable transient voltage or inrush current during switching. Appropriate suppression components or an interposing relay may therefore be required to reduce electrical stress on the relay contacts and achieve a longer operating life.

4. What supply voltage is required for the relay outputs?
The relay coils use a nominal 24 V DC supply, with an allowable supply voltage range of 20.4–28.8 V DC. A stable industrial 24 V DC power supply should be used during normal operation. During commissioning, the voltage should be measured at the module terminals to confirm that cable voltage drops or loose connections are not causing the supply to fall outside the specified range. The power supply should also have sufficient capacity for the complete automation system. If several relay channels operate simultaneously, the control-system power budget should account for the current required by the relay coils as well as the other connected modules and devices.

5. What AC and DC loads can 6AG1222-1XF32-2XB0 control?
The relay outputs can switch both AC and DC loads. The specified DC output voltage range is 5–30 V DC, while the AC output voltage range is 5–250 V AC. This makes the module useful in automation systems where field devices operate at different voltage levels. However, the permissible voltage must always be evaluated together with the load current and load type. A resistive heater, an indicator lamp, a solenoid valve, and a contactor coil can impose very different electrical stresses on the relay contacts even when their nominal operating voltage is the same. For inductive or high-inrush loads, suitable protection should be provided to prevent excessive contact wear.

6. What applications are suitable for 6AG1222-1XF32-2XB0?
6AG1222-1XF32-2XB0 is suitable for a wide range of industrial automation applications requiring relay-based digital outputs. It can be used for machine control, process equipment, control cabinets, material-handling systems, pump control, valve control, motor starter circuits, alarm systems, and general discrete actuator control. The relay changeover contacts provide additional flexibility when interfacing with external control circuits. Because the module has eight outputs, it can consolidate several switching functions into one S7-1200 expansion module. For applications involving very high switching frequencies, however, the mechanical operating characteristics and service life of relay contacts should be considered during module selection.

7. Does 6AG1222-1XF32-2XB0 have built-in short-circuit protection?
The relay outputs do not include integrated short-circuit protection, so external protection must be provided in the connected load circuits. Depending on the application, suitable fuses, circuit breakers, or other overcurrent protection devices should be installed. This is especially important when the module is connected to equipment that could develop a short circuit during operation. For inductive loads, voltage suppression should also be considered because the energy released when a coil is switched off can produce a voltage transient across the relay contacts. If an output fault occurs, the associated field circuit should be isolated and checked for short circuits, incorrect wiring, excessive load current, and defective field equipment before the output is energized again.

8. How should an output fault on 6AG1222-1XF32-2XB0 be diagnosed?
A systematic troubleshooting procedure should be used when an output does not operate correctly. First, check the PLC program to confirm that the correct output address is being used and that the control logic is actually commanding the required output. Next, inspect the output status LED to determine whether the module recognizes the switching command. If the output is commanded but the field device does not respond, check the 24 V DC supply, external load power, terminal connections, fuses, circuit breakers, and field wiring. The relay contact circuit should then be tested to determine whether the contact changes state correctly. When the output controls a contactor, solenoid valve, motor starter, or other inductive load, inspect the suppression circuit and look for signs of excessive switching transients. The connected load should also be compared with the specified voltage and current ratings. If the PLC program, power supply, wiring, and field device are all confirmed to be correct but one output remains abnormal, additional electrical testing of the module may be necessary to determine whether the relay contact or internal output circuit has failed.
