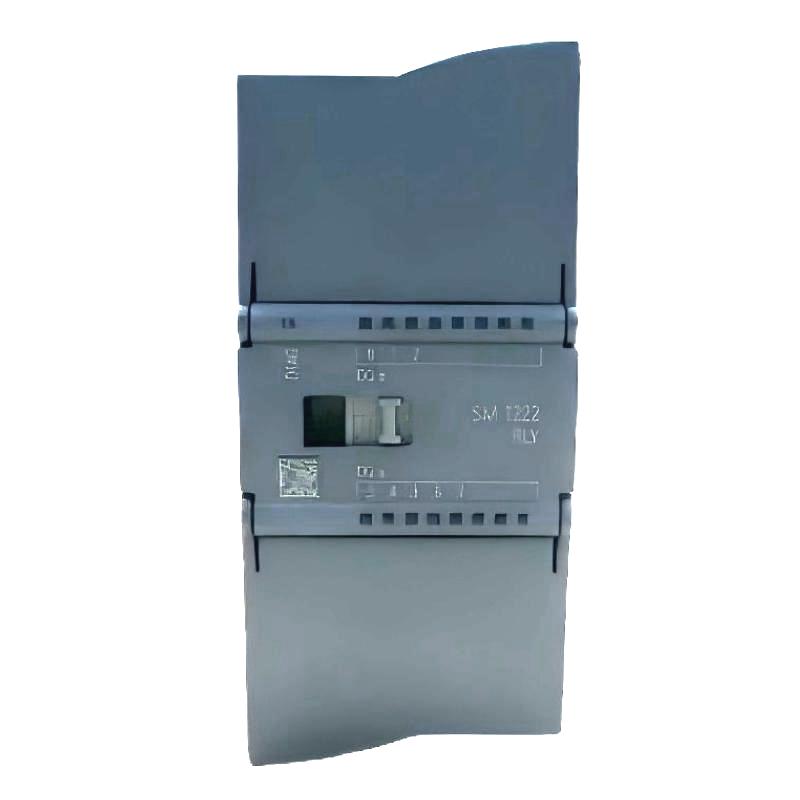

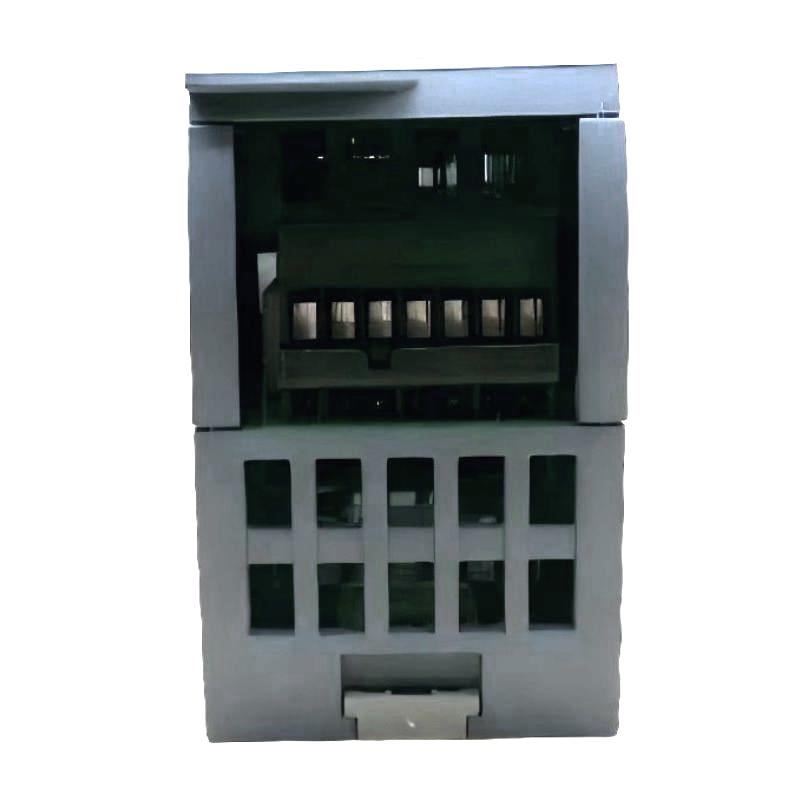

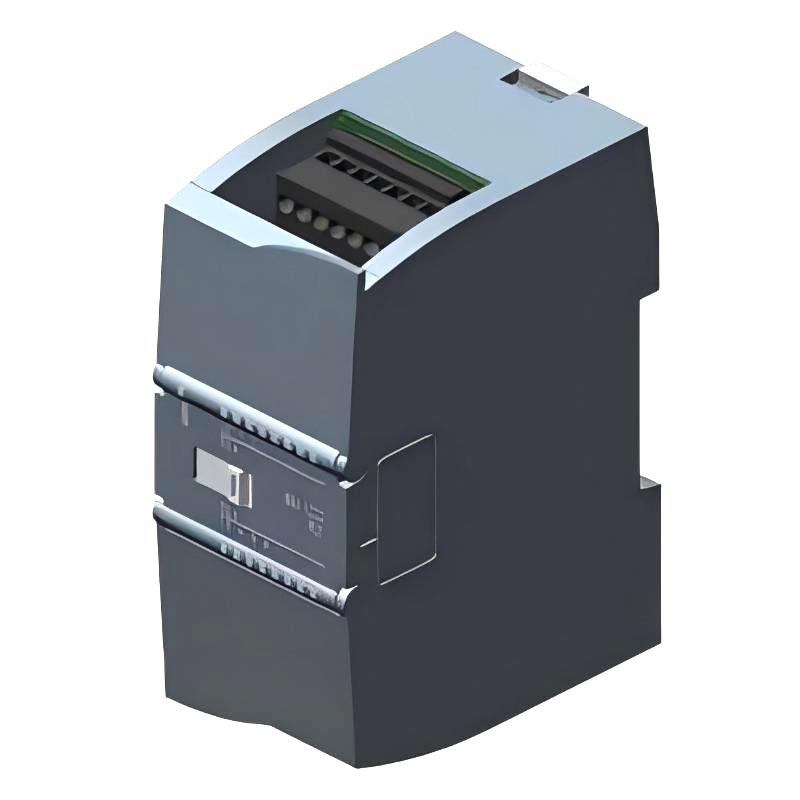

Siemens 6AG1223-1BH32-2XB0 VDC Logic I/O Module
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 13666084105 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | Siemens 6AG1223-1BH32-2XB0 |
| Product Series | SIPLUS S7-1200 |
| Product Type | VDC Logic I/O Module |
| Module Type | SIPLUS SM 1223 8DI/8DQ |
| Base Model | 6ES7223-1BH32-0XB0 |
| Digital Inputs | 8 × 24 V DC |
| Digital Outputs | 8 × 24 V DC |
| Input Type | Digital input, sink/source |
| Output Type | Transistor |
| Rated Supply Voltage | 24 V DC |
| Supply Voltage Range | 20.4–28.8 V DC |
| Input Signal “0” | ≤5 V DC at 1 mA |
| Input Signal “1” | ≥15 V DC at 2.5 mA |
| Typical Input Current | 4 mA per channel |
| Input Delay | 0.2–12.8 ms, parameterizable |
| Maximum Output Current | 0.5 A per output |
| Output Voltage | 24 V DC |
| Lamp Load | Max. 5 W |
| Short-Circuit Protection | No; external protection required |
| Inductive Load Protection | Inductive shutdown voltage limited to L+ (-48 V) |
| High-Speed Inputs | Suitable for high-speed signal and counting applications |
| Cable Length | Shielded: max. 500 m; unshielded: max. 300 m |
| Backplane Bus Current | Max. 145 mA at 5 V DC |
| Typical Power Loss | Approx. 2.5 W |
| Conformal Coating | Yes |
| Operating Temperature | -40°C to +70°C |
| Cold Start Temperature | -25°C |
| Protection Rating | IP20 |
| Mounting | S7-1200 system module |
| Application | Industrial automation, machine control, sensor acquisition and actuator control |
| Dimensions | 105 × 87 × 57 mm |
| Weight | 0.203 kg |
FAQ
1. What type of module is the Siemens 6AG1223-1BH32-2XB0?
The Siemens 6AG1223-1BH32-2XB0 is a SIPLUS S7-1200 SM 1223 digital input/output module with 8 digital inputs and 8 digital transistor outputs. It is based on the standard 6ES7223-1BH32-0XB0 module and features conformal coating for improved environmental resistance. It is designed for expanding the digital I/O capacity of S7-1200 control systems.
2. How many digital inputs and outputs does the 6AG1223-1BH32-2XB0 provide?
The module provides 8 digital inputs and 8 digital outputs, giving the PLC system a total of 16 digital I/O channels. The inputs are designed for 24 V DC field signals, while the outputs use transistor switching and can control suitable 24 V DC loads. The input and output channels can be used independently according to the PLC program and machine control requirements.
3. What are the electrical characteristics of the digital inputs?
The digital inputs operate at a nominal 24 V DC. A signal of approximately 15 V DC or higher is recognized as a logical “1”, while a signal of up to approximately 5 V DC is treated as a logical “0” under the specified input conditions. The typical input current is approximately 4 mA per channel. These characteristics allow the module to interface with common industrial switches, proximity sensors and other 24 V DC digital devices.
4. What is the maximum output current of each transistor output?
Each digital transistor output can handle up to 0.5 A under the specified operating conditions. The outputs are intended for 24 V DC loads and can be used to control devices such as small solenoid valves, relays, contactor interfaces and indicator equipment. Load current, inrush current and switching frequency should be considered when designing the output circuit.
5. Can the 6AG1223-1BH32-2XB0 be used for high-speed signals?
The digital inputs can be used for applications involving relatively fast switching signals and high-speed counting functions when supported by the connected S7-1200 CPU and its configuration. The input delay can be parameterized from 0.2 ms to 12.8 ms. For high-speed applications, signal frequency, pulse width, input filtering, cable routing and grounding should be considered carefully.
6. What cable lengths are supported by the digital inputs?
For digital signal wiring, shielded cables can be used up to approximately 500 m, while unshielded cables can be used up to approximately 300 m under suitable installation conditions. In electrically noisy industrial environments, shielded wiring is generally preferable. Proper grounding and separation from high-power cables are also important for maintaining reliable digital signal transmission.
7. Does the module have short-circuit protection on its transistor outputs?
The digital outputs do not provide dedicated short-circuit protection, so external protection must be included in the field circuit. Suitable fuses or circuit protection devices should be selected according to the load and power supply characteristics. When switching inductive loads, additional suppression should also be considered to reduce the voltage generated when the load is switched off and to minimize stress on the transistor output stage.
8. How should an I/O fault on the 6AG1223-1BH32-2XB0 be diagnosed?
Troubleshooting should begin by checking the PLC diagnostic information and confirming the expected I/O state in the user program. Next, verify the 24 V DC supply, terminal wiring and field-device connections. If an input does not change state, measure the actual voltage at the input terminal and check the connected sensor or switch. If an output does not activate, check the PLC command, output voltage, external protection and connected load. For intermittent faults, inspect cable shielding, grounding, electrical noise and inductive-load suppression.
Siemens 6AG1223-1BH32-2XB0 VDC Logic I/O Module is in stock. Please contact us for a quick quote and competitive pricing.
