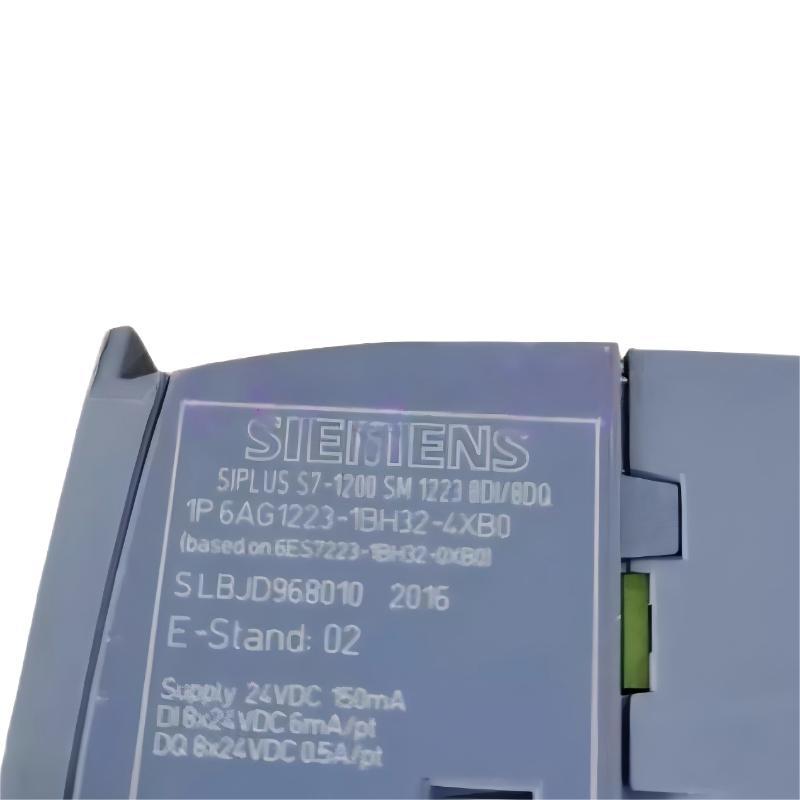

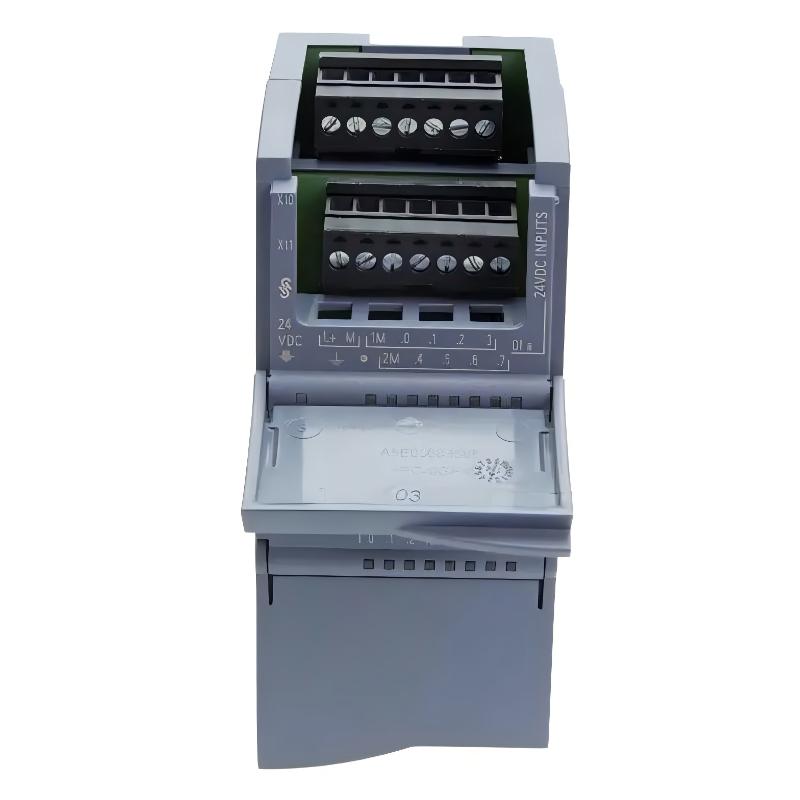

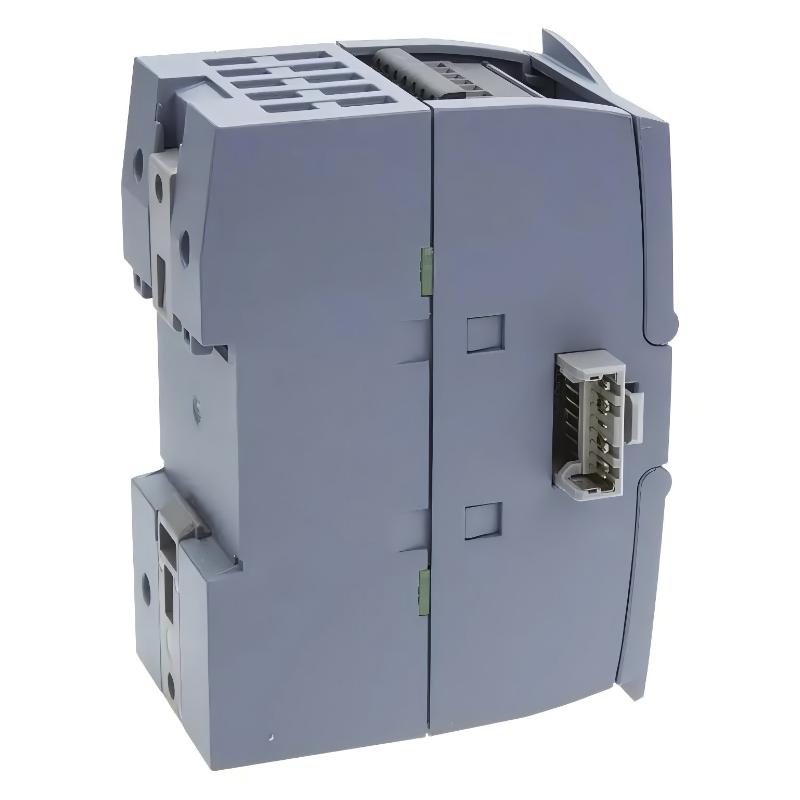

Siemens 6AG1223-1BH32-4XB0 VDC Logic I/O Module
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 13666084105 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | 6AG1223-1BH32-4XB0 |
| Product Series | SIPLUS S7-1200 |
| Product Type | VDC Logic I/O Module |
| Module Type | SIPLUS SM 1223 Digital Input/Output Module |
| Base Model | 6ES7223-1BH32-0XB0 |
| Digital Inputs | 8 × 24 V DC |
| Digital Outputs | 8 × 24 V DC |
| Input Type | Digital input, sink/source |
| Output Type | Transistor |
| Rated Supply Voltage | 24 V DC |
| Supply Voltage Range | 20.4–28.8 V DC |
| Input Signal “0” | 5 V DC at 1 mA |
| Input Signal “1” | 15 V DC at 2.5 mA |
| Typical Input Current | 4 mA per channel |
| Input Delay | 0.2, 0.4, 0.8, 1.6, 3.2, 6.4 or 12.8 ms, configurable |
| Number of Output Channels | 8 |
| Maximum Output Current | 0.5 A per output |
| Output Voltage | 24 V DC |
| Short-Circuit Protection | No; external protection required |
| Inductive Load Protection | Switch-off voltage limited to L+ (-48 V) |
| Backplane Bus Current | Max. 145 mA at 5 V DC |
| Typical Power Loss | Approx. 2.5 W |
| Shielded Cable Length | Max. 500 m |
| Unshielded Cable Length | Max. 300 m |
| Conformal Coating | Yes |
| Operating Temperature | -20°C to +60°C |
| Cold Start Temperature | 0°C |
| Protection Rating | IP20 |
| Mounting | S7-1200 system module |
| Application | Industrial automation, machine control, sensor signal acquisition and actuator control |
| Dimensions | 107 × 90 × 60 mm |
| Weight | 0.202 kg |
FAQ
1. What is the Siemens 6AG1223-1BH32-4XB0 used for?
The Siemens 6AG1223-1BH32-4XB0 is a SIPLUS S7-1200 SM 1223 digital I/O module used to expand the digital signal capacity of an S7-1200 PLC system. It provides 8 digital inputs and 8 transistor outputs for 24 V DC field signals. Typical applications include machine control, sensor monitoring, actuator control, material handling systems and general industrial automation.
2. How many digital inputs and outputs does the 6AG1223-1BH32-4XB0 have?
The module provides 8 digital inputs and 8 digital outputs. The inputs support 24 V DC signals and can be used with sink/source field devices. The outputs are transistor-based and are intended for switching compatible 24 V DC loads. This 8DI/8DQ configuration provides a balanced I/O expansion solution for machines that require both signal acquisition and discrete output control.
3. What supply voltage does the 6AG1223-1BH32-4XB0 require?
The module has a rated supply voltage of 24 V DC, with a permissible supply range of 20.4–28.8 V DC. The control-system power supply should remain within this range during normal operation. A stable 24 V DC supply is particularly important when multiple sensors and actuators are connected, because supply fluctuations can affect input signal recognition and output operation.
4. What is the maximum output current of the transistor outputs?
Each digital output is rated for a maximum current of 0.5 A under the specified operating conditions. The outputs are designed for 24 V DC switching applications and can control suitable relays, indicator devices, solenoid-type loads and other industrial actuators. The actual load characteristics, including inrush current and switching frequency, should be considered when selecting the connected equipment.
5. What input voltage is recognized as a digital “1” signal?
For the 24 V DC digital inputs, approximately 15 V DC or higher is recognized as a logical “1” under the specified input conditions, while approximately 5 V DC at 1 mA corresponds to the specified “0” condition. The typical input current at signal “1” is approximately 4 mA per channel. Sensor output voltage and current capability should therefore be checked before connecting field devices.
6. Can the 6AG1223-1BH32-4XB0 be used with long signal cables?
Yes. Under appropriate installation conditions, shielded signal cables can be used up to approximately 500 m, while unshielded cables can reach approximately 300 m. In environments with significant electromagnetic interference, shielded cables are preferable. Signal cables should also be routed separately from high-current motor and power cables to reduce the possibility of noise-induced switching errors.
7. Does the 6AG1223-1BH32-4XB0 provide short-circuit protection on its outputs?
The transistor outputs do not provide dedicated short-circuit protection, so external protection is required. Appropriate fuses or overcurrent protection devices should be selected according to the connected load and power supply. For inductive loads such as solenoid valves and relay coils, suitable suppression components should also be considered to reduce the voltage spike generated when the load is switched off.
8. How can a digital I/O fault be diagnosed on the 6AG1223-1BH32-4XB0?
Start by checking the PLC diagnostic information and confirming that the user program is generating the expected input or output state. Then verify the 24 V DC supply, terminal connections and field wiring. If an input remains inactive, measure the actual sensor voltage at the input terminal and check the sensor output. If an output does not activate, check the PLC command, output voltage, external protection and connected load. For intermittent faults, inspect grounding, cable shielding, electromagnetic interference and suppression of inductive loads.
Siemens 6AG1223-1BH32-4XB0 VDC Logic I/O Module is in stock. Please contact us for a quick quote and competitive pricing.
