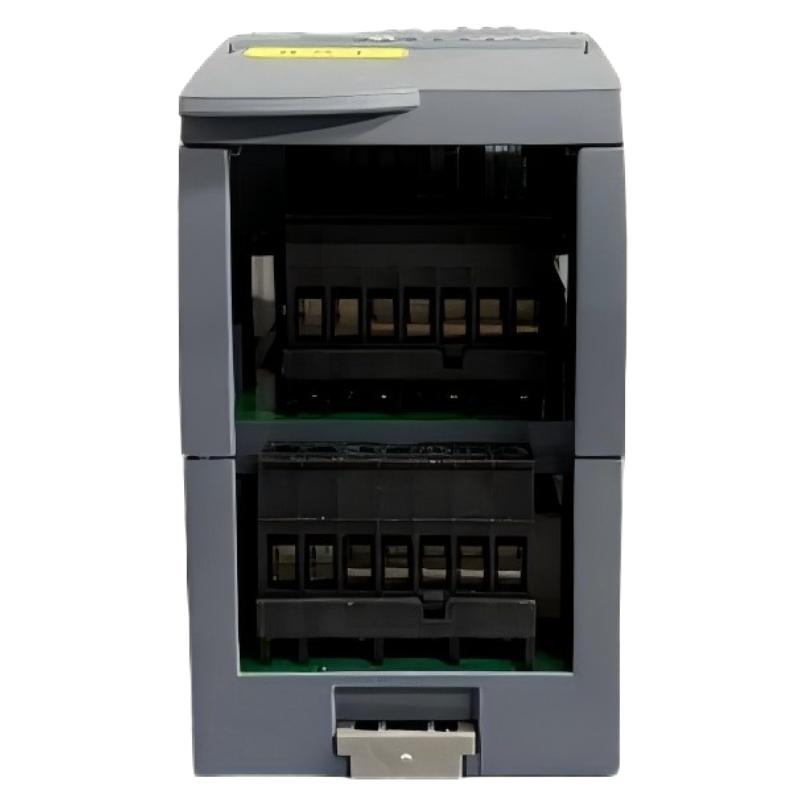

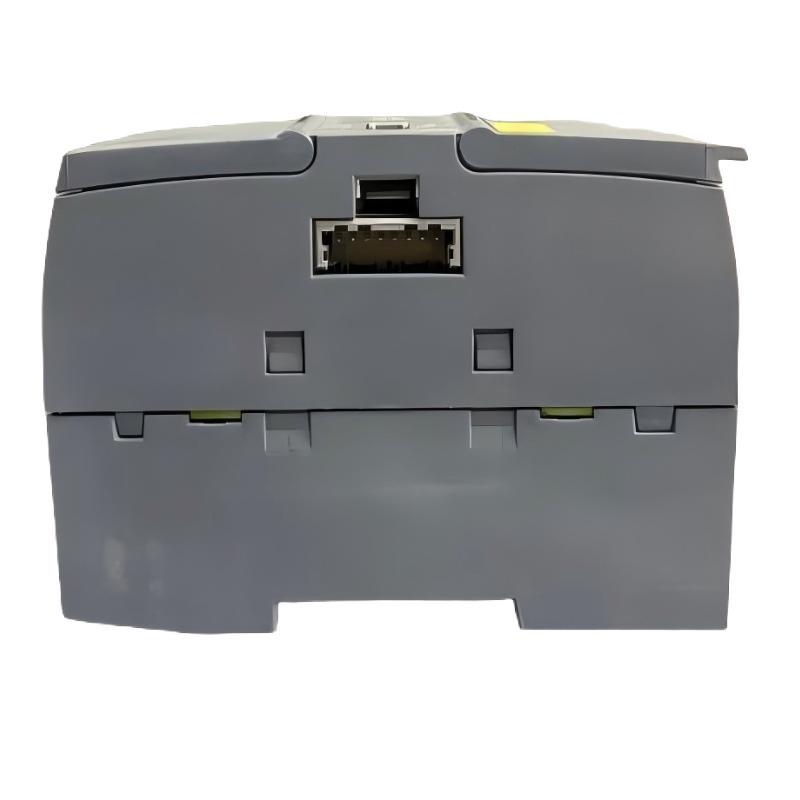

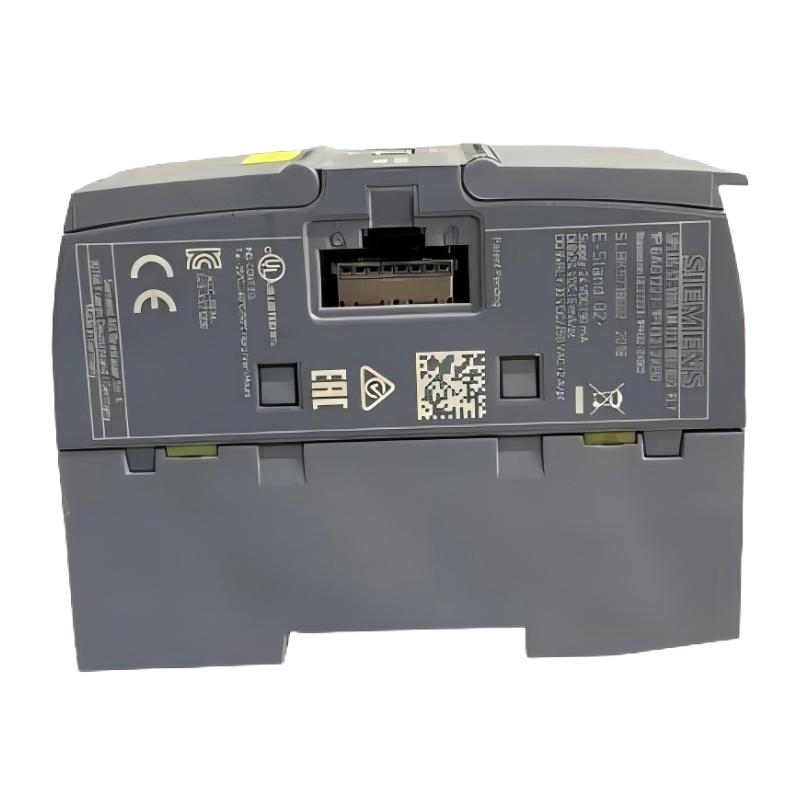

1. What are the main functions of the 6AG1223-1PH32-2XB0 module?

The 6AG1223-1PH32-2XB0 is a SIPLUS S7-1200 SM 1223 digital input/output module designed for industrial automation applications. It provides eight digital inputs for receiving signals from field devices and eight relay outputs for controlling external equipment. Typical applications include machine control, production line automation, conveyor systems, and general industrial switching tasks. By combining digital input and relay output functions in one module, it simplifies signal integration and reduces the need for separate input and output modules. Its conformal coating also supports operation in specified industrial environments where additional protection against environmental contaminants is required.

2. What types of field devices can be connected to the digital inputs?

The eight digital inputs are designed for 24 V DC signals and support compatible sinking and sourcing sensor configurations. Typical connected devices include proximity sensors, limit switches, push buttons, selector switches, and other industrial devices that provide compatible digital signals. During installation, engineers should verify the sensor’s output type, signal voltage, wiring polarity, and common terminal arrangement. The input signal must meet the module’s switching thresholds to ensure reliable signal recognition. If a sensor produces an incompatible voltage or output format, a suitable signal interface may be required before connecting it to the module.

3. What are the advantages of the relay outputs on this module?

The module provides eight relay outputs with a rated switching current of up to 2 A per channel under the applicable load conditions. Relay outputs can switch compatible AC or DC loads, making them suitable for applications that require electrical isolation between the control circuit and the switched circuit. They can be used to operate indicator circuits, contactor coils, interface relays, and other loads within the specified electrical ratings. However, relay contacts are subject to mechanical wear, and their service life depends on switching frequency, load current, voltage, and load characteristics. Inductive loads may require external suppression components to reduce contact arcing and improve operating reliability.

4. Can the 6AG1223-1PH32-2XB0 replace a standard SM 1223 module?

This SIPLUS module is based on the standard Siemens 6ES7223-1PH32-0XB0 product design, with additional conformal coating and specified environmental capabilities. It may be suitable as a replacement in compatible SIMATIC S7-1200 systems, provided the hardware configuration, electrical characteristics, and application requirements match. Before replacement, verify the complete order number, CPU compatibility, firmware requirements, connector arrangement, and input/output address assignments. The engineering software should recognize the installed module correctly. A replacement should not be considered automatically interchangeable solely because the two modules share the same basic input/output configuration.

5. How does the conformal coating improve the module’s reliability?

The conformal coating protects the assembled circuit board against certain environmental contaminants and helps improve reliability in demanding industrial environments. The SIPLUS design is intended for applications requiring a wider specified temperature range and enhanced environmental resistance compared with standard configurations. Nevertheless, conformal coating does not eliminate the need for proper installation and environmental control. The module should be operated within its specified conditions and protected from unsuitable exposure to liquids, excessive contamination, and electrical interference. Unused interfaces should be covered as required by the manufacturer’s installation instructions, and the control cabinet should provide appropriate mechanical and electrical protection.

6. What should be checked before commissioning the module?

Before commissioning, confirm that the module is correctly installed in the SIMATIC S7-1200 system and that the hardware configuration matches the physical device. Check the 24 V DC supply, input wiring, relay output connections, common terminals, and external protection devices. Verify that the connected loads remain within the rated switching capacity of the relay contacts and that the total load is appropriate for the installation. During functional testing, activate each input individually and confirm that the corresponding PLC status changes correctly. Then test the relay outputs under controlled conditions, checking contact operation and the response of the connected equipment. Complete diagnostic checks before enabling automatic machine operation.

7. How can digital input faults be diagnosed?

If an input signal is not detected, first check whether the field device is generating the correct signal voltage. Measure the voltage at the module terminal and inspect the sensor wiring, common connections, cable condition, and power supply. Confirm that the sensor’s sinking or sourcing configuration is compatible with the input circuit. Next, monitor the corresponding input address in the PLC programming software to determine whether the signal is being registered. If the electrical signal is correct but the PLC status does not change, review the hardware configuration, input address mapping, and diagnostic information. Testing with a known-compatible signal can help determine whether the fault lies in the sensor, wiring, configuration, or module.

8. What should be done if a relay output fails to operate correctly?

Begin by confirming that the PLC program is issuing the expected output command and that no interlocks or operating conditions are preventing activation. Check the relay coil supply requirements, output wiring, external load supply, and connected device. If the output command is active but the load does not respond, inspect the relay contacts and verify that the load current and voltage are within the specified switching limits. Because short-circuit protection is not integrated into the outputs, suitable external protection must be provided. Also consider whether excessive switching frequency, inductive loads, or contact wear may have affected relay operation. Isolate power before inspecting or replacing wiring or components, and perform controlled functional tests before returning the system to service.
