1. What is the primary function of the 6AG1223-1PH32-4XB0 module?

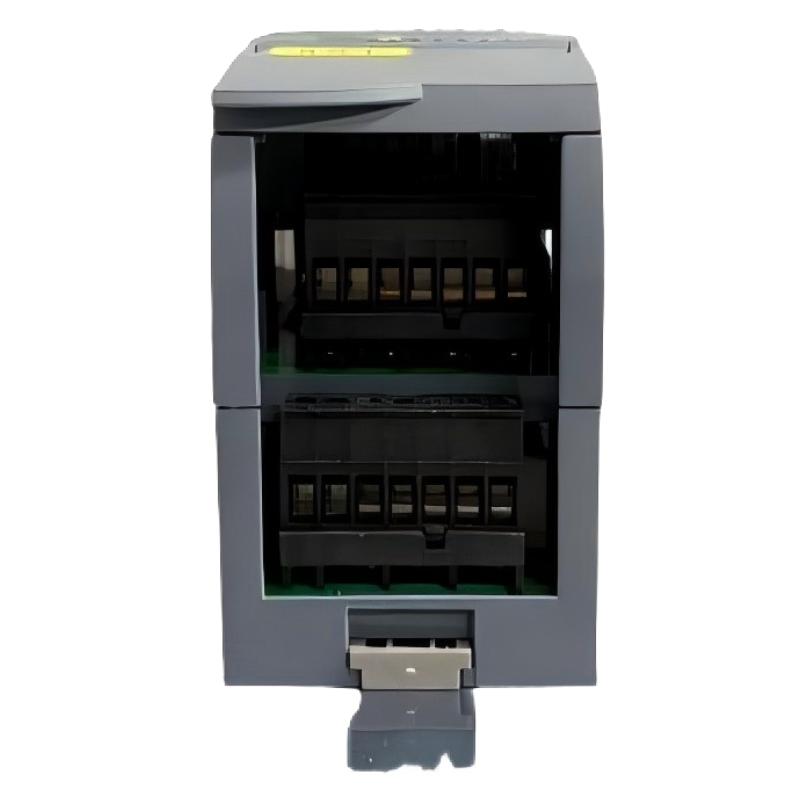

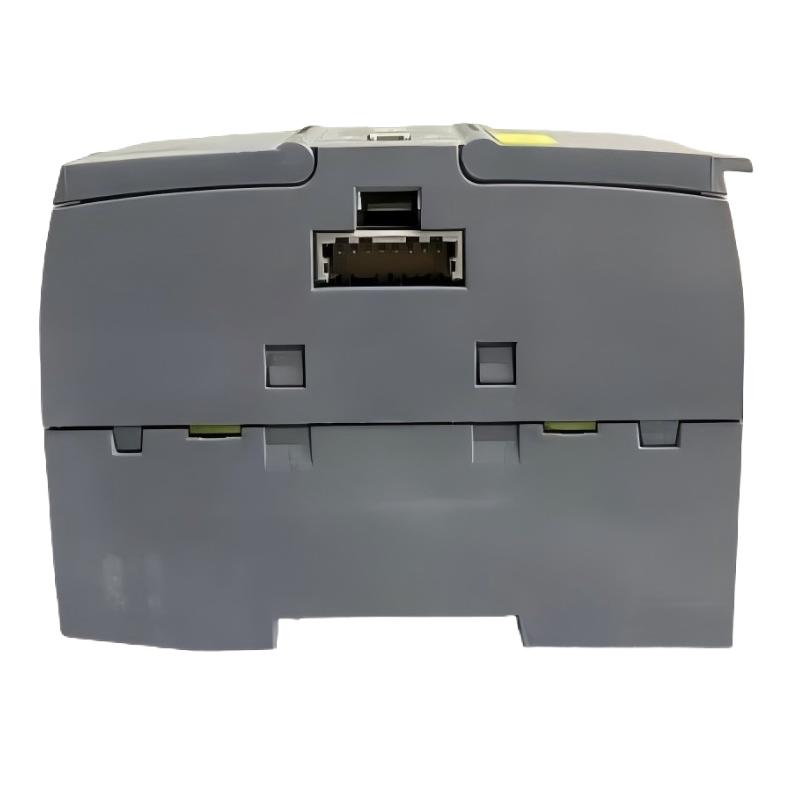

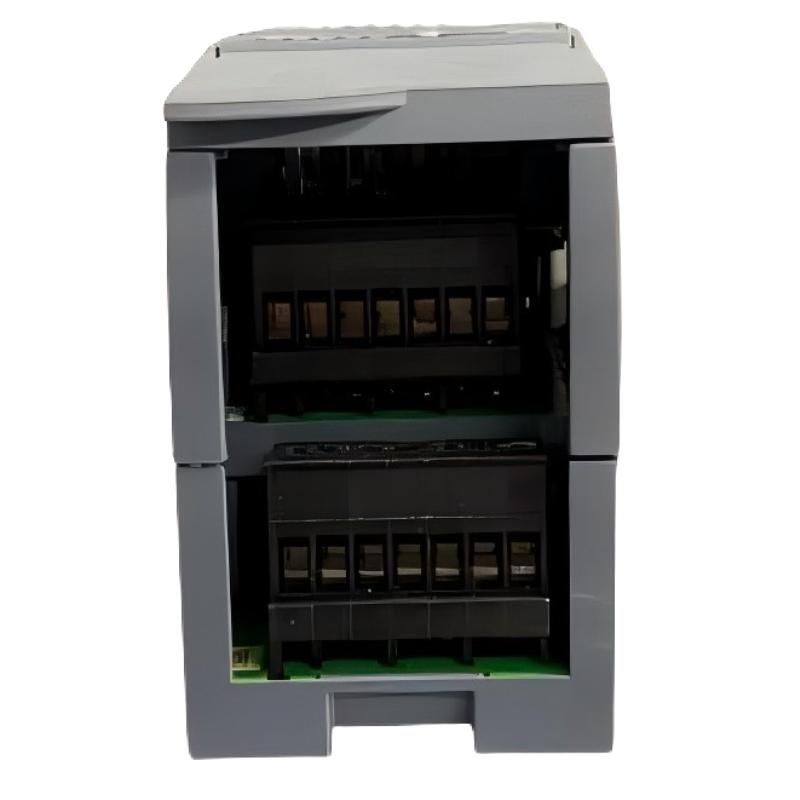

The 6AG1223-1PH32-4XB0 is a SIPLUS S7-1200 SM 1223 digital input/output module designed to connect a PLC with field devices in industrial automation systems. It provides eight 24 V DC digital inputs and eight relay outputs, allowing the controller to acquire switching signals and operate external equipment. Typical applications include conveyor systems, packaging machinery, production lines, and general-purpose machine control. Its relay outputs support compatible AC and DC loads, while the conformal-coated circuit board provides additional environmental protection for applications operating within the specified conditions.

2. What types of sensors and switches can be connected to the digital inputs?

The eight digital inputs are designed for 24 V DC signals and can interface with compatible proximity sensors, limit switches, push buttons, selector switches, and other industrial switching devices. The inputs support sinking and sourcing configurations, but the actual wiring must match the connected device’s output characteristics. During installation, verify the sensor’s rated voltage, output type, common terminal arrangement, and signal thresholds. Incorrect polarity or incompatible signal levels may prevent the PLC from detecting a switching event reliably. For sensors with different electrical interfaces, use an appropriate signal converter or interface module.

3. What loads can the relay outputs control?

The module provides eight relay outputs with a rated switching current of up to 2 A per channel under the applicable operating conditions. The contacts can switch compatible DC voltages from 5 V to 30 V and AC voltages from 5 V to 250 V. Typical applications include switching contactor coils, indicator circuits, interface relays, and suitable industrial actuators. The permissible load depends on the voltage, current, and load characteristics, so the ratings must be checked before connecting equipment. Inductive loads may require suppression components, while short-circuit protection must be provided externally because it is not integrated into the output channels.

4. What is the difference between the 6AG1223-1PH32-4XB0 and a standard SM 1223 module?

The 6AG1223-1PH32-4XB0 is a SIPLUS version based on the standard 6ES7223-1PH32-0XB0 module. It retains the basic configuration of eight 24 V DC digital inputs and eight relay outputs while incorporating conformal coating and specified environmental protection characteristics. This makes it suitable for applications where additional resistance to environmental influences is required. However, replacement compatibility should be confirmed using the complete order number, CPU compatibility, hardware configuration, firmware requirements, and terminal arrangement. Before replacing an existing module, verify the PLC program’s input/output address assignments and ensure that the engineering software correctly recognizes the installed hardware.

5. How does the conformal coating benefit industrial applications?

The conformal coating protects the circuit board against certain environmental contaminants and helps improve the reliability of electronic components under specified operating conditions. This feature is useful in industrial environments where humidity, condensation, corrosive gases, or other environmental influences may affect conventional electronics. The SIPLUS design is intended for defined environmental conditions and should be installed according to the manufacturer’s specifications. Conformal coating does not make the module waterproof or remove the need for suitable electrical enclosures. Proper mounting, ventilation, wiring, and environmental management remain important for stable operation over the module’s service life.

6. How should the module be installed and commissioned?

Before installation, isolate the relevant power supplies and follow applicable electrical safety procedures. Confirm that the module is compatible with the SIMATIC S7-1200 controller and that the hardware configuration matches the physical device. Check the 24 V DC supply, terminal assignments, input wiring, relay contact connections, and external protection devices. During commissioning, activate each digital input separately and confirm that the corresponding PLC status changes correctly. Then test each relay output under controlled conditions, verifying contact operation and the response of the connected load. Review diagnostic information and ensure that the program’s address assignments are correct before enabling automatic machine operation.

7. How can digital input signal faults be diagnosed?

If an input does not respond, first check the connected sensor and measure the voltage at the relevant input terminal. Confirm that the signal meets the module’s input requirements and that the sensor’s sinking or sourcing configuration matches the wiring. Inspect the common terminals, 24 V DC supply, and field cables for loose connections or damage. Next, monitor the corresponding input address in the PLC engineering software. If the electrical signal is correct but the software status does not change, check the hardware configuration, address mapping, and diagnostic information. Testing the channel with a known-compatible signal can help distinguish between a faulty sensor, a wiring problem, an incorrect configuration, or a defective input channel.

8. What should be checked if a relay output fails to switch a load?

Start by confirming that the PLC program is issuing the correct output command and that no interlock or operating condition is preventing activation. Check the external load supply, relay contact wiring, terminal connections, and load voltage. If the output command is active but the equipment does not respond, inspect the contact circuit and verify that the load current remains within the rated switching capacity. Excessive switching frequency, inductive loads, and contact wear can affect relay performance. Because the module does not provide integrated output short-circuit protection, the external circuit must have appropriate protective devices. Disconnect power before inspecting or replacing components, then perform controlled functional tests before returning the system to service.
