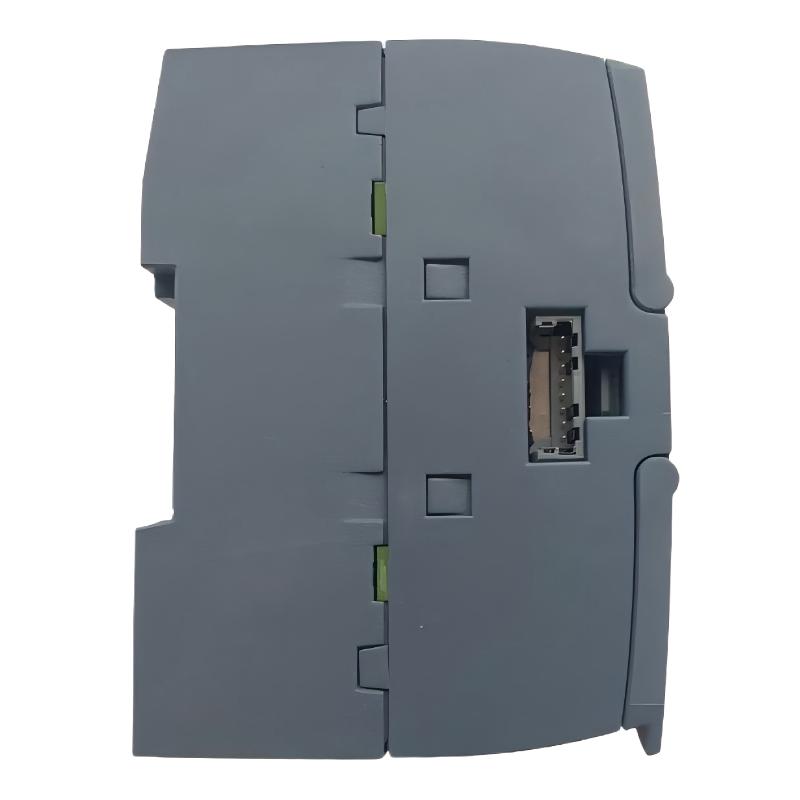

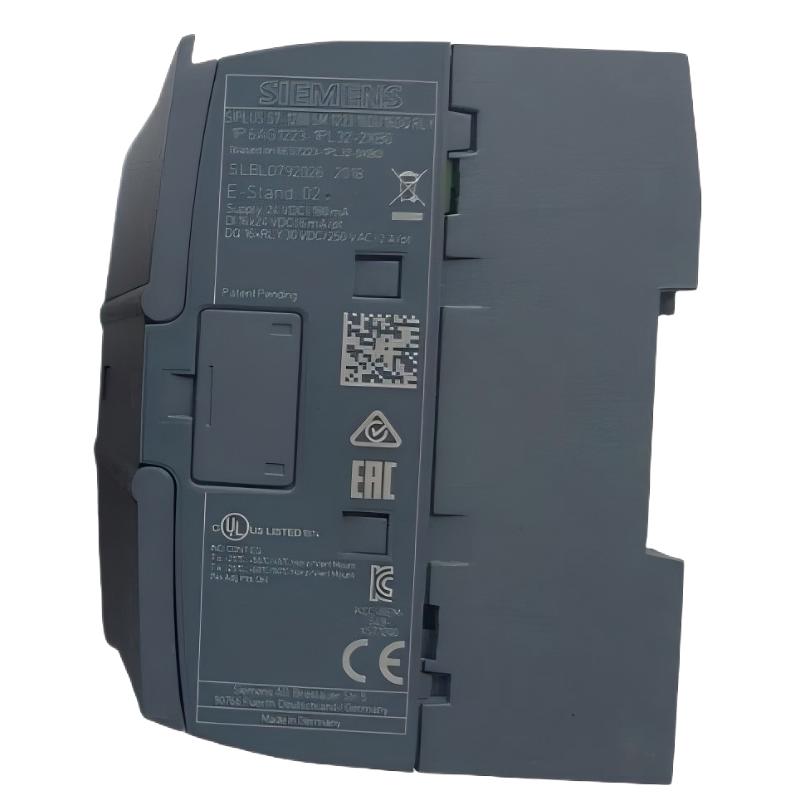

1. What are the main functions of the 6AG1223-1PL32-2XB0 module?

The 6AG1223-1PL32-2XB0 is a SIPLUS S7-1200 SM 1223 digital input/output module designed for industrial automation systems. It provides 16 digital inputs for acquiring field signals and 16 relay outputs for controlling external equipment. The inputs support 24 V DC signals and can interface with compatible sensors, push buttons, and limit switches. The relay outputs can switch suitable AC or DC loads within the specified electrical ratings. This combination makes the module suitable for production machinery, conveyor systems, packaging equipment, and other applications that require reliable signal acquisition and relay-based control.

2. What types of field devices can be connected to the digital inputs?

The 16 digital inputs are designed for 24 V DC signals and support compatible sinking and sourcing sensor configurations. Typical devices include proximity sensors, photoelectric sensors, limit switches, push buttons, and selector switches. Before connecting a field device, verify its output type, rated voltage, signal thresholds, and common terminal arrangement. The wiring must follow the module’s connection diagram to ensure that the input signal is correctly recognized by the PLC. If a sensor uses a different voltage level or an incompatible electrical interface, an appropriate signal converter or interface device should be installed rather than connecting it directly.

3. What are the operating characteristics of the relay outputs?

The module provides 16 relay outputs with a rated switching current of up to 2 A per channel under the applicable operating conditions. The contacts support compatible DC switching voltages from 5 V to 30 V and AC switching voltages from 5 V to 250 V. They can be used to control indicator circuits, contactor coils, interface relays, and other suitable industrial loads. The actual switching capacity depends on the load type, voltage, current, and operating frequency. Since relay contacts are mechanical components, repeated switching gradually causes wear. For inductive loads, appropriate suppression devices may be necessary to reduce contact arcing and improve service life.

4. Can the 6AG1223-1PL32-2XB0 replace a standard SM 1223 module?

The 6AG1223-1PL32-2XB0 is a SIPLUS version based on the standard 6ES7223-1PL32-0XB0 module. It retains the 16-input and 16-relay-output configuration while incorporating conformal coating and an extended specified operating temperature range. It may be suitable for replacing a compatible standard module, but compatibility must be checked against the CPU model, firmware version, hardware configuration, connector arrangement, and application requirements. Before replacement, verify that the engineering software recognizes the module and that all input/output addresses match the PLC program. Any differences in configuration or wiring should be resolved before the system returns to automatic operation.

5. How does the conformal coating improve the module’s environmental resistance?

The conformal coating provides an additional protective layer over the circuit board, helping reduce the effects of certain environmental contaminants on electronic components. This is particularly useful in industrial applications where equipment may be exposed to challenging ambient conditions. The SIPLUS version has a specified operating temperature range of -40°C to +70°C and a minimum startup temperature of -25°C. These ratings apply under the manufacturer’s defined operating conditions. The coating does not make the module waterproof, and it cannot replace suitable enclosure protection or correct installation practices. Environmental conditions, ventilation, condensation risks, and electrical interference should still be considered during system design.

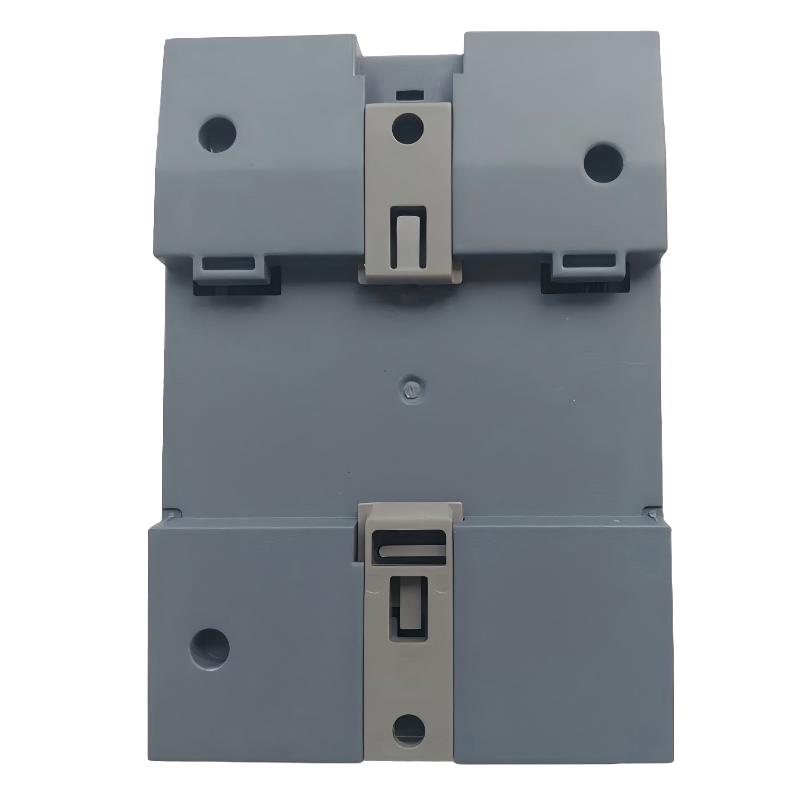

6. What should be checked during installation and commissioning?

Before installation, isolate the relevant power supplies and verify the module’s order number, mounting arrangement, connector compatibility, and hardware configuration. Confirm that the 24 V DC supply is within the permitted range of 20.4–28.8 V DC. Check the wiring of all input and output channels, including common terminals, relay contact circuits, and external protective devices. During commissioning, test the digital inputs individually and monitor their status in the PLC engineering software. Then test each relay output under controlled conditions, ensuring that connected loads remain within the rated switching limits. Finally, review diagnostic information and confirm that the program’s address assignments correspond to the physical wiring before enabling normal operation.

7. How can digital input faults be diagnosed?

If an input signal is missing or unstable, first inspect the field sensor and measure the voltage at the relevant input terminal. Confirm that the signal meets the module’s switching requirements and that the sensor’s sinking or sourcing configuration matches the wiring. Check the 24 V DC supply, common terminals, connector contacts, and field cables for loose connections or damage. Next, monitor the corresponding input address in the PLC software to determine whether the signal is being registered. If the measured voltage is correct but the input status does not change, review the hardware configuration, address mapping, and diagnostic information. Testing with a known-compatible signal can help distinguish a sensor fault from a wiring, configuration, or module problem.

8. What should be done if a relay output cannot control the connected load?

First, confirm that the PLC program is generating the correct output command and that no interlock or operating condition is preventing activation. Check the external load supply, relay contact wiring, terminal connections, and load compatibility. Measure the circuit using an appropriate electrical testing method and verify that the current does not exceed the permitted switching capacity. For inductive loads, inspect any required suppression components and consider whether contact wear or excessive switching frequency may be affecting operation. The module does not provide integrated output short-circuit protection, so suitable external protection must be installed. Before inspecting or replacing wiring, isolate the power supply and follow electrical safety procedures. After correcting the fault, test the output under controlled conditions before restoring normal machine operation.
