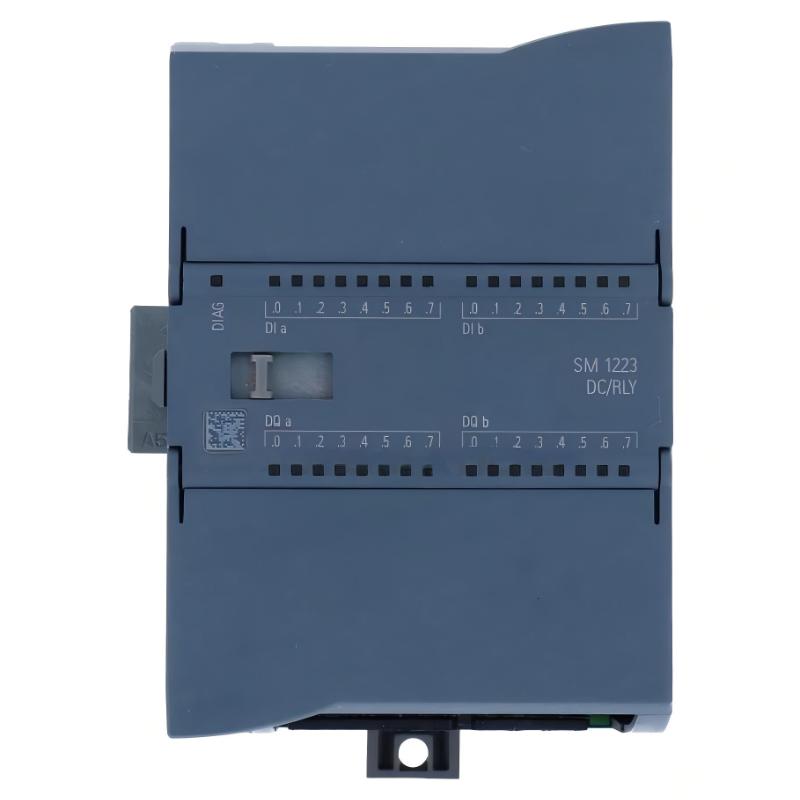

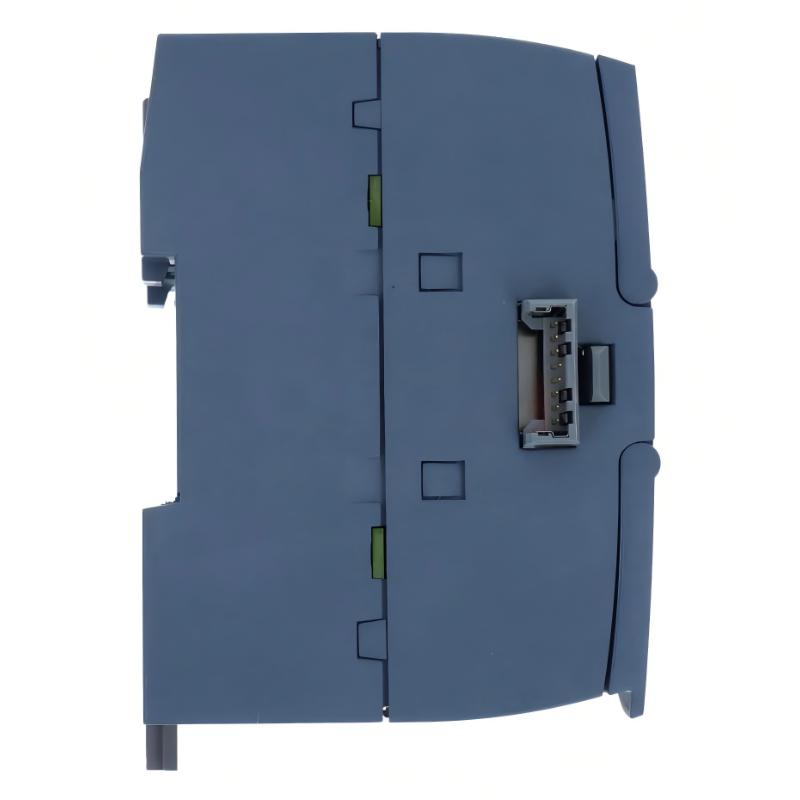

1. What is the main function of the Siemens 6AG1223-1PL32-4XB0 module?

The 6AG1223-1PL32-4XB0 is a SIPLUS S7-1200 SM 1223 digital input/output module designed to connect field devices to a PLC-based automation system. It provides 16 digital inputs for collecting 24 V DC switching signals and 16 relay outputs for controlling external loads. Typical applications include production machinery, conveyor systems, packaging equipment, and industrial process control. The integrated input and output channels simplify control cabinet design and allow the PLC to monitor equipment status while controlling compatible actuators. Its conformal-coated circuit board also provides additional environmental protection for applications operating within the specified conditions.

2. What types of sensors and devices can be connected to the digital inputs?

The module’s 16 digital inputs are designed for 24 V DC signals and support compatible sinking and sourcing sensor configurations. Typical devices include proximity sensors, photoelectric sensors, limit switches, push buttons, and selector switches. Before connecting a device, verify its output type, rated voltage, signal thresholds, and common terminal arrangement. The input signal must meet the module’s switching requirements for reliable state detection. Incorrect polarity, unsuitable voltage levels, or poor terminal connections can cause intermittent signals or prevent the PLC from recognizing a switching event. Devices with incompatible electrical interfaces should be connected through a suitable signal converter or interface module.

3. What are the characteristics of the 16 relay outputs?

The module provides 16 relay outputs with a rated switching current of up to 2 A per channel under the applicable operating conditions. The contacts can switch compatible DC voltages from 5 V to 30 V and AC voltages from 5 V to 250 V. They are suitable for controlling interface relays, contactor coils, indicator circuits, and other loads within the specified electrical ratings. The total current must also respect the applicable group loading limits; for horizontal installation, the documented maximum is 8 A per group at ambient temperatures up to 50°C. Relay contacts are mechanical components, so switching frequency, load characteristics, and electrical arcing affect their service life. Inductive loads may require external suppression components.

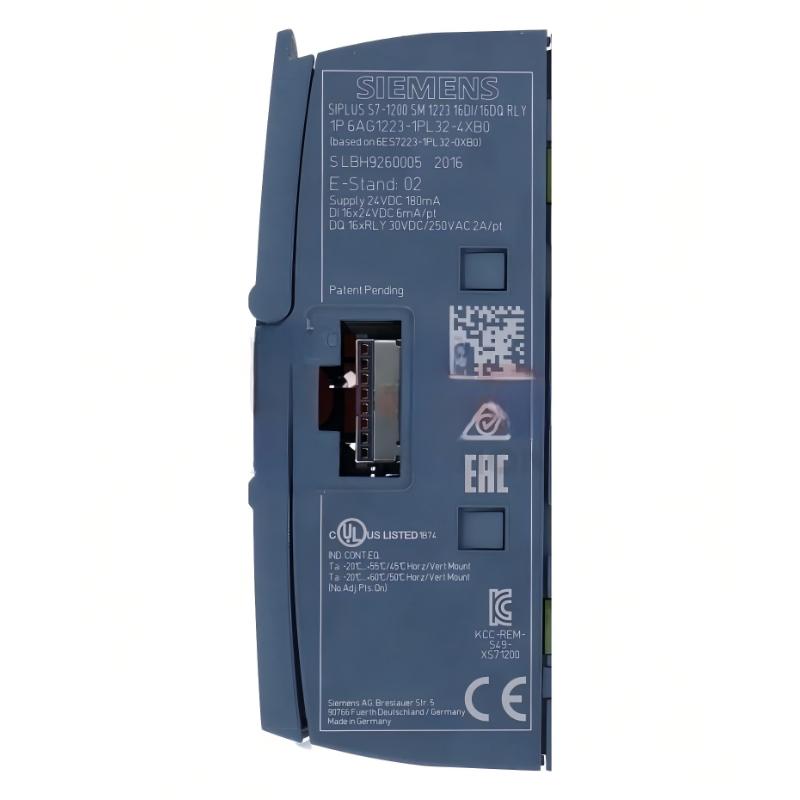

4. What is the difference between the SIPLUS version and the standard SM 1223 module?

The 6AG1223-1PL32-4XB0 is based on the standard Siemens 6ES7223-1PL32-0XB0 module. Both provide 16 digital inputs and 16 relay outputs, but the SIPLUS version incorporates conformal coating and is specified for a particular range of environmental conditions. Its operating temperature range is -20°C to +60°C. The additional protection can be useful in industrial environments where electronic assemblies may encounter more demanding ambient conditions. However, replacement compatibility should still be verified against the CPU model, firmware, hardware configuration, terminal arrangement, and application requirements. Before installation, confirm that the engineering software recognizes the module and that the existing PLC program uses the correct input/output addresses.

5. How should the module be installed and commissioned?

Before installation, isolate the relevant power supplies and follow the site’s electrical safety procedures. Confirm that the module is compatible with the SIMATIC S7-1200 controller and that the hardware configuration matches the physical device. Verify the 24 V DC supply, terminal assignments, input wiring, relay contact circuits, and external protection devices. During commissioning, activate each digital input individually and confirm that the corresponding PLC status changes correctly. Then test each relay output under controlled conditions, checking contact operation and the response of the connected equipment. Review diagnostic information and verify all address assignments before enabling automatic operation. For inductive loads, check that appropriate suppression measures are installed.

6. How can digital input signal problems be diagnosed?

If an input signal is missing or unstable, first check the field sensor and measure the voltage at the corresponding module terminal. Confirm that the signal meets the input requirements and that the sensor’s sinking or sourcing configuration matches the wiring. Inspect the 24 V DC supply, common terminals, connector contacts, and field cables for loose connections or damage. Next, monitor the corresponding input address in the PLC engineering software. If the measured voltage is correct but the software status does not change, review the hardware configuration, address mapping, and diagnostic messages. Testing the channel with a known-compatible signal can help determine whether the problem originates from the sensor, field wiring, configuration, or input channel.

7. What should be checked if a relay output cannot activate a connected device?

Start by confirming that the PLC program is issuing the correct output command and that no interlock or operating condition is preventing activation. Check the external load supply, relay contact wiring, terminal connections, and load compatibility. Measure the output circuit using an appropriate electrical testing method, and verify that both the individual channel current and the group loading limits are respected. If the output command is active but the load does not respond, inspect the contact circuit and consider possible relay contact wear. Excessive switching frequency and inductive loads can also affect reliability. Since short-circuit protection is not integrated into the outputs, appropriate external protection must be installed. Isolate power before inspecting or replacing components.

8. How can the module’s diagnostic functions help with maintenance?

The module supports diagnostic alarms and provides LED indications for input and output status, helping maintenance personnel identify signal and switching problems. During troubleshooting, compare the physical input indicators with the corresponding PLC software states to determine whether field signals are reaching the controller. For output faults, check the commanded state, relay operation, external supply, and load circuit. Supply voltage monitoring and diagnostic messages can provide additional information when investigating abnormal operation. Recording recurring faults, checking terminal connections during scheduled maintenance, and inspecting relay-controlled loads can help reduce unplanned downtime. Diagnostic functions do not replace electrical measurements, but they provide a useful starting point for isolating faults systematically.
