FAQ

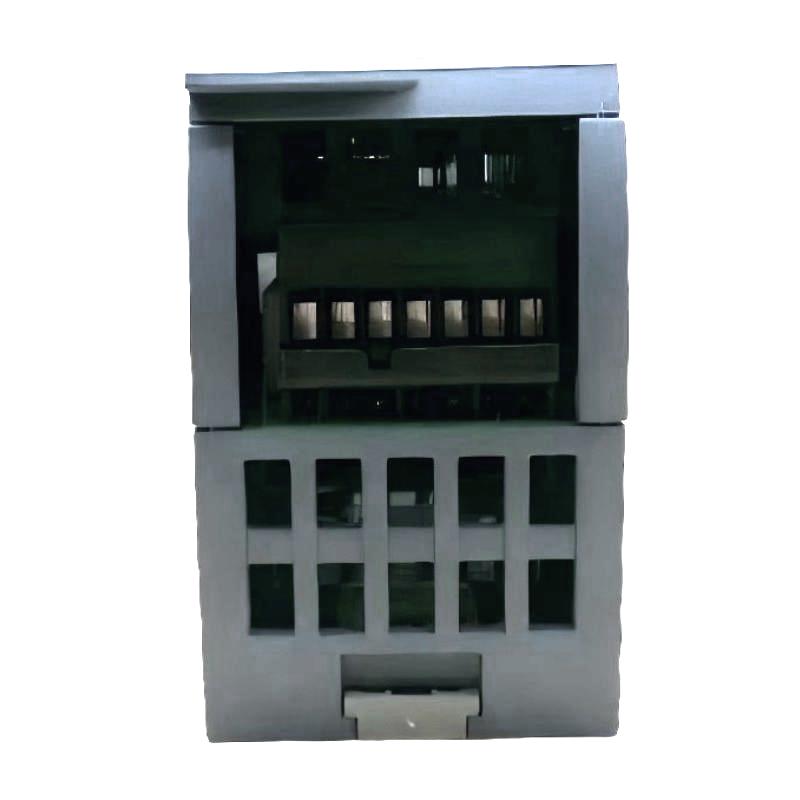

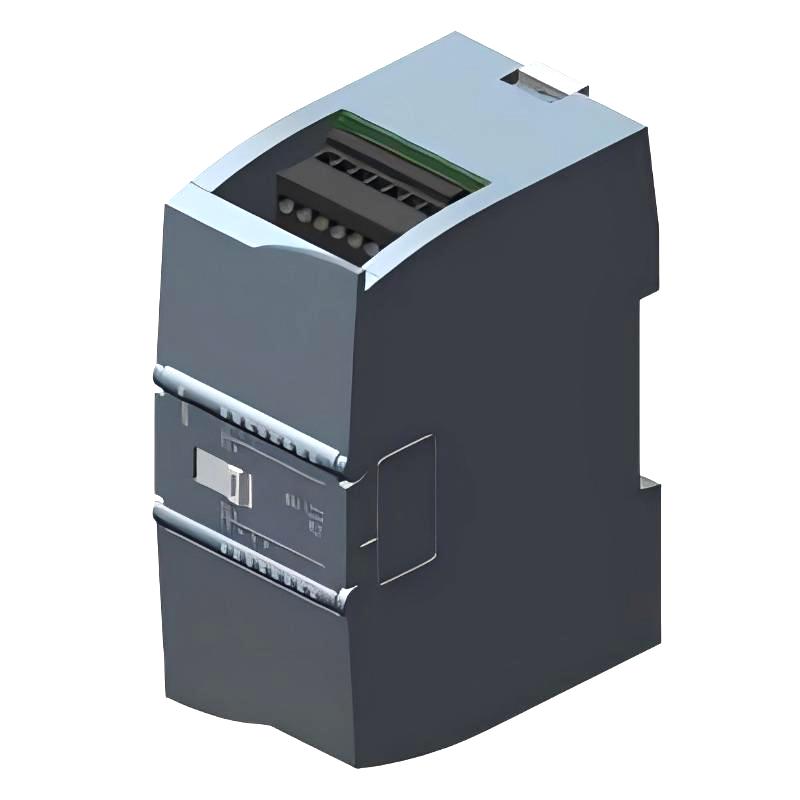

1. What is the main function of the 6AG1223-1QH32-2XB0 module?

The 6AG1223-1QH32-2XB0 is a SIPLUS SM 1223 digital input/output module designed for Siemens SIMATIC S7-1200 automation systems. It provides eight AC digital inputs for monitoring field signals and eight relay outputs for controlling external equipment. The inputs accept 120/230 V AC signals, making the module suitable for applications where AC switching signals are used directly in the control system. The relay outputs can switch compatible AC or DC loads within their specified ratings. Typical applications include industrial machinery, production equipment, and control systems that require AC signal acquisition and relay-based switching.

2. What types of signals can be connected to the digital inputs?

The module has eight digital inputs designed for 120/230 V AC signals and uses an input characteristic compliant with IEC 61131 Type 1. These inputs can be used with compatible AC-operated switches, auxiliary contacts, and other field devices that provide suitable AC signals. The input circuit recognizes a low state at approximately 20 V AC with a current of 1 mA and a high state at approximately 79 V AC with a current of 2.5 mA. Because these inputs operate at AC voltages, they must not be wired as though they were standard 24 V DC inputs. Always verify terminal assignments, signal voltage, insulation requirements, and the field device’s electrical characteristics before installation.

3. What are the main characteristics of the relay outputs?

The module provides eight relay outputs with a rated switching current of up to 2 A per channel under the applicable operating conditions. The contacts support DC switching voltages from 5 V to 30 V and AC switching voltages from 5 V to 250 V. They can be used to switch compatible contactor coils, indicator circuits, interface relays, and other industrial loads. The permitted current depends on the load type and switching conditions, and the total current per output group must also remain within the specified limit. Relay contacts are mechanical components, so frequent switching and high inrush currents can affect their service life. Inductive loads may require external suppression components to reduce arcing and electrical interference.

4. Can this module be used in demanding industrial environments?

The 6AG1223-1QH32-2XB0 belongs to the SIPLUS product family and features a conformal-coated circuit board. Its specified operating temperature range is -40°C to +70°C, with startup permitted from -25°C under the defined operating conditions. These characteristics make it suitable for applications that require additional environmental resistance compared with standard modules. However, the coating does not make the device waterproof or eliminate the need for appropriate enclosure protection. Installation must follow the manufacturer’s environmental specifications, including requirements relating to condensation, contamination, electrical interference, and mounting. The module should not be commissioned while condensation conditions prohibit startup.

5. What power supply does the module require?

The module has a rated supply voltage of 24 V DC, with a permissible range of 20.4–28.8 V DC. Its maximum backplane bus current consumption is 120 mA at 5 V DC, and its typical power dissipation is 7.5 W. The AC digital input circuits operate at 120/230 V AC, while the relay coils use a 24 V DC control supply. These electrical requirements should be considered separately when designing the control cabinet. Before commissioning, verify the 24 V DC supply stability, grounding arrangements, protective devices, and the separation of AC and low-voltage wiring. Incorrect supply connections can damage equipment and create electrical safety risks.

6. How should the module be installed and commissioned?

Before installation, isolate all relevant power sources and follow the site’s electrical safety procedures. Confirm that the module is correctly installed in the SIMATIC S7-1200 system and that the hardware configuration recognizes the exact order number. Check the 24 V DC supply, AC input wiring, relay output connections, terminal assignments, and external protection devices. During commissioning, test each input with the correct AC signal and confirm that the corresponding PLC input status changes as expected. Then test each relay output under controlled conditions, checking the switching action and the response of the connected equipment. Because the inputs use 120/230 V AC, appropriate electrical isolation and safe measurement practices are essential throughout testing.

7. How can AC digital input signal problems be diagnosed?

If an input does not change state correctly, first verify the AC voltage at the field device and at the corresponding module terminal using an appropriately rated measuring instrument. Confirm that the input receives a voltage compatible with the module’s 120/230 V AC rating and that the neutral or reference connections follow the wiring diagram. Inspect terminal tightness, field cables, protective devices, and the field switch’s contact condition. Next, monitor the corresponding input address in the PLC engineering software and check the module’s LED indicators. If the electrical signal is present but the PLC does not register it, review the hardware configuration, address mapping, and diagnostic information. Never apply 24 V DC to an AC input as an improvised test signal.

8. What should be checked if a relay output fails to operate?

Start by confirming that the PLC program is issuing the correct output command and that no interlock or operating condition is preventing activation. Check the relay contact wiring, external load supply, terminal connections, and load compatibility. Verify that the load voltage and current remain within the module’s rated switching limits and that the output group’s total current is not exceeded. If the output command is active but the load does not respond, inspect the external circuit and consider contact wear, excessive switching frequency, or damage caused by inductive loads. Short-circuit protection is not integrated into the outputs, so suitable external protection must be installed. Isolate power before inspecting wiring, and perform controlled functional tests before returning the equipment to normal operation.
