1. What is the primary function of the 6AG1226-6DA32-5XB0 module?

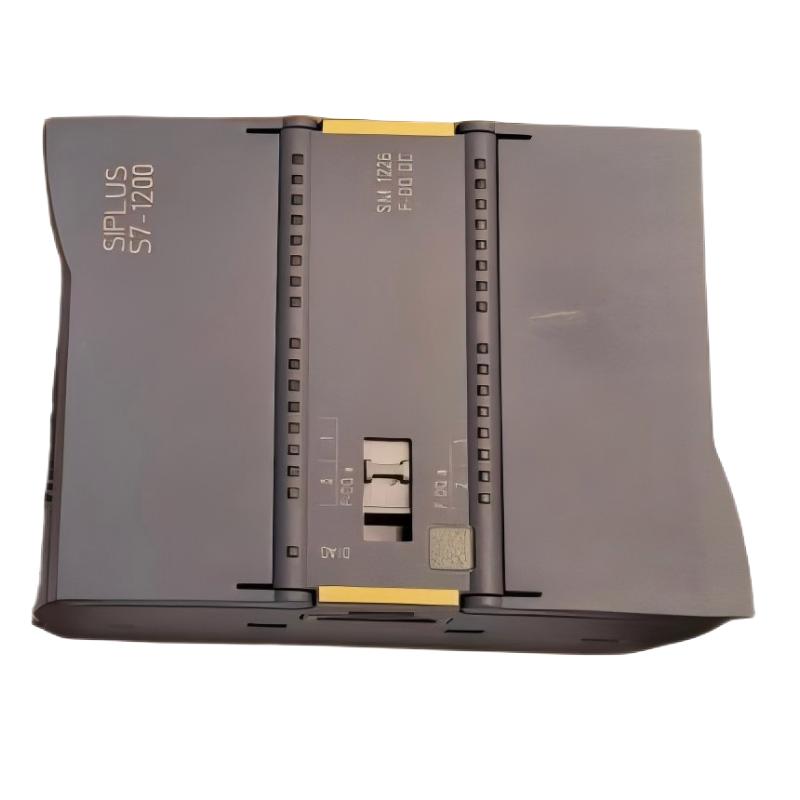

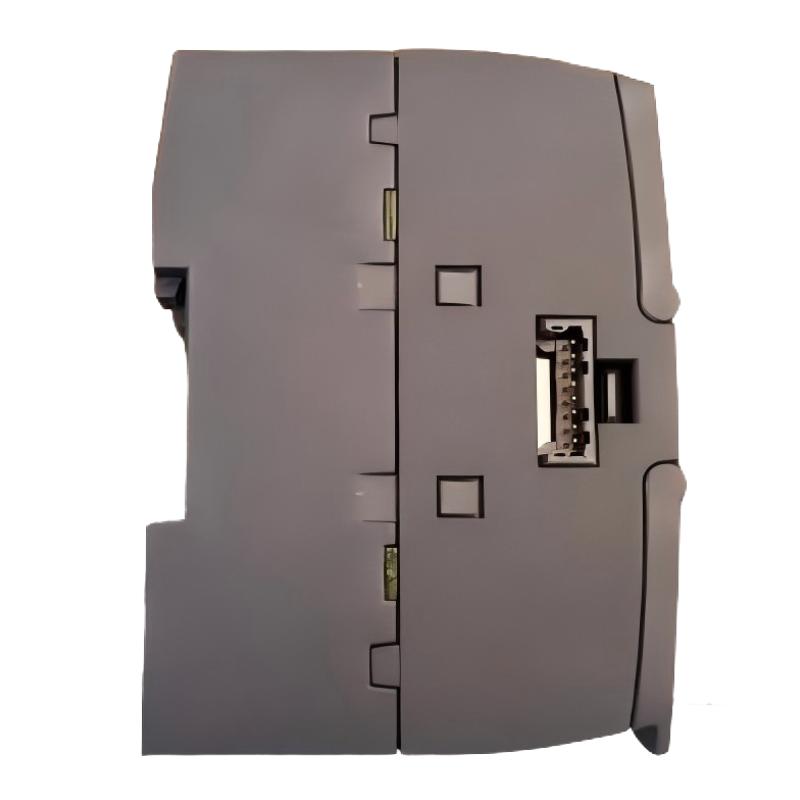

The 6AG1226-6DA32-5XB0 is a fail-safe digital output module in the SIPLUS S7-1200 SM 1226 product family. It is designed for safety-related automation applications where output signals must be controlled and monitored according to a defined safety program. The module can be used to control compatible field devices, such as contactors, valves, and other industrial actuators, provided their electrical characteristics meet the module’s specifications. When integrated with a compatible fail-safe controller, it supports safety-oriented output control and fault monitoring in industrial machinery and process automation systems.

2. How many digital output channels does the module provide, and what are their electrical ratings?

The module provides four fail-safe digital output channels, with a rated output voltage of 24 V DC and a rated output current of 2 A per channel. Before connecting field equipment, engineers should verify the load’s continuous current, inrush current, switching frequency, and electrical characteristics. Inductive loads may require suitable suppression measures to limit voltage spikes during switching. The actual application must remain within the manufacturer’s specified operating limits, and the combined load conditions should be evaluated to ensure reliable operation and prevent unnecessary channel shutdowns or hardware damage.

3. Does the 6AG1226-6DA32-5XB0 support PROFIsafe communication?

Yes. The module supports PROFIsafe for safety-related communication with compatible SIMATIC fail-safe controllers. During configuration, engineers must verify controller compatibility, firmware requirements, hardware configuration, safety program settings, and PROFIsafe addressing. Incorrect addresses or inconsistent safety parameters may prevent successful communication or cause the system to enter a safe state. After commissioning, communication loss and other relevant fault conditions should be tested to confirm that the system responds according to the intended safety design. The safety communication configuration should also be documented for future maintenance and troubleshooting.

4. What functional safety levels can this module support?

The module can support applications up to SIL 3 according to IEC 61508 and PL e according to ISO 13849-1, subject to the applicable product specifications and system conditions. These ratings do not automatically guarantee that an entire machine or control system achieves the same safety level. Overall performance depends on the complete safety architecture, including the fail-safe controller, field wiring, actuators, diagnostic coverage, fault response, and maintenance procedures. A risk assessment and appropriate safety validation are necessary to demonstrate that the completed installation meets the required safety objectives.

5. Is this module suitable for low-temperature or potentially corrosive industrial environments?

The SIPLUS version is designed for demanding industrial environments and has a specified operating temperature range of -25 to +55 °C. Its protective coating helps protect electronic components against certain environmental contaminants. However, the coating does not make the module waterproof or suitable for every corrosive atmosphere. Before installation, engineers should assess ambient temperature, humidity, condensation, chemical exposure, vibration, and cabinet conditions. The module must be operated within the environmental limits specified by the manufacturer, with additional enclosure or environmental protection provided where necessary.

6. What should be checked before installing and commissioning the module?

Before installation, verify the exact model number, controller compatibility, mounting arrangement, power supply, and applicable hardware requirements. Disconnect power before wiring and follow appropriate electrostatic discharge precautions when handling the module. Check the 24 V DC supply, output terminals, reference connections, and field load wiring against the relevant wiring documentation. Ensure that cabinet ventilation, grounding, and cable routing meet the installation requirements. After installation, inspect the wiring, check module status indicators, confirm controller communication, and test each output channel. Safety functions should be validated before the equipment is released for normal operation.

7. How should output faults or diagnostic alarms be troubleshot?

Start by checking the module’s status indicators and the controller’s diagnostic buffer to identify the reported fault. Common areas to investigate include supply voltage, loose terminal connections, short circuits, excessive load current, incorrect hardware configuration, and communication problems. Measure the field supply voltage under operating conditions and inspect the wiring and connected loads for abnormalities. If a PROFIsafe-related fault is reported, verify the configured safety address, controller settings, and communication status. After correcting the problem, follow the approved reset procedure and repeat the necessary functional tests. Never bypass safety interlocks or disable safety diagnostics simply to restore production.

8. Can the 6AG1226-6DA32-5XB0 directly replace a standard S7-1200 digital output module?

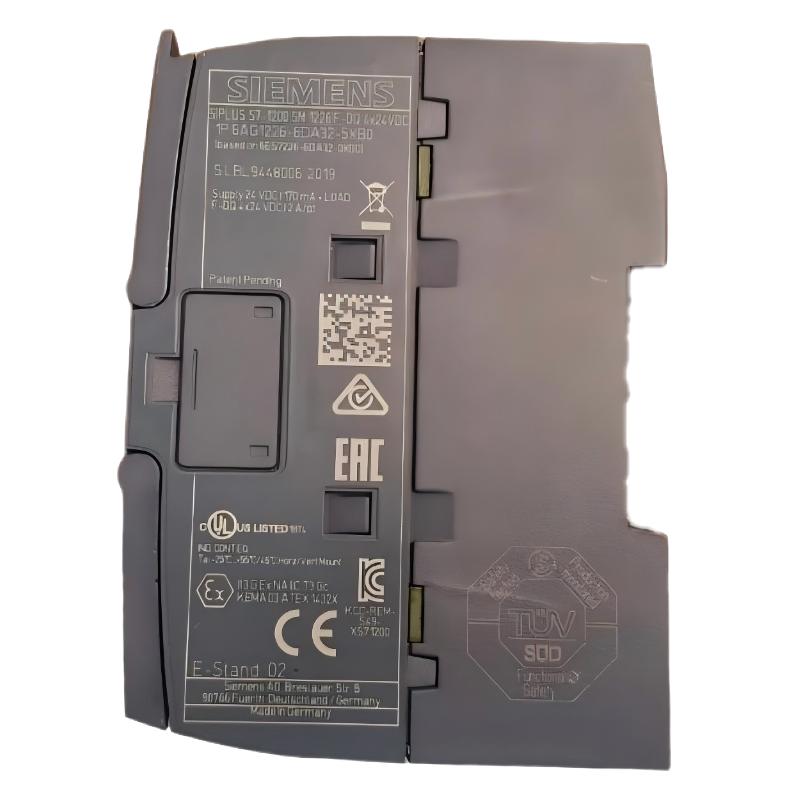

Not necessarily. Similar dimensions or output channel counts do not establish electrical or functional compatibility. The 6AG1226-6DA32-5XB0 is a fail-safe digital output module based on the 6ES7226-6DA32-0XB0 model and incorporates the environmental protection features of the SIPLUS product range. Before replacement, confirm that the target controller supports the module, the engineering software recognizes the hardware configuration, and the PROFIsafe settings are compatible with the existing safety program. Also verify field wiring, load requirements, and power supply characteristics. Following replacement, complete the required safety validation and functional tests before returning the equipment to service.
