1. What is the main function of the Siemens 6AG1234-4HE32-2XB0 module?

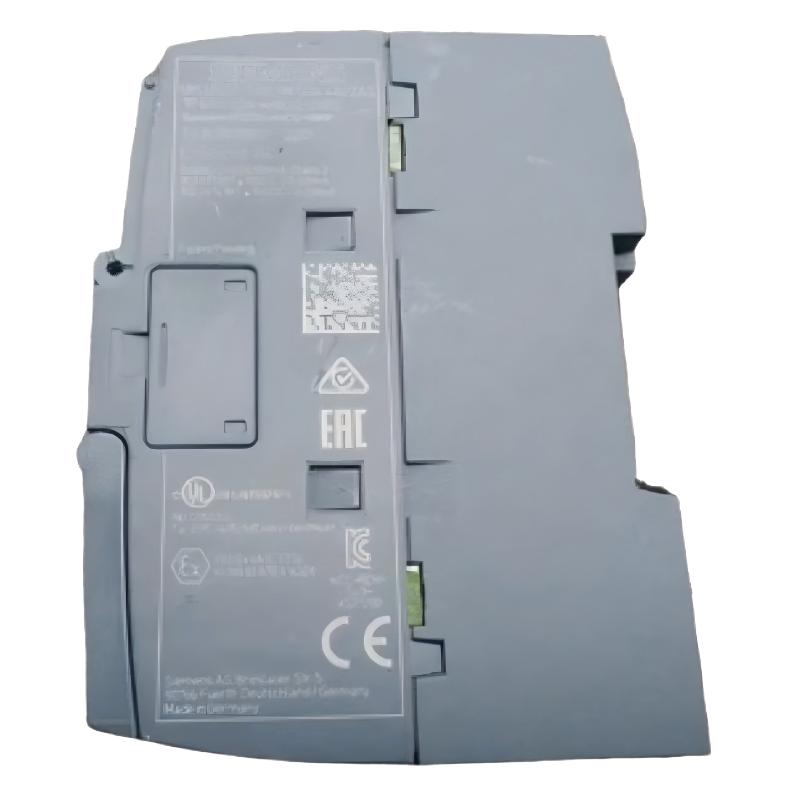

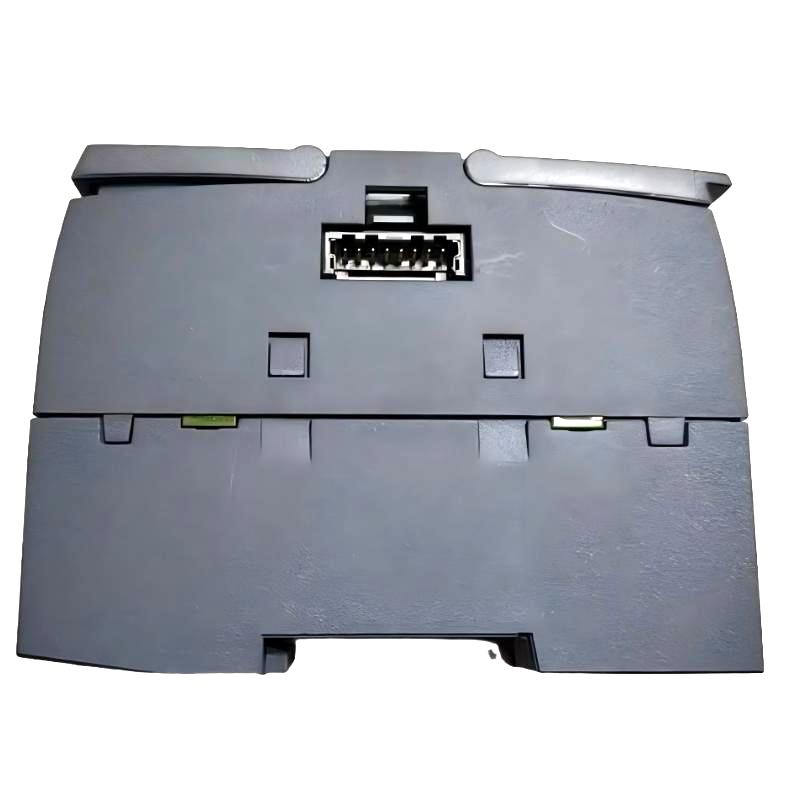

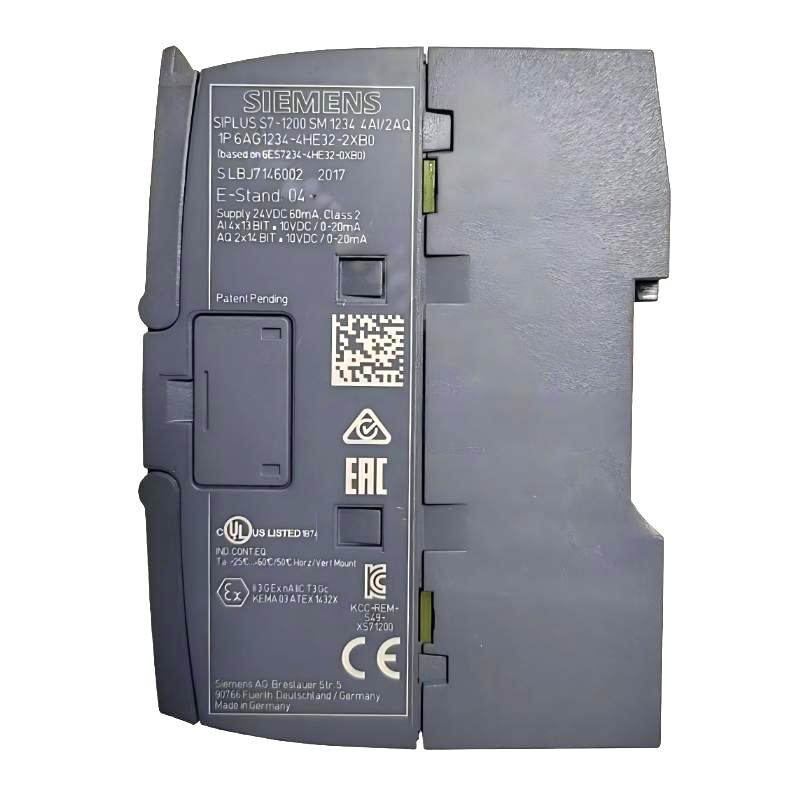

The Siemens 6AG1234-4HE32-2XB0 is a SIPLUS S7-1200 SM 1234 analog input/output module designed for industrial measurement and control applications. It provides four analog input channels and two analog output channels. The inputs collect voltage or current signals from sensors and transmitters, while the outputs send analog control signals to compatible actuators and other equipment. This combination allows a PLC to monitor process variables and adjust equipment using a single module. Typical applications include temperature and pressure monitoring, flow measurement, valve control, and industrial process regulation.

2. Which input signals are supported by the 6AG1234-4HE32-2XB0?

The module supports differential voltage inputs of ±10 V, ±5 V, and ±2.5 V, as well as current inputs in the 0–20 mA range. The input configuration should match the signal provided by the connected sensor or transmitter. The analog input resolution is 13 bits, including the sign bit. During commissioning, verify the channel configuration, signal wiring, and scaling parameters in the PLC program. If the measured process value is incorrect, compare the raw input value with the actual electrical signal to determine whether the problem originates from the sensor, wiring, or configuration.

3. What output signals can the module provide to external equipment?

The module has two analog output channels that support voltage signals from -10 V to +10 V and current signals from 0 to 20 mA. The voltage output resolution is 14 bits, while the current output resolution is 13 bits. These outputs can be used to provide reference signals to compatible drives, valve positioners, and other analog-controlled devices. The selected output mode must match the receiving equipment’s specifications. The voltage output requires a load impedance of at least 1,000 Ω, while the current output supports a maximum load impedance of 600 Ω. Verify the signal and load requirements before connecting the equipment.

4. How should the module be configured in a SIMATIC S7-1200 PLC system?

Confirm that the module is compatible with the installed S7-1200 CPU and the system’s hardware configuration. The standard reference model is 6ES7234-4HE32-0XB0, while the SIPLUS version includes additional environmental protection features. Add the module to the hardware configuration, assign the input and output addresses, and configure each channel according to the connected field device. In the PLC program, convert raw input values into engineering units and scale control commands into the appropriate output values. After downloading the configuration, check module diagnostics and test the input and output channels before normal operation.

5. Why are analog input readings inaccurate or unstable?

Incorrect readings can result from sensor faults, poor wiring, electrical interference, incorrect input ranges, or unsuitable program scaling. Begin by checking the sensor’s output specification and confirming that the corresponding PLC channel uses the correct voltage or current range. Inspect terminal connections and cable shielding, particularly when signal cables run near motors, drives, or other sources of electrical noise. Compare the raw PLC input value with a direct measurement of the sensor signal. If the discrepancy remains, test the sensor and wiring independently and review the module’s diagnostic information. Avoid changing multiple configuration parameters at once, as this can make the underlying fault harder to identify.

6. What environmental conditions is the SIPLUS version designed for?

The 6AG1234-4HE32-2XB0 features conformal coating intended to provide additional protection for electronic components in demanding industrial environments. Its specified operating temperature range is -40°C to +70°C, with startup permitted from -25°C. However, operation at elevated temperatures may involve channel-use restrictions. For this product, the number of simultaneously used inputs and outputs is limited to 50% when the ambient temperature is above +60°C. The coating does not eliminate the need for suitable cabinet protection or compliance with installation requirements. Confirm the environmental conditions and channel restrictions in the applicable product documentation before commissioning.

7. How can diagnostic alarms and channel faults be troubleshot?

Start by checking the PLC diagnostic buffer and the module’s status indicators. Confirm that the controller recognizes the module and that the hardware configuration matches the installed product. For input faults, inspect the sensor wiring, signal range, and field-device power supply. For output faults, verify the output mode, load impedance, and receiving equipment connections. The module supports diagnostic functions, including wire-break and short-circuit diagnostics where applicable. Compare measured electrical signals with the values displayed in the PLC monitoring environment. If the problem persists, isolate the external circuit where practical and test the sensor, cable, or actuator separately before replacing the module.

8. What should be checked when replacing or recommissioning the module?

Before replacement, back up the PLC program and hardware configuration and record the existing wiring. Follow the required electrical isolation procedures before disconnecting the module. Confirm that the replacement has the correct ordering number and is compatible with the installed system. After installation, check the connections, verify that the PLC recognizes the module, and review any diagnostic messages. Test all four analog inputs using known signal values and verify both analog outputs at representative setpoints. Confirm that the PLC scaling, alarm limits, and connected equipment responses are correct. For process-critical applications, test interlocks and safe operating behavior before returning the system to production.
