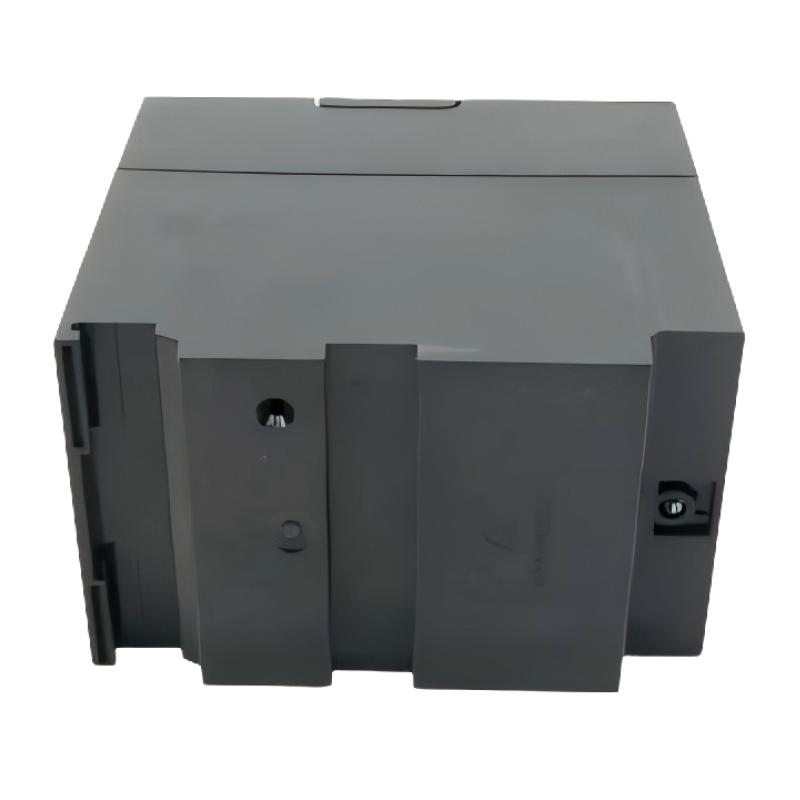

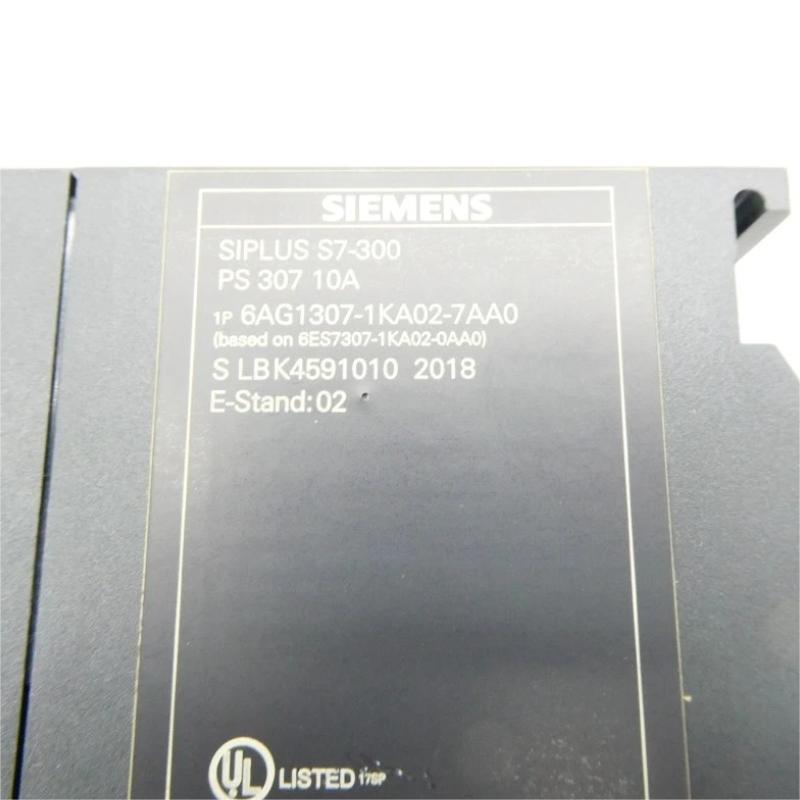

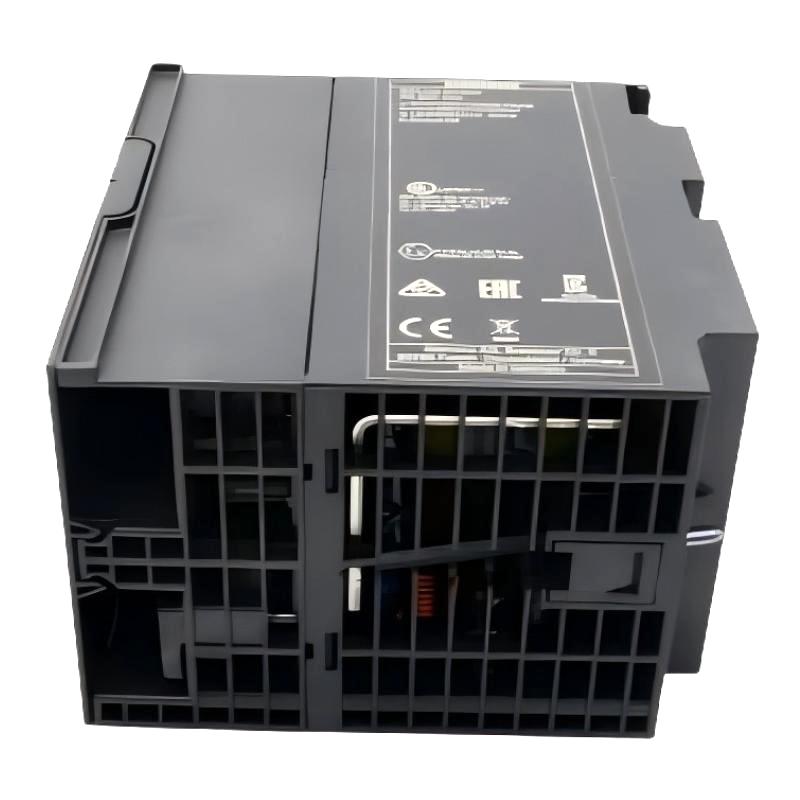

Siemens 6AG1307-1KA02-7AA0 VDC Logic I/O Module
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 13666084105 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | 6AG1307-1KA02-7AA0 |
| Brand | Siemens |
| Product Type | SIPLUS S7-300 PS 307 Power Supply Module |
| Base Model | 6ES7307-1KA02-0AA0 |
| Product Series | SIPLUS S7-300 |
| Power Supply Type | Stabilized single-phase AC power supply |
| Rated Input Voltage | 120/230 V AC |
| Input Voltage Range | 85–132 V AC / 170–264 V AC |
| Input Frequency | 47–63 Hz |
| Rated Output Voltage | 24 V DC |
| Rated Output Current | 10 A |
| Rated Output Power | 240 W |
| Output Voltage Range | 23.27–24.72 V DC |
| Rated Input Current at 120 V AC | 4.2 A |
| Rated Input Current at 230 V AC | 1.9 A |
| Maximum Inrush Current | 55 A, maximum duration 3 ms at 25°C |
| Power Failure Buffering | Minimum 20 ms at rated output current under specified input conditions |
| Typical Efficiency | Approximately 90% at rated output |
| Typical Power Loss | Approximately 27 W at rated output |
| Typical Residual Ripple | 15 mV peak-to-peak |
| Maximum Residual Ripple | 50 mV peak-to-peak |
| Overvoltage Protection | Electronic protection with automatic restart |
| Short-Circuit Protection | Electronic shutdown with automatic restart |
| Continuous Short-Circuit Current | Maximum 12 A |
| Operating Temperature | -25°C to +70°C |
| Output Current Above 60°C | Up to 7 A |
| Environmental Protection | Conformal coating on electronic components |
| Status Indicator | Green LED for 24 V DC output status |
| Mounting | S7-300 installation system; compatible mounting adapter may be required for DIN-rail mounting |
| Dimensions | 170 × 130 × 85 mm |
| Weight | 0.824 kg |
| Typical Applications | S7-300 PLC power supply, industrial control cabinets, automation systems, and 24 V DC control circuits |
FAQ
Q1: What is the main function of the Siemens 6AG1307-1KA02-7AA0?
A: The Siemens 6AG1307-1KA02-7AA0 is a SIPLUS S7-300 PS 307 stabilized power supply module. It converts 120/230 V AC input power into a regulated 24 V DC output for powering compatible PLC components, I/O modules, sensors, actuators, and other industrial control equipment.
Q2: What input voltage does this power supply support?
A: The module supports 120 V AC input within 85–132 V AC and 230 V AC input within 170–264 V AC. The permitted input frequency is 47–63 Hz. Confirm the site supply voltage and wiring arrangement before installation.
Q3: What are the rated output voltage and current?
A: The rated output is 24 V DC at 10 A, providing up to 240 W. When the ambient temperature exceeds 60°C, the available output current is reduced to 7 A. The connected load must remain within the applicable current and power limits.
Q4: Can this module supply an entire S7-300 PLC system?
A: It can supply compatible S7-300 components if their combined power demand remains within the module’s rated capacity. Calculate the current required by the CPU, I/O modules, sensors, and other connected devices. Allow additional capacity for startup loads and future system expansion.
Q5: What protection functions are provided?
A: The power supply includes electronic overvoltage protection and short-circuit protection. The protection circuitry can shut down the output and restart automatically under specified conditions. If the module repeatedly enters protection mode, inspect the downstream wiring and connected load before restoring normal operation.
Q6: How can an unstable or missing 24 V DC output be diagnosed?
A: Check the AC input voltage, protective devices, terminal connections, and load current. Inspect the 24 V DC output indicator and review any related PLC or system alarms. If necessary, isolate the downstream load and test the power supply under controlled conditions to determine whether the problem originates from the module or an external circuit.
Q7: What precautions are required when installing the module in an industrial environment?
A: Install the module according to the S7-300 system requirements, using the appropriate mounting arrangement and ensuring adequate ventilation. Verify the input voltage, protective grounding, wiring polarity on the DC side, and terminal security. The SIPLUS version has conformal coating and an extended operating temperature range, but it must still be installed within its specified environmental limits.
Q8: What should be checked when replacing this power supply?
A: Confirm the full order number, input voltage range, output rating, mounting compatibility, and environmental requirements. The 6AG1307-1KA02-7AA0 is based on the standard 6ES7307-1KA02-0AA0 design, with conformal coating for enhanced environmental protection. After replacement, verify the 24 V DC output, confirm that the PLC and connected modules start correctly, and monitor the system for overloads or voltage fluctuations.
Siemens 6AG1307-1KA02-7AA0 VDC Logic I/O Module is in stock. Please contact us for a quick quote and competitive pricing.
