Technical Specifications

FAQ

1. What is the primary function of the Siemens 6AG1312-5BF04-7AB0?

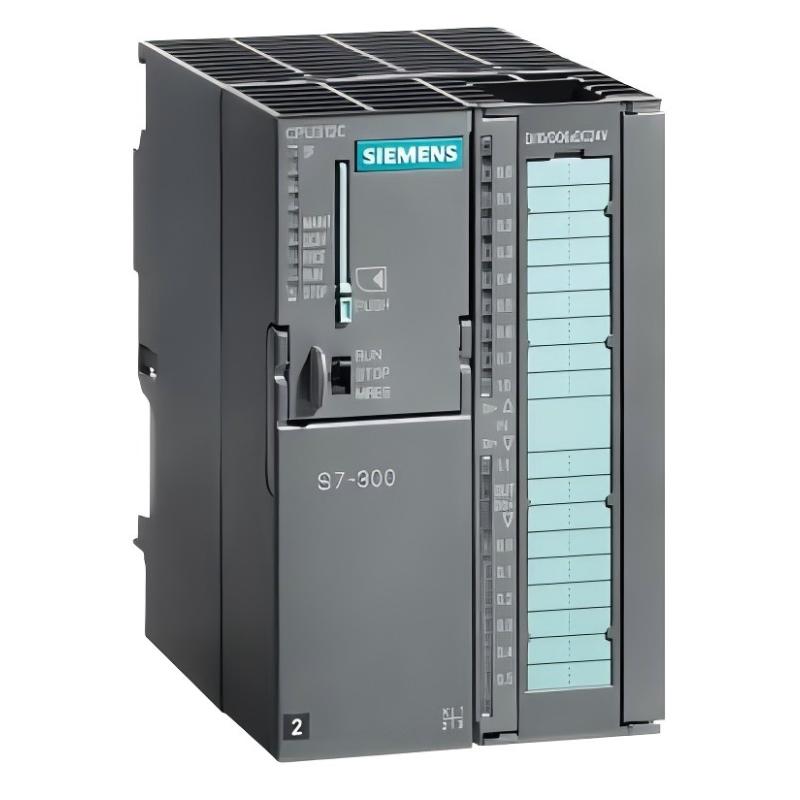

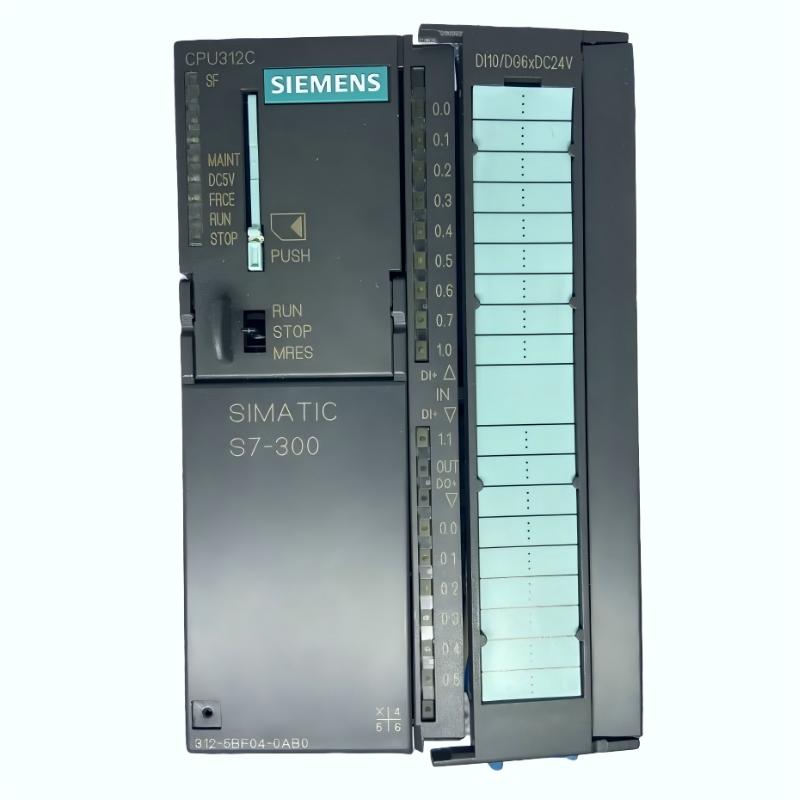

The Siemens 6AG1312-5BF04-7AB0 is a compact CPU in the SIPLUS S7-300 automation family, designed for industrial control applications involving logic processing, signal acquisition, and equipment coordination. It integrates digital inputs, digital outputs, and high-speed counting capabilities, allowing it to handle common control tasks without requiring separate modules for every basic I/O function. The MPI interface supports communication with compatible programming devices and automation equipment. Before integrating this CPU into an existing system, verify the complete order number, hardware compatibility, I/O requirements, and environmental conditions specified for the application.

2. What are the functions of the integrated digital inputs and outputs?

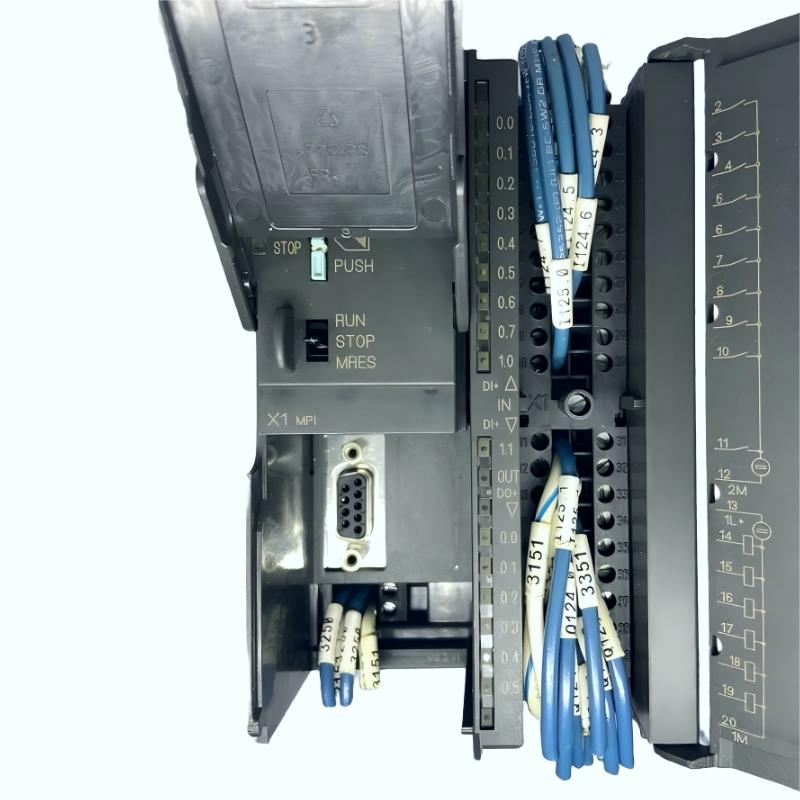

The CPU provides 10 digital inputs and 6 digital outputs. Digital inputs can receive switching signals from push buttons, limit switches, proximity sensors, and other compatible field devices. Digital outputs can control suitable indicator lamps, relays, and other loads within the specified electrical limits. During installation, engineers should verify signal voltage levels, terminal assignments, common connections, and output load requirements. Loads that exceed the CPU’s output ratings should be controlled through appropriately selected interface relays or other suitable switching devices. Clear I/O addressing and accurate wiring documentation also simplify commissioning, fault diagnosis, and future maintenance.

3. How can the CPU’s high-speed counting functions be used?

The CPU provides two high-speed counting channels with a listed maximum counting frequency of 10 kHz. These functions can support pulse-counting applications, speed monitoring, and certain sensor-based measurement tasks. The actual configuration depends on the signal characteristics, supported counter modes, and the requirements of the application. When connecting an encoder or pulse sensor, verify the output signal type, electrical compatibility, pulse frequency, and wiring arrangement. The control program must also handle counting direction, comparison values, reset conditions, and relevant process logic correctly. Before commissioning, test the counting function under representative operating conditions to confirm that the measured values match the expected results.

4. What power supply requirements should be considered?

The listed supply arrangement is 24 V DC, with a permissible voltage range of 19.2–28.8 V DC. Typical current consumption is specified as approximately 570 mA, while typical power dissipation is approximately 8 W. The power supply should provide stable voltage and sufficient capacity for the CPU and other connected equipment. During installation, check polarity, terminal connections, grounding arrangements, and protective measures. If the CPU restarts unexpectedly or fails to operate normally, measure the supply voltage under load and inspect the wiring for loose connections or excessive voltage drop. Confirm the electrical ratings in the documentation for the exact hardware version before applying power.

5. Which programming software and languages are supported?

The CPU is associated with Siemens STEP 7 engineering software. The listed software requirements include STEP 7 V5.5 SP1 or later, or STEP 7 V5.3 SP2 or later with the appropriate HSP 203 hardware support package. Supported programming languages include LAD, FBD, STL, SCL, GRAPH, and HiGraph, subject to the relevant software and configuration requirements. Before downloading a project, engineers should verify hardware recognition, software compatibility, program compilation, and configuration consistency. Backing up the existing project before making changes is recommended, particularly when maintaining equipment in an established production system.

6. Why is a Micro Memory Card required?

The CPU requires a compatible Siemens Micro Memory Card (MMC) for its specified program-loading and storage requirements. The listed maximum card capacity is 8 MB, but compatibility should be checked against the documentation for the exact CPU version. The working memory used during program execution and the MMC used for load storage serve different purposes. Before replacing a card, verify that the replacement is supported and that the required user program and configuration are available. Keep a separate backup of the STEP 7 project and relevant configuration data. If a memory-related diagnostic message appears, inspect the card installation, compatibility, and stored project before attempting to reload or overwrite program data.

7. What environmental characteristics distinguish the SIPLUS version?

The SIPLUS version incorporates conformal coating intended to provide additional protection for electronic circuitry against certain environmental influences. Its listed operating temperature range is -25°C to +70°C. This design may be appropriate for industrial applications with more demanding environmental conditions than those encountered in typical control cabinets. However, conformal coating does not make the device waterproof or eliminate restrictions related to condensation, humidity, contamination, or corrosive substances. Installation must still comply with the manufacturer’s environmental and electrical requirements. For specialized applications, verify the product’s specific environmental qualifications rather than assuming that all SIPLUS variants have identical ratings.

8. How should common operating faults be diagnosed?

Start by checking the 24 V DC supply, CPU status indicators, and diagnostic information. Inspect the front connector, field wiring, and connected devices to identify loose connections or incompatible signal levels. If the CPU fails to start normally, verify the MMC installation and confirm that the stored program matches the hardware configuration. For digital input or output problems, test the relevant signal path and compare the physical I/O status with the program logic. MPI communication faults should be investigated by checking the cable, interface settings, station addresses, and programming software configuration. Record fault symptoms before changing parameters, and back up the existing project before replacing hardware or reloading the program. After corrective work, test the relevant control functions before returning the system to normal operation.
