1. What is the primary function of the Siemens 6AG1313-5BG04-2AY0 Compact CPU?

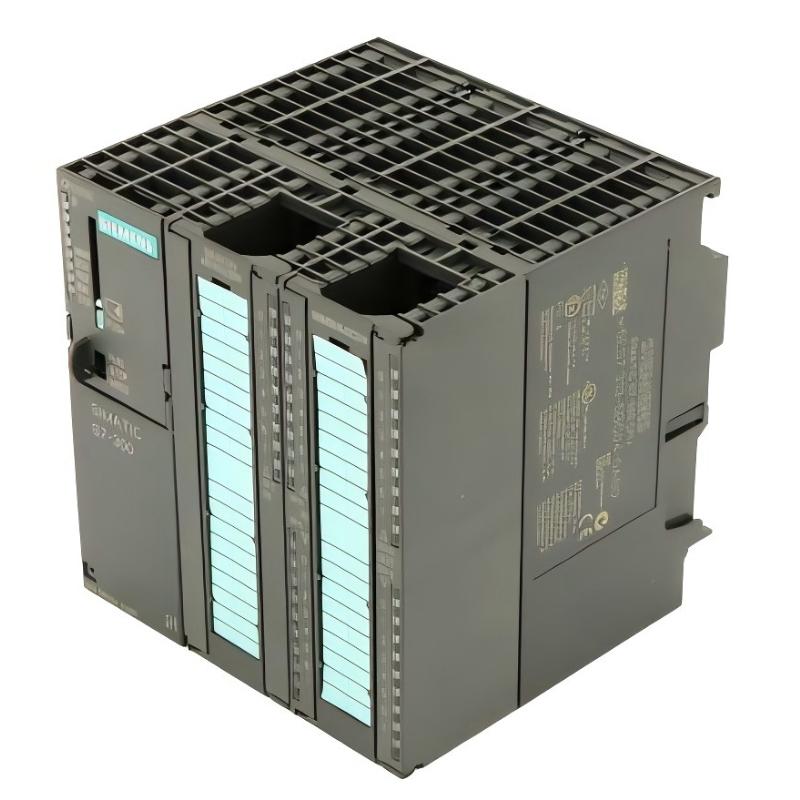

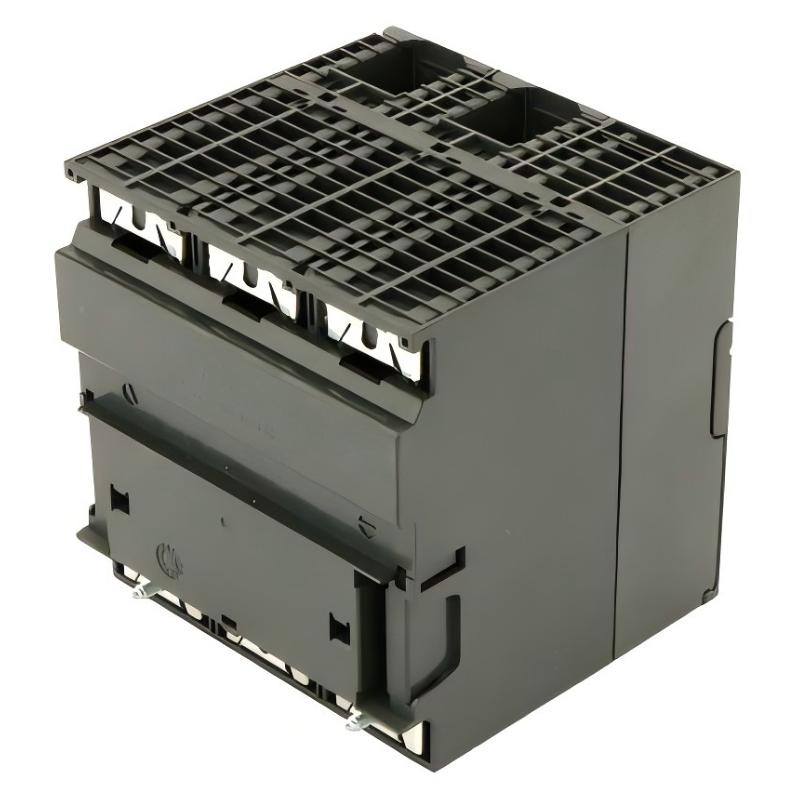

The Siemens 6AG1313-5BG04-2AY0 is a SIPLUS S7-300 CPU 313C compact programmable logic controller designed for industrial automation applications requiring integrated signal processing and control functions. It combines digital inputs and outputs with analog signal interfaces, allowing it to handle multiple types of field signals within a single controller. Typical applications include machine control, process monitoring, equipment sequencing, and automated production systems. Its MPI communication interface supports connection to compatible Siemens programming devices and automation equipment. The SIPLUS version incorporates conformal coating and is intended for applications with specific environmental requirements. Before installation, verify the exact product configuration and its compatibility with the existing control system.

2. How many digital and analog I/O channels does this CPU provide?

The CPU provides 24 digital inputs, 16 digital outputs, 4 analog inputs, and 2 analog outputs. Digital inputs receive discrete signals from devices such as switches, sensors, and push buttons, while digital outputs control compatible actuators, relays, and indicator devices. Analog inputs can acquire continuous signals from compatible measurement instruments, and analog outputs can provide control signals to supported field equipment. The integrated I/O helps reduce the need for separate signal modules in applications that fit the available channel count. During system design, engineers should verify signal ranges, electrical isolation, wiring arrangements, channel configuration, and load requirements against the product documentation.

3. What is the purpose of the three high-speed counters?

The three high-speed counters support applications that require pulse acquisition at frequencies beyond what may be practical using ordinary program-cycle processing. The specified maximum counting frequency is 30 kHz, subject to the applicable counter mode and operating conditions. Typical applications include pulse counting, speed measurement, position-related monitoring, and processing signals from compatible pulse-generating devices. Correct operation depends on the input signal characteristics, sensor compatibility, parameter configuration, and control program. During commissioning, test the counter channels with representative signals and confirm that the reported counts and response match the expected operating conditions.

4. What power supply is required for the 6AG1313-5BG04-2AY0?

The CPU has an integrated 24 V DC power supply arrangement, with a listed permissible supply voltage range of 19.2–28.8 V DC. The external supply should be selected according to the controller’s requirements and the total load of the associated automation equipment. Ensure that the power source provides stable voltage and suitable protection against electrical faults. Check polarity, terminal assignments, grounding, and wiring integrity before energizing the unit. If the controller experiences unexpected restarts or unstable operation, measure the supply voltage under load and inspect the power circuit before investigating software or communication faults.

5. Which programming software is compatible with this CPU?

The CPU is designed for configuration and programming using Siemens STEP 7 engineering software. The listed requirements include STEP 7 V5.5 SP1 or later, or STEP 7 V5.3 SP2 or later with the appropriate HSP 203 hardware support package. Supported programming languages include LAD, FBD, STL, SCL, GRAPH, and HiGraph, depending on the software configuration and applicable functionality. Before modifying an existing system, confirm that the engineering workstation recognizes the CPU and that the project uses a compatible hardware configuration. Compile the program, review diagnostic messages, and back up the original project before downloading changes to a running controller.

6. Why does the CPU require a Siemens Micro Memory Card?

The Siemens Micro Memory Card (MMC) is required for the CPU’s specified program-loading and storage functions. The card stores the relevant user program and associated data needed by the controller, while working memory supports program execution. The card must be compatible with the CPU and the intended application. Before replacing or reprogramming it, save a verified copy of the existing project and confirm that the replacement card contains the correct program and configuration. If the CPU reports a memory-related fault, inspect the card installation, compatibility, and stored contents. Avoid formatting or overwriting the card until the original program and recovery procedure have been secured.

7. What environmental protection does the SIPLUS version provide?

The 6AG1313-5BG04-2AY0 features conformal coating designed to provide additional protection for electronic circuitry against certain environmental influences. It is associated with the EN 50155 railway version, with environmental classifications and operating limits that must be checked against the exact product specification. The listed operating temperature range for this railway version is -25°C to +60°C. The coating does not make the CPU waterproof or eliminate the need to control condensation, contamination, and electrical interference. Installation should follow the applicable environmental, electrical, and mechanical requirements. For railway or other specialized applications, verify that the exact order number satisfies the project’s required standards and operating conditions.

8. How can common faults on the 6AG1313-5BG04-2AY0 be diagnosed?

Start by checking the 24 V DC supply and reviewing the CPU’s status indicators and diagnostic information. If the controller fails to start, verify the Micro Memory Card, user program, and hardware configuration. For digital I/O faults, check field wiring, signal levels, channel assignments, and the corresponding program logic. For analog signal problems, verify sensor compatibility, signal wiring, configured measurement ranges, and grounding arrangements. If high-speed counting results are incorrect, inspect the input signal quality, counter configuration, and sensor output frequency. MPI communication problems should be investigated by checking the communication cable, interface settings, and station addresses. Record diagnostic information before making changes, back up the project before replacing hardware, and perform functional tests before returning the system to service.
