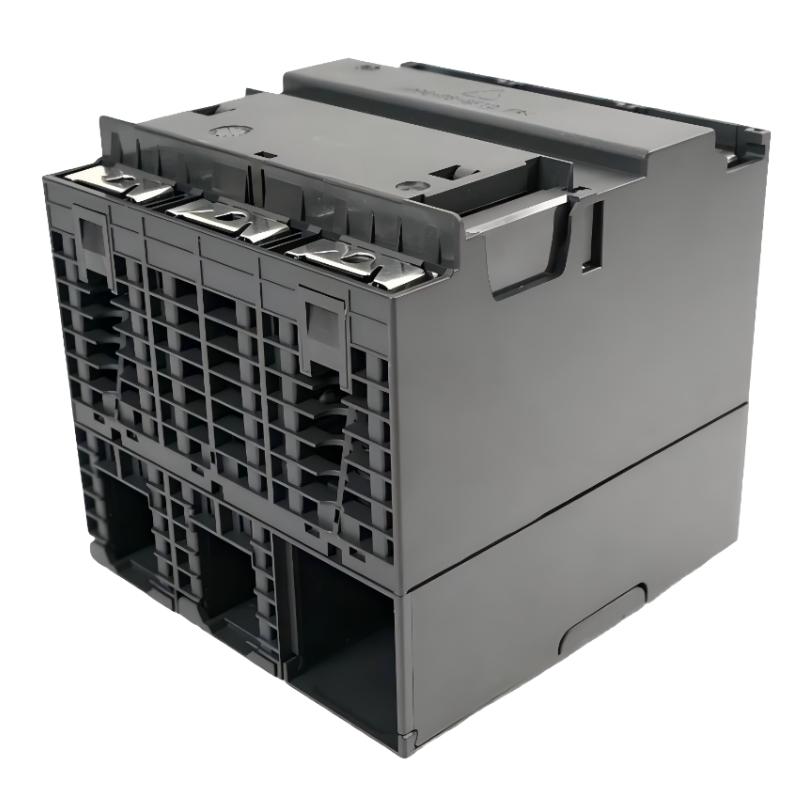

1. What is the main function of the Siemens 6AG1313-5BG04-7AB0 Compact CPU?

The Siemens 6AG1313-5BG04-7AB0 is a SIPLUS S7-300 CPU 313C compact programmable logic controller designed for industrial automation applications that require integrated control and signal processing. Based on the 6ES7313-5BG04-0AB0 platform, it combines digital and analog I/O with high-speed counting functions in a single CPU. It can be used for machine automation, production equipment control, process monitoring, and sensor-based applications. Its MPI interface supports communication with compatible Siemens programming devices and automation equipment. The conformal coating provides additional protection for electronic circuitry in specified industrial environments.

2. What digital and analog I/O capabilities does this CPU provide?

The CPU provides 24 digital inputs, 16 digital outputs, 4 analog inputs, and 2 analog outputs. Digital inputs are used to acquire discrete signals from switches, sensors, and push buttons, while digital outputs control compatible actuators and switching devices. Analog inputs support measurement signals from compatible instruments, and analog outputs provide control signals for suitable external equipment. The CPU also includes a Pt100 temperature measurement function. These integrated channels can simplify system architecture and reduce the need for additional I/O modules. Before connecting field devices, confirm the supported signal types, electrical ratings, channel configuration, and wiring requirements in the applicable technical documentation.

3. How do the high-speed counters work, and where are they useful?

The CPU provides three high-speed counters with a specified maximum counting frequency of 30 kHz. These counters are intended for applications where pulses must be detected and counted accurately, including speed monitoring, pulse accumulation, and certain position-related measurement tasks. They can be useful when ordinary program-cycle processing is insufficient for the required pulse frequency. Correct operation depends on the selected counter mode, signal characteristics, sensor compatibility, and program configuration. During commissioning, verify the input signal levels and frequency, configure the relevant counting parameters, and compare the CPU’s results with a known reference. The permitted operating conditions and counter modes should be confirmed for the specific application.

4. What power supply requirements must be considered?

The 6AG1313-5BG04-7AB0 uses an integrated 24 V DC power supply arrangement, with a listed permissible supply voltage range of 19.2–28.8 V DC. Its rated current consumption is approximately 650 mA, and typical power dissipation is approximately 12 W. The external supply should provide stable voltage and sufficient capacity for the controller and associated equipment. Check polarity, terminal assignments, wiring integrity, and electrical protection before energizing the system. If the CPU experiences unexpected restarts or unstable operation, measure the voltage under load and inspect the power circuit. Avoid assuming that a power supply is adequate solely because its nominal output is 24 V DC.

5. Which programming software is compatible with the CPU?

The CPU is designed for Siemens STEP 7 engineering software. The listed requirements include STEP 7 V5.5 SP1 or later, or STEP 7 V5.3 SP2 or later with the appropriate HSP 203 hardware support package. Supported programming languages include LAD, FBD, STL, SCL, GRAPH, and HiGraph, depending on the installed software and applicable functionality. Before commissioning, confirm that the engineering workstation can identify the CPU and that the hardware configuration matches the installed device. Compile the program and review any configuration or compatibility warnings before downloading it. When maintaining an existing production system, save a backup of the original project and configuration before making changes.

6. Why is a Micro Memory Card required for this CPU?

The CPU requires a compatible Siemens Micro Memory Card (MMC) for its specified load-memory and program-storage functions. The listed maximum MMC capacity is 8 MB. The working memory supports program execution, while the memory card stores the user program and associated data required by the CPU. When replacing the card, verify compatibility and ensure that the correct program and configuration are available. Maintain an independent backup of the STEP 7 project rather than relying exclusively on the installed card. If a memory-related diagnostic message appears, check the card’s installation, compatibility, and contents before attempting to reload the program or replace the CPU.

7. What environmental protection does the SIPLUS version offer?

The SIPLUS S7-300 CPU 313C incorporates conformal coating to provide additional protection for electronic circuitry against certain environmental influences. Its specified operating temperature range is -25°C to +70°C. This version is intended for industrial applications with defined environmental requirements, including installations where temperature variation and other environmental stresses must be considered. However, conformal coating does not make the device waterproof or remove restrictions concerning condensation, contamination, or corrosive substances. The control cabinet must still provide appropriate protection and thermal management. Before using the CPU in railway or other specialized applications, verify the exact environmental qualifications and applicable standards for the complete order number.

8. How should common faults on the 6AG1313-5BG04-7AB0 be diagnosed?

Start by checking the 24 V DC supply, CPU status indicators, and available diagnostic information. If the CPU fails to start, inspect the Micro Memory Card and verify that the user program and hardware configuration are compatible. For digital I/O faults, check field wiring, signal levels, terminal assignments, and program logic. For analog measurement problems, verify the sensor type, configured signal range, wiring, and grounding. If the Pt100 measurement or high-speed counters produce unexpected results, confirm the sensor connections, input signal characteristics, and configuration parameters. MPI communication problems should be investigated by checking the cable, interface settings, and station addresses. Record the symptoms before changing settings, back up the project before replacing hardware, and perform functional tests before returning the system to service.
