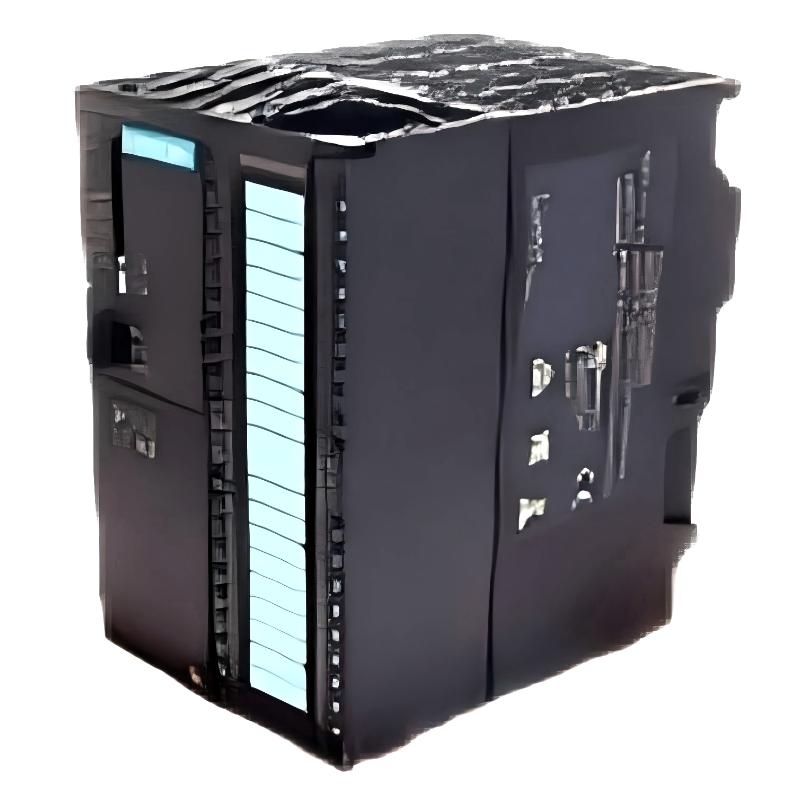

1. What is the primary function of the Siemens 6AG1313-6CG04-2AY0 Compact CPU?

The Siemens 6AG1313-6CG04-2AY0 is a CPU 313C-2DP compact programmable logic controller in the SIPLUS S7-300 series. It combines control processing, integrated digital I/O, and PROFIBUS DP communication in one unit. It is suitable for industrial machine control, distributed automation systems, and applications that require fieldbus connectivity. Based on the 6ES7313-6CG04-0AB0 platform, this model incorporates conformal coating for additional protection of its electronic circuitry. Its integrated I/O can reduce the need for separate signal modules in smaller control systems, while the PROFIBUS DP interface supports communication with compatible distributed I/O stations and field devices. Before selecting the CPU, verify that its I/O capacity, communication capabilities, and environmental specifications meet the requirements of the intended application.

2. What is the difference between the MPI and PROFIBUS DP interfaces?

The MPI interface is commonly used to connect compatible Siemens programming devices and automation equipment for tasks such as program downloads, online monitoring, and diagnostics. PROFIBUS DP is designed for communication with compatible field devices, including distributed I/O stations and other automation equipment. When configured correctly, PROFIBUS DP allows a central CPU to exchange process data with devices distributed throughout a machine or production system. Configuration requires attention to network addresses, communication settings, bus termination, and the hardware configuration in the engineering software. If communication fails, check the cable connections, station addresses, network configuration, and diagnostic indicators before considering hardware replacement.

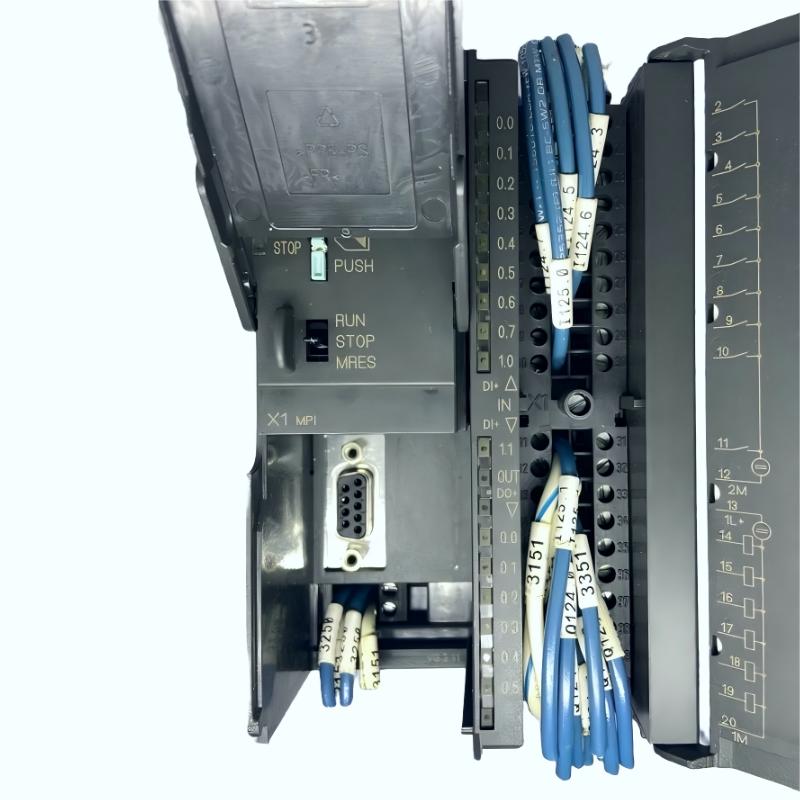

3. What applications are supported by the integrated digital inputs and outputs?

The CPU provides 16 digital inputs and 16 digital outputs. Digital inputs can acquire switching signals from push buttons, limit switches, proximity sensors, and other compatible devices. Digital outputs can control suitable relays, indicator lamps, and other actuators within the specified electrical limits. These integrated channels are useful for machine sequencing, equipment status monitoring, and general industrial control tasks. Before wiring field devices, verify the rated voltage and current, terminal assignments, common-terminal arrangement, and electrical characteristics of each channel. Loads with high current requirements or significant inductive effects may require suitable interposing relays and protective components. Correct circuit design helps prevent output overloads and improves the reliability of the overall control system.

4. How can the high-speed counters be used in industrial automation?

The CPU includes three high-speed counters with a maximum counting frequency of 30 kHz. They can be used for pulse accumulation, speed monitoring, frequency measurement, and certain position-related applications. High-speed counters are useful when pulse signals need to be processed more quickly than ordinary program-cycle execution can reliably accommodate. Their actual behavior depends on the selected counting mode, input signal characteristics, and program configuration. During commissioning, verify that the connected sensor’s output type and pulse frequency are compatible with the CPU input requirements. If counts are missing or fluctuate unexpectedly, inspect the signal quality, wiring, grounding, electrical interference, and counter settings. Comparing the readings against a known pulse source can help distinguish configuration problems from field-signal issues.

5. Why does this CPU require a Micro Memory Card?

The CPU requires a compatible Siemens Micro Memory Card (MMC) for its specified load-memory and user-program storage functions. The listed maximum card capacity is 8 MB. Working memory is used during program execution, while the MMC stores the user program and associated data required by the controller. Before replacing a card or downloading a program, confirm compatibility and ensure that the correct project and hardware configuration are available. Keep a separate backup of the engineering project instead of relying only on the installed memory card. If the CPU reports a memory-card diagnostic fault, check that the card is correctly installed and that its contents are compatible with the current hardware configuration. Avoid formatting or replacing the card before confirming that a recoverable program backup exists.

6. How does the CPU work with a distributed I/O system?

The integrated PROFIBUS DP interface allows the CPU to exchange data with compatible distributed I/O devices. This architecture places some signal acquisition and control functions closer to the equipment while allowing the central CPU to coordinate the overall process. Depending on the application, distributed I/O can reduce field wiring and make system expansion more manageable. To configure the system, add the appropriate devices to the hardware configuration, assign I/O addresses, set communication parameters, and ensure that the required device description files are compatible with the installed hardware. During commissioning, check the bus status, station availability, and process-data updates. If a station remains offline, inspect its power supply, bus wiring, address settings, connectors, and termination before changing the CPU configuration.

7. What are the benefits and limitations of the SIPLUS conformal coating?

The SIPLUS version uses conformal coating to provide additional protection for electronic circuitry in industrial environments that meet the product’s specified conditions. Its environmental specifications include a temperature range of -25°C to +70°C, while railway-related applications may involve requirements associated with EN 50155. The exact suitability depends on the complete order number and its applicable technical documentation. Conformal coating does not make the CPU waterproof or eliminate all risks from condensation, corrosive gases, or conductive contamination. Appropriate cabinet protection, ventilation, thermal management, and electrical noise control remain important. For railway vehicles or other specialized installations, verify the relevant approvals, installation conditions, and environmental limits before commissioning the controller.

8. How should common operating faults on the Siemens 6AG1313-6CG04-2AY0 be diagnosed?

Begin by checking the power supply, CPU status indicators, memory card, and communication interfaces. If the CPU does not enter normal operation, verify that the 24 V DC supply is stable, the MMC is installed correctly, and the user program matches the hardware configuration. For digital I/O problems, inspect field wiring, signal levels, terminal assignments, and program logic. For PROFIBUS DP communication faults, check the bus cable, connectors, station addresses, termination, and diagnostic information from the affected devices. MPI connection problems may require checking interface settings and the programming-device connection. Record the fault symptoms before changing parameters or replacing hardware. Back up the original project before making significant changes, then test communications, I/O signals, and control functions to confirm stable operation before returning the equipment to service.
