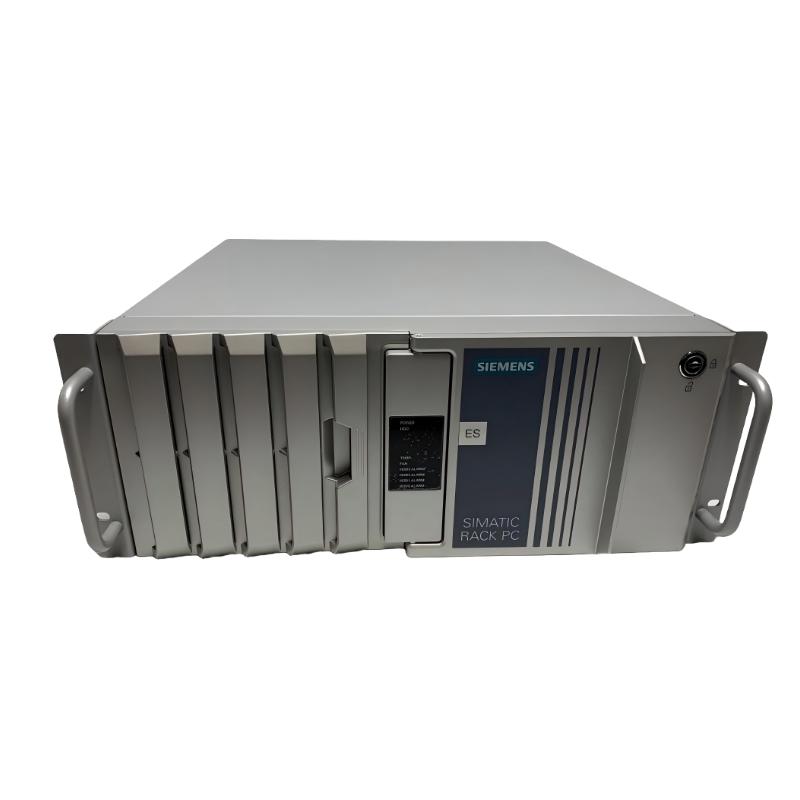

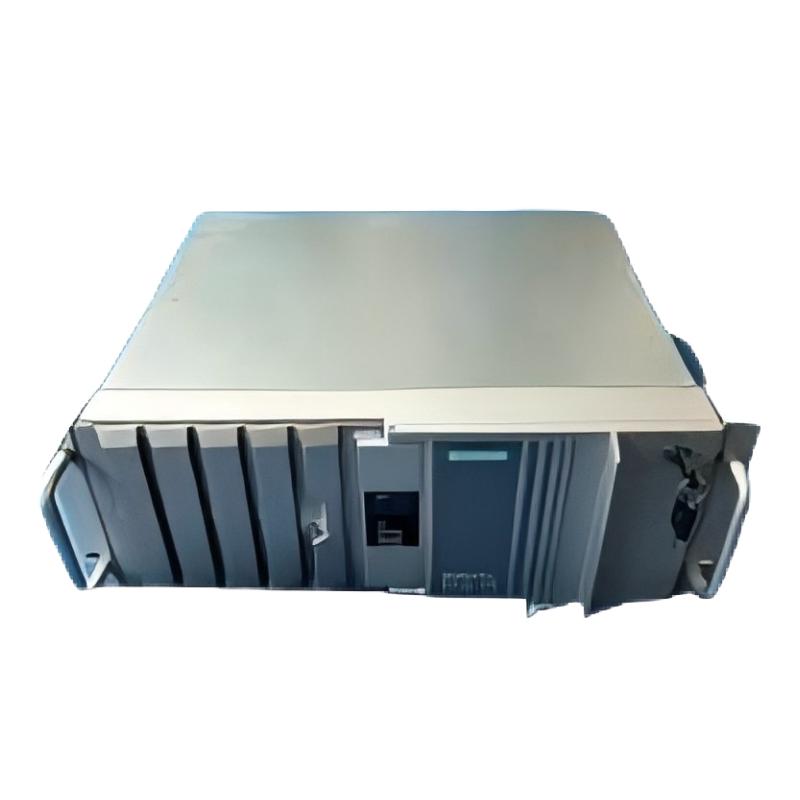

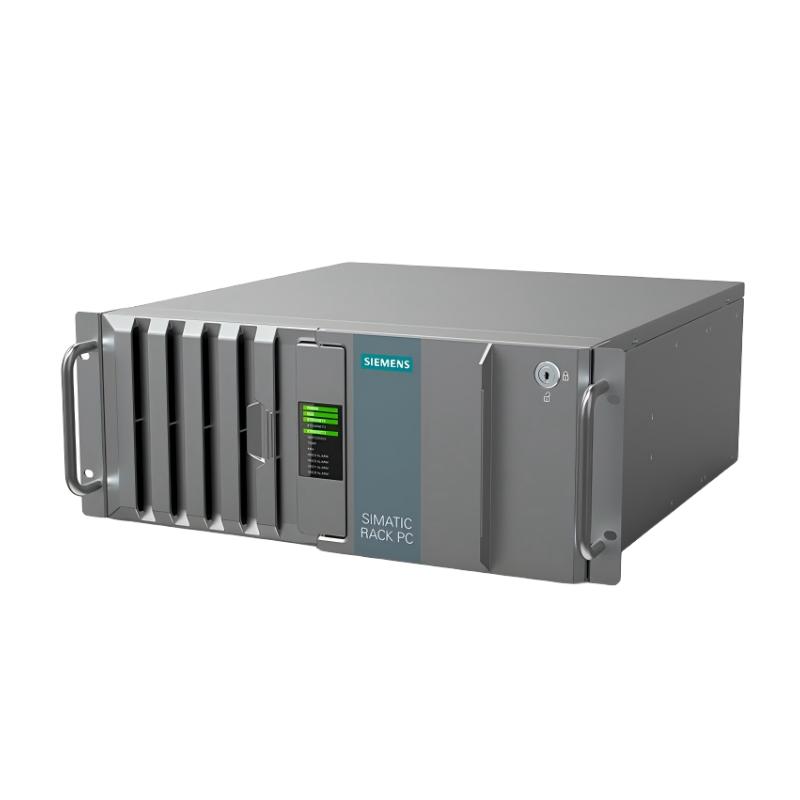

Siemens 6AG4114-3HA13-0XX3 Rack-Mount Industrial Computer
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | Siemens |
| Model | 6AG4114-3HA13-0XX3 |
| Product Series | SIMATIC IPC847E |
| Product Type | Rack-Mount Industrial Computer |
| Design | 19-inch Rack PC, 4U |
| Processor | Intel Core i7-8700, 6 Cores / 12 Threads |
| Processor Frequency | 3.2 GHz, up to 4.6 GHz Turbo Boost |
| Processor Cache | 12 MB |
| Chipset | Intel C246 |
| Maximum Memory | 128 GB DDR4 SDRAM |
| Memory Type | DDR4 2666 SDRAM DIMM |
| Industrial Ethernet | 3 × Gigabit Ethernet, RJ45 |
| Display Interfaces | 2 × DisplayPort, 1 × DVI-D |
| Serial Interface | 1 × COM1, RS-232; optional COM2 |
| USB Interfaces | 9 × USB |
| Audio | Microphone input, line input, line output |
| Storage | 1 × 1 TB 3.5-inch SATA HDD |
| Expansion | PCI / PCI Express expansion slots depending on configured board version |
| Watchdog | Integrated |
| Temperature Monitoring | Supported |
| Fan Monitoring | Supported |
| Power Supply | 100/240 V AC, autorange, 50/60 Hz |
| Mains Buffering | 20 ms |
| Mounting | 19-inch rack mounting; suitable for horizontal or vertical installation |
| Front Protection Rating | IP41 |
| Rear Protection Rating | IP20 |
| Operating System | Configuration-dependent |
| Application | Industrial automation, machine control, industrial visualization, data processing and control cabinet systems |
| Dimensions | 444 × 430 × 177 mm |
| Weight | 17 kg |
FAQ
1. What is Siemens 6AG4114-3HA13-0XX3 used for?
Siemens 6AG4114-3HA13-0XX3 is a SIMATIC IPC847E industrial Rack PC designed for industrial computing applications such as machine control, HMI/SCADA visualization, production-line monitoring, industrial data processing and automation system integration.
2. Which processor is used in the 6AG4114-3HA13-0XX3?
This configuration uses an Intel Core i7-8700 processor with 6 cores and 12 threads. The processor operates at 3.2 GHz and can reach up to 4.6 GHz with Turbo Boost. It also supports Intel VT-x, VT-d and Intel Active Management Technology.
3. How much memory can the Siemens IPC847E support?
The SIMATIC IPC847E platform supports DDR4 SDRAM and can be configured with up to 128 GB of main memory. The actual installed memory depends on the specific factory configuration of the unit.
4. Which communication and I/O interfaces are available?
The computer provides 3 Gigabit Ethernet interfaces, 2 DisplayPort interfaces, 1 DVI-D interface, 1 standard COM1 RS-232 interface, audio connections and multiple USB interfaces. An additional COM2 interface can be available depending on the configuration.
5. What power supply does 6AG4114-3HA13-0XX3 require?
The industrial computer uses a 100/240 V AC autoranging power supply with a 50/60 Hz input frequency. The system also provides approximately 20 ms mains buffering to help maintain operation during short power interruptions.
6. How does the IPC847E monitor system operating conditions?
The IPC847E incorporates temperature and fan monitoring functions. A built-in watchdog can also be used to monitor system operation and support automatic response to certain system faults or abnormal operating conditions.
7. Can this Rack PC be integrated with Siemens PLC and industrial networks?
Yes. The 3 Gigabit Ethernet interfaces can be used for industrial Ethernet communication and integration with automation networks. The exact communication architecture should be checked against the PLC, SCADA, HMI and software configuration used in the project.
8. What should be checked when replacing an existing IPC847E system with 6AG4114-3HA13-0XX3?
Before replacement, verify the complete MLFB number, processor configuration, installed memory, storage device, expansion cards, operating system, network interfaces, power supply requirements and installed automation software. Hardware compatibility alone does not guarantee software or application compatibility.
Siemens 6AG4114-3HA13-0XX3 Rack-Mount Industrial Computer is in stock. Please contact us for a quick quote and competitive pricing.
