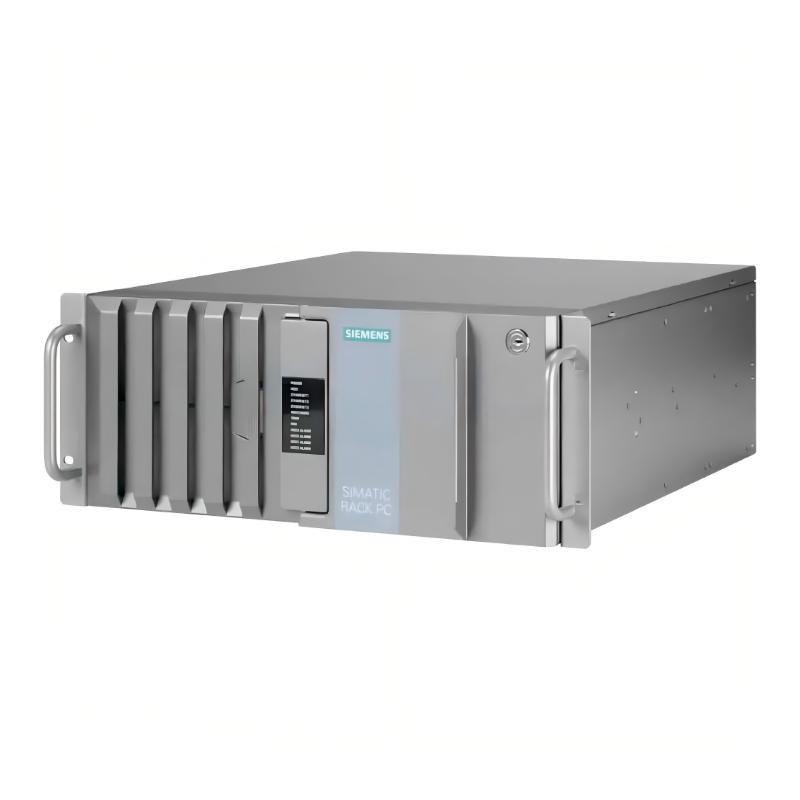

Siemens 6AG4114-3HB12-0XX2 Rack-Mount Industrial Computer
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | Siemens |
| Model | 6AG4114-3HB12-0XX2 |
| Product Series | SIMATIC IPC847E |
| Product Type | Rack-Mount Industrial Computer |
| Design | 19-inch, 4U Rack PC |
| Mounting | Rack mounting; suitable for horizontal or vertical installation |
| Processor | Intel Core i7-8700 |
| Processor Cores / Threads | 6 Cores / 12 Threads |
| Base Frequency | 3.2 GHz |
| Max. Turbo Frequency | 4.6 GHz |
| Processor Cache | 12 MB |
| Chipset | Intel C246 |
| Installed Memory | 16 GB DDR4 SDRAM, 2 × 8 GB, Dual Channel |
| Maximum Memory | Up to 128 GB DDR4 SDRAM |
| Memory Type | DDR4 SDRAM |
| Industrial Ethernet | 3 × Gigabit Ethernet, RJ45 |
| Display Interfaces | 2 × DisplayPort, 1 × DVI-D |
| Serial Interface | 1 × COM1 RS-232; COM2 depending on configuration |
| USB Interfaces | USB 3.1, USB Type-C and USB 3.0 interfaces depending on position |
| Audio Interfaces | Microphone input, line input and line output |
| Storage | Configuration-dependent |
| Expansion Slots | PCI and PCI Express expansion options, depending on configuration |
| Watchdog | Supported |
| Temperature Monitoring | Supported |
| Fan Monitoring | Supported |
| Power Supply | 100/240 V AC autoranging, 50/60 Hz |
| Mains Buffering | Approximately 20 ms |
| Front Protection Rating | IP41 |
| Rear Protection Rating | IP20 |
| Application | Industrial automation, SCADA, machine control, production monitoring and industrial data processing |
| Dimensions | 444 × 430 × 177 mm |
| Weight | 17 kg |
FAQ
1. What is Siemens 6AG4114-3HB12-0XX2 used for?
Siemens 6AG4114-3HB12-0XX2 is a SIMATIC IPC847E 19-inch 4U industrial Rack PC designed for industrial automation, SCADA, machine control, production monitoring and industrial data processing applications.
2. Which processor is installed in the 6AG4114-3HB12-0XX2?
This configuration uses an Intel Core i7-8700 processor with 6 cores and 12 threads. It has a 3.2 GHz base frequency, up to 4.6 GHz Turbo frequency and 12 MB cache.
3. How much memory does this industrial computer have?
The 6AG4114-3HB12-0XX2 is configured with 16 GB DDR4 SDRAM using 2 × 8 GB modules in Dual Channel mode. The SIMATIC IPC847E platform supports memory configurations up to 128 GB depending on the selected hardware configuration.
4. What communication interfaces are available?
The computer provides 3 Gigabit Ethernet RJ45 interfaces for industrial Ethernet and PROFINET communication. It also provides a COM1 RS-232 interface, with an additional COM2 interface available depending on the configuration.
5. Which display and USB interfaces are supported?
The IPC847E provides 2 DisplayPort interfaces and 1 DVI-D interface. It also includes multiple USB interfaces, including USB 3.1, USB Type-C and USB 3.0 connections, depending on the specific interface location.
6. What power supply does the 6AG4114-3HB12-0XX2 use?
The system uses a 100/240 V AC autoranging industrial power supply with a 50/60 Hz input frequency. It also provides approximately 20 ms of mains buffering to help maintain operation during short voltage interruptions.
7. How can an IPC847E startup or operating fault be diagnosed?
Check the AC power supply, power connections, memory, storage device and expansion cards first. The temperature and fan monitoring functions should also be checked. If unexpected resets or application interruptions occur, inspect the Watchdog status and connected industrial communication devices.
8. What should be checked when replacing a 6AG4114-3HB12-0XX2?
Before replacement, verify the complete MLFB number, processor, memory, storage configuration, expansion cards, communication interfaces and power supply. The operating system, drivers and industrial applications such as PLC or SCADA software should also be checked for compatibility with the replacement computer.
Siemens 6AG4114-3HB12-0XX2 Rack-Mount Industrial Computer is in stock. Please contact us for a quick quote and competitive pricing.
