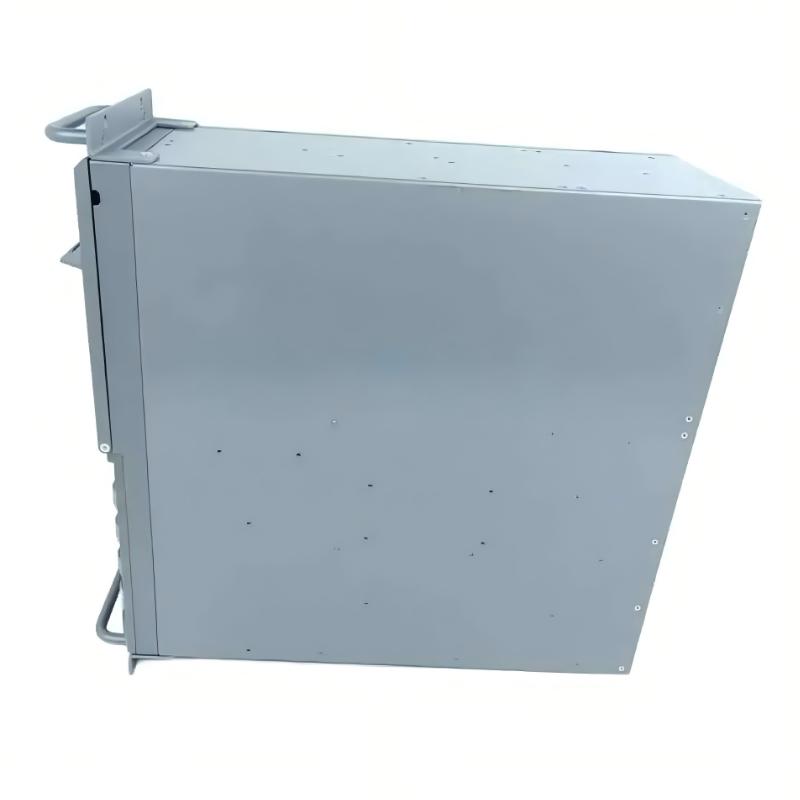

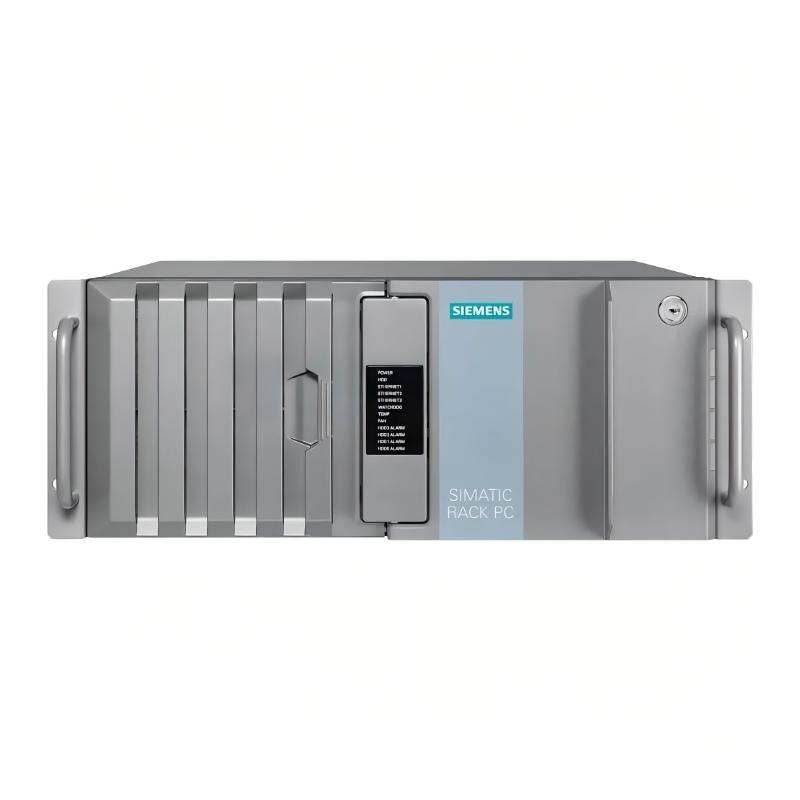

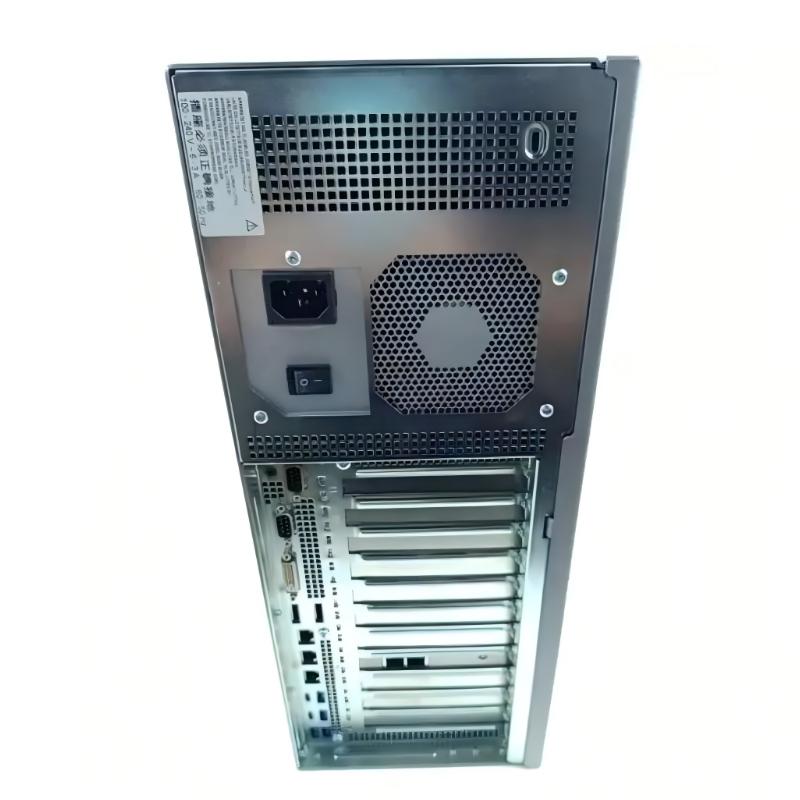

Siemens 6AG4114-3HE02-0HX3 Rack-Mount Industrial Computer
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | Siemens |
| Model | 6AG4114-3HE02-0HX3 |
| Product Series | SIMATIC IPC847E |
| Product Type | Rack-Mount Industrial Computer |
| Design | 19-inch, 4U Rack PC |
| Mounting | Rack mounting; suitable for horizontal and vertical installation |
| Processor | Intel Core i7-8700 |
| Processor Cores / Threads | 6 Cores / 12 Threads |
| Base Frequency | 3.2 GHz |
| Max. Turbo Frequency | 4.6 GHz |
| Processor Cache | 12 MB |
| Chipset | Intel C246 |
| Installed Memory | 16 GB DDR4 SDRAM, 2 × 8 GB, Dual Channel |
| Maximum Memory | Up to 128 GB DDR4 SDRAM |
| Memory Type | DDR4 SDRAM |
| Industrial Ethernet | 3 × Gigabit Ethernet, RJ45 |
| Display Interfaces | 2 × DisplayPort, 1 × DVI-D |
| Serial Interface | 1 × COM1 RS-232; COM2 optional depending on configuration |
| USB Interfaces | 9 × USB |
| Audio Interfaces | Microphone input, line input and line output |
| Storage | RAID1, 2 × 4 TB 3.5-inch SATA HDD |
| Expansion | PCI and PCI Express expansion options, depending on configuration |
| Watchdog | Supported |
| Temperature Monitoring | Supported |
| Fan Monitoring | Supported |
| Power Supply | 100/240 V AC autoranging, 50/60 Hz |
| Mains Buffering | Approximately 20 ms |
| Industrial Ethernet Speed | 10/100/1000 Mbps |
| Front Protection Rating | IP41 |
| Rear Protection Rating | IP20 |
| Application | Industrial automation, SCADA, machine control, production monitoring and industrial data processing |
| Dimensions | 444 × 430 × 177 mm |
| Weight | 17 kg |
FAQ
1. What is Siemens 6AG4114-3HE02-0HX3 used for?
Siemens 6AG4114-3HE02-0HX3 is a SIMATIC IPC847E 19-inch 4U industrial Rack PC designed for industrial automation, SCADA, machine control, production monitoring and industrial data processing applications.
2. Which processor is installed in the 6AG4114-3HE02-0HX3?
This configuration uses an Intel Core i7-8700 processor with 6 cores and 12 threads. It has a 3.2 GHz base frequency, up to 4.6 GHz Turbo frequency and 12 MB cache.
3. How much memory does the 6AG4114-3HE02-0HX3 provide?
The configuration is equipped with 16 GB DDR4 SDRAM using 2 × 8 GB modules in Dual Channel mode. The SIMATIC IPC847E platform supports memory configurations up to 128 GB, depending on the selected configuration.
4. What storage configuration does this model use?
The 6AG4114-3HE02-0HX3 is configured with two 4 TB 3.5-inch SATA hard drives in RAID1. This configuration provides data redundancy, allowing the system to continue operating if one drive fails.
5. Which communication and I/O interfaces are available?
The system provides 3 Gigabit Ethernet RJ45 interfaces, 2 DisplayPort interfaces, 1 DVI-D interface, 1 COM1 RS-232 interface, multiple USB interfaces and audio connections. A COM2 interface can be added depending on the configuration.
6. What power supply does the industrial computer require?
The 6AG4114-3HE02-0HX3 uses a 100/240 V AC autoranging power supply with a 50/60 Hz input frequency. The system provides approximately 20 ms of mains buffering for short power interruptions.
7. How should a RAID1 or storage fault be diagnosed?
Check the RAID controller or system monitoring information for drive status and identify whether one of the SATA drives has entered a failed or degraded state. The affected drive should be replaced with a compatible drive, followed by RAID rebuilding and verification of system data integrity.
8. Can the 6AG4114-3HE02-0HX3 be integrated with Siemens PLC and PROFINET systems?
Yes. The three Gigabit Ethernet interfaces support Industrial Ethernet and PROFINET communication. The IPC can be used as a supervisory, SCADA, visualization or data-processing computer alongside Siemens PLC systems, provided the installed operating system and automation software support the required communication protocols.
Siemens 6AG4114-3HE02-0HX3 Rack-Mount Industrial Computer is in stock. Please contact us for a quick quote and competitive pricing.
