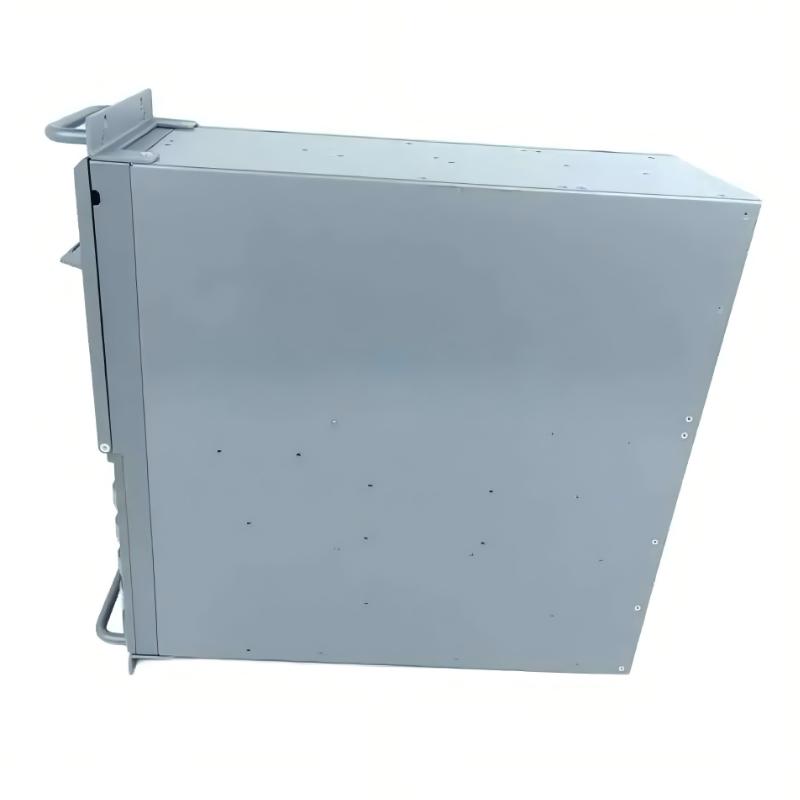

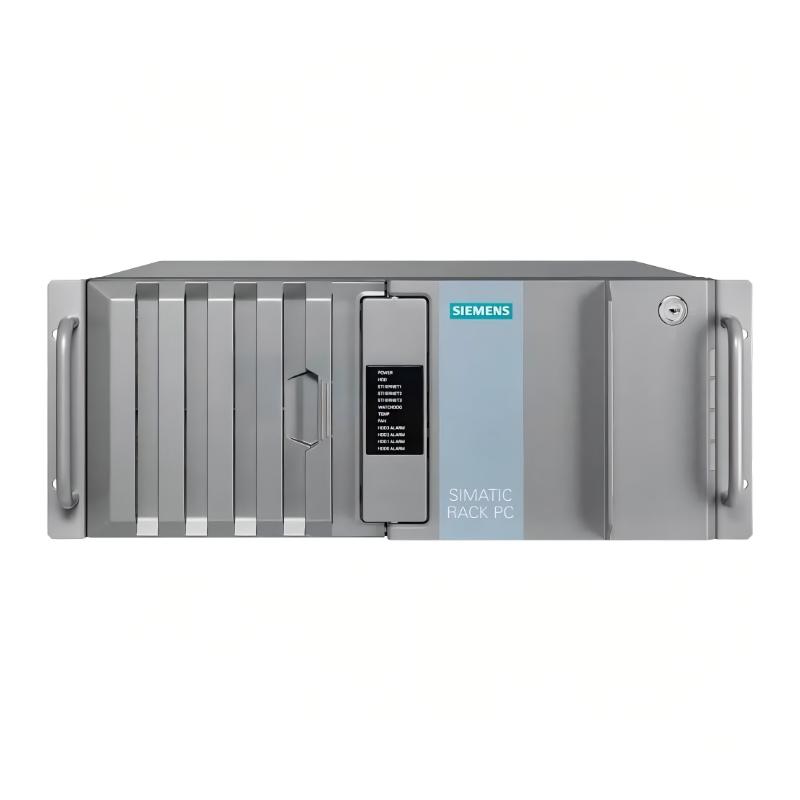

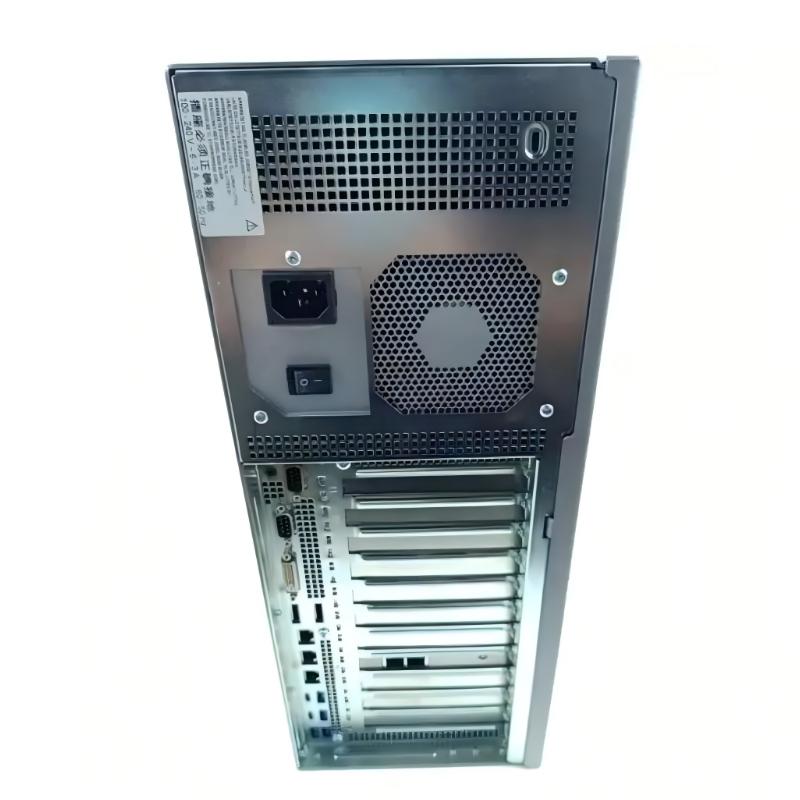

Siemens 6AG4114-3HQ02-0BX1 Rack-Mount Industrial Computer
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | Siemens |
| Model | 6AG4114-3HQ02-0BX1 |
| Product Series | SIMATIC IPC847E |
| Product Type | Rack-Mount Industrial Computer |
| Design | 19-inch, 4U Rack PC |
| Processor | Intel Core i7-8700 |
| CPU Configuration | 6 Cores / 12 Threads |
| Processor Frequency | 3.2 GHz, up to 4.6 GHz Turbo |
| Cache | 12 MB |
| Chipset | Intel C246 |
| Main Memory | 16 GB DDR4 SDRAM, 2 × 8 GB, Dual Channel |
| Maximum Memory | Up to 128 GB DDR4 SDRAM |
| Storage | 1 × 480 GB 2.5-inch SATA SSD |
| Ethernet Interfaces | 3 × Gigabit Ethernet, RJ45, Industrial Ethernet / PROFINET |
| Serial Interface | 1 × COM1 RS-232 |
| Display Interfaces | 2 × DisplayPort, 1 × DVI-D |
| USB Interfaces | 4 × USB 3.1, 2 × USB 3.1 Type-C rear, 2 × USB 3.0 front, 1 × internal USB 3.1 |
| Audio | Microphone input, line input, line output |
| Expansion Slots | 11-slot board configuration: 3 × PCI, 1 × PCIe x16, 5 × PCIe x16, 2 × PCIe x4 |
| Monitoring | Temperature monitoring, fan monitoring |
| Protection Functions | Hardware Watchdog, card retainer |
| Operating System | Windows 10 Enterprise 2016 LTSB 64-bit, configuration-dependent |
| Power Supply | 100/240 V AC, autoranging, 50/60 Hz |
| Redundant Power | Optional redundant 100/240 V AC power supply |
| Operating Temperature | 0 °C to +50 °C with full configuration |
| Front Protection | IP41 |
| Dimensions | 444 × 430 × 177 mm |
| Weight | 17 kg |
FAQ
1. What is Siemens 6AG4114-3HQ02-0BX1 used for?
The Siemens 6AG4114-3HQ02-0BX1 is a SIMATIC IPC847E industrial rack computer designed for industrial automation, SCADA, HMI, process monitoring, data processing and control applications.
2. Which processor is installed in the 6AG4114-3HQ02-0BX1?
The system uses an Intel Core i7-8700 processor with 6 cores and 12 threads. It operates at 3.2 GHz and can reach up to 4.6 GHz with Turbo Boost. The processor has 12 MB cache and supports Intel VT-x, VT-d and AMT technologies.
3. How much memory does the 6AG4114-3HQ02-0BX1 have?
This configuration is equipped with 16 GB DDR4 SDRAM using two 8 GB modules in Dual Channel mode. The IPC847E platform supports memory expansion up to 128 GB, depending on the configuration.
4. What storage device is included?
The 6AG4114-3HQ02-0BX1 includes one 480 GB 2.5-inch SATA SSD. The SSD can be used for the operating system, industrial automation software, HMI applications and local data storage.
5. What communication interfaces are available?
The industrial PC provides three Gigabit Ethernet RJ45 interfaces for Industrial Ethernet and PROFINET communication. It also includes one COM1 RS-232 serial interface for compatible service or automation equipment.
6. What expansion options are available?
The 11-slot board configuration provides multiple PCI and PCI Express expansion slots. This allows additional communication cards, acquisition cards, interface cards and other industrial expansion modules to be installed according to system requirements.
7. What functions are available for system monitoring and protection?
The IPC847E provides temperature monitoring, fan monitoring and a hardware Watchdog function. These features help monitor critical operating conditions and improve system stability in industrial environments.
8. What power supply does the 6AG4114-3HQ02-0BX1 use?
The system uses a 100/240 V AC autoranging industrial power supply at 50/60 Hz. An optional redundant 100/240 V AC power supply can be used when higher power availability is required.
Siemens 6AG4114-3HQ02-0BX1 Rack-Mount Industrial Computer is in stock. Please contact us for a quick quote and competitive pricing.
