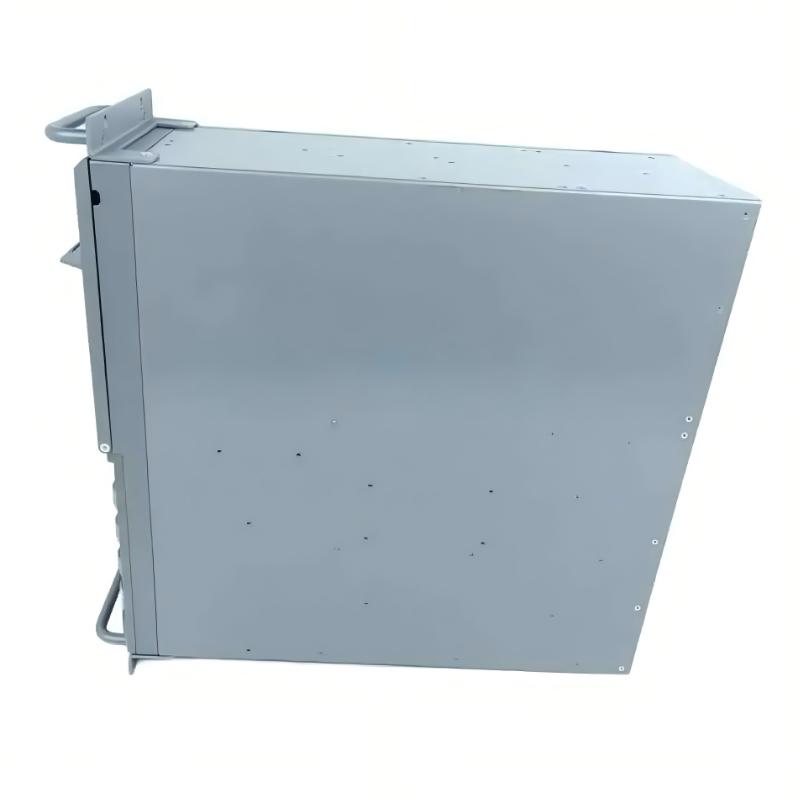

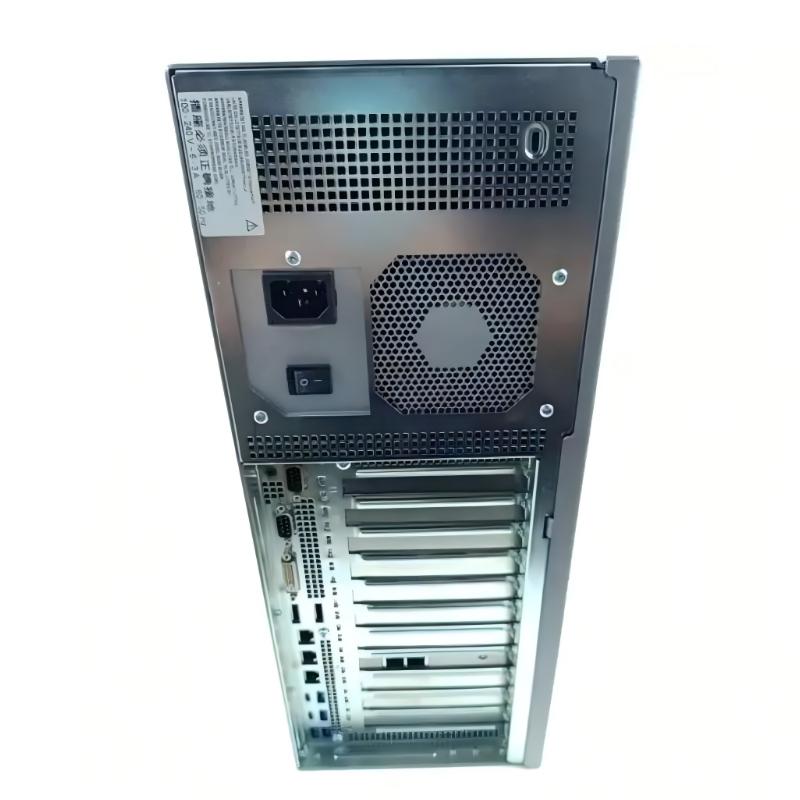

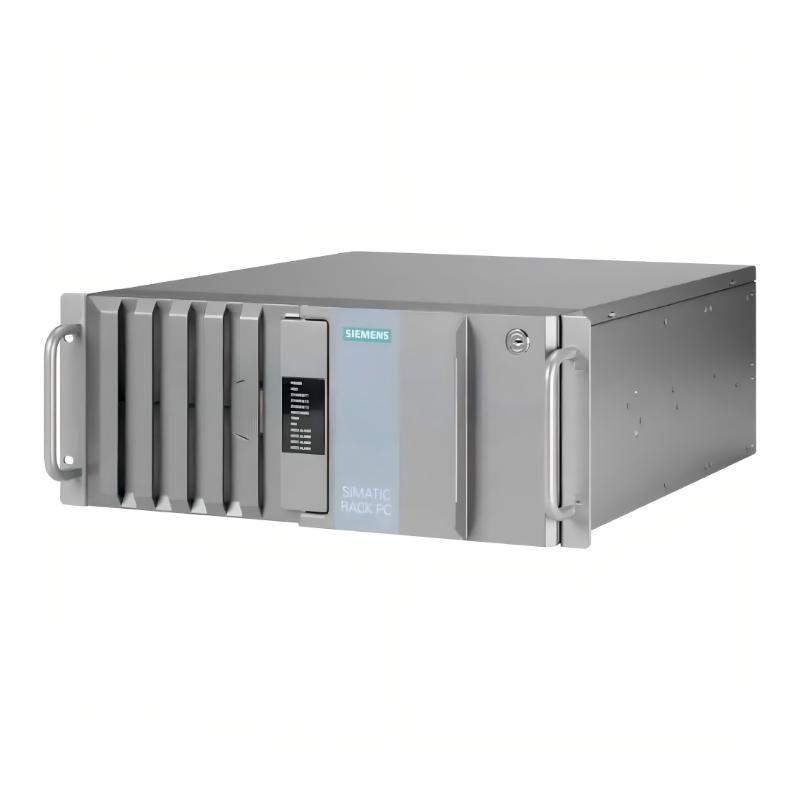

Siemens 6AG4114-3HQ01-0BX3 Rack-Mount Industrial Computer
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | Siemens |
| Model | 6AG4114-3HQ01-0BX3 |
| Product Series | SIMATIC IPC847E |
| Product Type | Rack-Mount Industrial Computer |
| Design | 19-inch, 4U Rack PC |
| Processor | Intel Core i7-8700 |
| CPU Configuration | 6 Cores / 12 Threads |
| Processor Frequency | 3.2 GHz, up to 4.6 GHz Turbo |
| Cache | 12 MB |
| Chipset | Intel C246 |
| Maximum Memory | Up to 128 GB DDR4 SDRAM |
| Ethernet Interfaces | 3 × Gigabit Ethernet, Industrial Ethernet / PROFINET |
| Serial Interfaces | 1 × COM1 RS-232; optional COM2 RS-232 |
| Display Interfaces | 2 × DisplayPort, 1 × DVI-D |
| USB Interfaces | 9 × USB, including 1 × internal USB 3.1 |
| Audio | Microphone input, line input, line output |
| Storage | SATA-based storage supported; exact storage configuration depends on the ordered configuration |
| Expansion | PCI / PCI Express expansion slots, configuration-dependent |
| Graphics | Integrated Intel UHD Graphics 630 |
| Monitoring Functions | Temperature monitoring, fan monitoring, hardware Watchdog |
| Power Supply | 100/240 V AC autoranging, 50/60 Hz |
| Power Failure Buffering | Approx. 20 ms |
| Front Protection | IP41 |
| Rear Protection | IP20 |
| Dimensions | 444 × 430 × 177 mm |
| Weight | 17 kg |
| Typical Applications | Industrial automation, SCADA, HMI, process control, machine visualization, industrial data processing and control systems |
FAQ
1. What is Siemens 6AG4114-3HQ01-0BX3 used for?
The Siemens 6AG4114-3HQ01-0BX3 is a SIMATIC IPC847E industrial rack PC designed for industrial automation, SCADA, HMI, process control, data processing and other applications requiring reliable industrial computing.
2. What processor is used in the 6AG4114-3HQ01-0BX3?
This configuration uses an Intel Core i7-8700 processor with 6 cores and 12 threads. The base frequency is 3.2 GHz and the Turbo frequency can reach up to 4.6 GHz, with 12 MB cache.
3. How much memory can the SIMATIC IPC847E support?
The IPC847E platform supports up to 128 GB of DDR4 SDRAM. The actual installed memory depends on the specific product configuration.
4. What communication interfaces are available?
The unit provides three Gigabit Ethernet interfaces for Industrial Ethernet and PROFINET applications. It also includes one standard RS-232 COM1 interface, while COM2 can be available as an optional interface.
5. What display and peripheral interfaces are provided?
The computer provides two DisplayPort outputs, one DVI-D interface, nine USB interfaces and audio interfaces for microphone input, line input and line output.
6. What power supply does the 6AG4114-3HQ01-0BX3 require?
The industrial PC uses a 100/240 V AC autoranging power supply at 50/60 Hz. An optional redundant 100/240 V AC power supply can be configured for applications requiring additional power redundancy.
7. How can communication problems be diagnosed on this industrial PC?
Check the Ethernet cable and link indicators first, then verify the network adapter configuration, IP address, subnet settings and PROFINET or Industrial Ethernet configuration. For serial communication, check the COM port assignment, RS-232 wiring and communication parameters.
8. What should be checked before replacing the 6AG4114-3HQ01-0BX3?
Before replacement, record the installed operating system, software environment, network settings, storage configuration and expansion cards. The replacement unit should also be checked for compatible processor, memory, storage, expansion interfaces and power requirements to ensure system compatibility.
Siemens 6AG4114-3HQ01-0BX3 Rack-Mount Industrial Computer is in stock. Please contact us for a quick quote and competitive pricing.
