1. What are the main applications of the Siemens 6AG4114-3HQ11-0DX3?

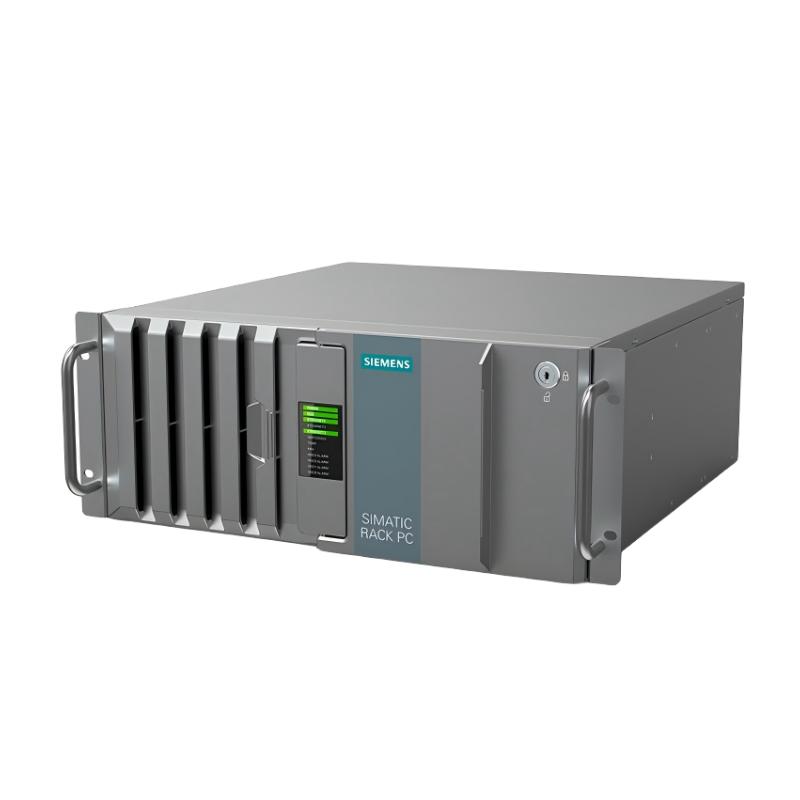

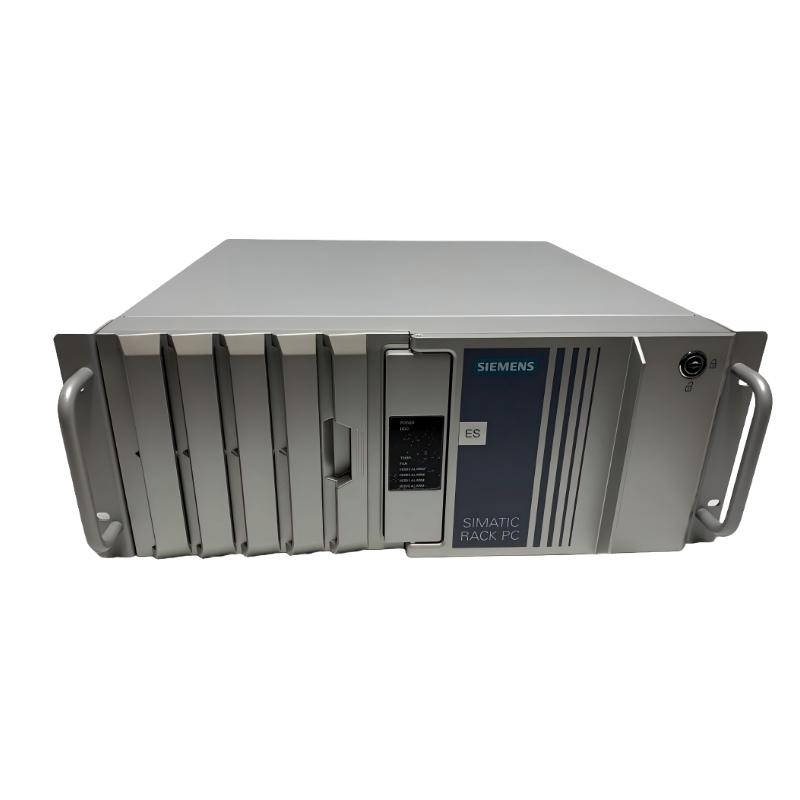

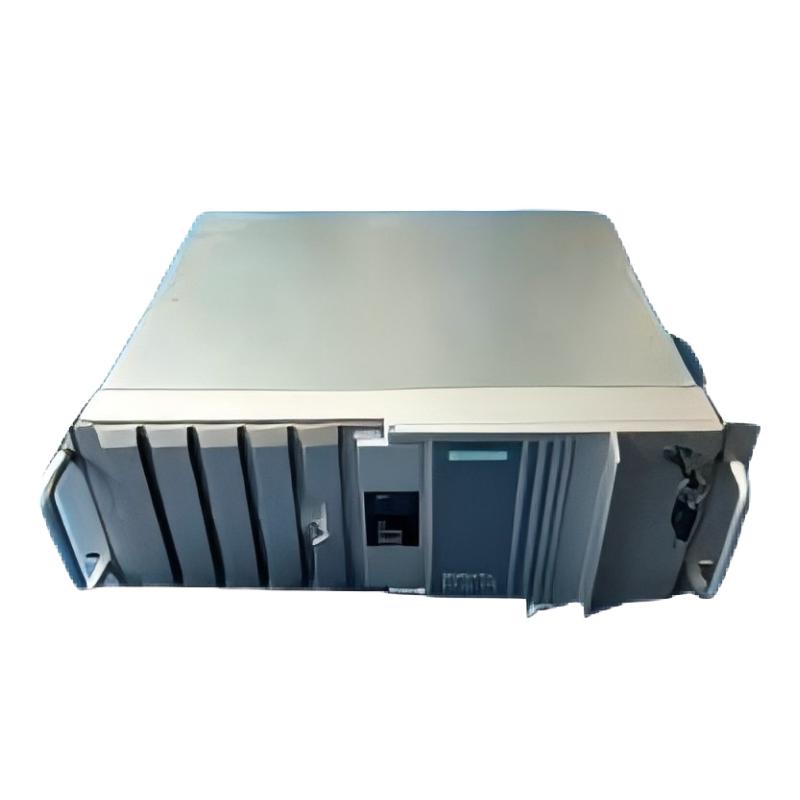

The Siemens 6AG4114-3HQ11-0DX3 is a SIMATIC IPC847E 19-inch 4U rack-mount industrial computer designed for demanding industrial computing environments. Typical applications include SCADA systems, HMI visualization, production data acquisition, industrial databases, equipment monitoring, industrial network management, and PC-based automation. Its rack-mount design and extensive expansion capabilities make it suitable for integration into industrial control cabinets and centralized automation server systems.

2. What processor is used in the 6AG4114-3HQ11-0DX3?
This configuration uses an Intel Core i7-8700 processor with 6 physical cores and 12 threads. It operates at a base frequency of 3.2 GHz and can reach up to 4.6 GHz under Turbo operation, with 12 MB of cache. The processor is suitable for SCADA visualization, industrial data processing, engineering applications, and multitasking environments where several automation-related programs may need to operate simultaneously.

3. What memory and storage configuration does the 6AG4114-3HQ11-0DX3 provide?
The industrial PC is configured with 16 GB of DDR4 SDRAM using two 8 GB modules in dual-channel mode. Storage is provided by a 480 GB 2.5-inch SATA SSD. The SSD provides fast system and application access without the moving components found in traditional mechanical hard drives. For applications such as SCADA systems that continuously generate historical production data, additional external or network-based storage may be considered according to the required data retention period.

4. What network interfaces are available on the 6AG4114-3HQ11-0DX3?
The system provides three Gigabit Ethernet interfaces using RJ45 connectors. These interfaces can be used for Industrial Ethernet, PROFINET-related communication, SCADA networking, PLC communication, and connections to other industrial Ethernet devices. Multiple network interfaces can also be used to separate automation, supervisory, and plant-level networks according to the system architecture, simplifying network management and reducing unnecessary traffic between different network segments.

5. Can PCI and PCIe expansion cards be installed in the 6AG4114-3HQ11-0DX3?
Yes. The IPC provides multiple PCI and PCI Express expansion slots, including three PCI slots and several PCIe slots. This allows the system to accommodate industrial communication cards, fieldbus interfaces, data acquisition cards, specialized interface boards, and other expansion hardware. Before installation, verify the card interface type, PCIe lane requirements, power consumption, physical compatibility, and operating-system driver support.

6. What display and USB interfaces are available?
The 6AG4114-3HQ11-0DX3 provides one DVI-D interface and two DisplayPort interfaces for industrial monitors and visualization equipment. USB interfaces are available on the front, rear, and internal areas of the system. The front USB ports are convenient for temporary maintenance devices such as keyboards, mice, or USB storage, while the rear interfaces can be used for permanently connected peripherals and automation equipment.

7. What is the purpose of the temperature monitoring and Watchdog functions?
Temperature monitoring helps detect abnormal internal operating temperatures, while fan monitoring provides information about the cooling system. The integrated Watchdog function monitors system operation and can help handle certain software or system response problems. These functions are particularly useful for industrial PCs that operate continuously. If temperature or fan alarms occur, the cabinet ventilation, airflow, cooling fans, and dust accumulation should be checked before continued operation.

8. How should the Siemens 6AG4114-3HQ11-0DX3 be maintained?
Routine maintenance should include inspection of power connections, network cables, expansion cards, cooling fans, and ventilation passages. In dusty industrial environments, the air inlets and cooling areas should be cleaned regularly to prevent restricted airflow and excessive temperature. The SSD condition, Windows event logs, and SCADA/HMI application logs should also be checked periodically. For critical automation systems, regular backups of the operating system, application software, communication configuration, and SCADA project files are recommended to reduce recovery time after a system failure.
